12 основной одномодовый волоконно-оптический cableGYFC8Y FRP многорежимный трансивер G652D волоконно-оптического кабеля 2 км в
- Категория товара: Communication Cables >>>
- Поставщик (Оптовый магазин): Hongan,Group,Corporation,Limited
Поделиться:
Описание и отзывы
Характеристики
Product Description
GYFC8Y 2-12 core FRP singlemode multimode G652D fiber optic cable 2km per drum price

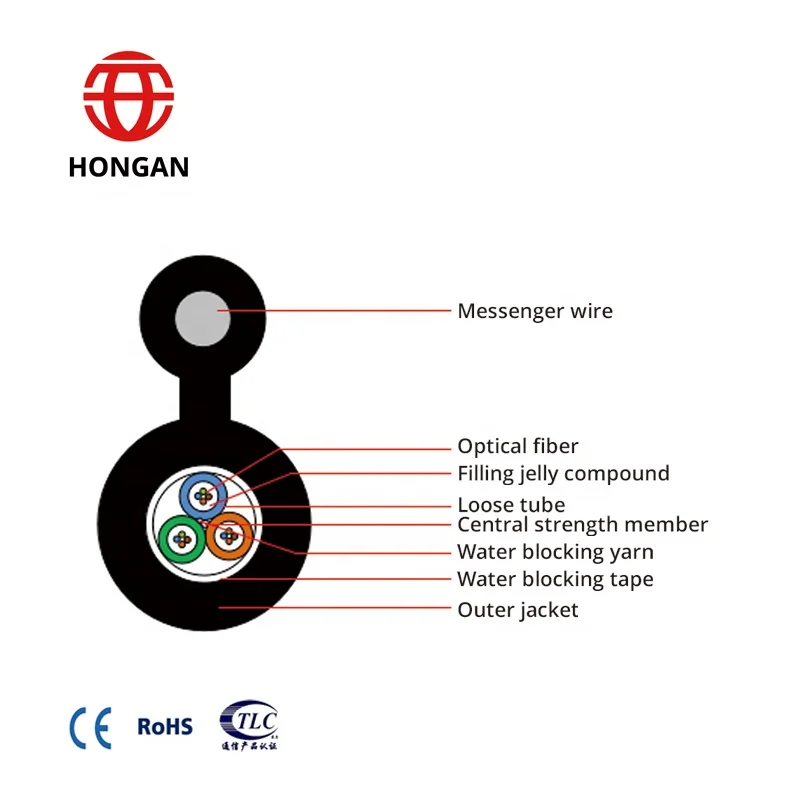

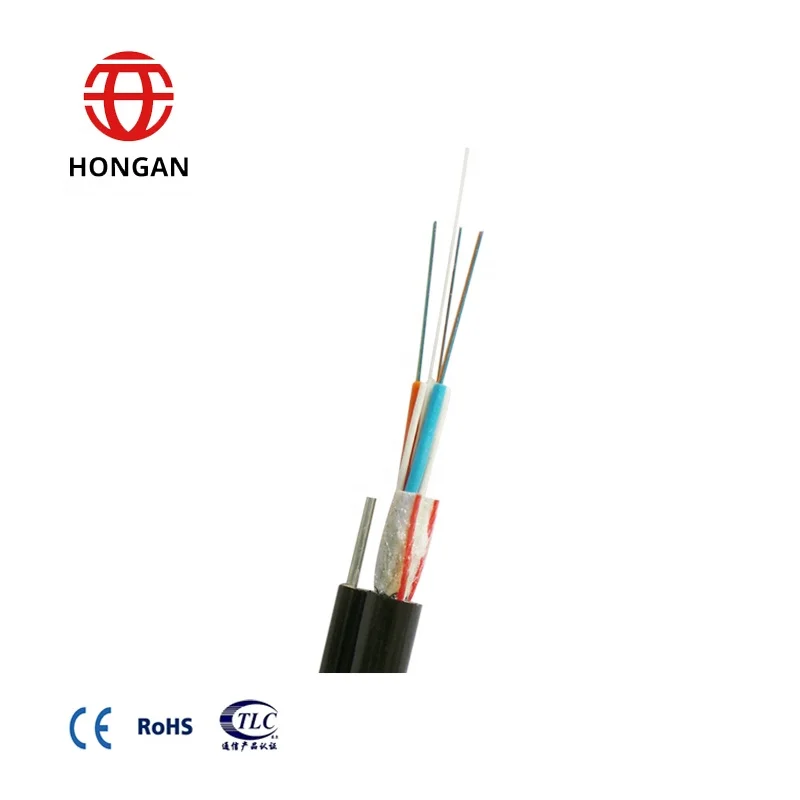

GYFC8Y semi-dry self-supporting figure 8 fiber optic cable consists of FRP central strength member, PE filler, loose tube filled with gel,waterblocking tape and yarn, PE sheath and steel wire messenger.
Applications:
Apply to Long distance communication system, Local area network system and Subscriber network system
Characteristics:
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
Fiber count |
Structure | Fibers per tube | Loose tube diameter (mm) |
CSM diameter /pad diameter (mm) | Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable Weight (kg/km) |
4 | 1+5 | 4 | 1.7±0.1 | 1.5/1.5 | 1.6±0.1 | 8.6 ±0.5/14.7 ±0.8 | 84 |
6 | 1+5 | 6 | 1.7±0.1 | 1.5/1.5 | 1.6±0.1 | 8.6 ±0.5/14.7 ±0.8 | 84 |
8 | 1+5 | 4 | 1.7±0.1 | 1.5/1.5 | 1.6±0.1 | 8.6 ±0.5/14.7 ±0.8 | 84 |
12 | 1+5 | 6 | 1.7±0.1 | 1.5/1.5 | 1.6±0.1 | 8.6 ±0.5/14.7 ±0.8 | 84 |
24 | 1+5 | 6 | 1.7±0.1 | 1.5/1.5 | 1.6±0.1 | 8.6 ±0.5/14.7 ±0.8 | 85 |
36 | 1+6 | 6 | 1.7±0.1 | 1.8/1.8 | 1.6±0.1 | 8.9 ±0.5/15.1 ±0.8 | 92 |
48 | 1+5 | 12 | 2.0±0.1 | 1.5/1.5 | 1.6±0.1 | 9.2 ±0.5/15.4 ±0.8 | 94 |
Packaging & Shipping
Certifications
Production Line
Company Information
FAQ
1. Are you the real factory? |
Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit. |
2. What is your fiber brand? |
Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning, YOFC and other brands. |
3.What is your main products? |
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable. |
4.What is your payment term? |
30% in advance, 70% before delivery. |
