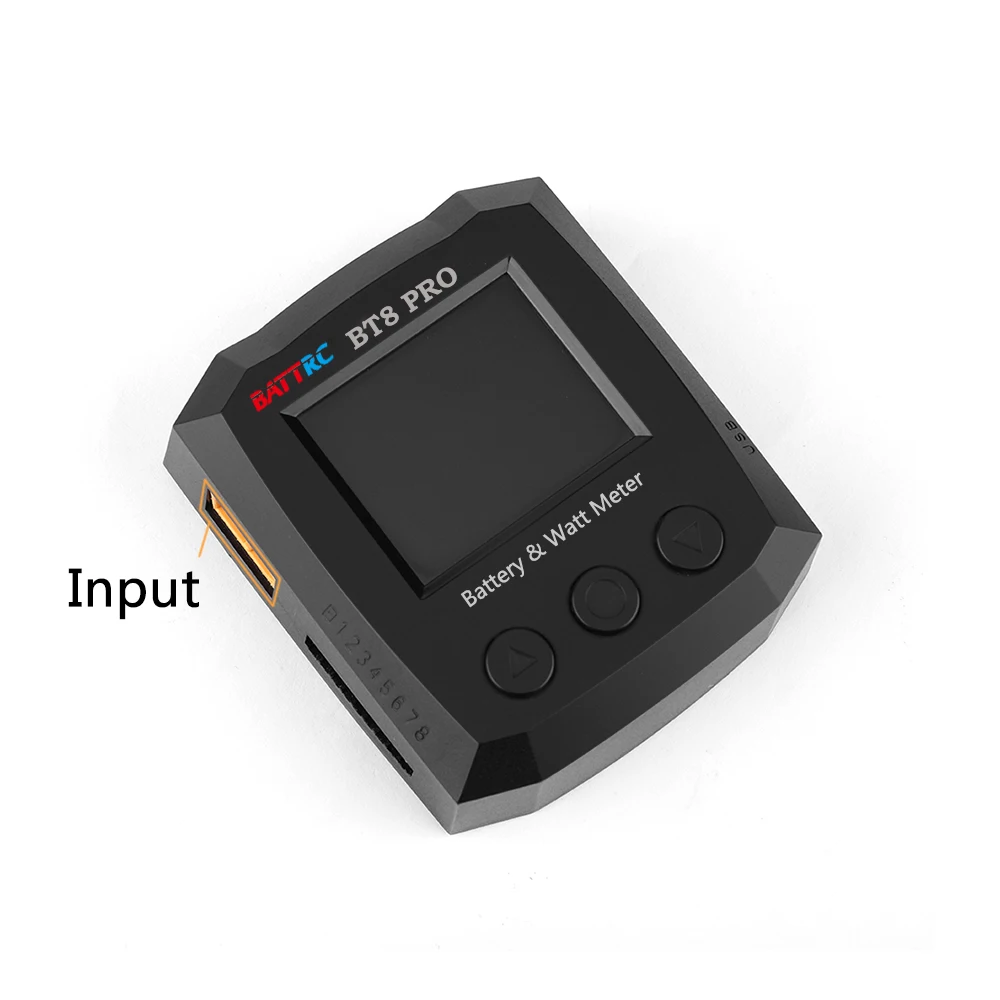

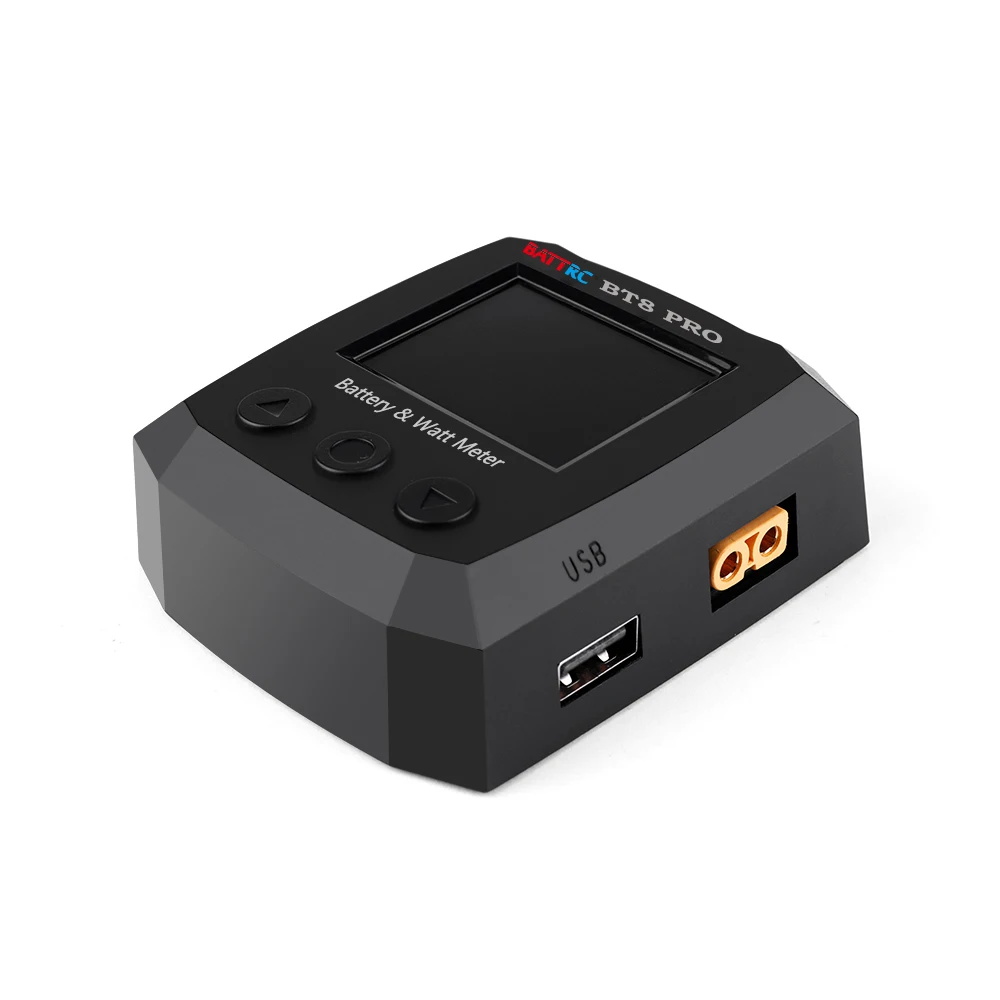

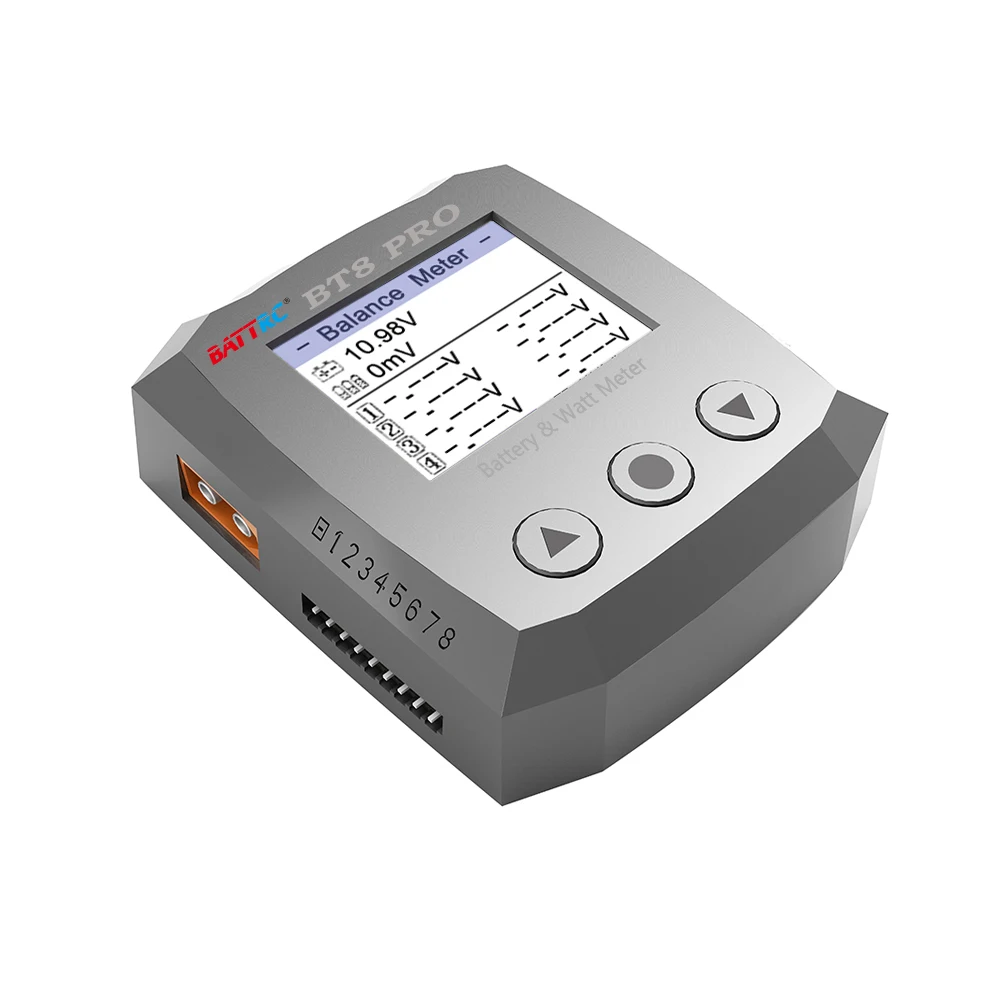

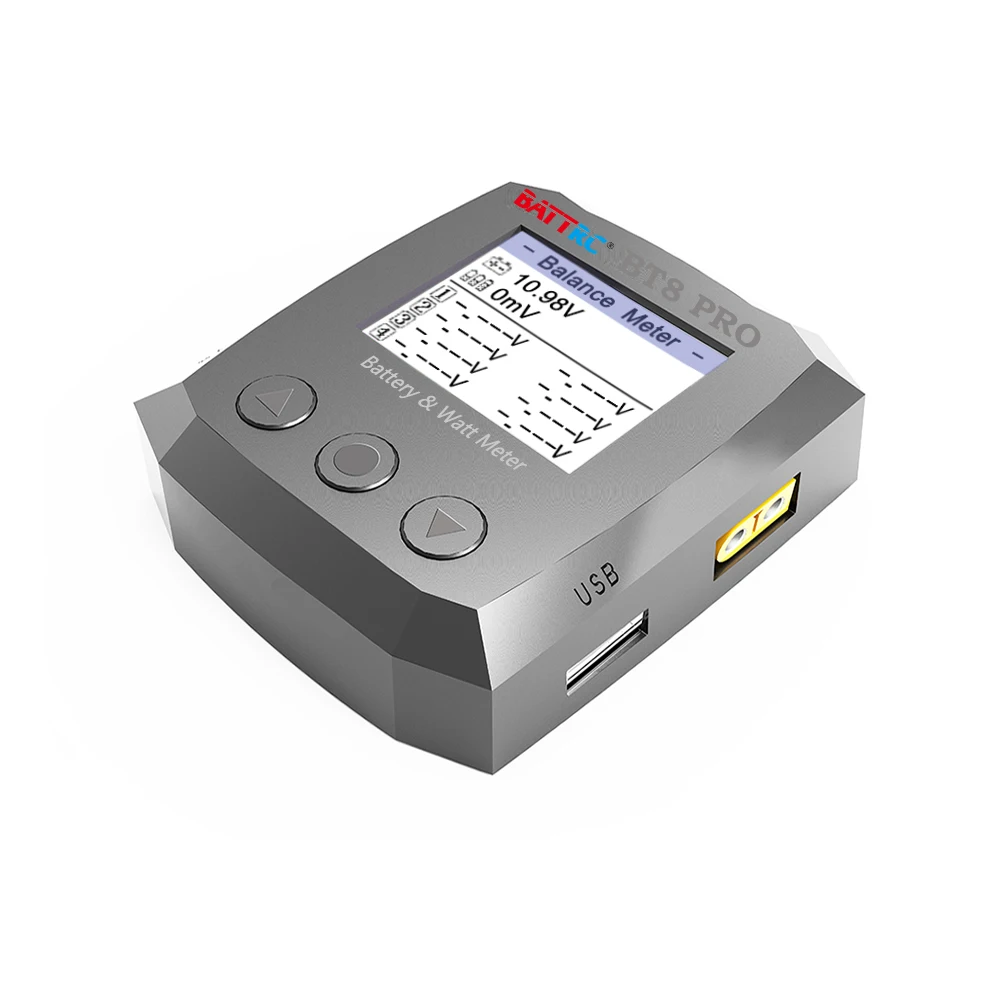

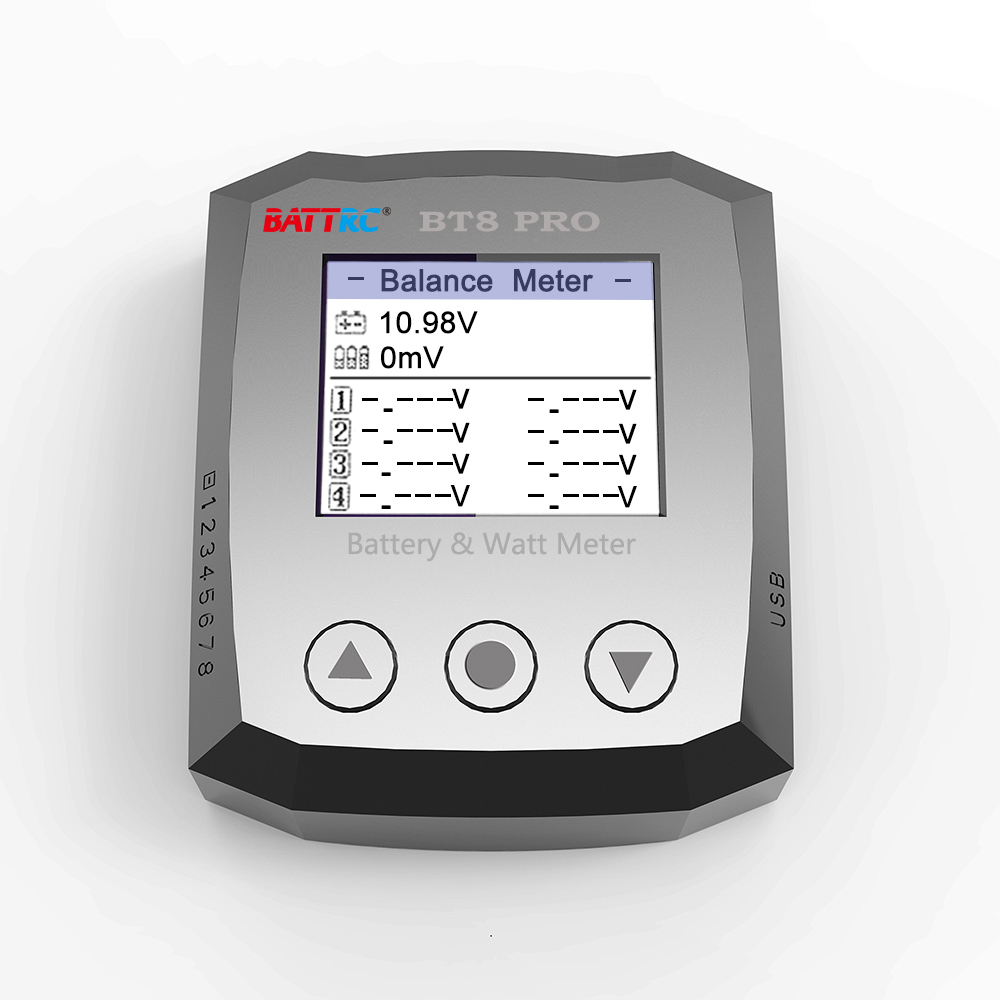

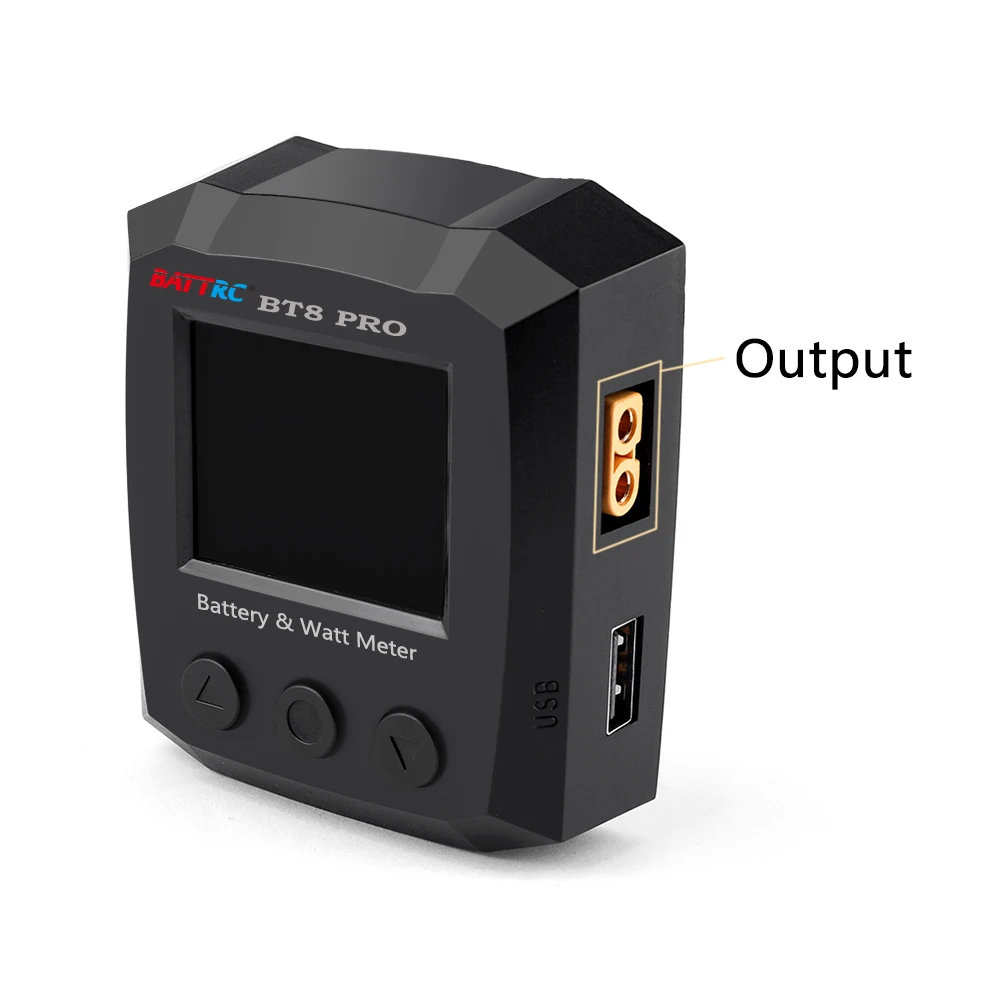

1-8S тестер напряжения литий-полимерных батарей

Input voltage :

1-8S Battery/6.0-36V

USB output voltage:

QC3.0

Power meter output current:

0-60A

Power meter output max. power:

 2160Watt

Power meter current measurement accuracy:

±0.01A

Balance meter cells:

1-8S

Voltage measurement accuracy:

±0.005V 4.2V/4.35V

Balancing cells accurancy:

0.005V

Support USB charging:

QC 2.0/3.0, Max. output 12V/2A

USB charger Input voltage:

Max.32V

Suppport smart battery:

Charging and discharging setting,

Supported Batt.Type:

LiHv(1-8S)/LiPo(1-8S)/LiFe(1-8S)                         Lilon(1-8S)/NiMH/Cd(1-10S)

Display:

 1.8//color LCD

Dimension:

76 x 64 x 25mm

Weight:

69g

Features:

1,Make battery smarter

BT8Pro easy to read cells voltage, battery circulations, working parameters and fast set to your preferred settings

2,Auto balancing cells voltage

Advanced auto balancing algorithm, make sure every cell is well balanced. After completion auto into low power mode.

3,Power Meter

Measure the circuit safety and 8 main parameters of its performance.

Prevent the battery,motor,motor speed controller,wires and connectors from damages caused by high current.

Check the load voltage,set up the safety voltage.

The unit can start to measure from 0V if there is an external power supply.

4,Powerful portable charging function

Connecting to your battery, M8Pro can become your power bank for mobile devices. Support  QC 2.0/3.0,  Maximum output 12V/2A.

5,Multiple measurement connections

Support XT60, XH2.54 1-8s balance lead, XH2.54 3 pin, JST ETC to measure voltage. Support LiHv, LiPo, Lilon, LiFe, NiMh/Cd battery and BEC output measurements.
