Product Description

Compound Geomembrane Geotextiles with Good Anti-seepage

Compound Geomembrane Geotextiles and Waterproofing Material is made of waterproof material with geotextile material and geomembrane, which is mainly used for impermeable geomembrane.

Physical and mechanical properties of tensile, tear, bursting and others are high to meet civil engineering needs likes irrigation, municipal, construction, transportation, subways, tunnels and so on. Due to its selection of polymer materials and the production process adds anti-aging agent, it can be used in unconventional temperature environment.

Composite Geomembrane is much better than single film performance, function is also many, composite geomembrane than single film Easy to construct, in the film Break hole, single film will be a large number of leakage, loss of anti-seepage effect, in a composite layer of geotextile, anti-pulling, anti-puncture of the various mechanical indicators have been greatly improved, will not easily in the transport and construction, the membrane damage, once a hole occurs , due to the resistance of geotextile, can limit a large number of leaks, to ensure the failure of processing time. Because the drainage function of geotextile can also make the osmotic water or pore water on the back of the film discharge smoothly, eliminate the failure of sliding instability due to the water and gas reverse permeability of the film, and also improve the friction coefficient of the contact surface of sand and pebbles, so that the film and the dam body contact well.

We are at geosynthethics production base and suppliers of premium quality composite geomembrane with filament nonwoven geotextile or short fiber nonwoven geotextile in north of China. Schiebel products are known throughout the world as a mark of quality and reliability.

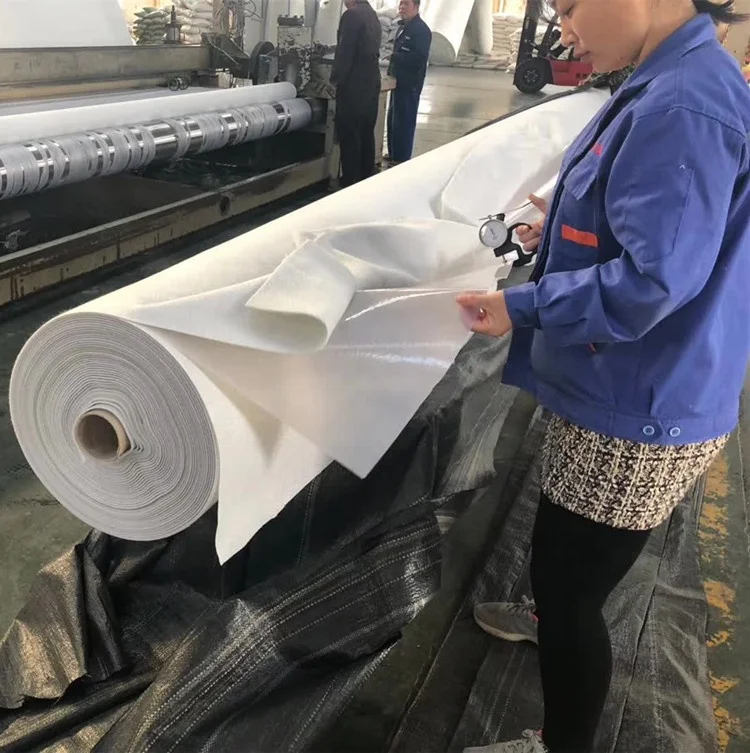

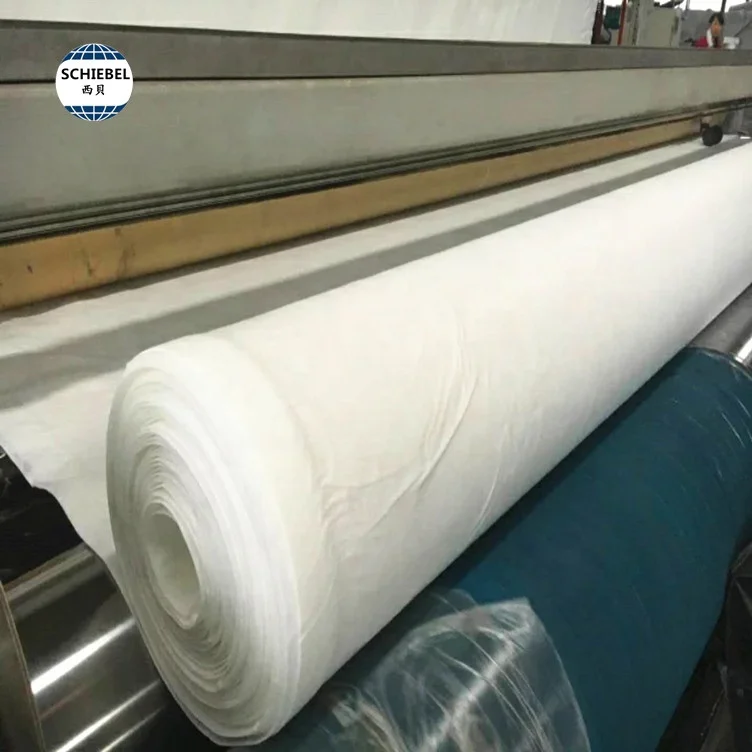

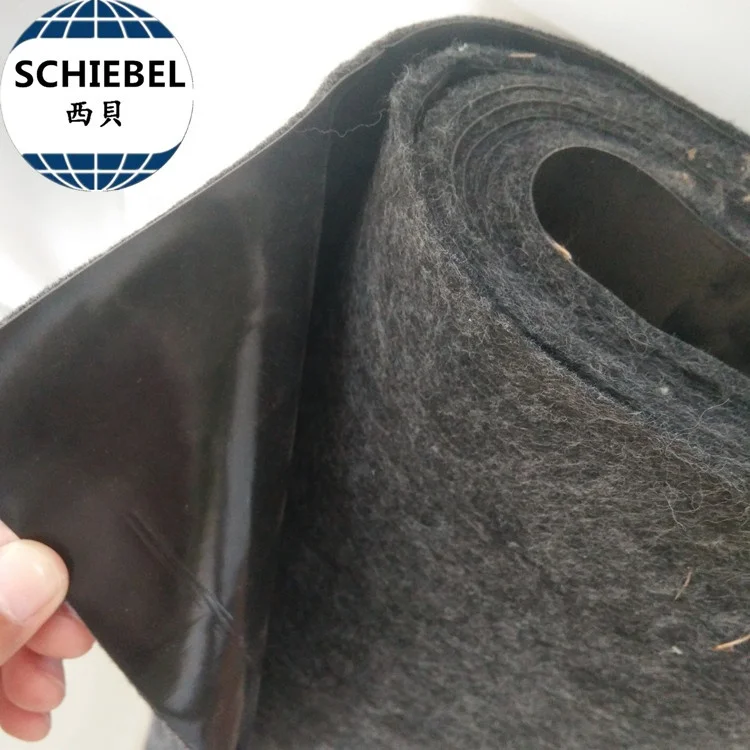

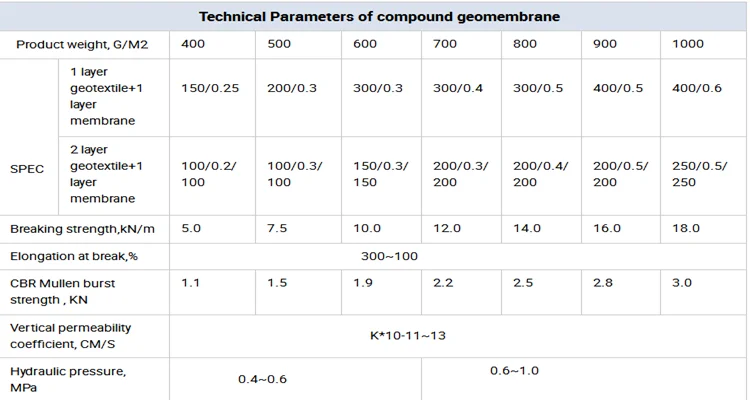

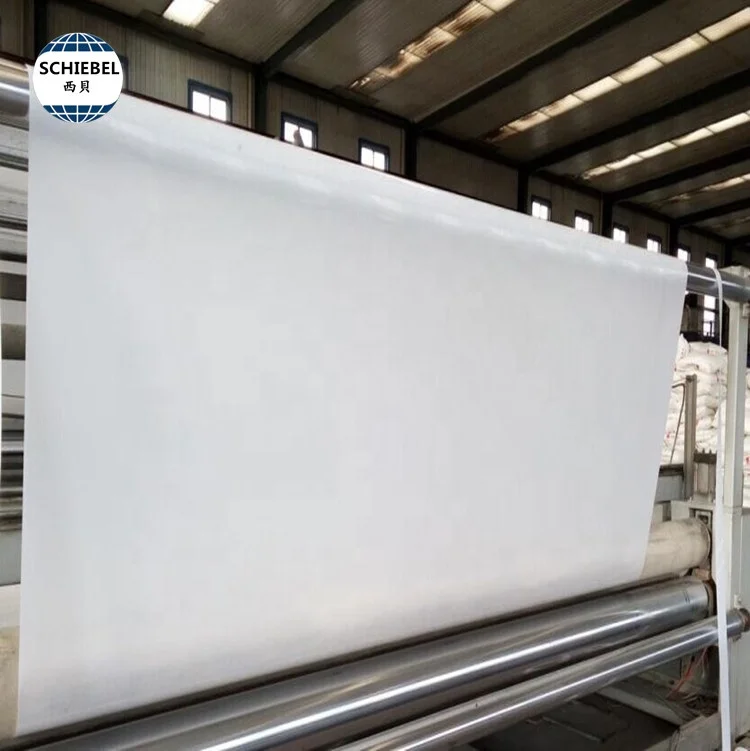

Detailed Images

Compound Geomembrane Geotextiles with Good Anti-seepage

1.Filament nonwoven geotextile or short fiber nonwoven geotextile :100-1000g/m2

2. The thickness of geomembrane: 0.2mm --- 1.5mm,

2.width: 2-6m ;

Packing & Delivery

Compound Geomembrane Geotextiles with Good Anti-seepage

Loading Quantity:

(1)1x20ft(5.8m(length) x2.35m(width) x2.39m(height)) : around 18t

(2)1x40ft (12.0m(length) x2.35m(width) x2.39m(height)) : around 22t

(3)1x40hc (12.0m(length) x2.35m(width) x2.69m(height)) :around 26t

Application

Compound Geomembrane Geotextiles with Good Anti-seepage

Geomembranes have been used in the following environmental, geotechnical, hydraulic, transportation, and private development applications:
As liners for potable water
As liners for reserve water (e.g., safe shutdown of nuclear facilities)
As liners for waste liquids (e.g., sewage sludge)
Liners for radioactive or hazardous waste liquid
As liners for secondary containment of underground storage tanks
As liners for solar ponds
As liners for brine solutions
As liners for the agriculture industry

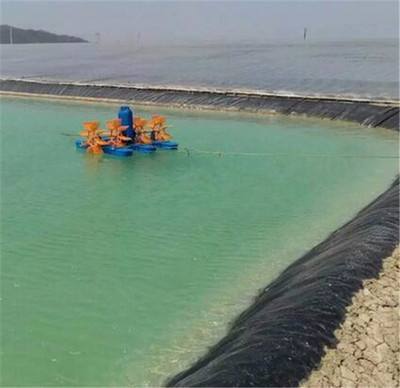

As liners for the aquiculture industry, such as fish/shrimp pond
As liners for golf course water holes and sand bunkers
As liners for all types of decorative and architectural ponds
As liners for water conveyance canals
As liners for various waste conveyance canals
As liners for primary, secondary, and/or tertiary solid-waste landfills and waste piles
As liners for heap leach pads
As covers (caps) for solid-waste landfills
As covers for aerobic and anaerobic manure digesters in the agriculture industry
As covers for power plant coal ash
As liners for vertical walls: single or double with leak detection
As cutoffs within zoned earth dams for seepage control
As linings for emergency spillways
As waterproofing liners within tunnels and pipelines
As waterproof facing of earth and rockfill dams
As waterproof facing for roller compacted concrete dams
As waterproof facing for masonry and concrete dams
Within cofferdams for seepage control
As floating reservoirs for seepage control
As floating reservoir covers for preventing pollution

To contain and transport liquids in trucks
To contain and transport potable water and other liquids in the ocean
As a barrier to odors from landfills
As a barrier to vapors (radon, hydrocarbons, etc.) beneath buildings
To control expansive soils
To control frost-susceptible soils
To shield sinkhole-susceptible areas from flowing water
To prevent infiltration of water in sensitive areas
To form barrier tubes as dams
To face structural supports as temporary cofferdams
To conduct water flow into preferred paths
Beneath highways to prevent pollution from deicing salts
Beneath and adjacent to highways to capture hazardous liquid spills
As containment structures for temporary surcharges
To aid in establishing uniformity of subsurface compressibility and subsidence
Beneath asphalt overlays as a waterproofing layer
To contain seepage losses in existing above-ground tanks

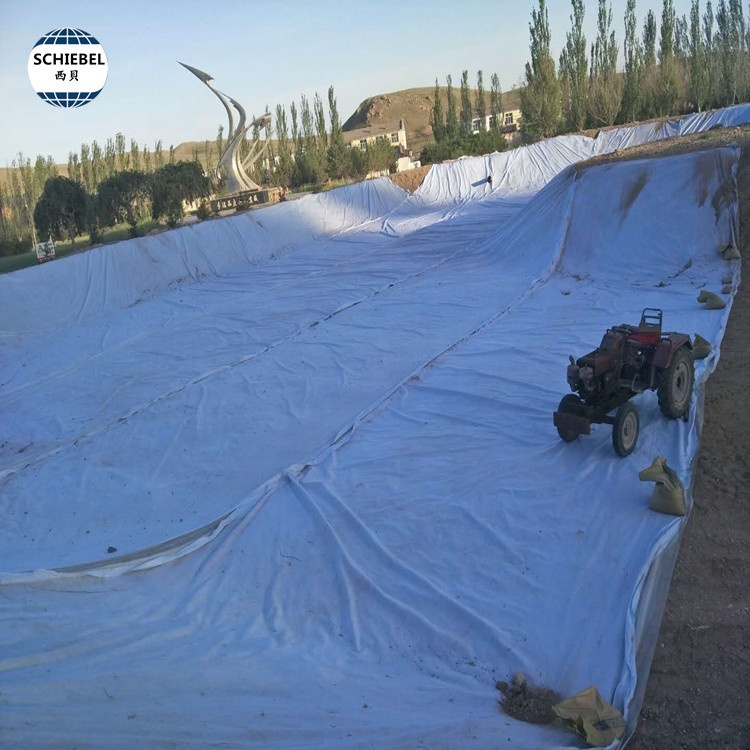

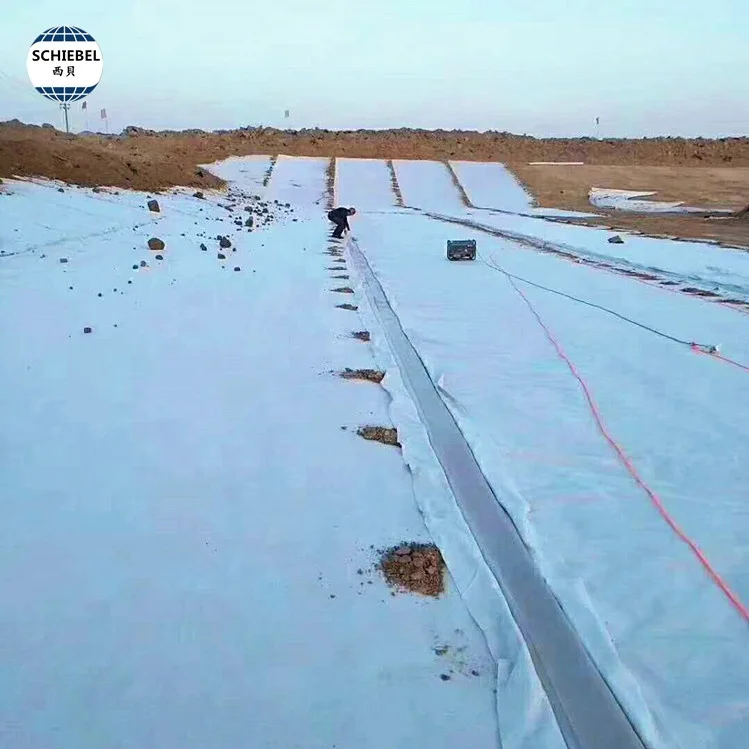

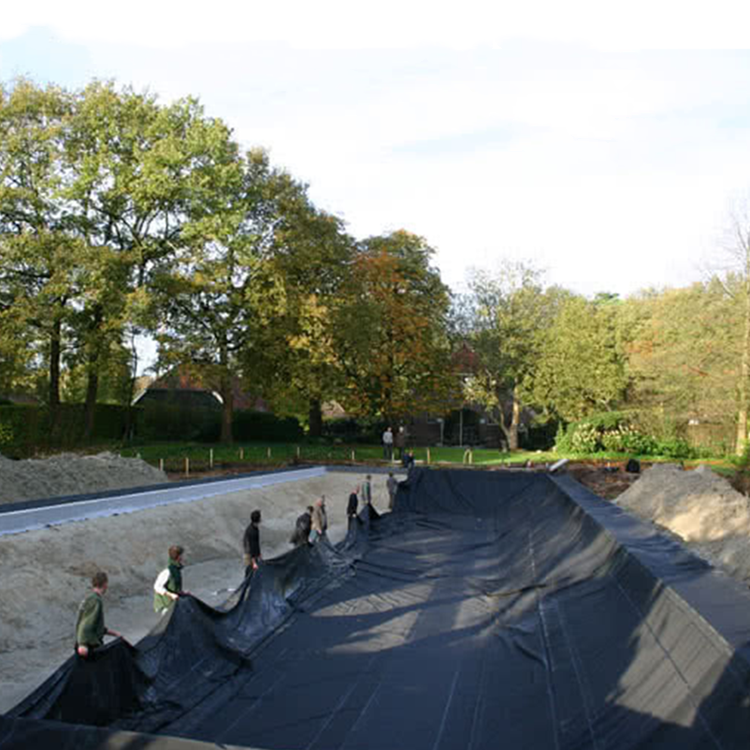

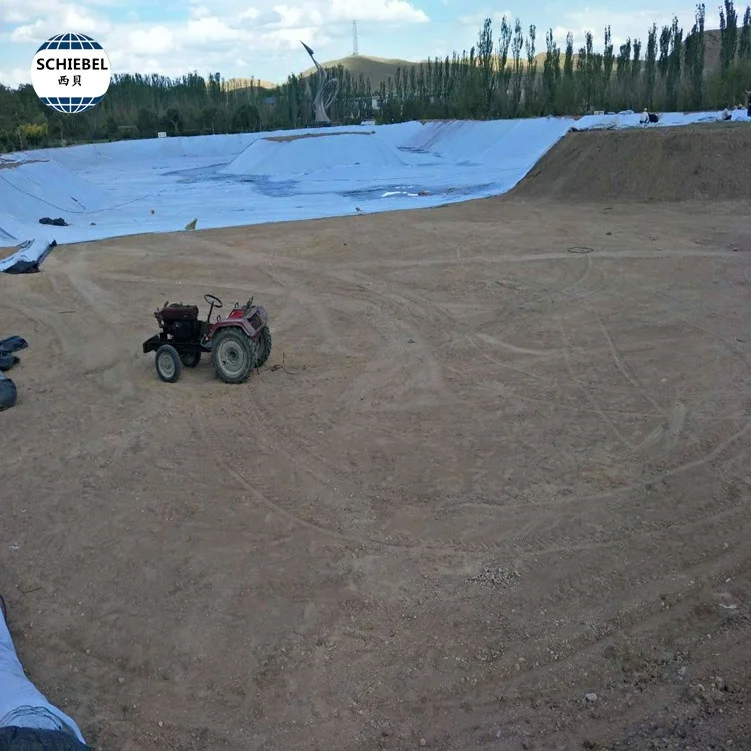

Install Case

Compound Geomembrane Geotextiles with Good Anti-seepage

1. Consider use geomembrane problem: Basic occupation of people is farming, which requires water. Majority of the water losses from the pond due to seepage is a threat for the farmers. Therefore the client needed a solution to avoid seepage, to store water for an extended period of time.
2. Solution
Considering the above, an impermeable lining of the pond is the ideal solution. The side slopes of the pond was dressed in a stable inclination of 1V: 1H with a horizontal beam in between . The slope as well as bed of the pond was lined with a geosynthetic solution.
1mm thick geomembrane (SCHIEBEL ASTM standard smooth surface geomembrane) will act as hard core impearmeable liner. This geomembrane was lined on a protective layer of non woven Geotextile.(schiebel PET 200gsm) To ensure the stability of liners, safe anchoring was done at the top by providing anchor trenches.
3. Advantages :
a. Easy handling and installation
b. Quality assurance and uniformity
c. Cost effectiveroduct: Geomembrane- Nonwoven Geotextile (SCHIEBEL Cost-effective and trustworthy brand)

Our Service

1. We are a Factory-Trade Integration Enterprise, which mainly produce and deal with Geo synthetics product.

Our company business response to customer requirements, do good products at the same time pay attention to customer experience, to provide customers with professional and timely, low-cost services.
You are welcomed to our factory any time .
2.Our material have pass the quality inspection system before delivery, was proved good quality easy construction by many projects.
3. Free samples at hands can be sent to you as soon as possible.

4. We have professional project service team. Our excellent team would be very happy to work with you and offer suggestions,product applications, and design assistance.

Our Company

Dezhou Xibei New Geo-Material Co., LTD. a Factory-Trade Integration Enterprise,is the professional and leading enterprise in the geosynthetics. Xibei has been 15 years long experiences. in order to better serve foreign trade customers, XIBEI as a separate brand operation. we sure the quality and price of the product are as satisfactory as ever

XIBEI hope to grow with customers together at home and abroad!!!
SCHIEBEL (XIBEI) products are widely used in national key engineering fields, such as water conservancy, railway, subway, highway, landfill, anti-seepage, construction industry, mining industry, agriculture, ecological greening system, etc. engineering fields, and exported to United States, Russia, Pakistan, Thailand, Tanzania, Australia, South Africa, Zambia, United Arab Emirates etc. more than 30 countries and regions.
