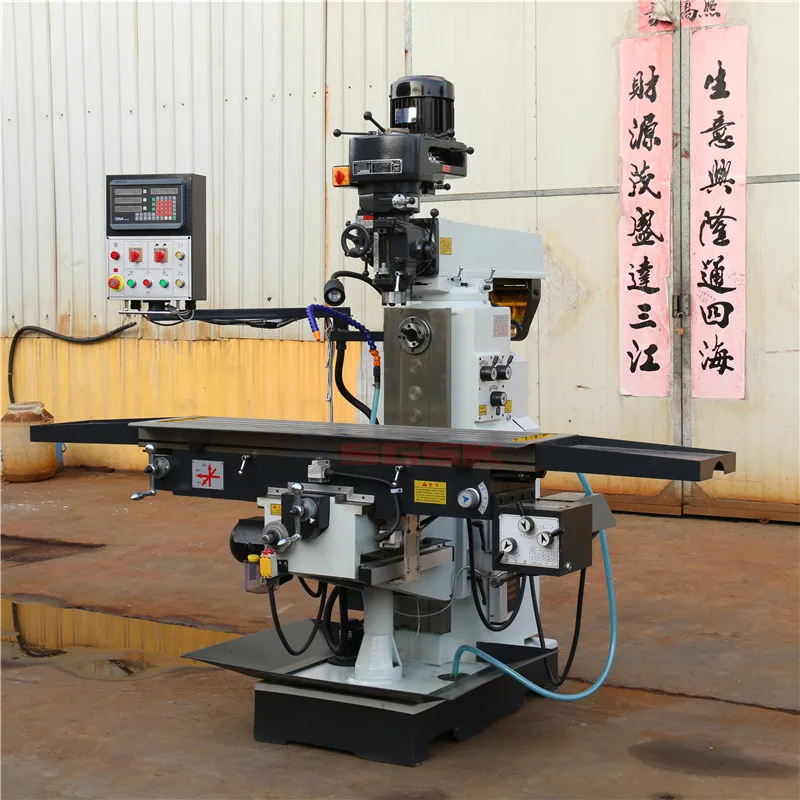

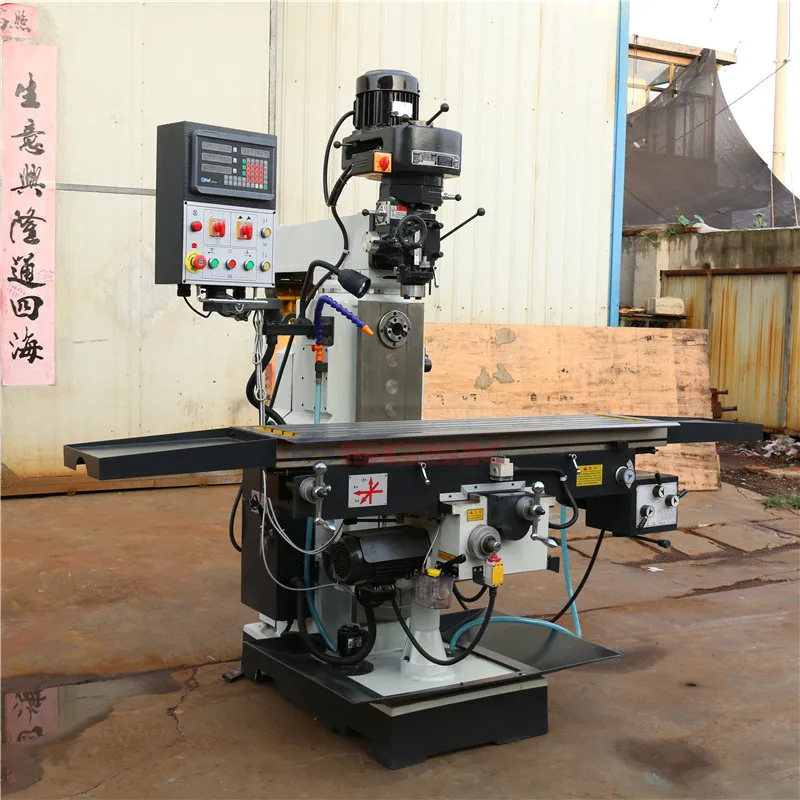

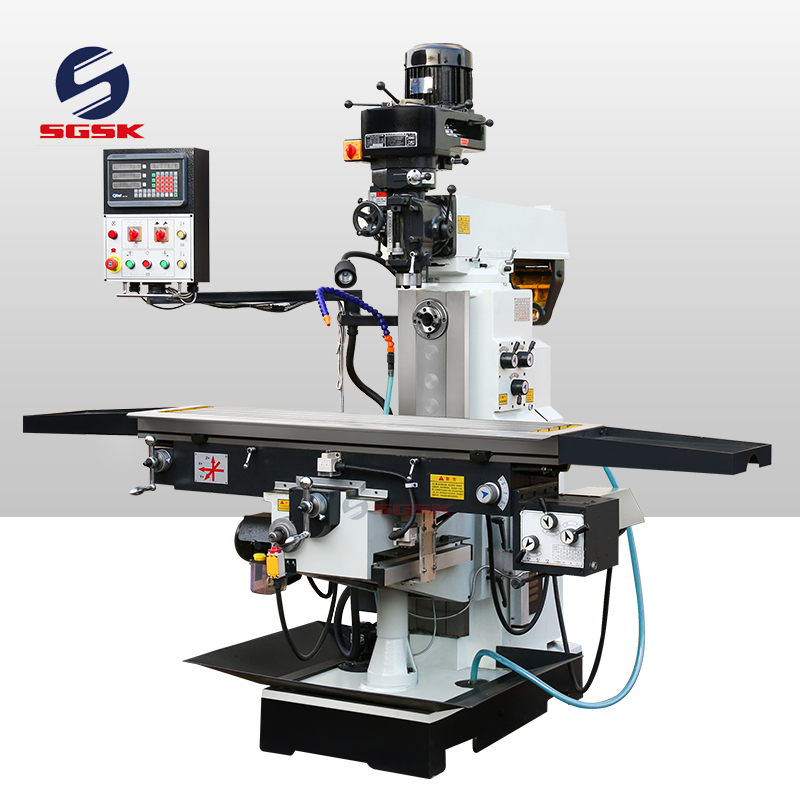

Horizontal vertical turret milling machine Precio fresadora X6332 Universal milling machine
Products Description

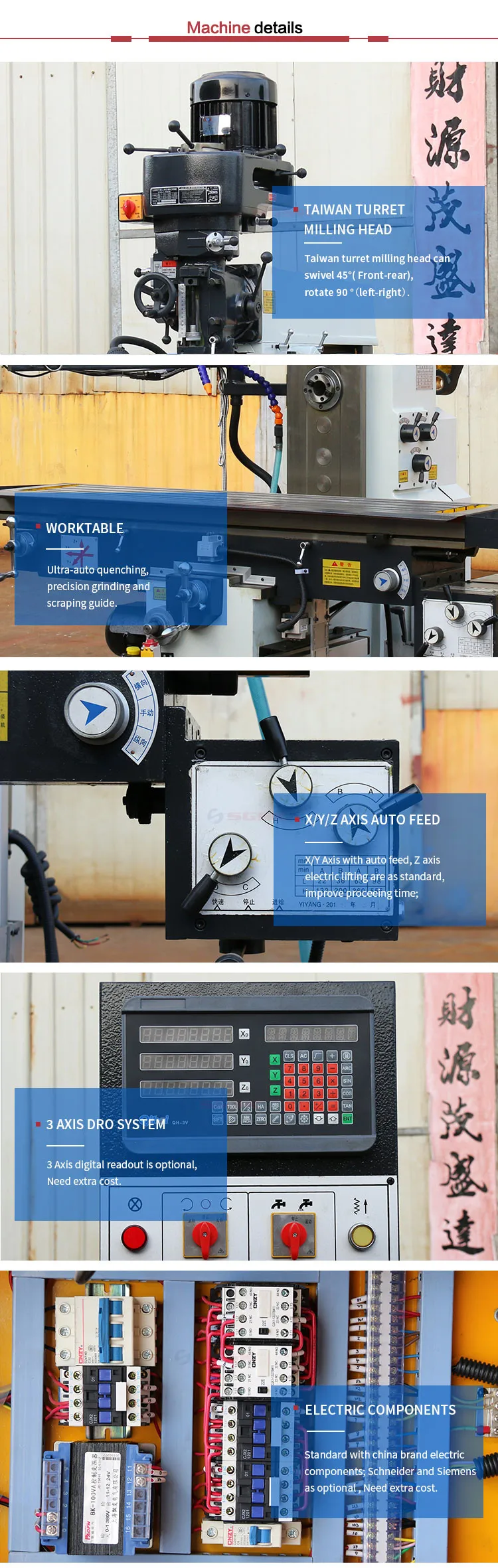

Details Images
Product Paramenters
Application：
1, Universal radial milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling. extensive use of performance
2, Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc
cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane,
grooves, holes, and other gear. 3, Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
1, Universal radial milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling. extensive use of performance
2, Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc
cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane,
grooves, holes, and other gear. 3, Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product main technical specifications:
Specifications | Units | X6332 |
Table size | mm | 1370x320 |
Table travel | mm | 800/300/400 |
T slot(number-width-pitch) | mm | 3-14-70 |
Spindle taper | ISO40 7:24 | |
Spindle speed range | rpm | (V) 50HZ:65-4500 60HZ:80-5440 (16 steps) (H) 40-1300 (12steps) |
Optional:(variable)65-4000 | ||
Spindle travel | mm | 127 |
Spindle feed range | mm | 0.04,0.08,0.15 (3 steps) |
Distance between spindle nose and table surface | mm | 140-540 |
Distance between spindle axis and table surface | mm | 0-400 |
Main motor power | kw | 2.2(V)3(H) |
Head rotation (left - right ) | ° | ±90° |
Head rotation (front - rear) | ° | ±45° |
Weight | kg | 2000 |
Overall dimension | mm | 2200x1820x2350 |
Repeat positioning accuracy | mm | ±0.005 |
Tool magazine | Arm550 24 | |
Max. tool diameter | mm | φ78 (Adjacent)/ φ120(Apart) |
Max.tool weight | kg | 8 |
Machine weight | kg | 5600 |
Overall dimension | mm | 2600X2300X2800 |
Recommend Products
Company Profile
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
