Высокое качество 4 pin Авто pcb реле
- Категория товара: Auto Relays >>>
- Поставщик (Оптовый магазин): Zhejiang,Feileisi,Electrical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
high quality 4 pin auto pcb relay for relay
Product Description
Relay Features:
40A switching capability
1 form A, 1 form C contact form
PCB terminals
Plastic sealed and dust protected types available
Outline dimensions: 25.0 X27.4X28.4
Relay Specification:
Contact Form | 1A,1C | Dielectric Strength(Coil and Contact) | 500VAC/M |
| Contact Material | AgSno2 | Ambient Temperature | -40°C~+85°C |
| Max. Operating Current | 40A | Operate/Release Time | 10ms/10ms |
| Max. Operating Voltage | 27VDC | Mechanical Life | 1 X106 |
| Insulation Resistance | 100MΩ | Electrical Life(min) | 1 X105 |
| Rated Load(Resistive load) | 1A:40A 13.5VDC 25A 27VDC 1C:NO/NC 40A/30A 13.5VDC 20A/15A 27VDC | Terminal Type | PCB |
Coil Ratings:
| Normal voltage(VDC) | Pick-up voltage(VDC) | Drop-out voltage(VDC) | Coil resistance(Q±10%) | Parallel resistance(Q±5%) | Equivalent resistance(Q±10%) | Power consumption(W) | Max. allowable overdrive voltage(VDC) | |
| 20℃ | 85℃ | |||||||
| 12 | 8.4 | 1.2 | 90 | - | - | 1.6 | 20.2 | 15.7 |
| 12 | 8.4 | 1.2 | 80 | 680 | 79.5 | 1.8 | 20.2 | 15.7 |
| 24 | 16.8 | 2.4 | 360 | - | - | 1.6 | 40.5 | 31.5 |
| 24 | 16.8 | 2.4 | 320 | 2700 | 317.6 | 1.8 | 40.5 | 31.5 |

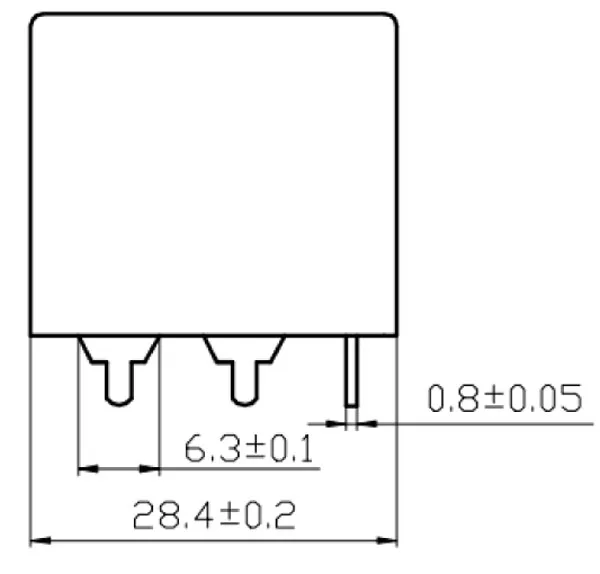

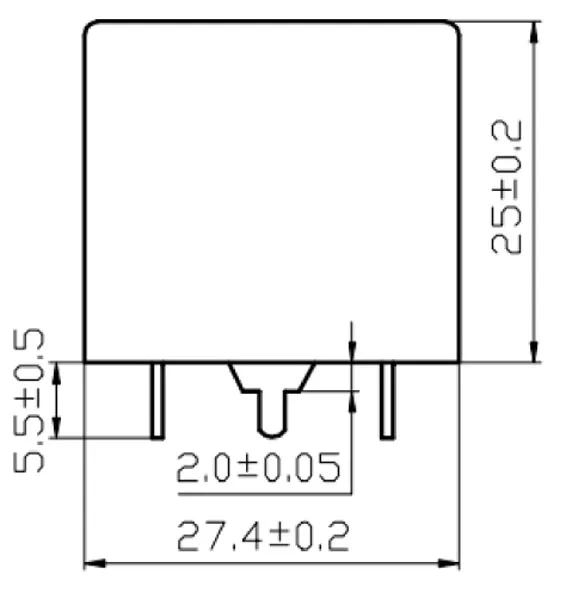

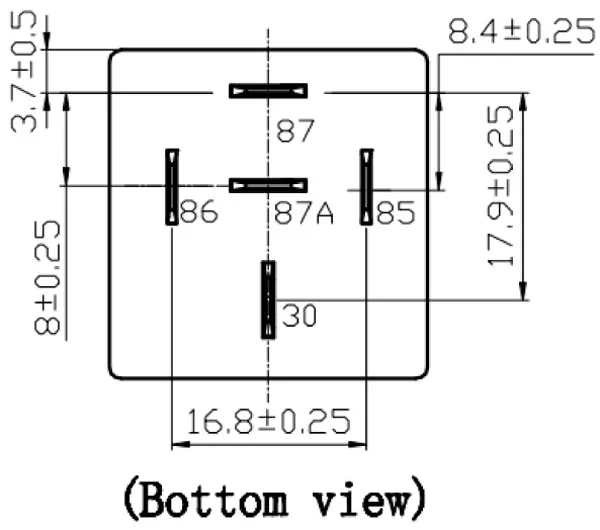

External Dimension:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
