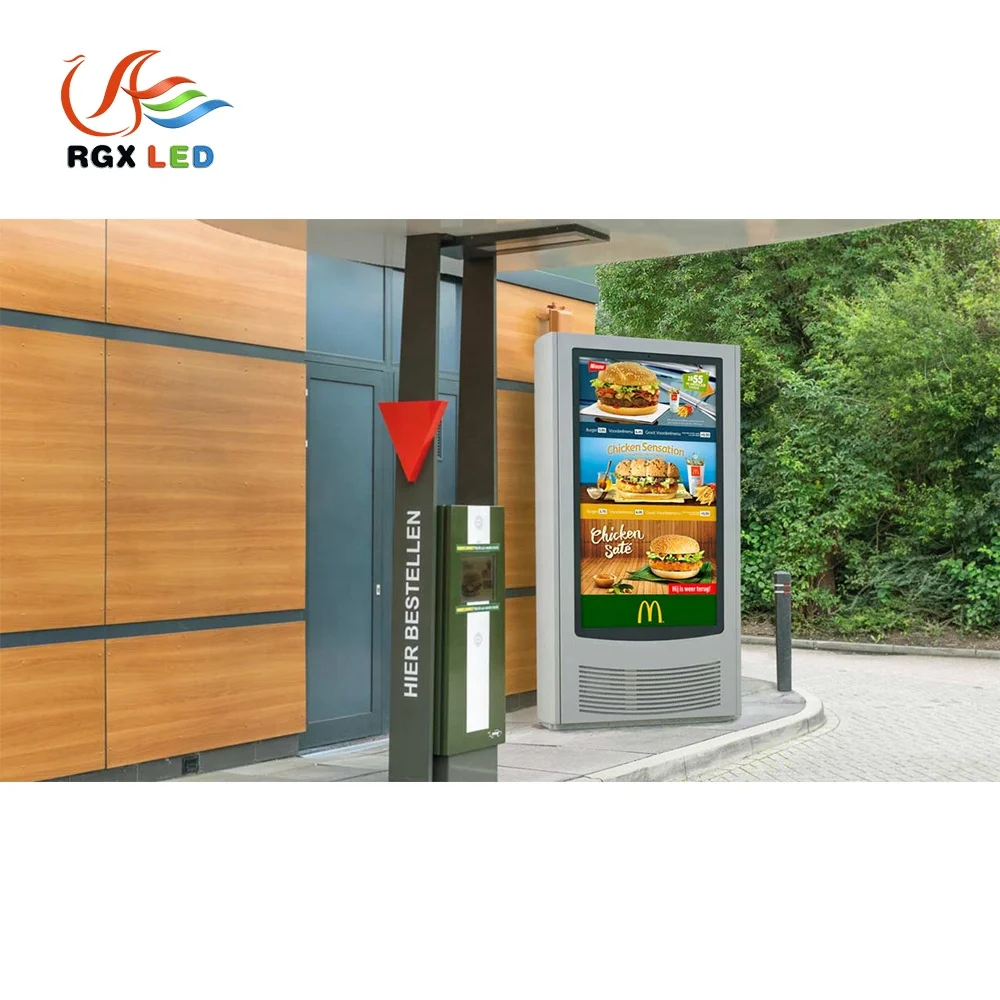

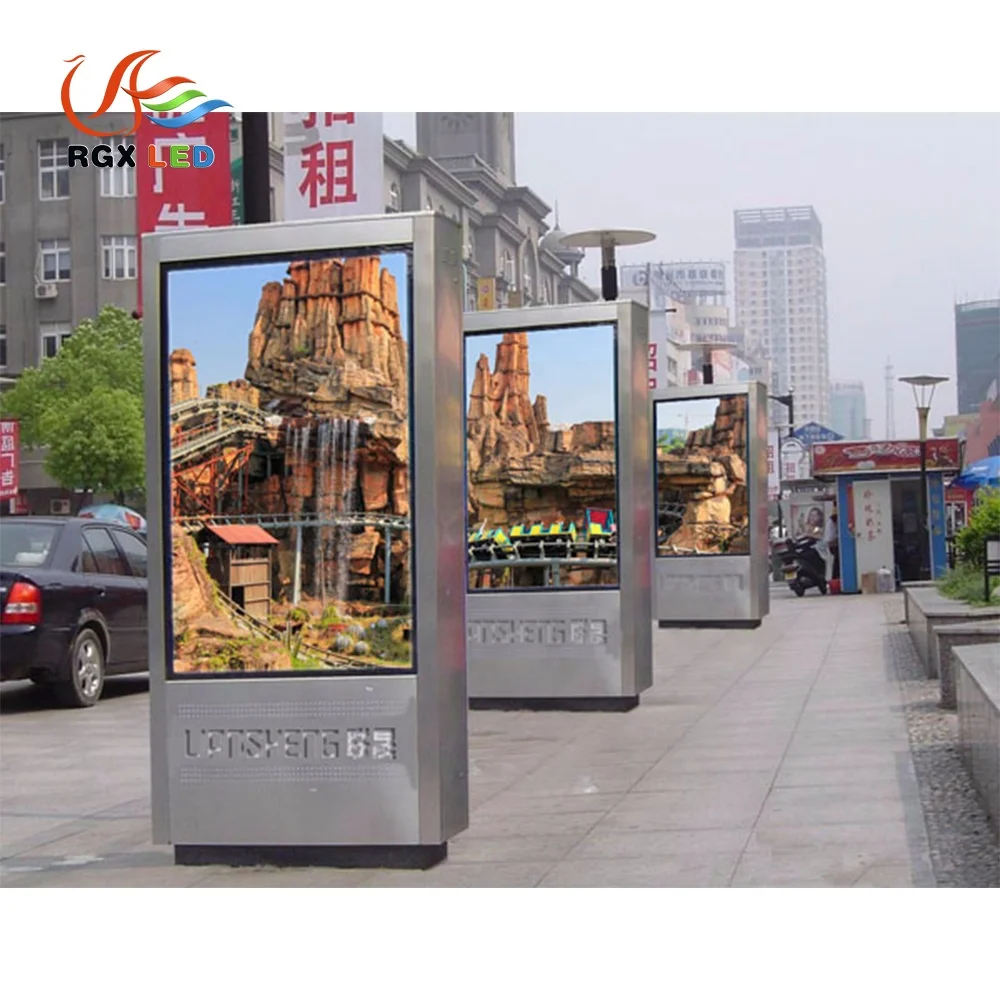

Модный наружный рекламный светодиодный экран P20, используемый Rgb P2 P2.5 P3, светодиодные модули, поддержка индивидуального заказа для рекламной машины
- Категория товара: >>>
- Поставщик (Оптовый магазин): Shenzhen,RGX,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Fashionable P20 Outdoor Advertising Led Display Screen Use Rgb P2 P2.5 P3 Led Modules Support Customized For Advertising Machine
Product Description
1.Feature
>> LED Chip: Supplied by Nichia of Japan & Cree of USA & Epistar of Taiwan or other high strictly selected LED chip, assure high definition show effect.
>> Wide viewing angle 120/160°, perfect and impressive viewing effect.

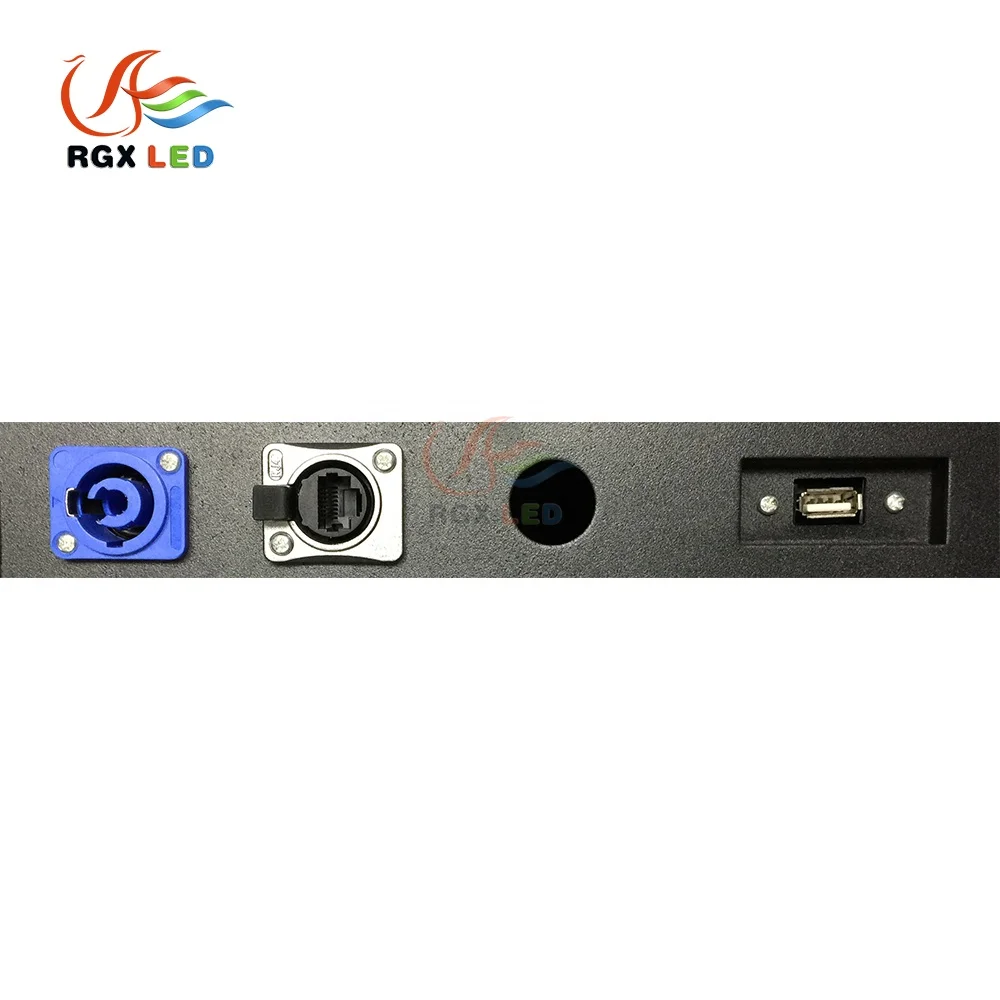

>> Easy Installation: Beautiful standard cabinet or your required cabinet, with aviation plug&socket+handle+lock+side lock, easy to connect cabinets.
>> Seamless Splice: good flatness cabinet with side lock, can make the screen show imagine without splice.
>> High quality IC selection: MBI5024/5035/5036/5039/5042, JXI5020, TLC59283 or other types you require.
>> Famous power supply selection: Meanwell, E-energy, Greatwall etc.
>> Famous control system for optional: Synchronous: Nova, LINSN, Mooncell etc.; Aynchronous: Tianyi, Xixun or Betters etc.. They are stable, wide application, easy to operate, good refresh rate and grey scale, powerful functions to support your need.
>> Skillful and strict assembly workmanship, can assure you high quality guaranteed products.
>> All our products support 2 years warranty or more according to your requirements.
>> Immediate, patient and considerated service is our principle.
>> All products are CE, RoHS, FCC, TUV certified.
2.Specifications
| Unit Module Specifications | |||||
| Item | P2 | P2.5 | P3 | P4 | P5 |
| Pixel Pitch | 2 mm | 2.5 mm | 3 mm | 4 mm | 5 mm |
| Pixel Configuration | 3in1 (1R1PG1B) | ||||
| Module Size(MM) | 256*128 | 160*160 | 192*192 | 256*128 | 320*160 |
| Module Resolution(Dots) | 128*64 | 64*64 | 64*64 | 64*32 | 64*32 |
| Module Weight(Kg) | 0.3 | 0.385 | 0.3 | 0.2 | 0.37 |
| Package LED Mode | SMD1515 | SMD2020 | SMD2121 | SMD2121 | SMD3528 |
| Max Power(Watt) | 30 | 30 | 21 | 11 | 21.5 |
| Pixel Density(Dots/SQM) | 250'000 | 160'000 | 111'111 | 62'500 | 40'000 |
| Driving Method | Constant Current Driving | ||||
| Scan Method(Scan) | 1/32 | 1/32 | 1/32 | 1/16 | 1/16 |
| Interface Way | HUB 75 | ||||
| Brightness(CD/SQM) | ≥ 1600 | ≥ 1600 | ≥ 1800 | ≥ 1600 | ≥ 1600 |
| Safety Standard | CCC,FCC,ROHS,TUV,CE,ETL,BIS..... | ||||
| Unit Cabinet Specifications | |||||
| Cabinet Size(MM) | Customzie | ||||
| Cabinet Composing(PCS) | Depending On The Size Of The Cabinet | ||||
| Power Supply Mode(Per Cabinet) | 5V80A | 5V80A | 5V60A | 5V40A | 5V40A |
| Cabinet Resolution(Dots) | Depending On The Size Of The Cabinet | ||||
| Optimal Viewing Distance(M) | 2-300 | 2.5-300 | 3-300 | 4-400 | 5-500 |
| Optimal Viewing Angle | Horizontal angle: 160 degree; Vertical angle: 140 degree | ||||
| Environment Temperature | Storage: -40 degree ~ +85 degree; Work: -20 degree ~ +60 degree | ||||
| Relative Humidity | 10% ~ 95% | ||||
| Power Supply Specifications | |||||
| Operating Voltage | AC:100V~120V AC:220~240V | ||||
| Average Power(W/SQM) | 150-300 | 150-400 | 150-350 | 150-320 | 150-320 |
| Max Power Consumption(W/SQM) | ≤ 950 | ≤ 850 | ≤ 800 | ≤ 750 | ≤ 780 |
| Current | ≤ 20mA (single LED) | ||||
| Control System Specifications | |||||
| Computer | Pentium4 or above P4 or above | ||||
| Operate System | Win7-11/2000/NT/XP | ||||
| Control Mode | Synchronization with PC | ||||
| Main Technical Parameter Specifications | |||||
| Driving Device | Constant Current Driving | ||||
| Refresh Rate | ≥ 1900-3840Hz | ||||
| Gray/Color | RGB each 256 grade, can display 16.7color | ||||
| Lifespan | ≥ 100000hours | ||||
| Power Switch | RGX Automatic Switch | ||||
| Display Mode | 2048*1024\\1024*768\\1280*960mm | ||||
| For more information please contact our sales. | |||||
Hot LED Display
All of our products can be customized. Any sizes, material, shape, logos, packaging meet
your requirement,before quote you the price, we will be appreciated if you can provide the
information below:
1. What will the LED display be used for? video, TV , graph or?
2. Where do you plan to install the LED display,indoor or outdoor or rental purpose?
If possible, please send me a picture about the installation environment.
3. What's the size do you need? the length and width?
If you are not clearly , we will recommend for you.
FQA
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.
2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.
3. What about the lead time for an order?
Always: 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days
4. What about the warranty?
We have Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it’s free maintenance and ship back new ones for replacement.
5.How about the quality?
Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality
6. Can you offer a technical support? Since it's my first time....
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star or Linsn control systems, our engineer can directly teach you how to control, or help you to done if you are really don't know how to control(Our Engineer can text English, we can saving more time )
Any question please add my wechat/ whatsapp +86 180 3806 9578 for quick response or send your detailed inquiries.
