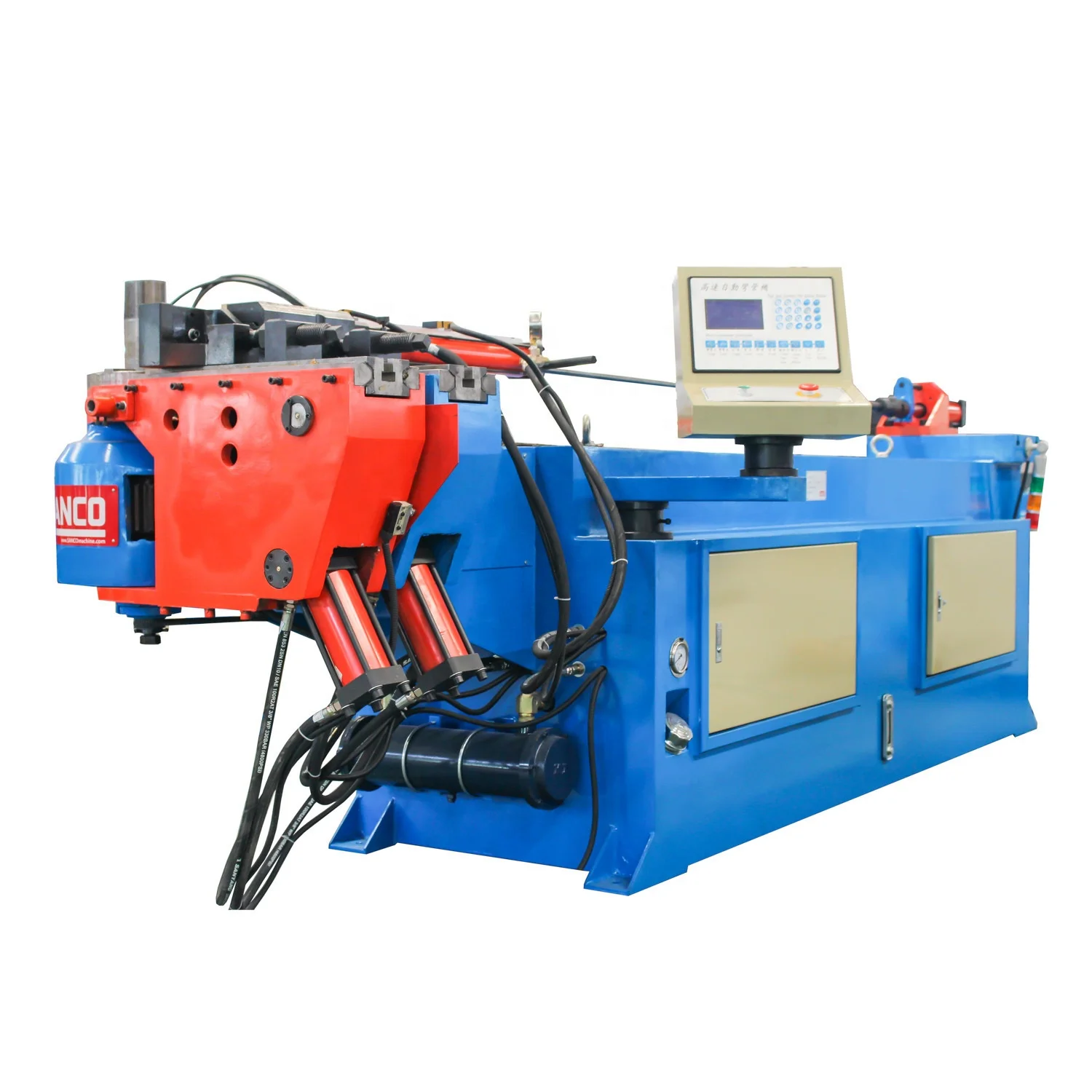

Трубогиб для труб EMT 20 25 32 мм
US $150.00-$220.00
Квадратные круглые овальные CS, SS, Al, медные трубы и Трубогибочные машины
- Категория товара: Pipe and Tube Bending Machines >>>
- Поставщик (Оптовый магазин): Zhangjiagang,Sanco,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
1. Bend-arm (C-axis) by hydraulic, clamp die by hydraulic, pressure die by hydraulic.
2. With tube mechanical stopper, automatic mandrel lubrication, anticipated mandrel retraction unit.
3. Anticipated mandrel retraction unit. It adopts imported special control system. With high stability.
4. Automatic bending tube, manual feeding tube and manual angle rotating.
5. Water-cool system.
6. Foot pedal for safe start.
7. The processing speed is fast and its procession is high. It is suitable for high speed.
8. It has functions of manual, inching, auto, setting, changing-program, single step, and so on.
9. It is a NC automatic bending machine controlled by PLC, an efficient, economical automatic pipe Bender.
10. Operation panel and PLC control system adopted, simple mode menu, accurate, fast, complete functions of hand-Operated,
inching, quote setting, changing-program.
11. CE, ISO9001 Certification.
2. With tube mechanical stopper, automatic mandrel lubrication, anticipated mandrel retraction unit.
3. Anticipated mandrel retraction unit. It adopts imported special control system. With high stability.
4. Automatic bending tube, manual feeding tube and manual angle rotating.
5. Water-cool system.
6. Foot pedal for safe start.
7. The processing speed is fast and its procession is high. It is suitable for high speed.
8. It has functions of manual, inching, auto, setting, changing-program, single step, and so on.
9. It is a NC automatic bending machine controlled by PLC, an efficient, economical automatic pipe Bender.
10. Operation panel and PLC control system adopted, simple mode menu, accurate, fast, complete functions of hand-Operated,
inching, quote setting, changing-program.
11. CE, ISO9001 Certification.
Specification
Name | Specification |
Bending Capacity / Round Tube / Mild Steel (S=40kgf/m ㎡) | ￠50.8×3 mm |
Bending Capacity / Round Tube / Non-Ferrous (S=25kgf/m ㎡) | ￠50.8×5 mm |
Bending Capacity / Round Tube / Stainless (S=60kgf/m ㎡) | ￠50.8×1.5 mm |
Bending Capacity / Solid Bar / Mild Steel (S=40kgf/m ㎡) | ￠25 mm |
Bending Tube – C axis | Hydraulic |
Pressure die moving | Hydraulic |
Mandrel moving | Hydraulic |
Auto Lubrication | As option |
Max. bending radius | 250 mm (custom made) |
Roundness after bent | ＜8% (CLR:1.5D) |
Thickness reduce after bent | ＜10% (CLR:1.5D) |
Max. bending angle | 190° |
Mandrel working length | 2200 mm (custom made) |
Bending speed | 30-110 °/s |
Bending precision | ±0.1° |
Motor | 5.5 Kw |
Company Profile
FAQ
1. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:- Max. outside diameter:
- Wall thickness range:
- Bending radius (CLR):
- The pipe material:
- The drawings if possible:
2. Q: What is the difference for NCB, NCBL and CNC machines?
A: NCB is standard hydraulic pipe bending machines, feeding and rotation are manual, and bending is hydraulic automatic.
NCBL is semi-automatic pipe bending machines, mechanical gear feeding, servo motor automatic angle rotation and hydraulic automatic bending.
CNC is fully automatic pipe bending machines, servo motor for feeding and rotations, and hydraulic or servo motor for bending, multiple tooling stack are available for two and more different bending radius (CLR).
3. Q: What is the machine’s control?
A: Standard control is Mitsubishi PLC, Special is IPC controls. IPC with function of 3D view, 3D simulation, DWG readout, remote assistance etc.
4. Q: What is the biggest bending capacity you could offer?
A: As of now the biggest bending capacity is 325mm outside diameter for cold bending. For hot bending, the capacity would be 1450mm.
5. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Suzhou city (near to Wuxi).You can fly to Shanghai or Wuxi airport & train station.
6. Q: What is the certificates available?
A: CE & ISO9001
7. Q: How is the training and after sales service?
A: Customer is welcome to visit our factory for pre-shipment, and we wil provide trainning service FOC, or we can send our professional engineer to be abroad in customer's plant, and customer will pay for the air tickets, accommodation, meals, and USD100-USD150 per day.
