Skein Reeling Machine

Hank Reeling Machine, it's the High speed computerized type winding machine, used for winding yarns from Cone to hank, then the hank yarn for Dyeing, the Hank yarn dyeing can make the yarn dyeing more steady and well colored. mostly suit for like Nylon, High stretch yarn, FDY, DTY, Acrylic and etc. can working about 1000 Meter/min speed, it's the 3 times production than then ordinary type hank reeling machine. high efficiency, low consumption, the yarn easily dyed. no yarn break when high speed winding, so increase the yarn more quality.
1. Technical specification:
| No. | Item | CBF-126 | CBF-122 |
| 1 | Qty. of spindle | 50 | 60 |
| 2 | Distance of spindle | 126 | 122 |
| 3 | Effective reeling distance | 50-100mm | |
| 4 | Rotation speed | 280/251/230/192/159 rpm | |
| 5 | Perimeter | 1350/1500/1650/1900/2200 mm | |
| 6 | Motor power | 0.75kw*2 | |
| 7 | Type | Double-side, Single-layer | |
| 8 | Weight | 900kg | 1000kg |
| 9 | Dimension | 3900*1350*1800 mm | 4500*1350*1800 mm |

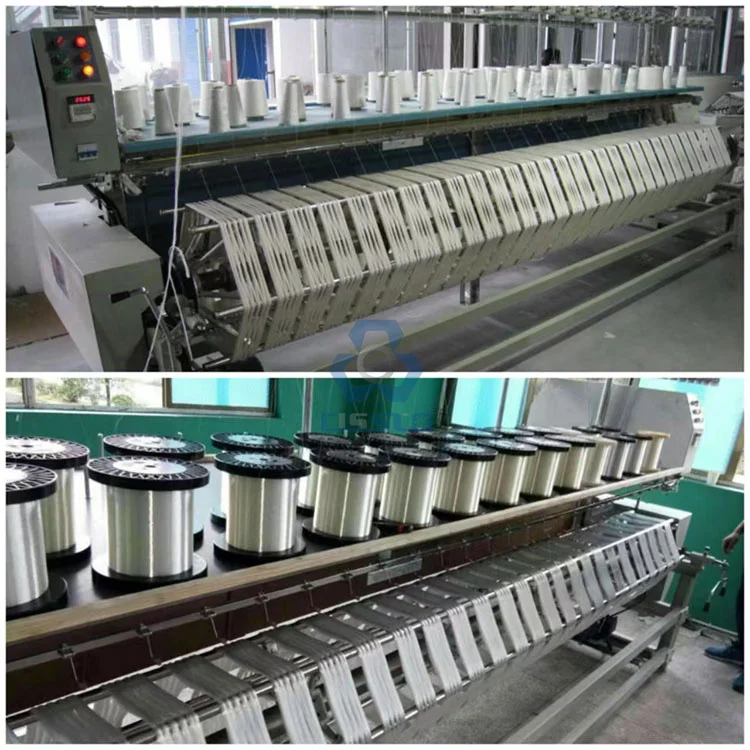

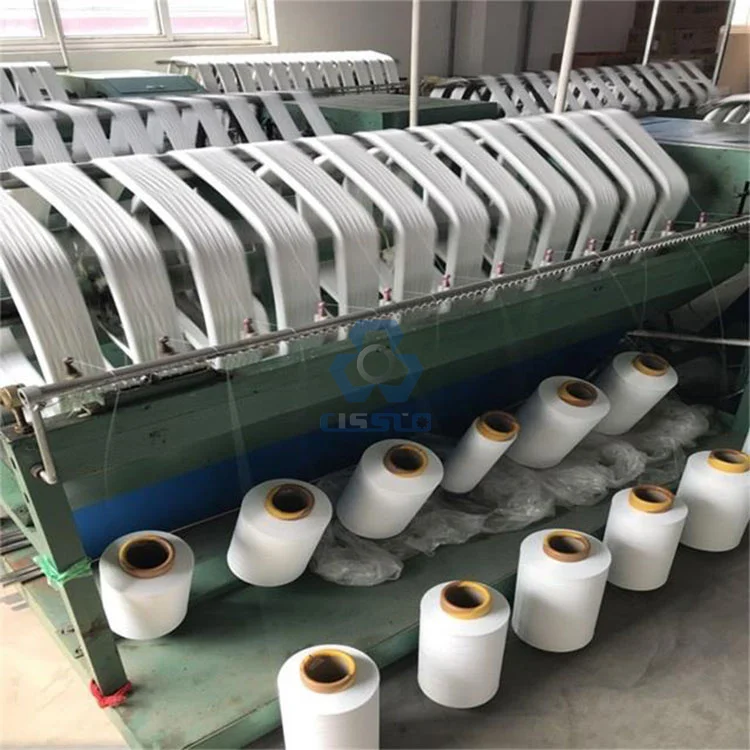

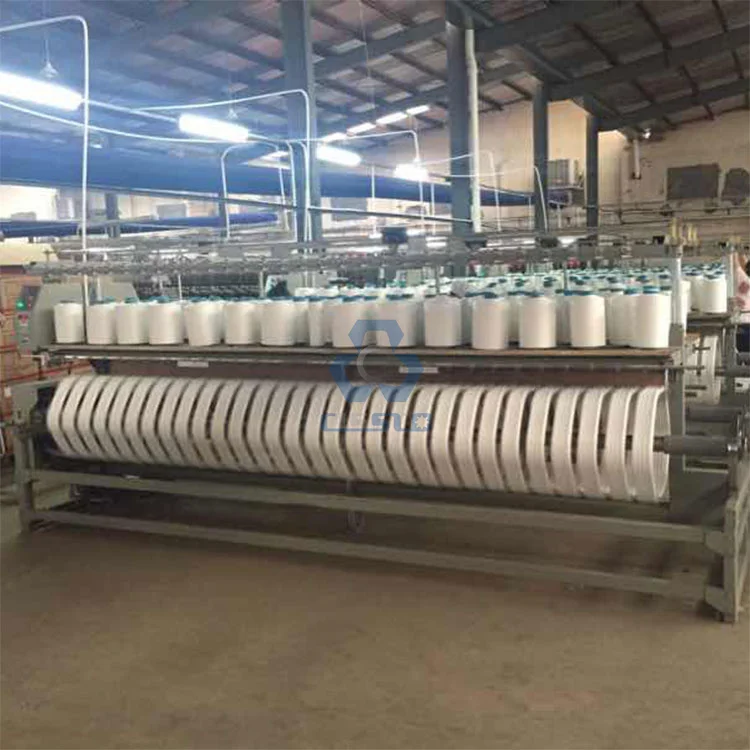

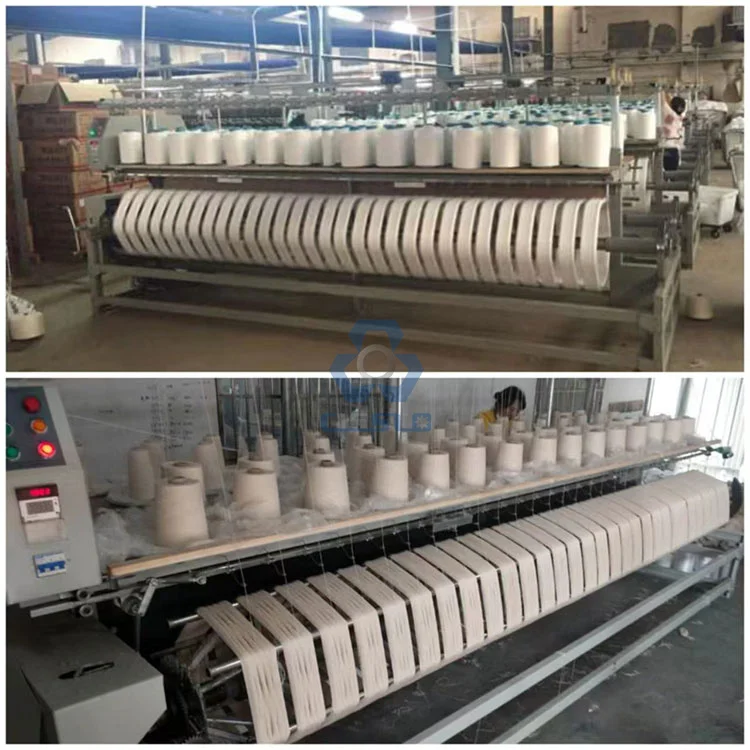

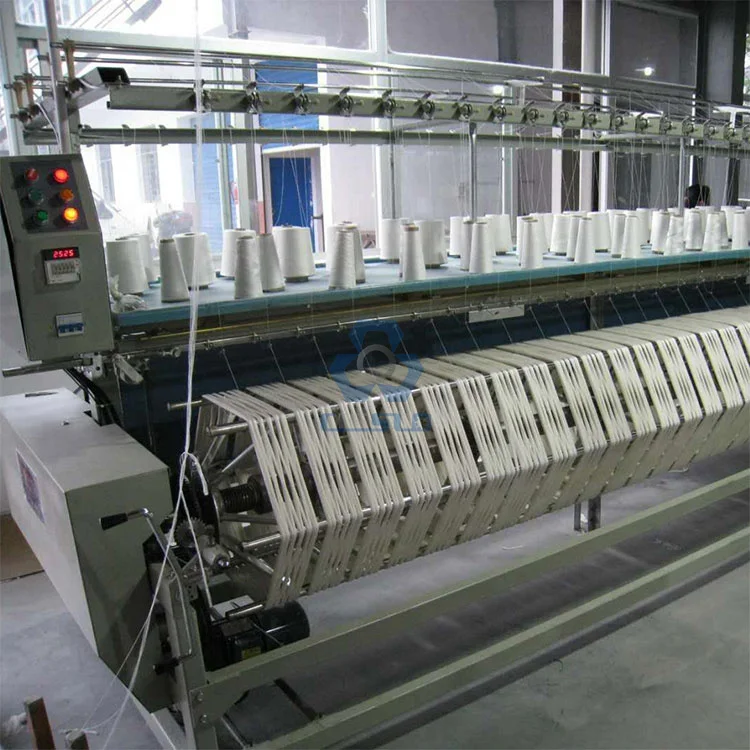

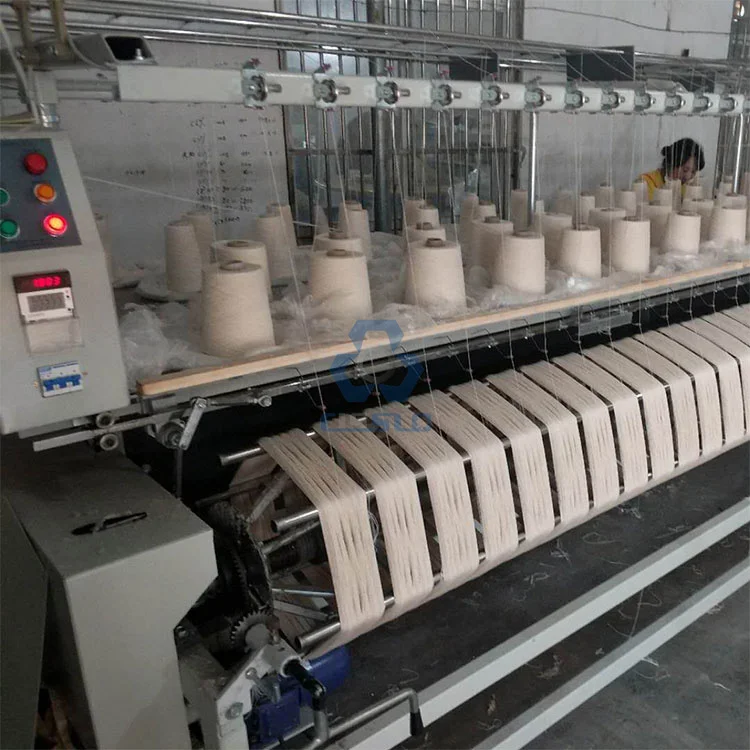

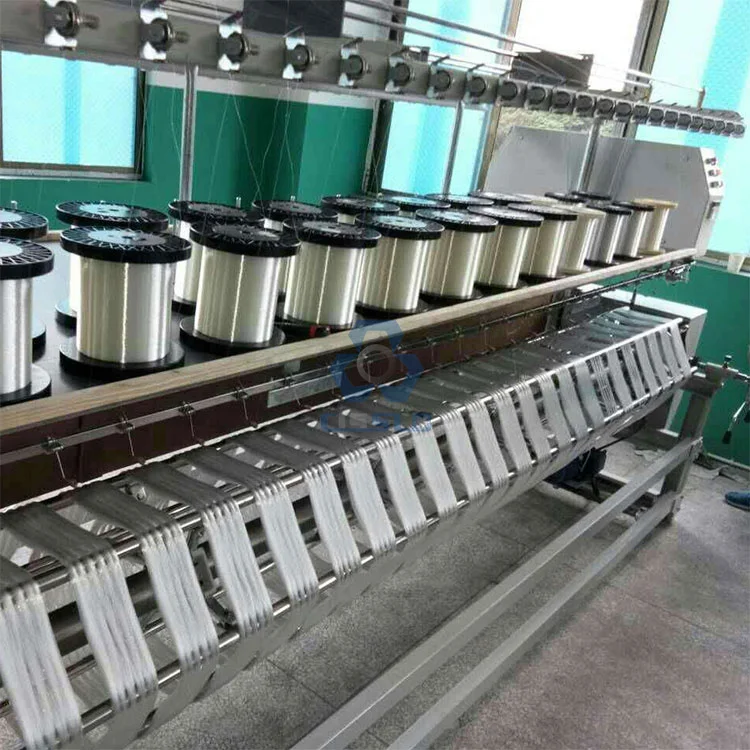

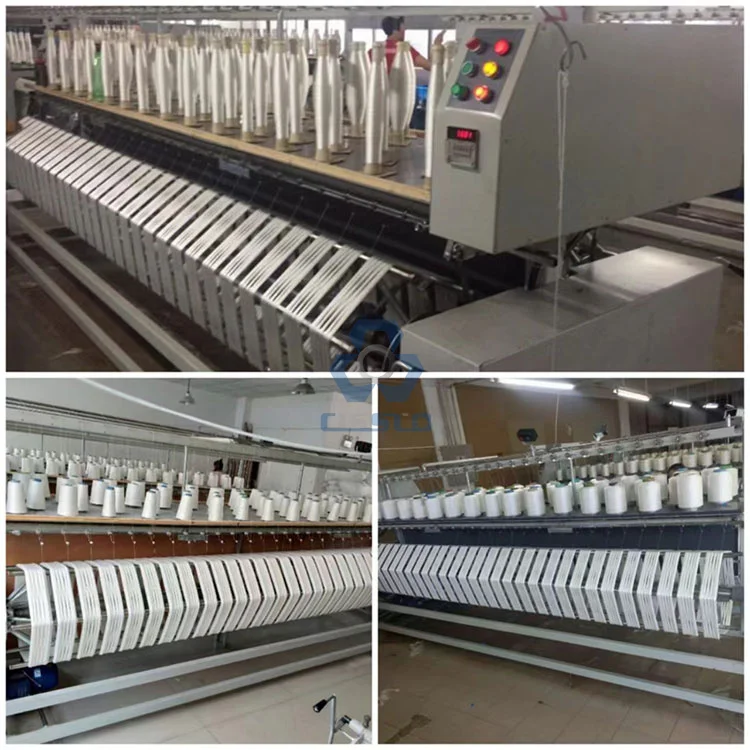

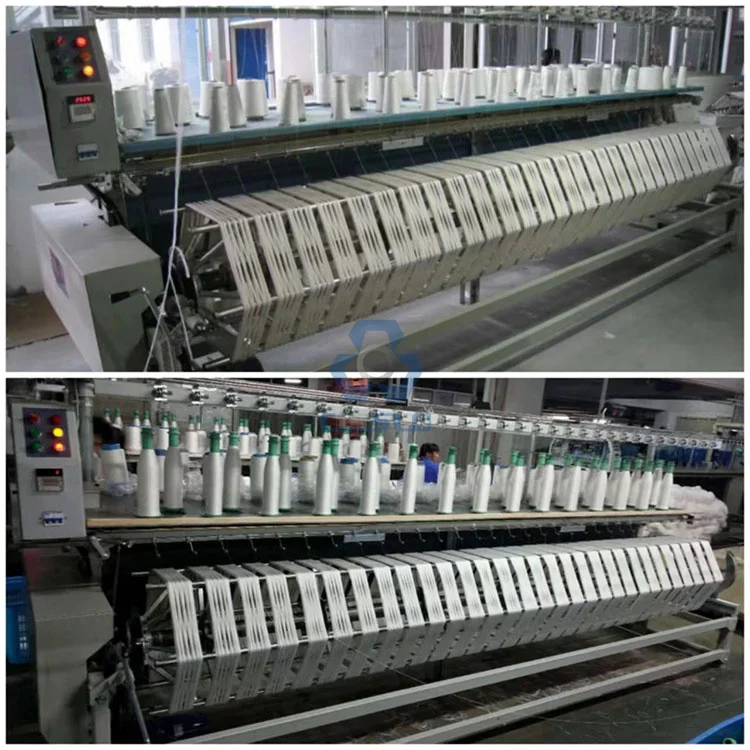

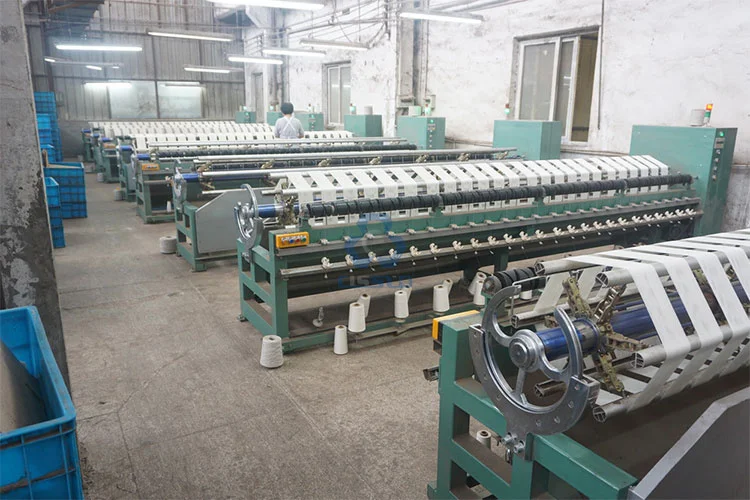

2. Pictures of machine:







CissCo Machinery is the leading supplier for fiber/yarn twisting machinery in China. More then 95% twisting factories in China are using our twisting machinery.
CissCo Machinery has been persisting in making itself a modernized enterprise based on customers, featuring as " a great erudition, innovativeness, soundiness and cooperatives", following the philosophy of "endless operation in the service of the society" and under the guidance of the policy of the Chinese nation's 5 thousand year-old tradition of "morality-observation, trustworthiness, self-improvement and progress".
CissCo Machinery mainly manufactures TZ serial short-staple, polyester and natural silk two-for-one twisting machine, TZ serial doubling winder. The large roll two-for-one twisting machine and doubling winder series with TZ315 as their repersentatives(10kg content, for 12000D high-denier industrial-purpose silk) are widely used in China for cloth, polyester, cotton textile and natural silk industries. The spindles and textile machinery spare parts developed by our company enjoy a high appreciation of the broad masses of the users for their superior quality and extensive variety.





CissCo Machinery has been trying to enable customers to maximize the benefits with professional serivces such as:
We successfully combined European High Technology and China Manufacturing Advantage.
1. Oerlikon Saurer Walkmann and Ollma similar technology, with higher speed and controlling way.
2. Big take-up bobbin(up to 10kg);.
3. Big rewinding bobbin(up to 10kg);
4. Single spindle, single control.
