tile fabrication conveyor belt machine cut chamfer

RECOMMEND MACHINES

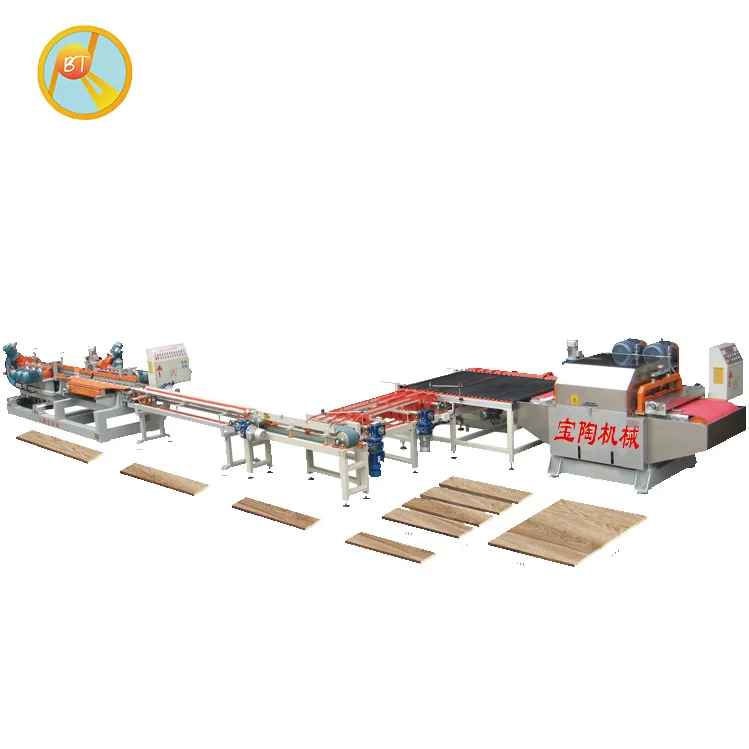

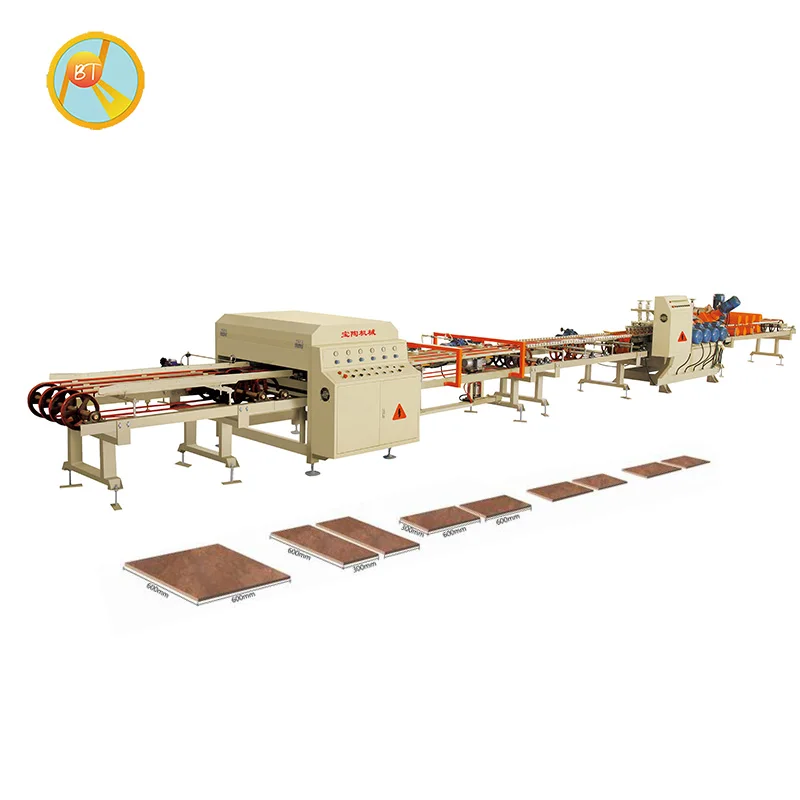

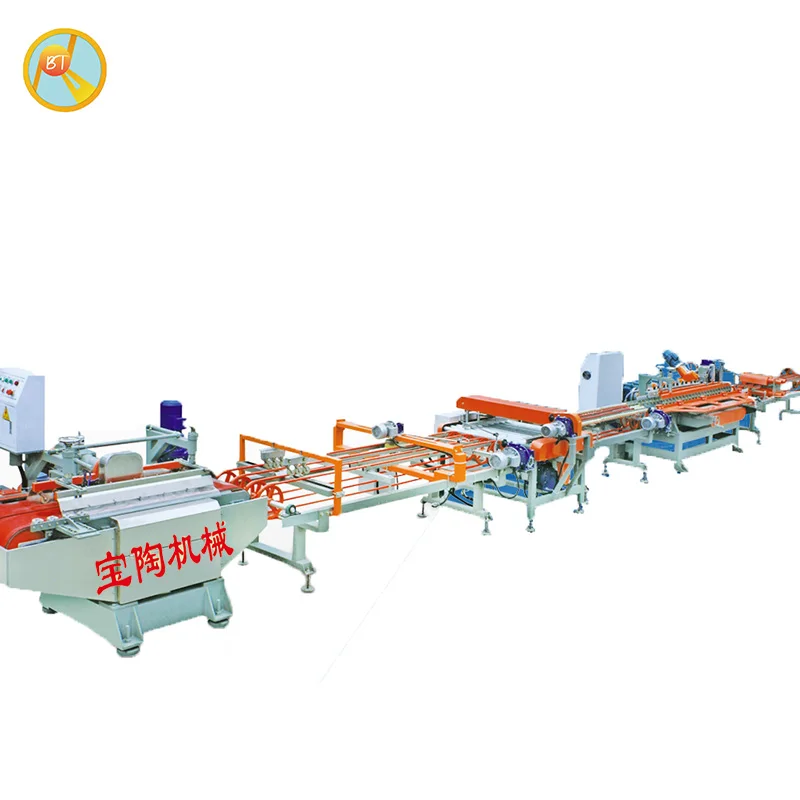

CERAMIC TILES PROCESSING PRODUCT LINE

AUTOMATIC WET TYPE CUTTING AND CHAMFER

To cut and chamfer original edge for porcelain tiles.



WORKING FLOWS:

 How this production line work?

Cut tiles into 2 by auto cutting machine.

Transmit the tiles orderly by conveyor belt.

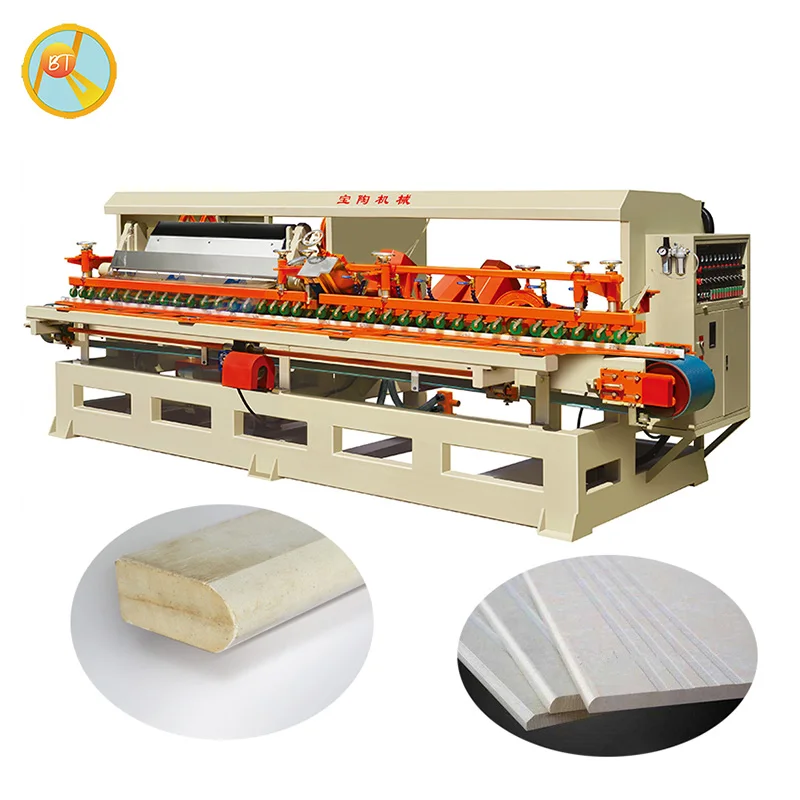

Grind and chamfer the edges to be original edge.

Dewater tiles by strong fan tube.

Packing.

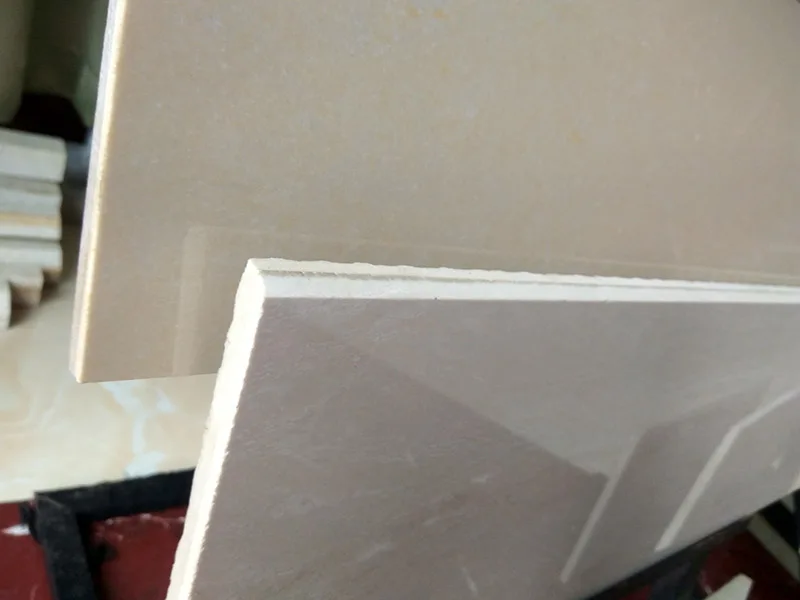

Finish Products:



Advantages:

automatic ceramic tile transmission production line
full automation
simple installation
easy operation
low maintenant cost
large amount of output
long service life



Technical Parameters:



Model	BT800MULT
Max. cutting size	800*1200mm
Working Thickness	0-20mm
Polishing head diameter	Φ125
Polishing head number	20 pcs
Grinding wheel diameter	Φ200
Grinding wheel number	3pcs
Bevel wheel diameter	Φ200
Bevel wheel number	3pcs
Processing speed	2-5m/min
Total Power	38KW
Power consumption	50KW/h
Water consumption	500L/min
Outer dimension	L20m×W2.2m×H1.8m
Weight	8500KG
