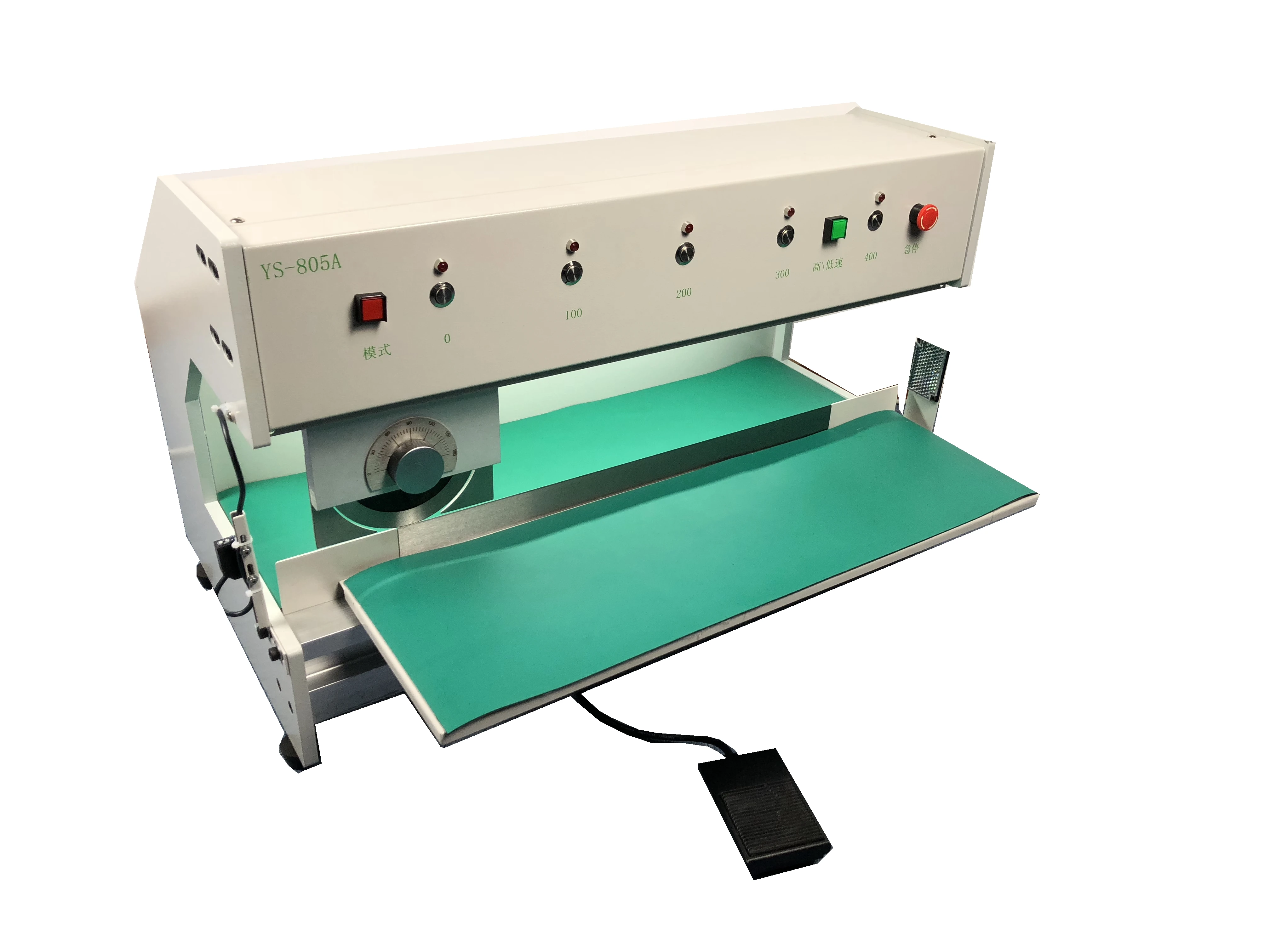

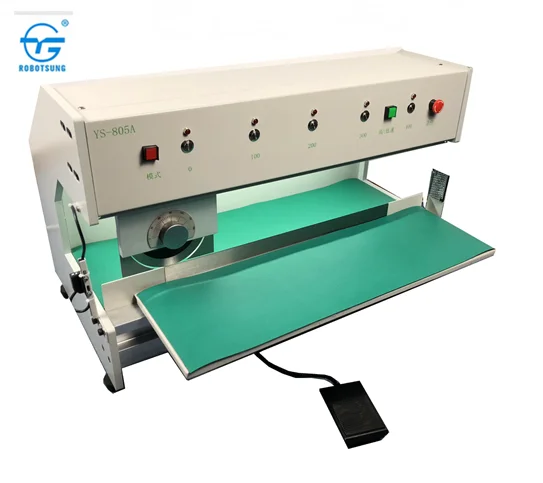

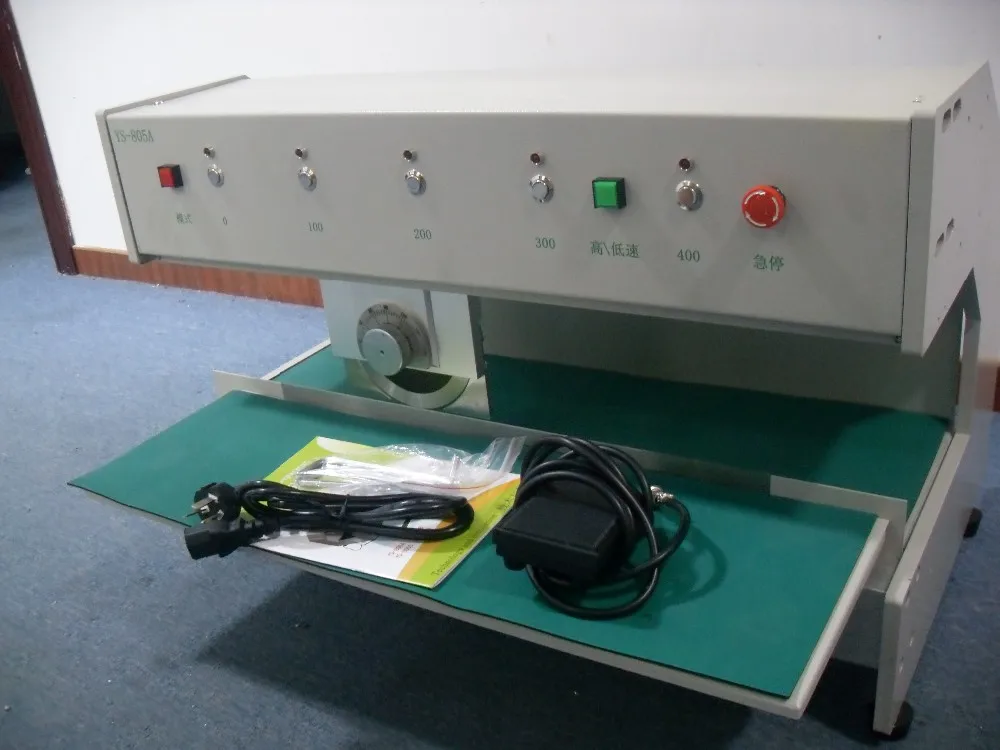

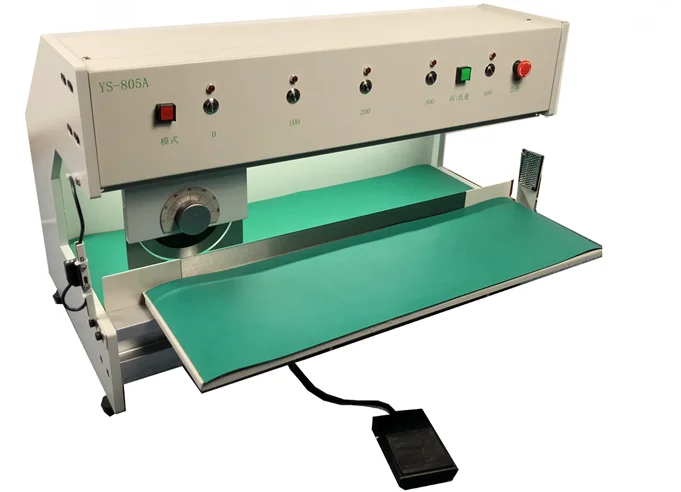

Фабрика дешевая продажа YS-805B v-вырез PCB отделяя машину для 600 мм PCB

Описание и отзывы

Характеристики

Application:

Applicable for cutting SMD aluminum PCB,PCB boards and fiberglass boards neatly,effectively,quickly, easy to operate and causing no damage to components on boards. Imported high-speed steel blade with long service life,mainly applied in circuit board industries such as LED,SMT,phone/MP3, and electronic toys.

Features:

1,Microcomputer program control,precise positioning and good stability.

2,Blade moving speed is adjustable,500mm/s or 300mm/s. Speed can also be increased by modifying program.

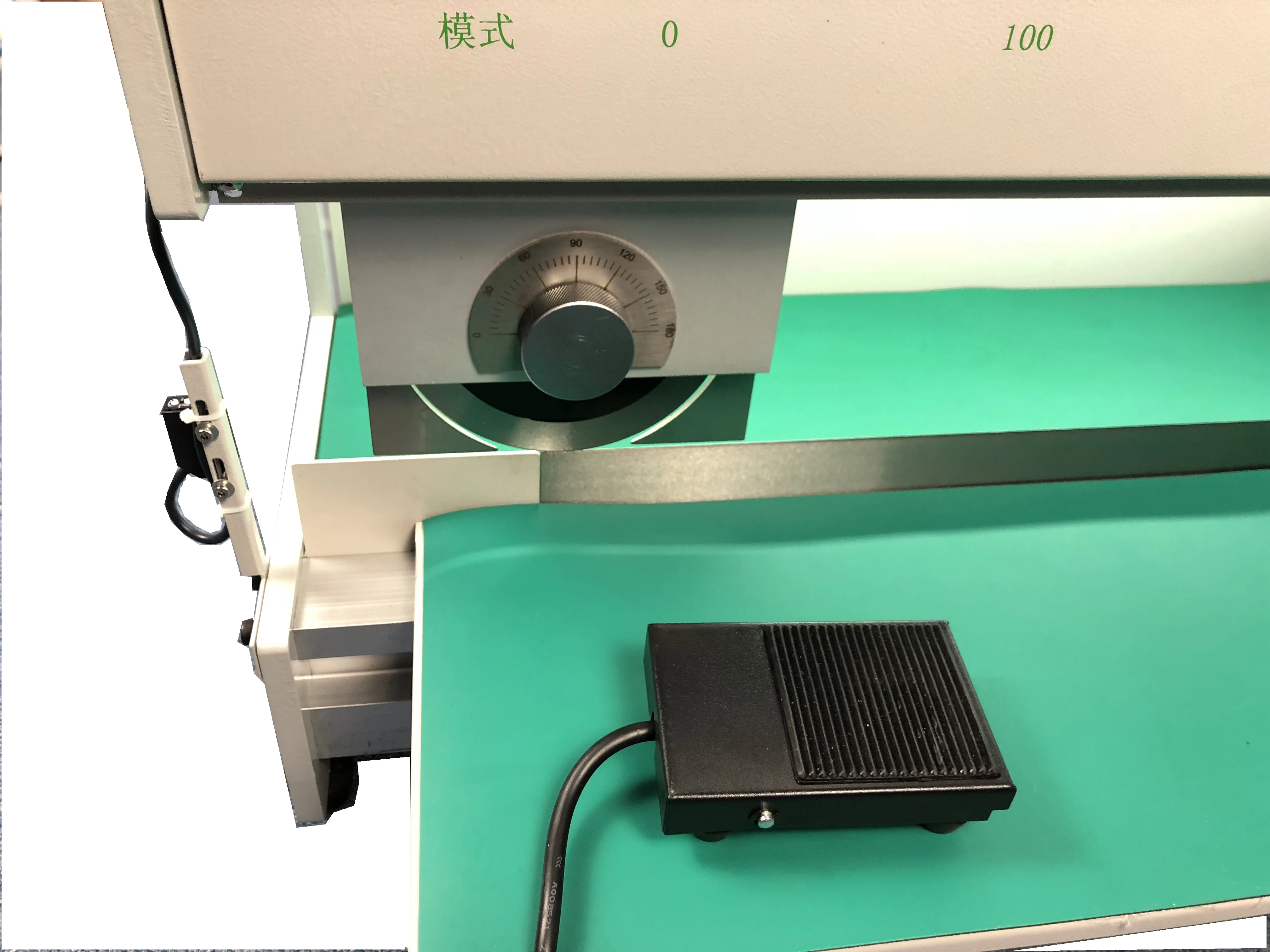

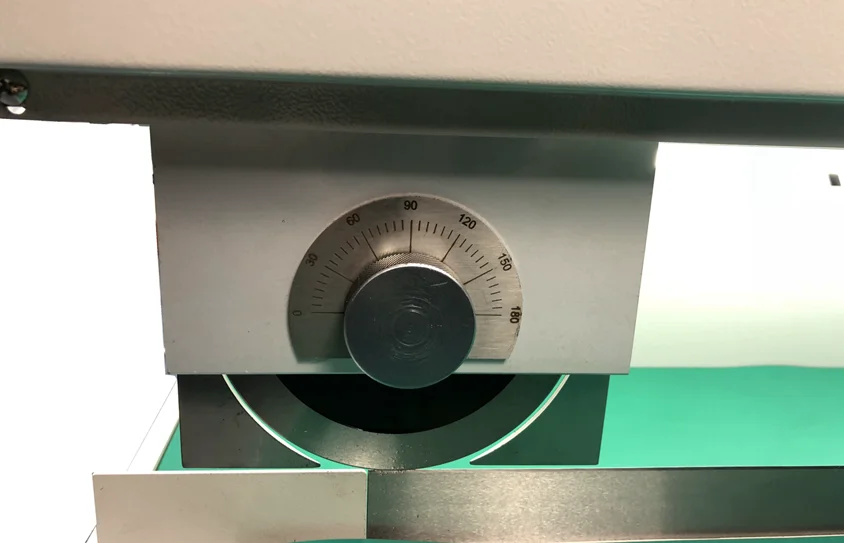

3,Can fine adjust cutter wheel:0-2mm, to apply to PCB boards of different thickness and V-CUT of different depth. Can adjust height of operation desk:0-50mm.

4,Depth of black baffle is adjustable:0-150mm. Max cutting length is 1300mm. Max cutting  thickness is 0.2-3.2mm,Max depth of V-CUT is 0.2-2.0mm.

5,Blade moving path,moving point and stopping point can be set according to length of  PCB board.

6,Upper and lower blades are made of imported high- speed steel, long service life and can be sharpened for 7-10 times.

Operating principle and method:

1,Soldered PCB board is easy to damage circuit or components while breaking. This machine is blade moving cutting PCB board,effectively decrease stress and prevent soldering point and components from breaking,increased efficiency.

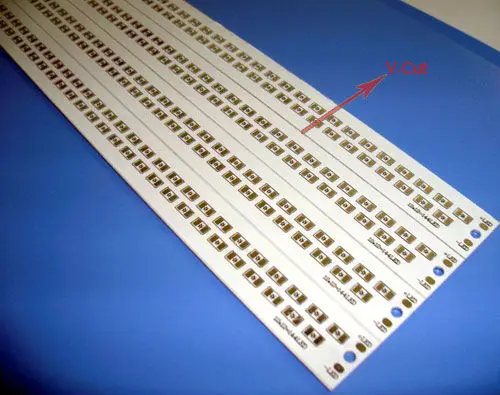

2,Upper blade is circular,lower blade is level,PCB board placed on lower blade to clamp with V-cut, step on the switch,upper circular blade moves to set cutting point and cut PCB board neatly and evenly.

Warranty:

Three years for the pc board

One year for the machine

Knife can be shaped for free in a year

Lifelong maintenance

Cooperated companys:

Midea group,Siemens group,ChangHong Electric,China South Locomotive,China CNR,Mairul Blological Medical Electronic,ZhengZhou Yutong Bus,TCL and so on.

We also have other models for your choice:

Q1:What is your Warranty for the product? How do you carry out it?

A1:We provide 1 Year Warranty for unit machine and 3 years warranty for main board.

More details pls contact me.

Q2:May I buy samples from you?

A2:Yes! You are welcome to place sample order to test our superior quality and service.

      Sample's price is the same as bulk's price.

Q3: What’s the leading time? (How long do you need to prepare my goods?)

A3:1-3 working days for sample orders

3-20 working days for bulk order (based on different quantities).

Q4: How will you deliver my goods to me? How long do I need to wait before my goods arrive?

A4:We offer as many shipping options as possible, such as DHL, UPS, FedEx, TNT ,EMS to enable our customers get their goods rapidly at door. We also ship by economic method such as air cargo and sea cargo, Direct line, Air Mail according to clients' request.

3-7 days for international express, 5-7 days for air cargo, 20-40 days via sea cargo.

Q5: How is your product quality?

 A5:We provide supreme - Very rigorous testing process for Incoming Quality Control, Input Process Quality Control, and Final Quality Control for every piece. We follow 20 QC test procedure, and do 100% FQC to ensure your satisfaction.

Q6: Can you put my brand name (logo) on the product?

A6:Yes! We can provide professional OEM services to make it your brand even for your trial sample order.

Q7: How much do I need to pay for your  OEM service?

A7: It’s according to your logo's size and color.

Q8: What payment method do you accept?

A5: T/T(Bank transfer), Western Union, Paypal, etc.

Q9: Do you have any After-Sales service?

A9:Yes! We have professional After-sales Dept. follow-up R.M.A.

If you have any technical problem or question with the goods, welcome to contact our Technical Support Dept. or our sales directly.

Q10: Are you just trading company or factory?

A10: We are professional manufacturer for automation machine since 2001.

We can supply the unrivaled Quality and Services with competitive factory price.
