Product Description
Automatic small glass plastic bottle capping e liquid essential oil eye drop perfume filling machine
You can check machine'Video from link: https://www.youtube.com/watch?v=K-irc_pWmdI

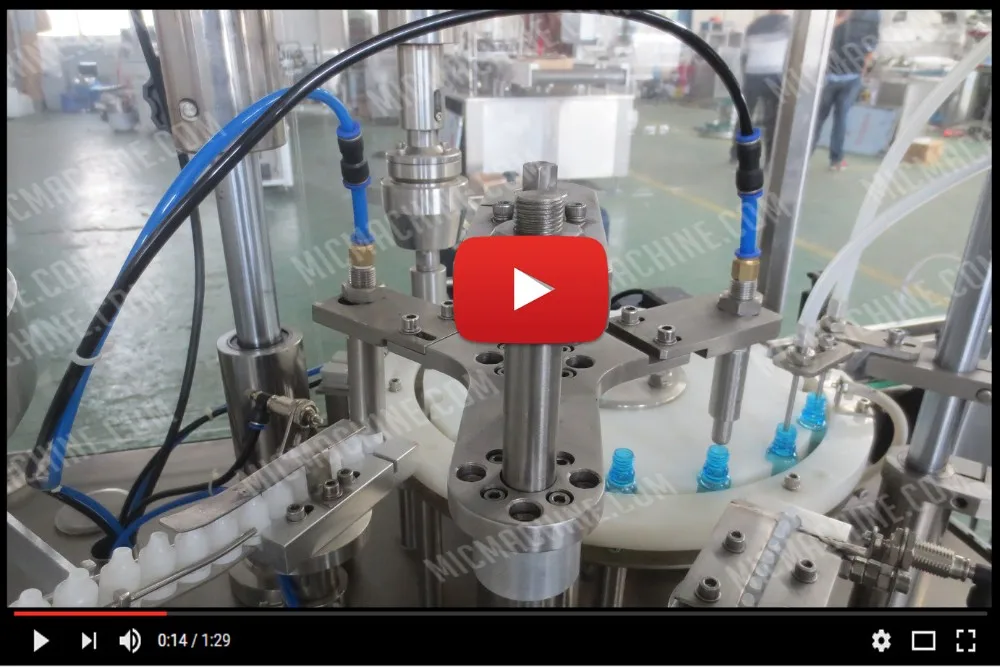

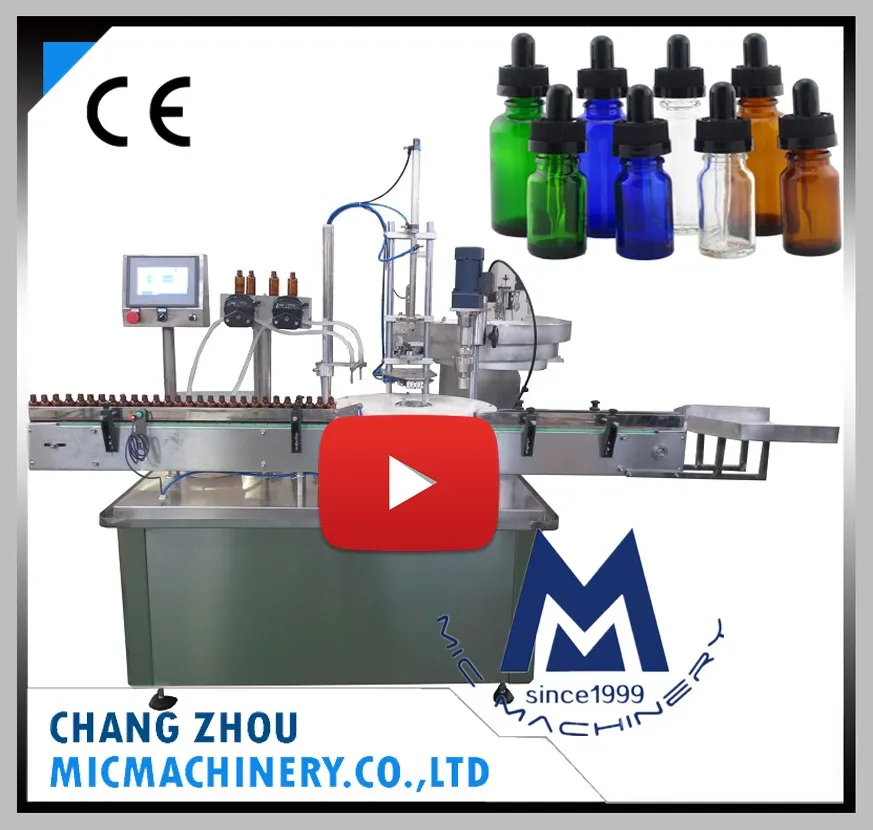

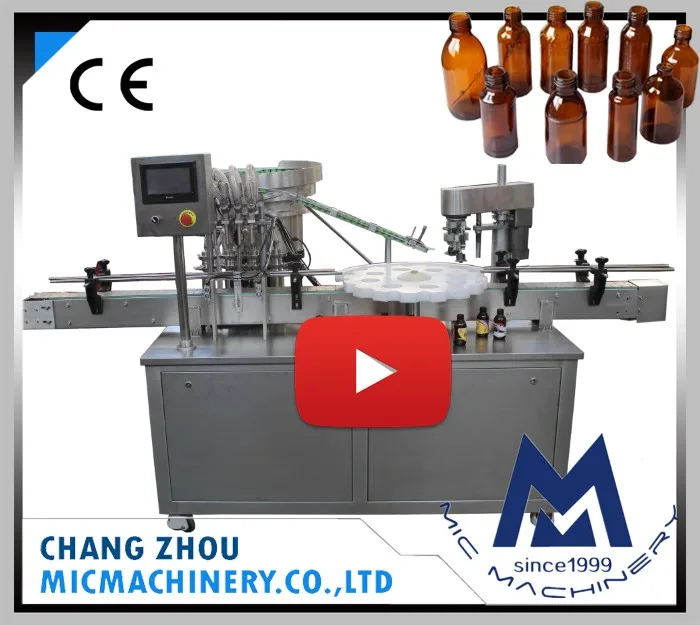

Or you can click the followed picture:
If you want to know more videos of machine, you can check my Youtube:
https://www.youtube.com/channel/UC_AumexXEiapitdnAGr4lUw
We are a professional manufacturer for cosmetics filling capping machine and small bottle liquid filling seaming machine, steady machine which can reach Germany standard, hope you can come to see us.

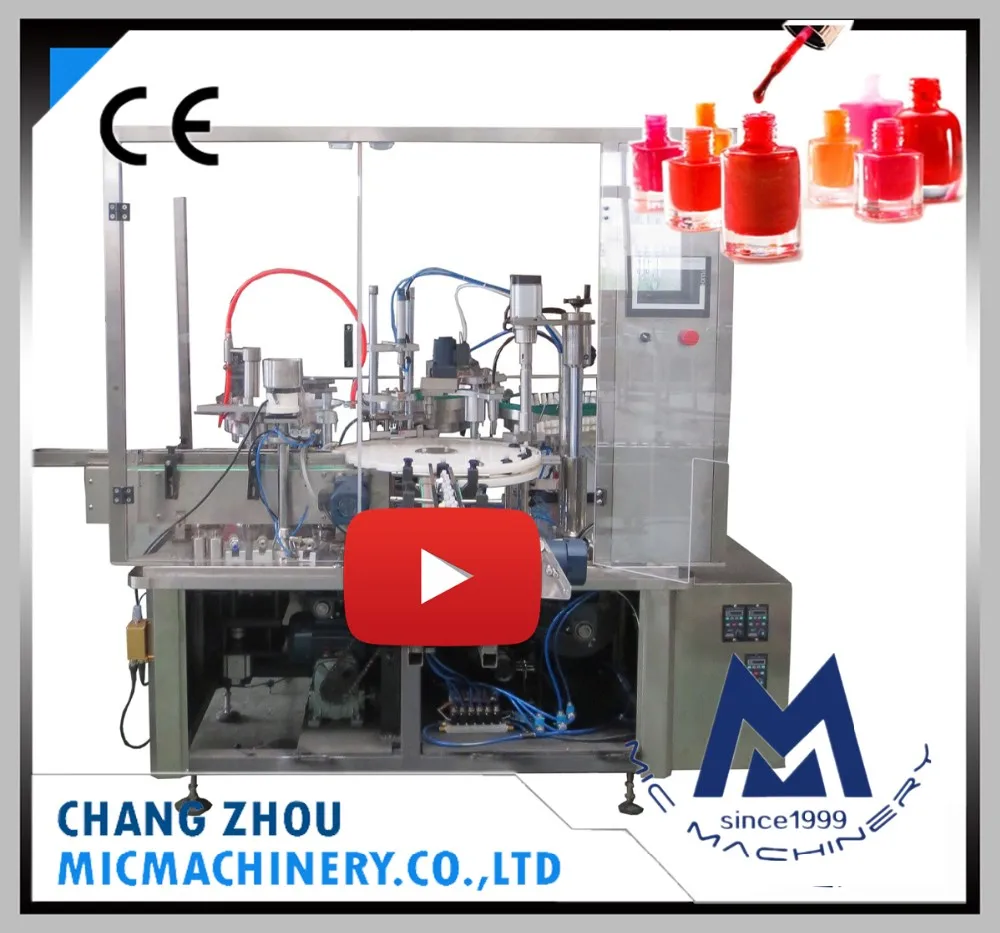

If you want to know other type filling machines, please click the name:
Glass bottle e liquid filling machine | Automatic syrup filling machine | Automatic nail polish filling machine | Automatic glue filling machine |
Double filling nozzles | Four filling nozzles | Double filling nozzles | Single filling nozzles |
10-50ML | 50-125ML | 10-30ML | 2-30ML |
10-40bpm | 40bpm | 40bpm | 60bpm |
Main Features
E-Cig liquid, Eye drop filling, plugging &capping machine for the application of round eye drop bottle or similar ones, auto accomplish product filling, plug place, cap place, cap screw-on.

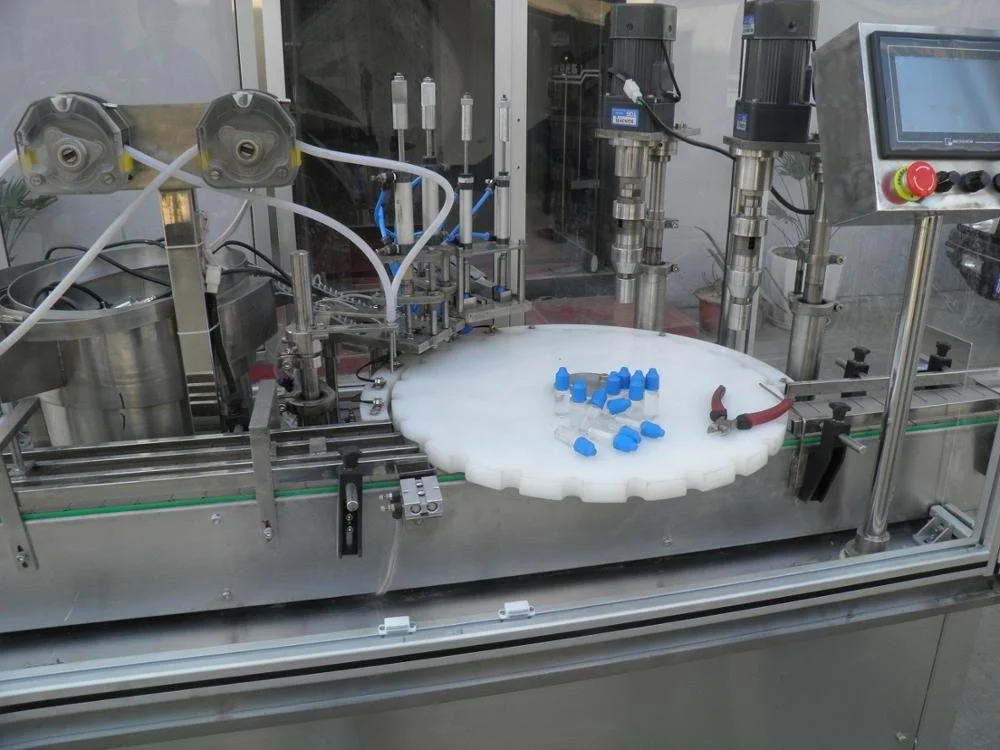

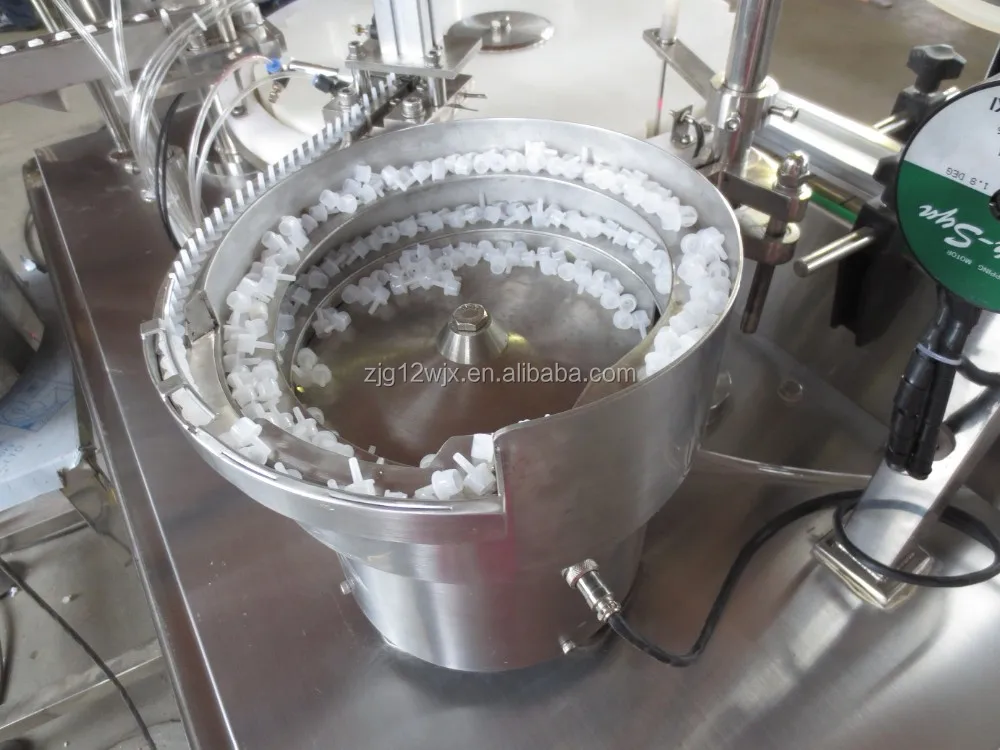

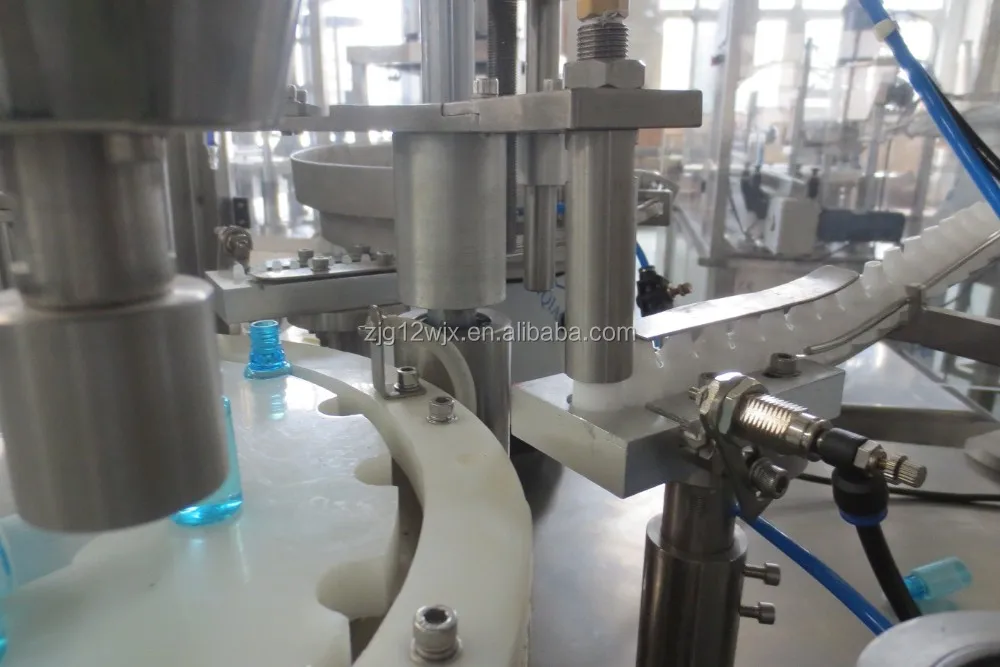

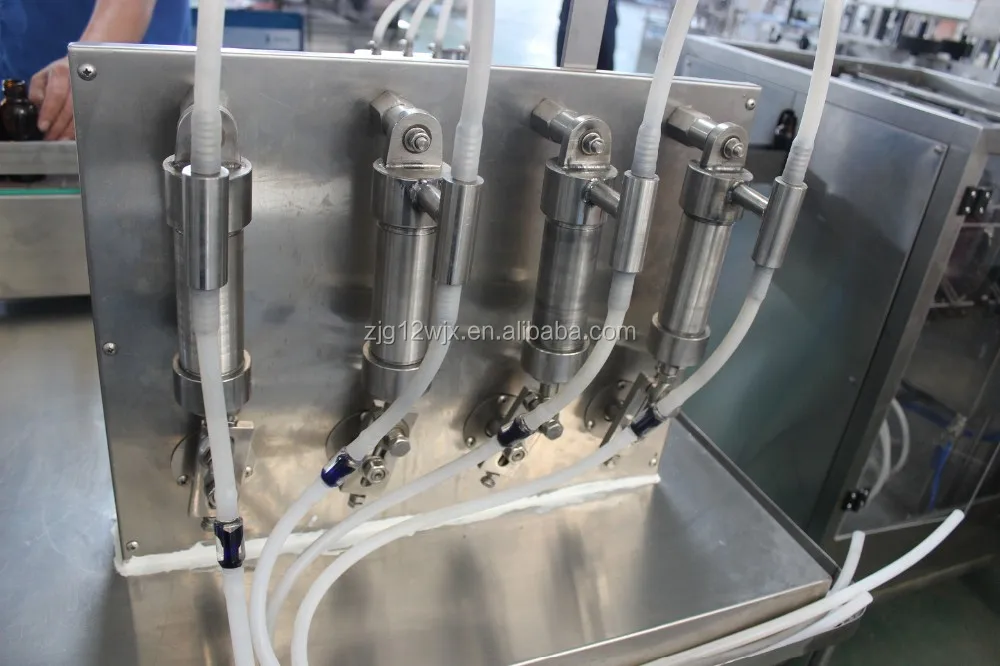

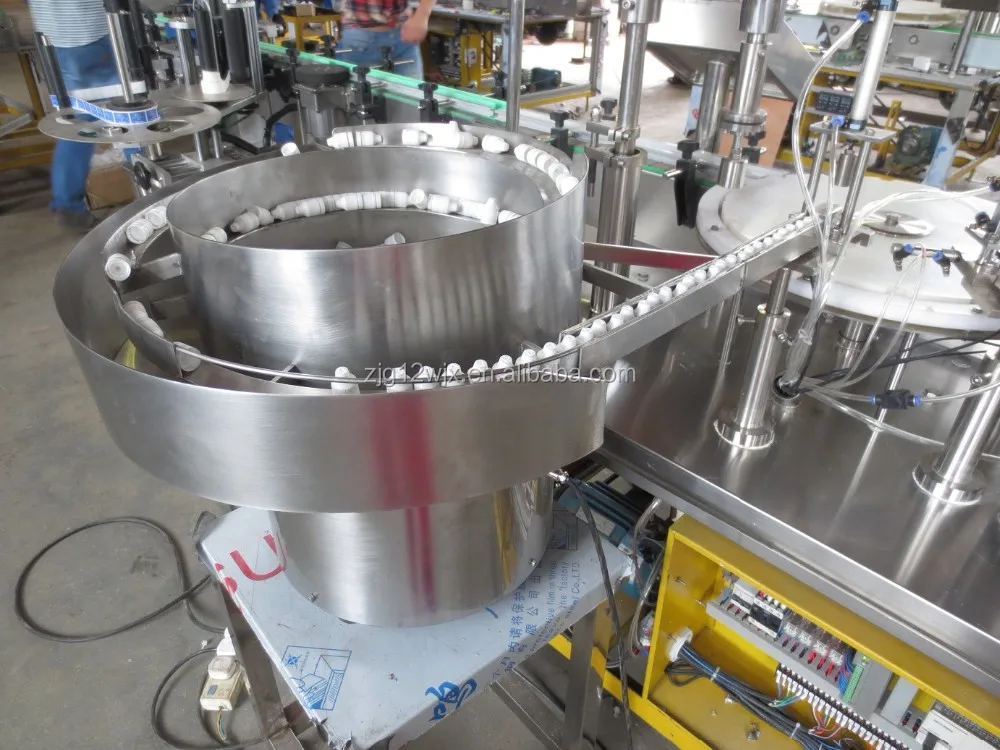

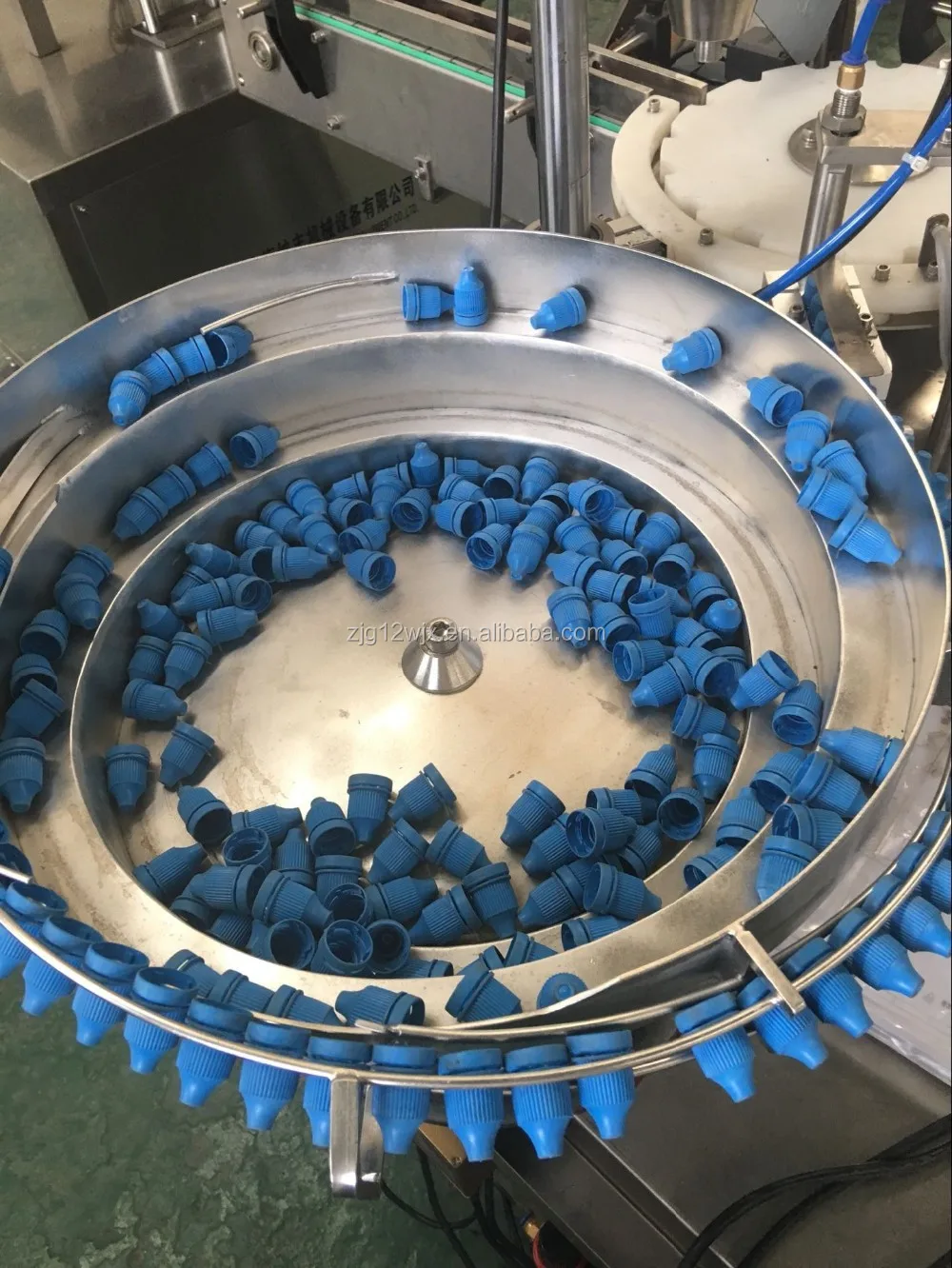

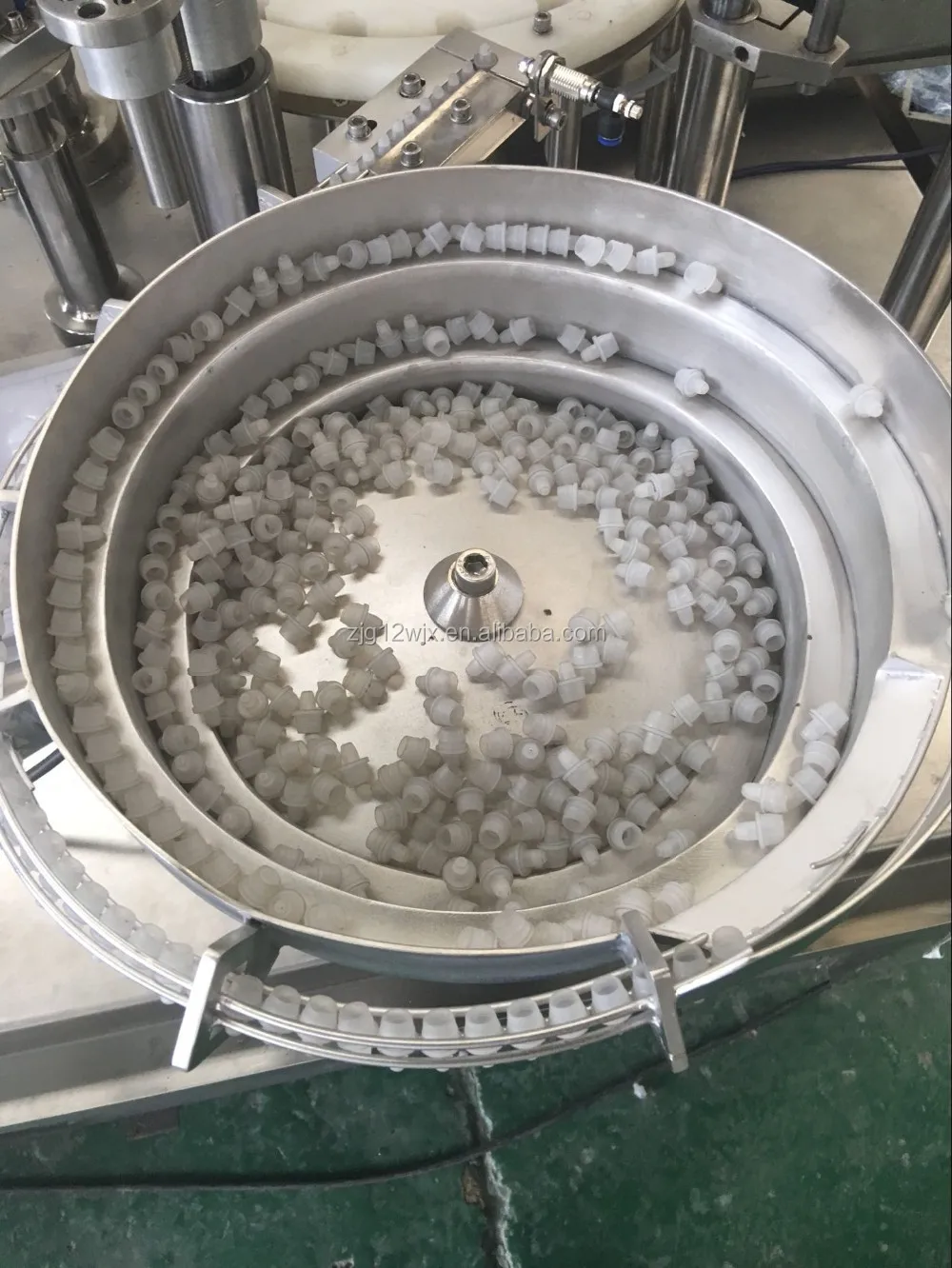

The machine is composed by a load turntable, ceramic piston pump(alternative peristaltic pump) &fill nozzles, plug &cap sorter, Plug &cap placer, cap screw-on system, unload tray.

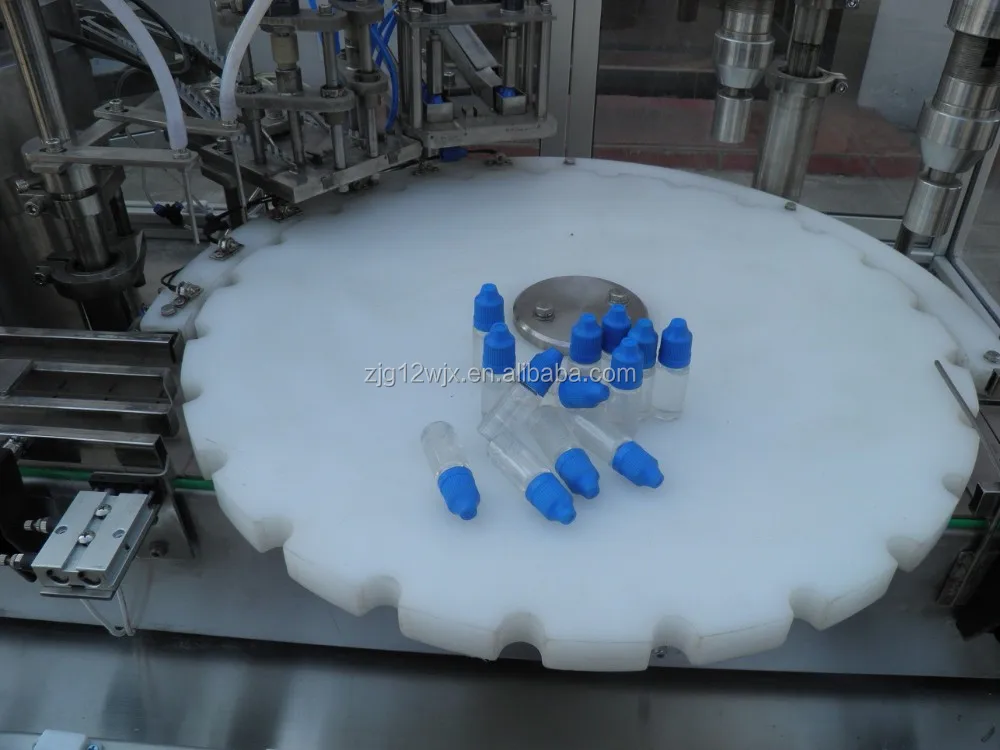

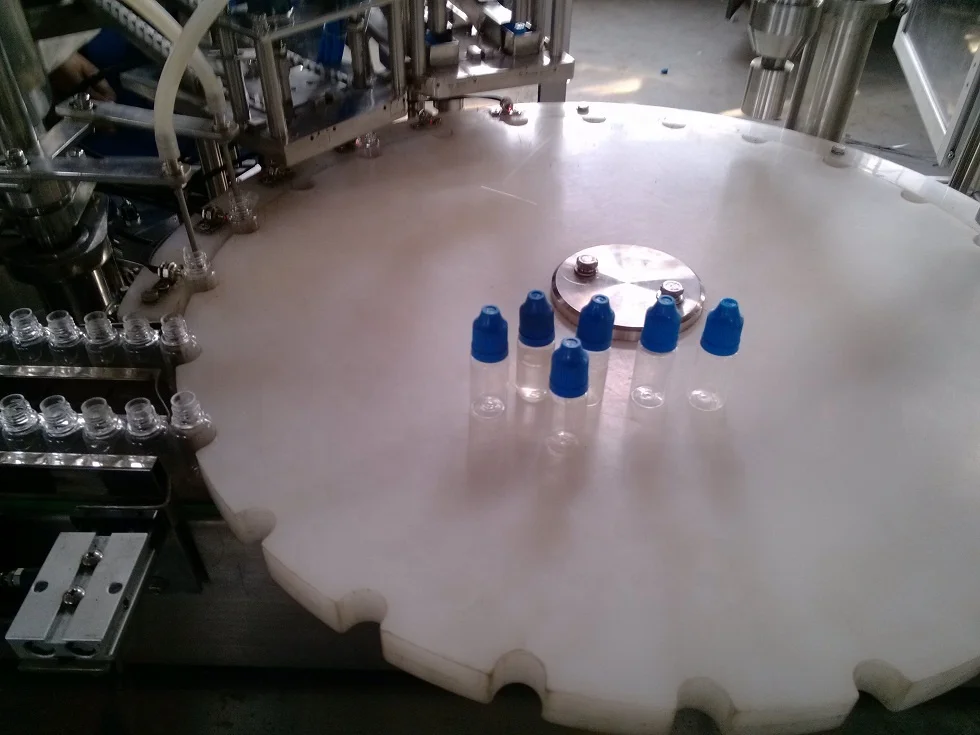

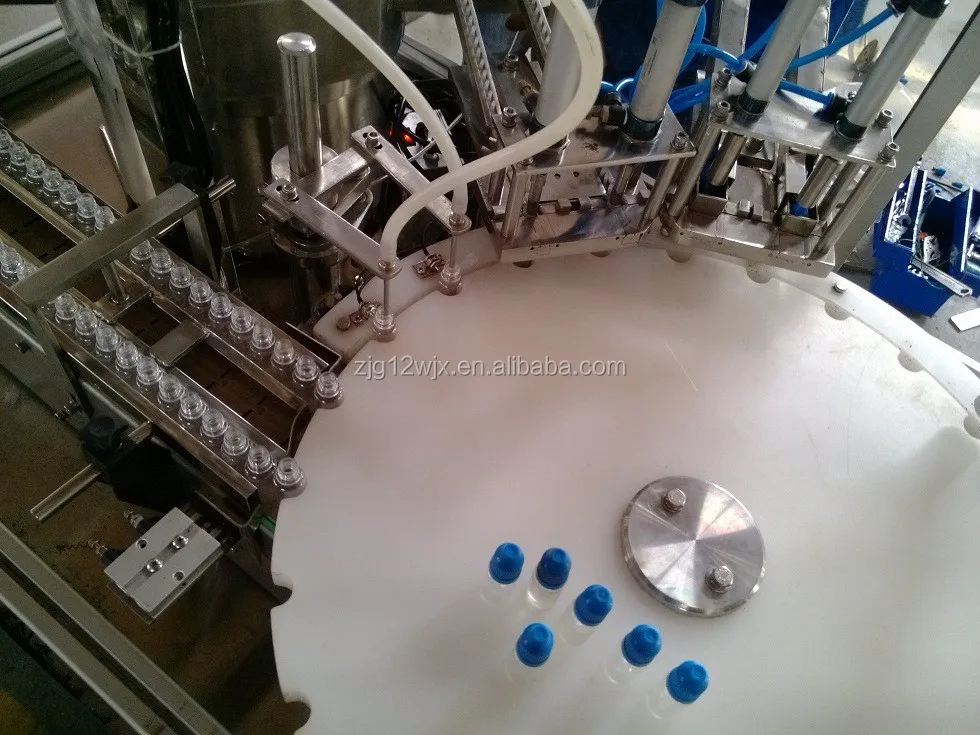

The bottle loading/unloading is done manually, through loadingturntableØ500mm and unloading tray, or directly from an production line.
It is designed and made accordance to GMP regulation.

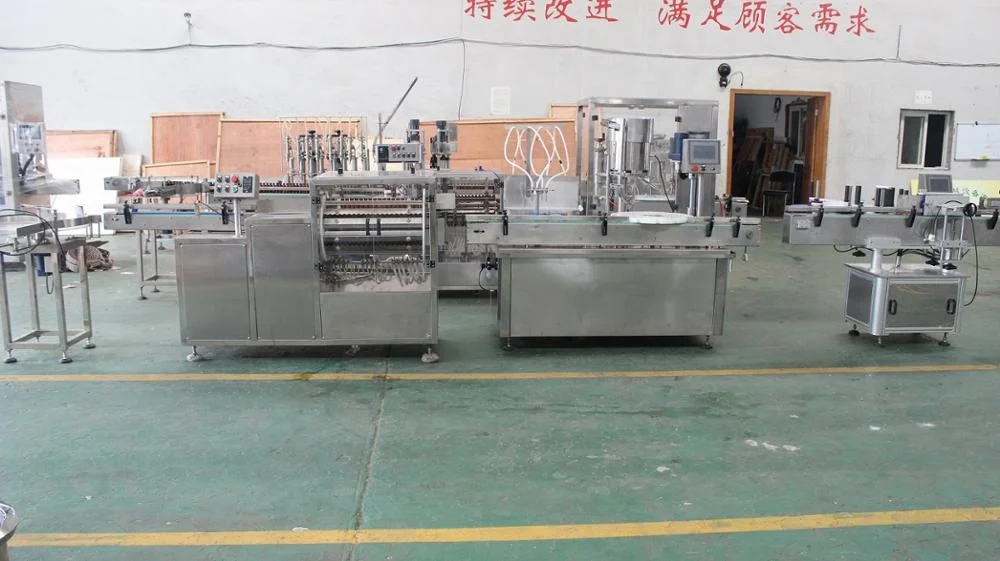

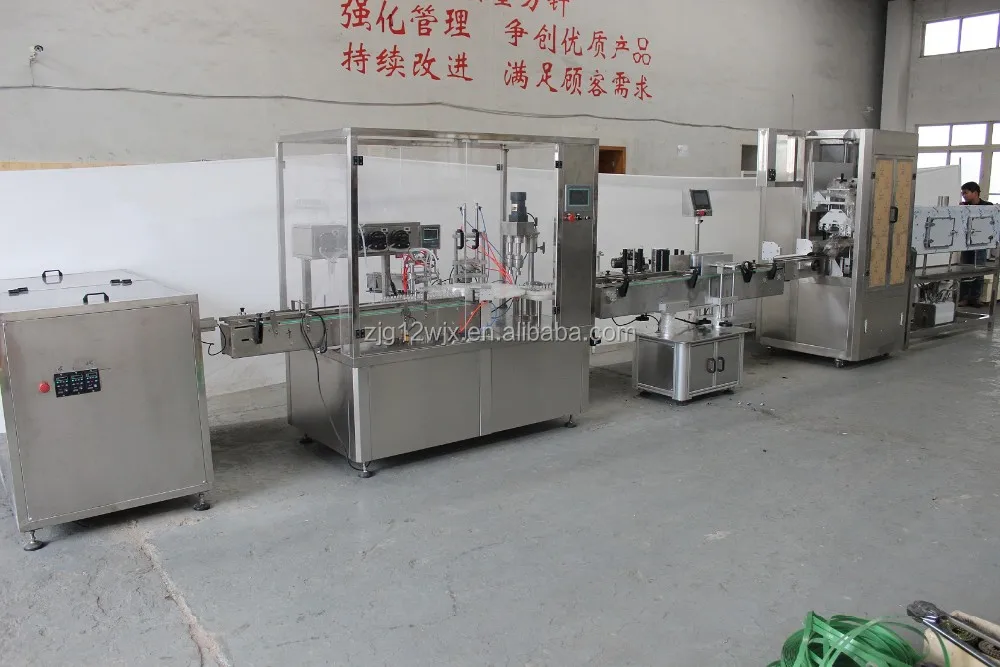

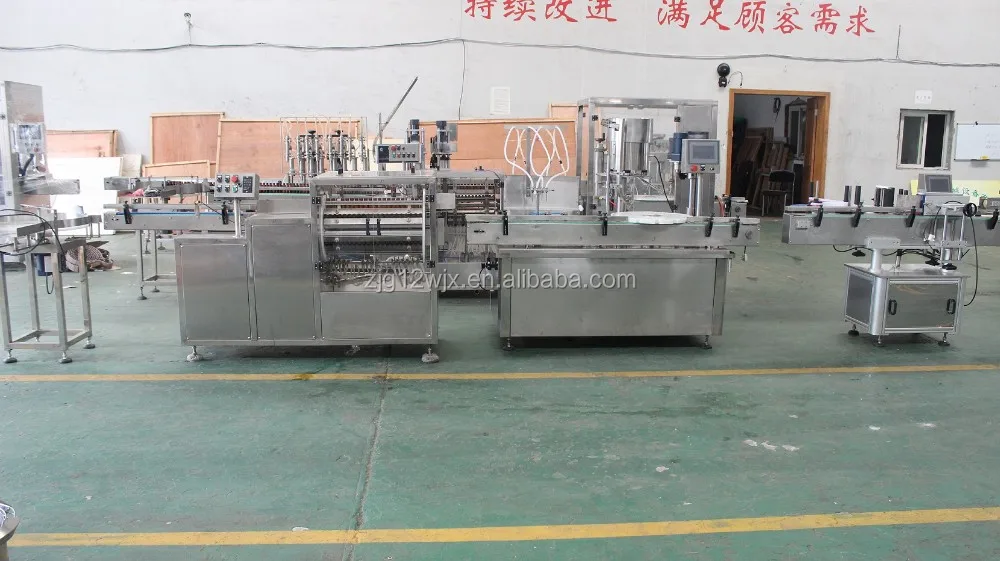

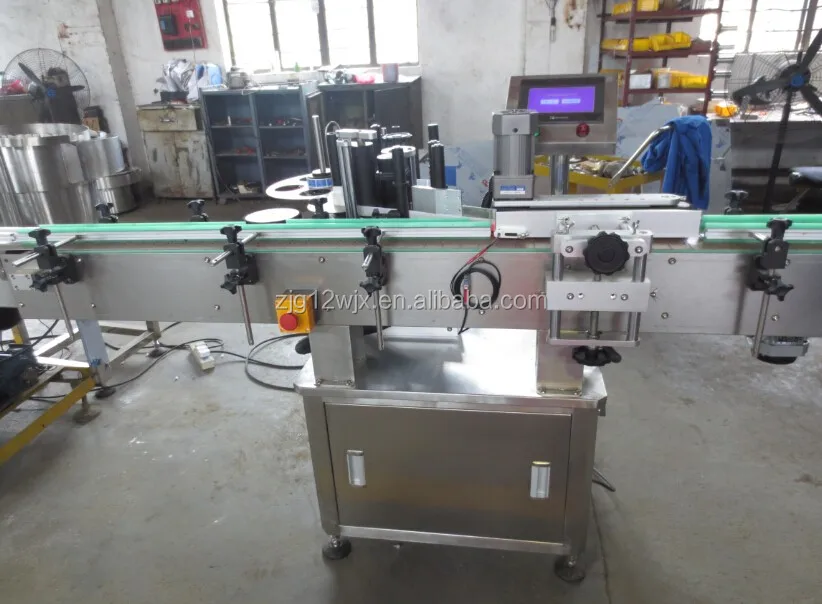

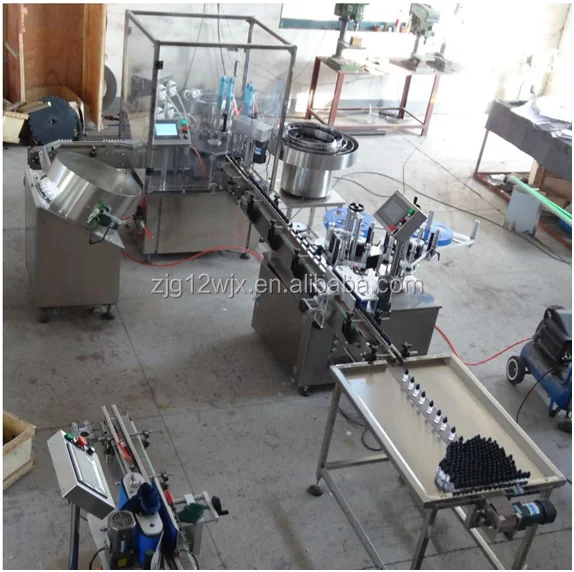

This new design e liquid filling machine is the third generation type, with function of all fully automatic bottle sorting, feeding, stoppering, dropper tips and eye droppers placing system, servo control torqueing with feedback protection system for cap sealing, engineered to performmultiple tasks within a compact design. It adopts high quality peristaltic pump or high precision volumetric pump as filling system, PLC and touch screen control system, free adjustment for the filling range from 5ml to 30ml. An optional e-juice labeling machine and cartoning machine and shrink wrapping machine can also be incorporated in the filling line.
Detailed Images
Machine Parts

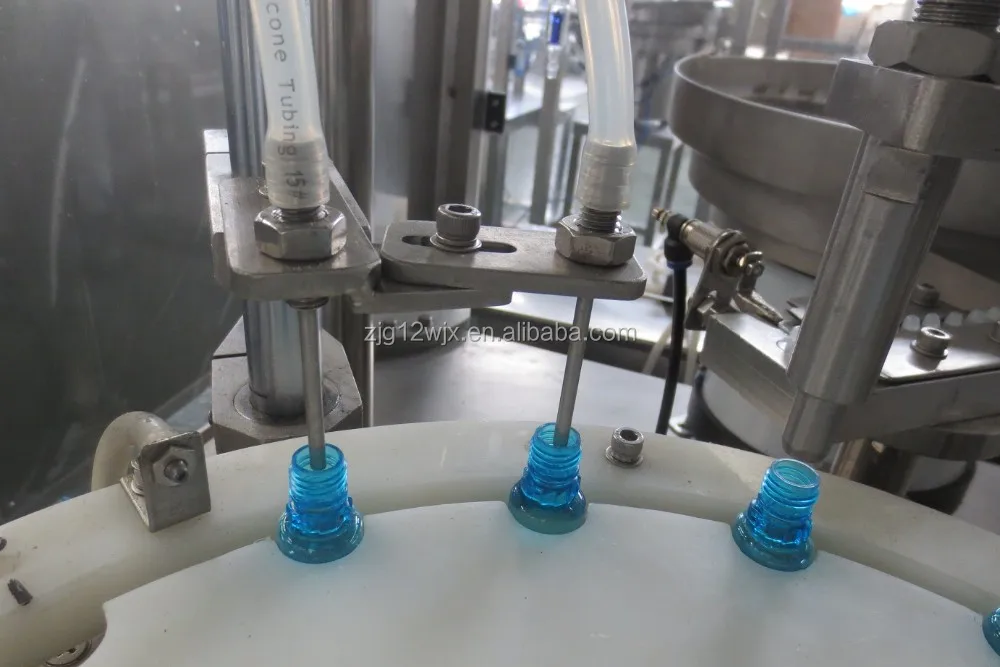

Name: Filling head
Brand: MIC
Original: China
This is filling nozzles, normally, there are two pieces filling nozzles.The filling head is "*"type, it sill hold liquid after filling, it will not leakage liquid after filling.
Main Features
Filling pipes :Name
MIC :Brand
China :Original
This is filling pipes, it is high quality imported pipes.There are the valves on the pipe, it will suck liquid back after once filling.
So filling nozzles will not leakage.
Machine Parts

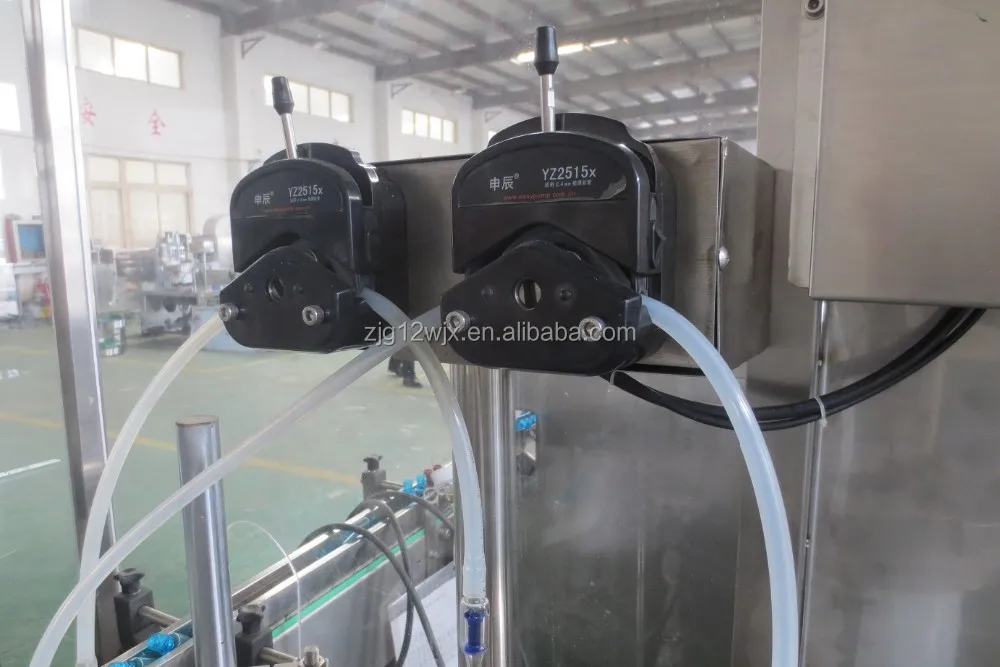

Name: Peristaltic pump
Brand: MIC
Original: China
This is filling pump type. For small bottles, peristaltic pump is better. Normally, filling range is from 5ml-50ml. But if customers want to fill high viscosity liquid, should think about the piston pump.
Main Features

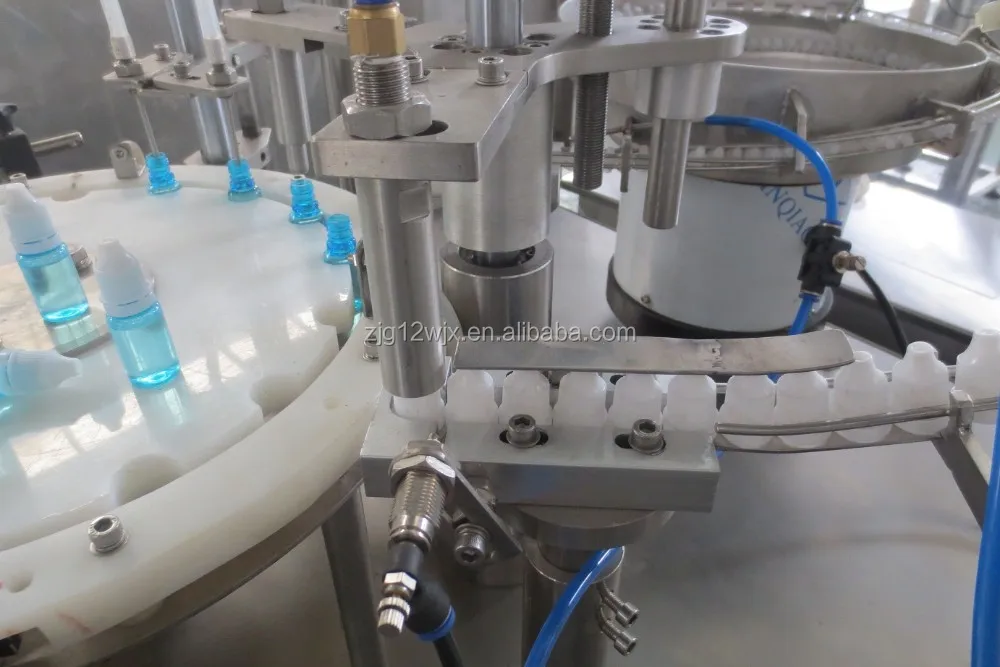

Capping heads :Name
MIC :Brand
China :Original

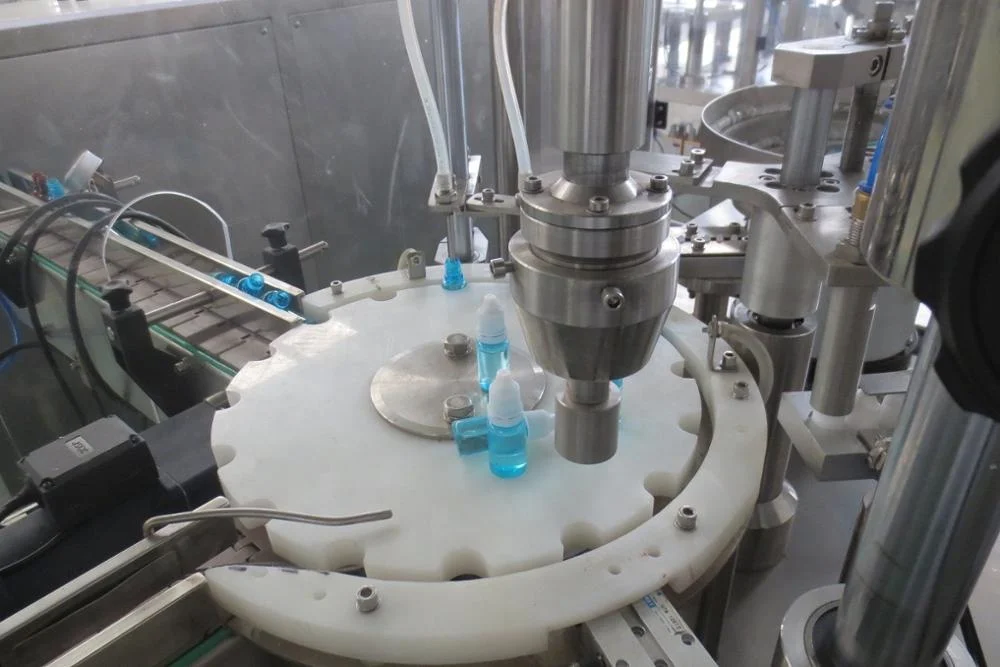

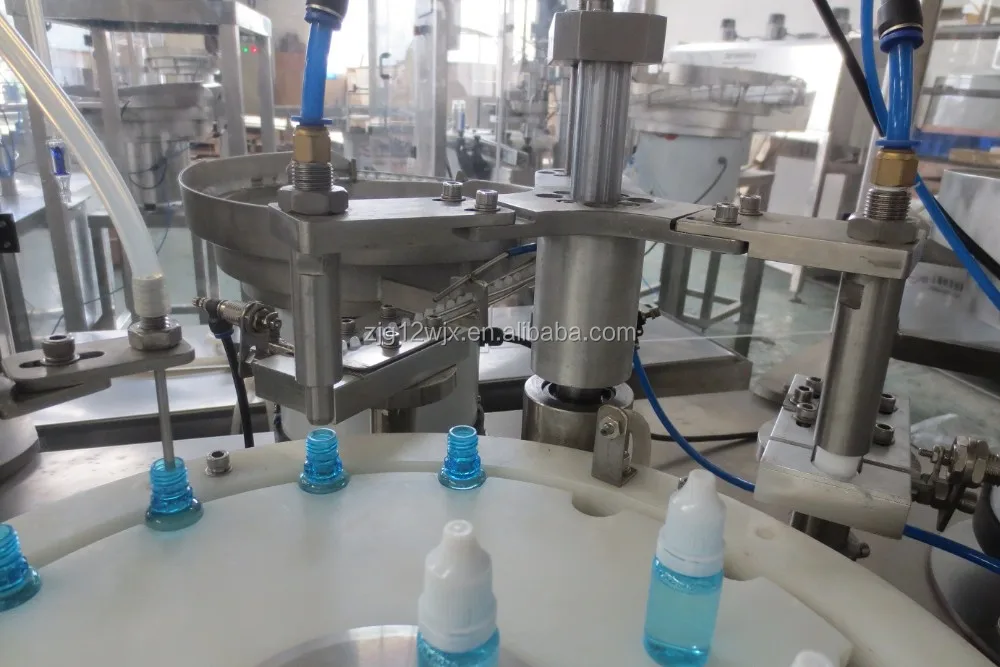

This is Cap sealing part, it can be adjusted by the black buttons to high or low. The capping head can be changed for different Cap type.
Related Products
Why Choose US

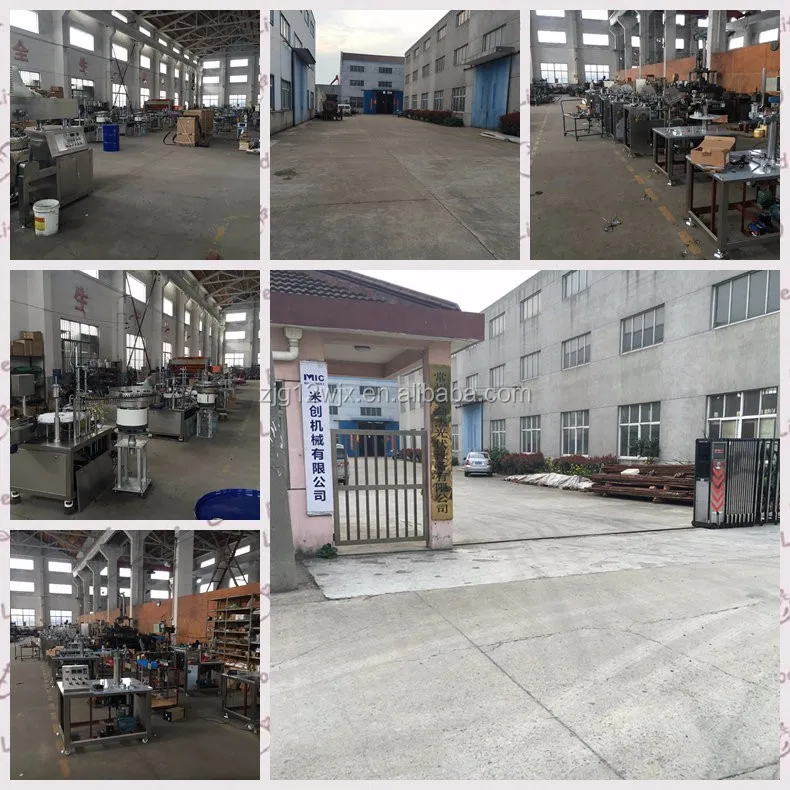

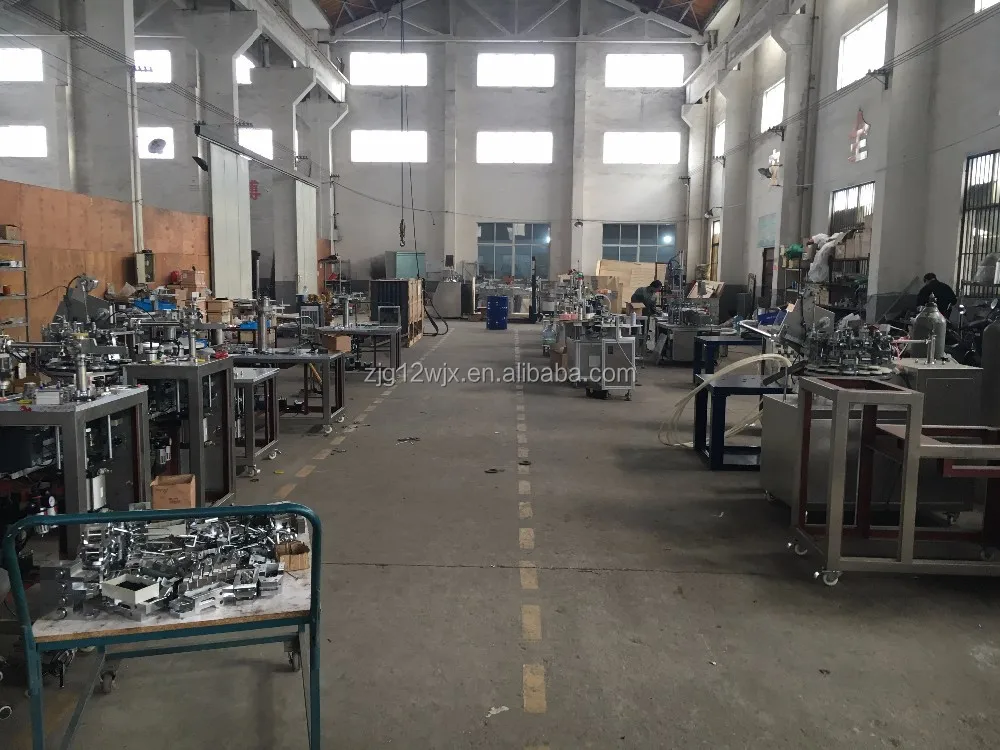

Our factory is located in Zhangjiagang near The Changjiang River. The location is beautiful and transportation convenient. We are specialized in designing and manufacturing of art equipment for pharmaceutical medicine, food, beverage and oil industries.
Focused on technology and quality, we always dedicate ourselves to providing reliable high efficient products to our clients. Machines such as glass bottle filling machine, Can filling machine, oil filling machine, other liquid filling and the sealing machines etc., all have an attractive appearance and innovative technology.
We promise to serve the best as we can.
Certifications
Packing & Delivery
Packaging | ||
Size | 2100(L) *1500(W) * 1800(H) | |
Weight | 650KG | |
Packaging Details | *Non-original wood *Bambooboxs *Waterproof, anti moth *Machines will be fixed in the wooden box *Meet the requirements of long distance transportation *Can not be recycled | |
Our Service
According to customer's requirement, we will offer our technician for oversea to install and adjust Automatic plastic bottle eye drops filling machine service.
We can also provide our Sales as translator to your site help the installation and Training.
Only to provide the local transportation, accommodation, air tickets (round trip) for Sales will be fine.
