Природный Газовый генератор LPG/NPG 300 кВт для промышленного использования, биогазовый генератор
- Категория товара: Gas Turbine Generators >>>
- Поставщик (Оптовый магазин): Guangdong,Binshi,Power,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
LPG/NPG Natural Gas Generator 300kw for Industrial Using generator biogas
Product Description

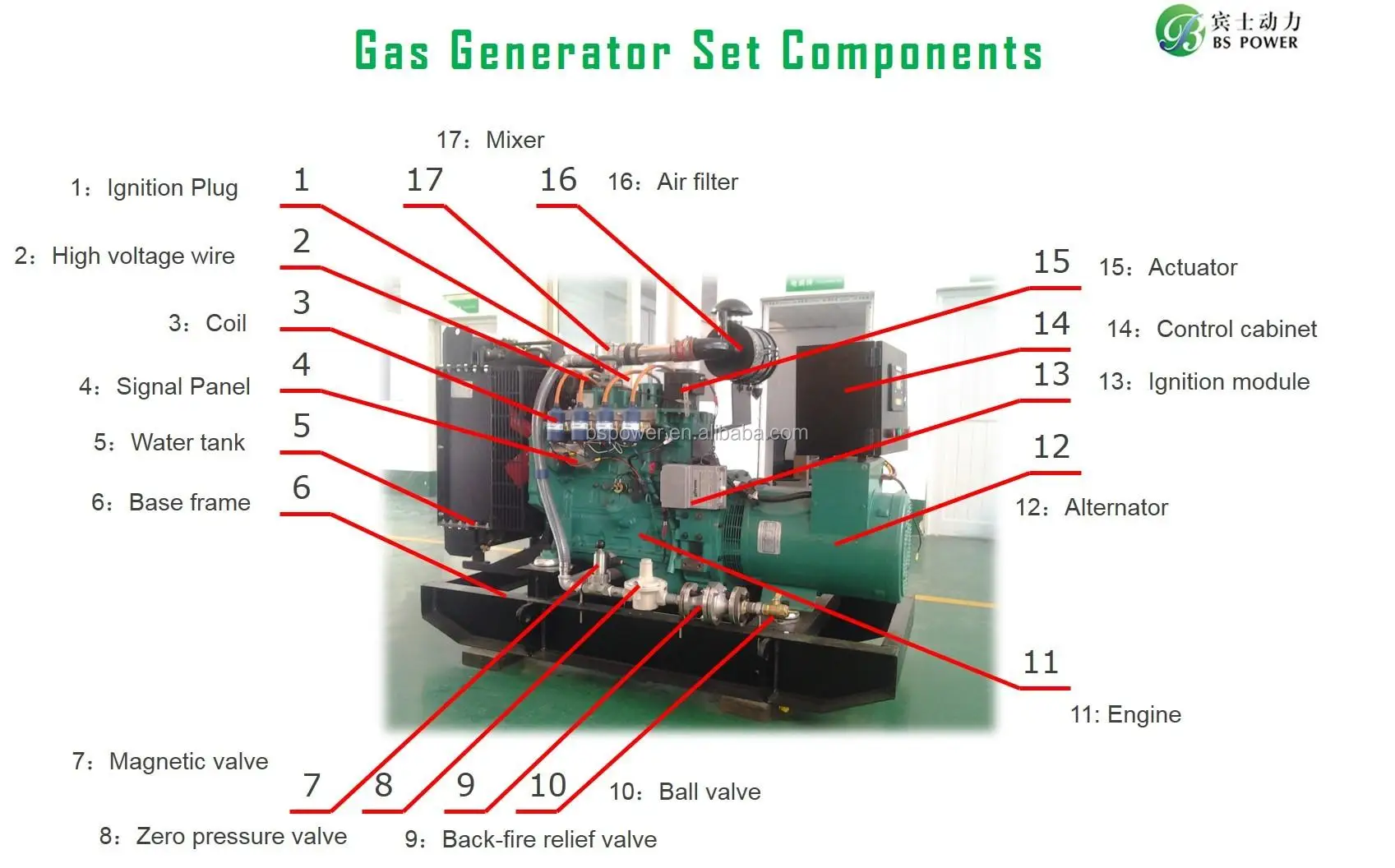

1. Gas Generator Set
Rated voltage V) 400/230;
Frequency (Hz) 50/60;
Rated speed 1500rpm/1800rpm;
Rated current(A) 900;
Standard Atmosphere: GB1105, ISO3046
2. Egine Specification
Brand: Cummings, perkins, MTU and Chinese engine.
Aspiration: Turbocharged Inter-cooled
Types of Gas: Natural Gas/Methane/LPG/CNG/LNG Gas
Oil Consumption(g/kwh): ≤ 1.8
3. Alternator
Brand: Faraday (Engga, Stamford, leroy somer, marathon is available)
Exciting Way: Brushless, AVR
Short-circuit Current: 300%(3In): 10s
THF: <2%
Rated Temperature-rise: 125º F
4. Control System
Brand: Deepsea
Model: DSE series
Capacity: Over-speed, oil pressure, water temperature, charge failure, the fault display, high water temperature, low oil pressure, start failure, hand start control, distal start control and ect.
Technical Data:
| Rated Power | Genset Model | Electrical Efficiency | Heat Efficiency | Dimensions | Weight |
| 30kw | BCF30-G | 34% | 48% | 1750×700×1100(mm) | 900kg |
| 50kw | BCF50-G | 35.50% | 52.90% | 2120×860×1430(mm) | 1200kg |
| 80kw | BCF80-G | 35.50% | 52.60% | 2400×850×1290(mm) | 1730kg |
| 100kw | BCF100-G | 35.50% | 52.60% | 2460×850×1290(mm) | 1750kg |
| 120kw | BWF120-G | 33% | 52.60% | 2850×950×1500(mm) | 2100kg |
| 160kw | BCF160-G | 35.50% | 52% | 2900×1000×1600(mm) | 3245kg |
| 200kw | BCF200-G | 36.70% | 51.30% | 3400×1700×1800(mm) | 3850kg |
| 250kw | BCF250-G | 36.70% | 52.40% | 3400×1700×1800(mm) | 4200kg |
| 300kw | BHF300-G | 34.80% | 53.50% | 3600×1750×2100(mm) | 4400kg |
| 500kw | BCF500-G | 36.70% | 52.80% | 4500×1700×2400(mm) | 8200kg |
| 600kw | BMF600-G | 36.70% | 51% | 5600×2100×2400(mm) | 9100kg |
| 700kw | BCF700-G | 36.70% | 51% | 5500×2000×2250(mm) | 9800kg |
| 800kw | BMF800-G | 36.70% | 51% | 6100×2250×2920(mm) | 12600kg |
| 1000kw | BMF1000-G | 37% | 51% | 5650×2000×2400(mm) | 12500kg |

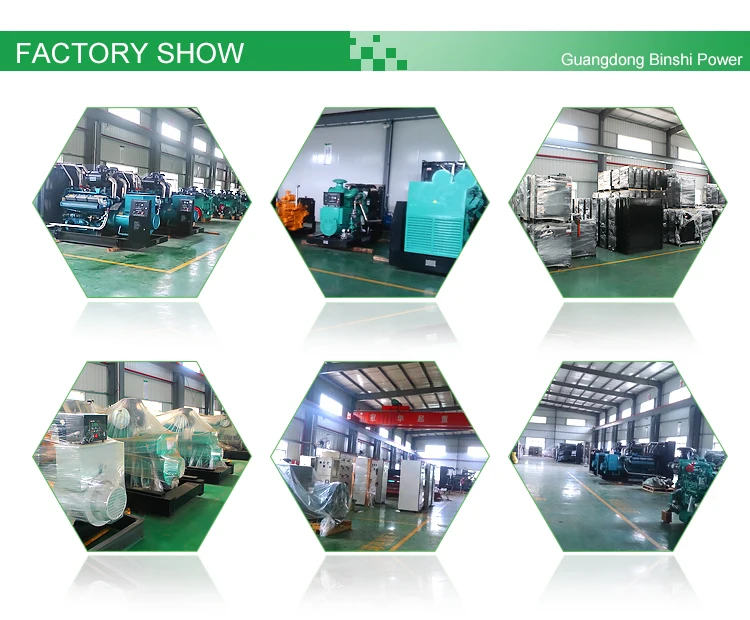

Our Gas Generator sets
Packaging & Shipping

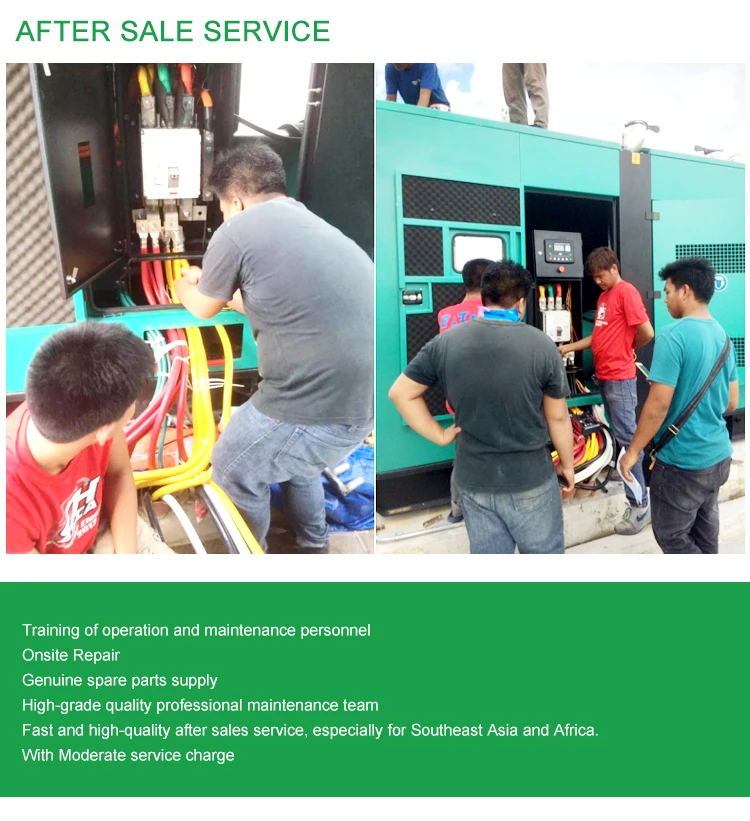

Our Services
Company Information
FAQ
1. What's the environment your product could be used?
Temperature -20℃~40℃
Relative humidity ≤95%
Altitude ≤1000m
2. Does the engine set could meet environment standard?
Yes, our low-emission diesel generator set has a tailor-made exhaust silencer system, which conform to Euro III / IV emission standards.
3. Warranty time?
12 months after delivery date or 1000 operating hours(whichever occurs first).
4. Can we get other after-sales service?
Yes, we supply Perkins, Marathon Global Web Services support sharing.
