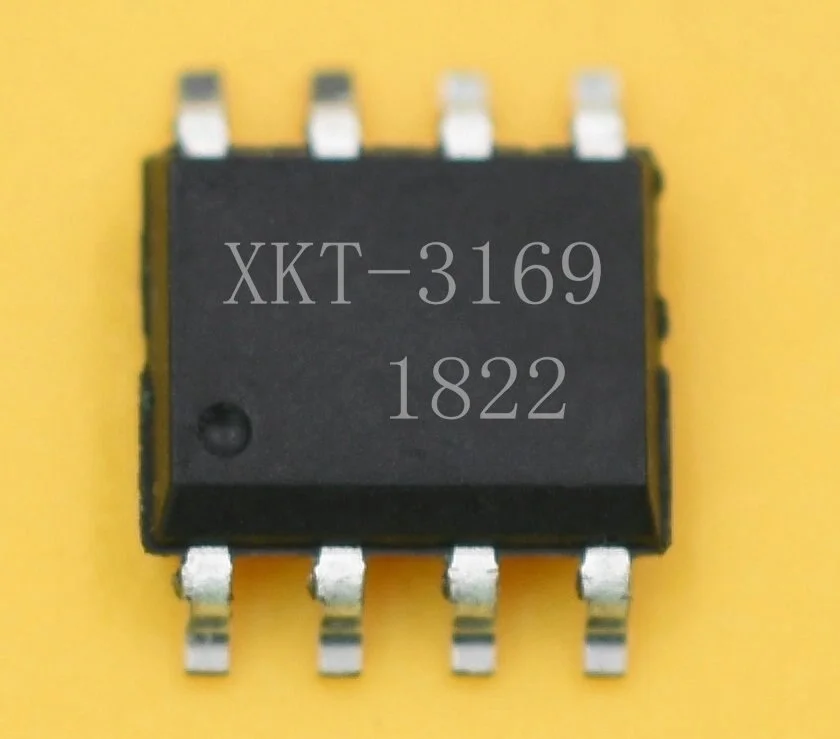

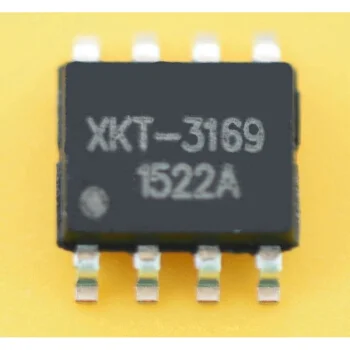

Taidacent Customizable XKT-3169 2A High Current Wireless Charging Chip Battery Charger IC High Power Wireless Charger IC
Product Description
XKT-3169 is a universal receiver integrated circuit for wireless charging series. It has a small size and large output power. It can be used with various wireless charging schemes. The circuit is simple and convenient to use.
Application
Battery charging and wireless direct power supply for military products, medical products, robots wireless power supply, security products, waterproof products, toy products, adult products, digital products, MP3, MP4, mobile phones, handheld household appliances, etc.
Specification

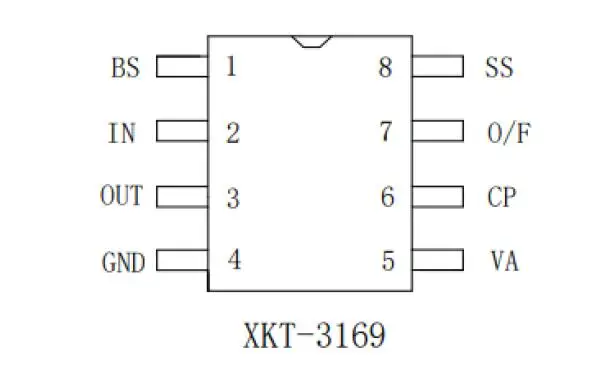

Pin number | Function description | ||
1 | BS | feedback | |
2 | IN | input | |
3 | OUT | output | |
4 | GND | ground | |
5 | SS | output voltage adjustment sampling | |
6 | O/F | de- harmonic | |
7 | CP | output control enable terminal | |
8 | VA | filter | |
1. Feedback
2. Voltage input pin
3. It is the voltage stabilized output terminal
4. is the negative pole of the power supply
5. Sampling the output voltage to change the output voltage value
6. Harmonic removal
7. Output switch enable pin, open when high potential, and turn off output when low potential
8. Filter
2. Voltage input pin
3. It is the voltage stabilized output terminal
4. is the negative pole of the power supply
5. Sampling the output voltage to change the output voltage value
6. Harmonic removal
7. Output switch enable pin, open when high potential, and turn off output when low potential
8. Filter
Symbol | working parameter | working condition | min value | Typ value | max value | unit |
unit | Operating Voltage | 25°C | 4 | 12 | 15 | V |
AOUT | output current | VDD=12V | 50 | 1000 | 2000 | mA |
M | sensing distance | 1 | 6 | 200 | mm |
Details Images
