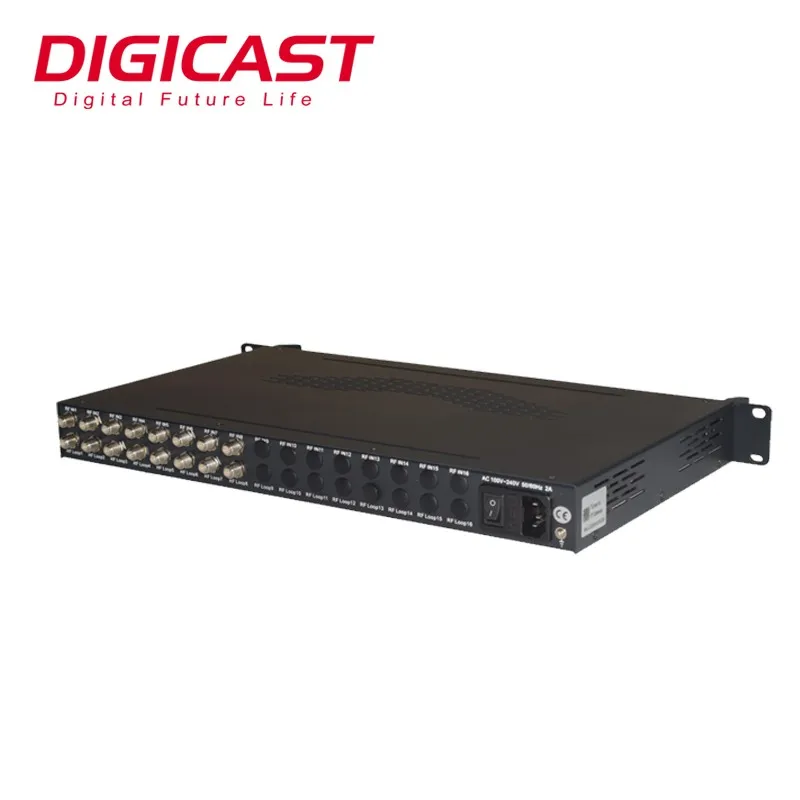

DMB-9016B-8 IPTV OTT вещания системы 8 каналов ИИР-цифра спутниковый телевизионный ресивер профессиональный приемник с мультикастом Unicast UDP

DMB-9016B-8 IPTV OTT вещания системы 8 каналов ИИР-цифра спутниковый телевизионный ресивер профессиональный приемник с мультикастом Unicast UDP

Категория товара: Radio & TV Broadcasting Equipment >>>
Поставщик (Оптовый магазин): Hangzhou,Dtcore,Technology,Co.,Ltd.

Цена:420,00 $ - 945,00 $

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

HOTSALE

DMB-8800A-EC Classic

ProVideo Streaming Encoder

Input: 1*HDMI+3.5mm
Output: TS over IP(1000M)

DMB-8900AU-EC Classic

ProVideo Streaming Encoder

Input: 1*HDMI in+3.5mm

Output: TS over IP(100M/1000M); Up to 4K@30fps

DMB-8900AR Classic

ProVideo Streaming Encoder

Input: 1*HDMI in/loopout+1* RS232+3.5mm in/loopout

Output: TS over IP(100M/1000M)

DMB-8900N Ultra 4G/LTE Live Streaming Encoder

Input: 1*HDMI+3.5mm

Output: TS over IP(1000M)

DMB-8804A-EC Classic

ProVideo Streaming Encoder

Input: 4*HDMI+2*3.5mm
Output: TS over IP(1000M)

DMB-9581E Multi-Channel HD H.264 Encoding & Modulator

Inputs: 24*HDMI+2*ASI+IP

Outputs: IP+2*ASI+4*RF

DMB-24E Multi-Channel FTA To 4*RF Transmodulator

Input: 24*Tuners+2*ASI+32*IP

Output: 4*RF+1*MPTS+1*ASI

DMB-90E Multi-Channel Professional Receiver

Input: 24*Tuners+2*ASI

Output: IP+2*ASI

DMB-8820E Multi-Channel H.264 HD Encoder

Input: 4/8/12/16/20/24*HDMI

Output: IP+2*ASI

OVERVIEW

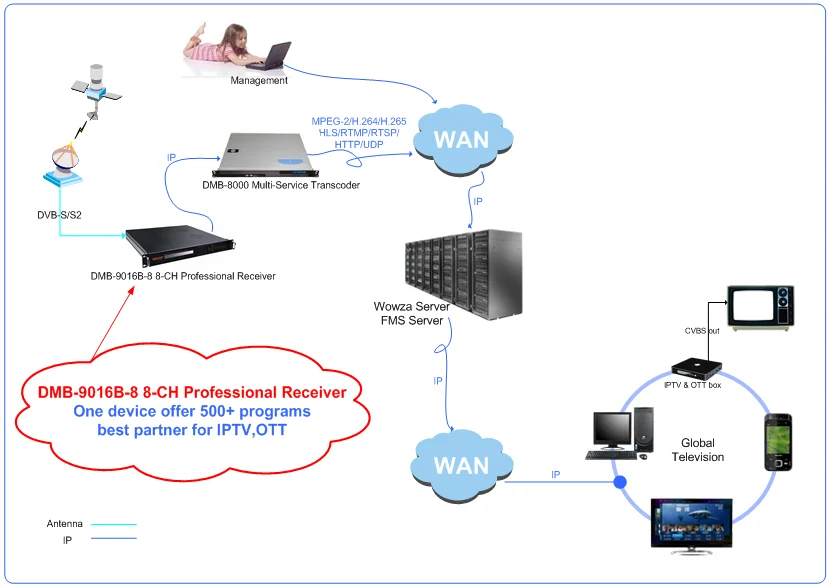

DMB-9016B-8 8 Channel professional Receiver accepts 8*Tuners (DVB-S/S2/T/T2/C/ATSC-T/ISDB-T optional) input, demodulate to TS and encapsulated output IP packet. It supports 8 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol through different IP address and ports. Meanwhile, capable of multiplexing, BISS descrambling and DisEqc. Largely cost down the source gathering of Digital TV Broadcasting system and IPTV/OTT system which based on IP construction. Being the ideal multi-channel professional receiver used for FTA (free to air) IP signal source capture from digital tuner.

FEATURES

* Tuner inputs support DVBS/S2,DVBT/T2,DVBC,ISDBT/Tb for option
* Support 8*Tuners(DVB-S/S2/-C/-T/T2/ATSC-T/ISDB-T optional ) input, 2 ASI input
* 2 GigE mirrored output, up to 850Mbps---SPTS mode
* Offering PID filtering, re-mapping (Only for SPTS output)
* 2 independent GigE output ports, GigE1 + GigE2---MPTS mode
* Support "Null PKT Filter" function (Only for MPTS output)
* Capable of BISS descrambling and DisEqc function
* 8 MPTS or 512 SPTS output mode (MPTS and SPTS output switchable)
* Providing web-based management

SPECIFICATIONS
Tuner Input	DVB-S/S2 Tuner input Interface: 8Tuner(DVB-S/S2/T/T2/C/ISDB-T/Tb/ATSC) input and loop out RF input range: 950MHz~2150MHz(DVB-S/S2) Constellation: QPSK, 8PSK Code rate+: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 Connector: F-female type, 75ohm Symbol rate: QPSK 2~45Mbauds QPSK 1~45Mbauds, 8PSK 2~30Mbauds DVB-C Tuner input* Standard: J.83A(DVB-C), J.83B, J.83C Frequency In: 30 MHz~1000 MHz Constellation: 16/32/64/128/256 QAM DVB-T/T2 Tuner input Frequency In: 30MHz ~999.999 MHz Bandwidth: 6/7/8 M bandwidth ISDB-T Tuner input Input Frequency: 30-1000MHz ATSC-T Tuner input Input Frequency: 54MHz~858MHz Bandwidth: 6M bandwidth
IP Output (below two options switchable)	Output option1: 512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast Output Option2: 8 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast * Interface: GigE port(100/1000M base-T Ethernet),RJ45 * Transmission protocol: UDP, RTP, ARP, ICMP, IGMP protocol * Transmission mode: Unicast or Multicast * TS packet Length: 7 x 188Byte
GENERAL OPTIONS
Control and Management	Interface: 1*RJ45,10/100 BaseT network interface Remote control: web-based management Local operation: keyboard on front panel, LCD display
Physical Parameters	Voltage: 90~260VAC, 50/60Hz Consumption: 25W Operating temperature: 0~50°C Storage temperature: 10~70°C Relative humidity: 10%~90%(non-condensing) Dimensions: 430mm(W)×400(D)mm×45mm(H)(19inch,1RU) Weight: 4 KGS
