Машина для производства мягких капсул печени трески, машина для производства капсул кальция и витамина е

Машина для производства мягких капсул печени трески, машина для производства капсул кальция и витамина е

Категория товара: >>>
Поставщик (Оптовый магазин): Beijing,Zhongtian,Huitong,Technology,Co.,Ltd.

Цена:73 000,00 $ - 75 000,00 $

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

Product Description

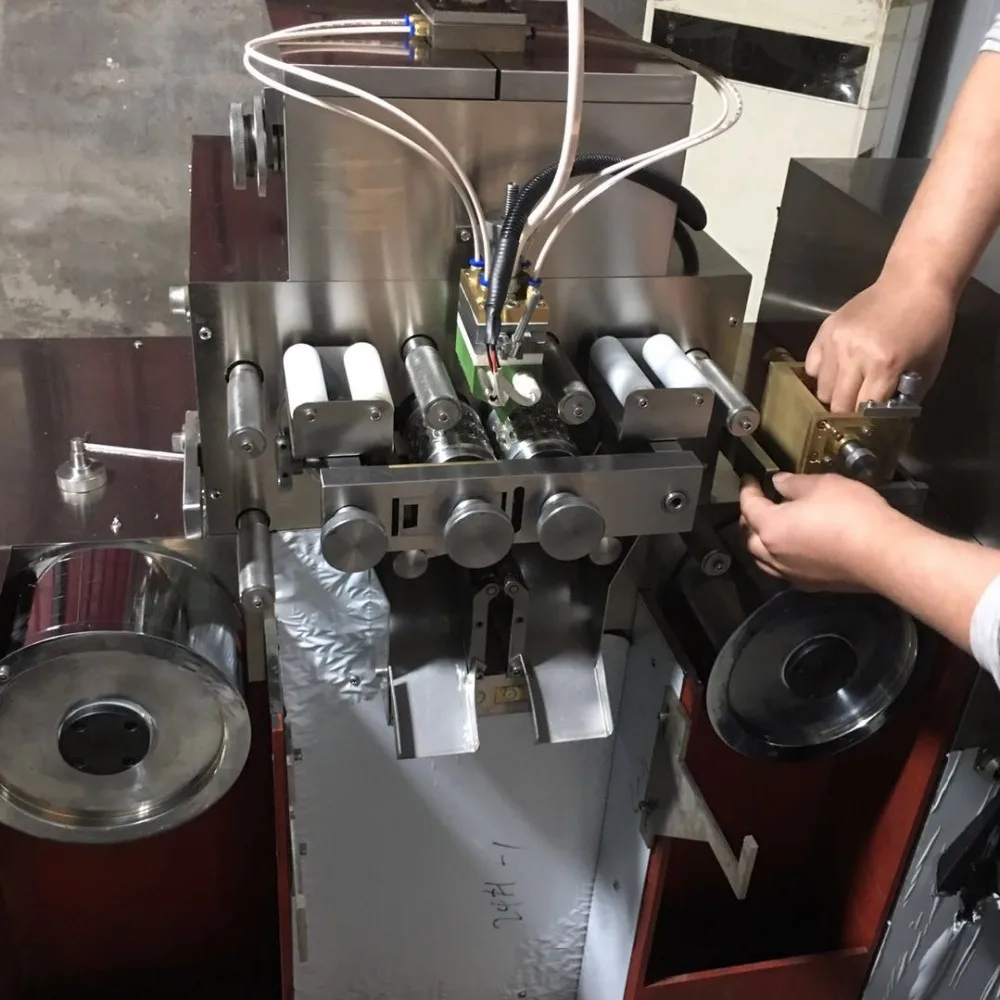

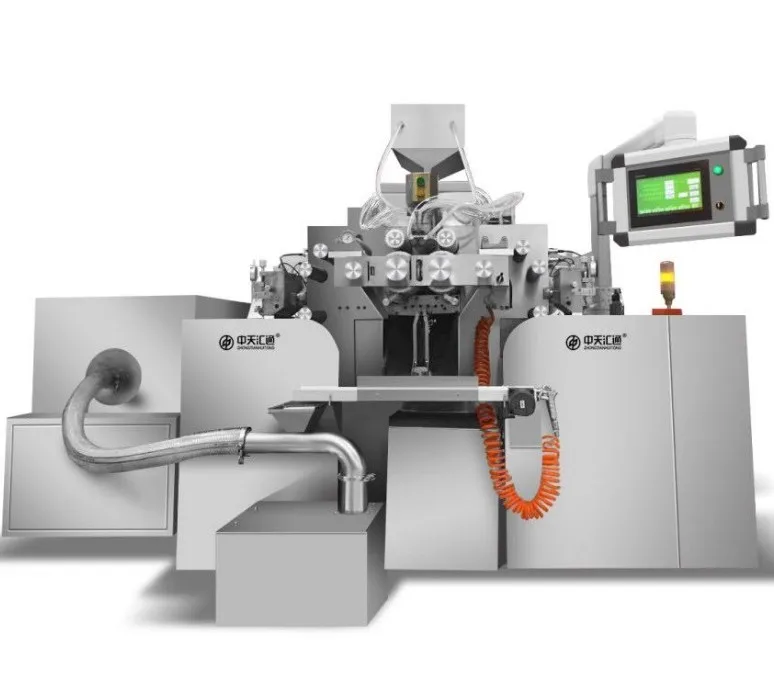

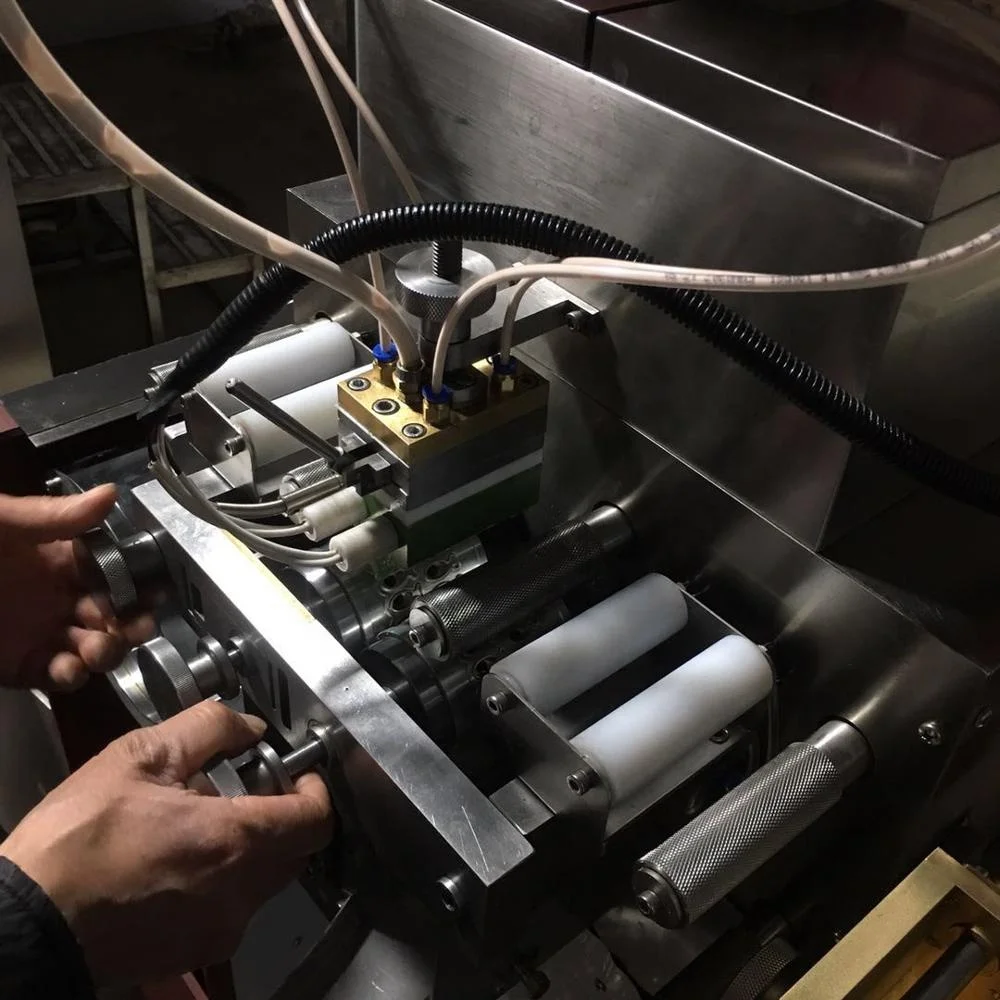

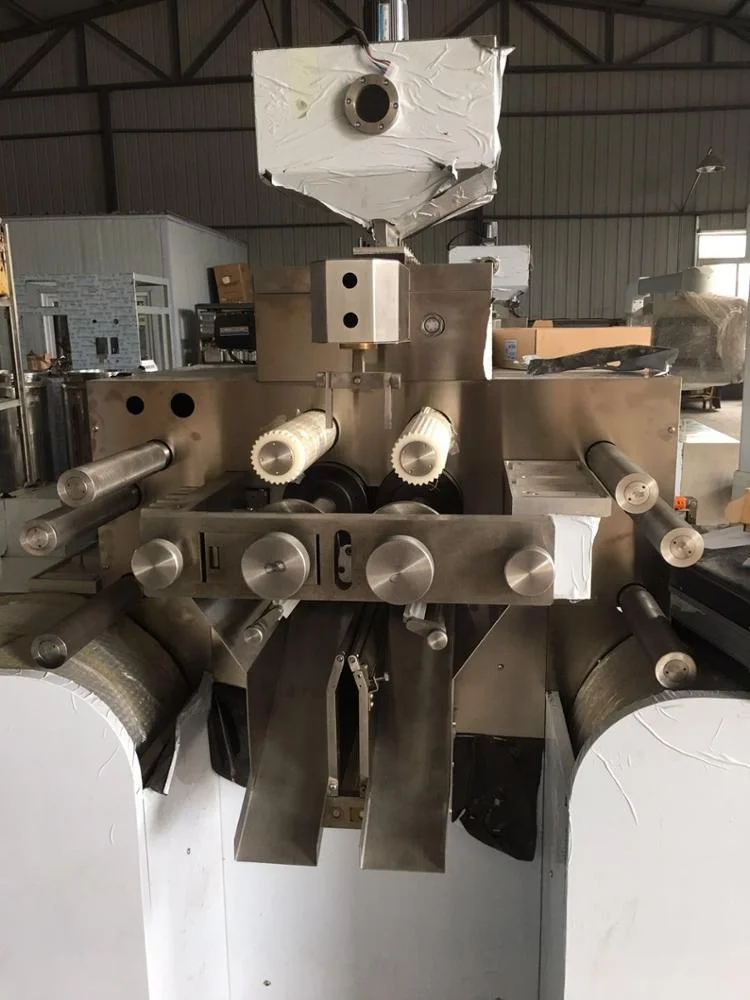

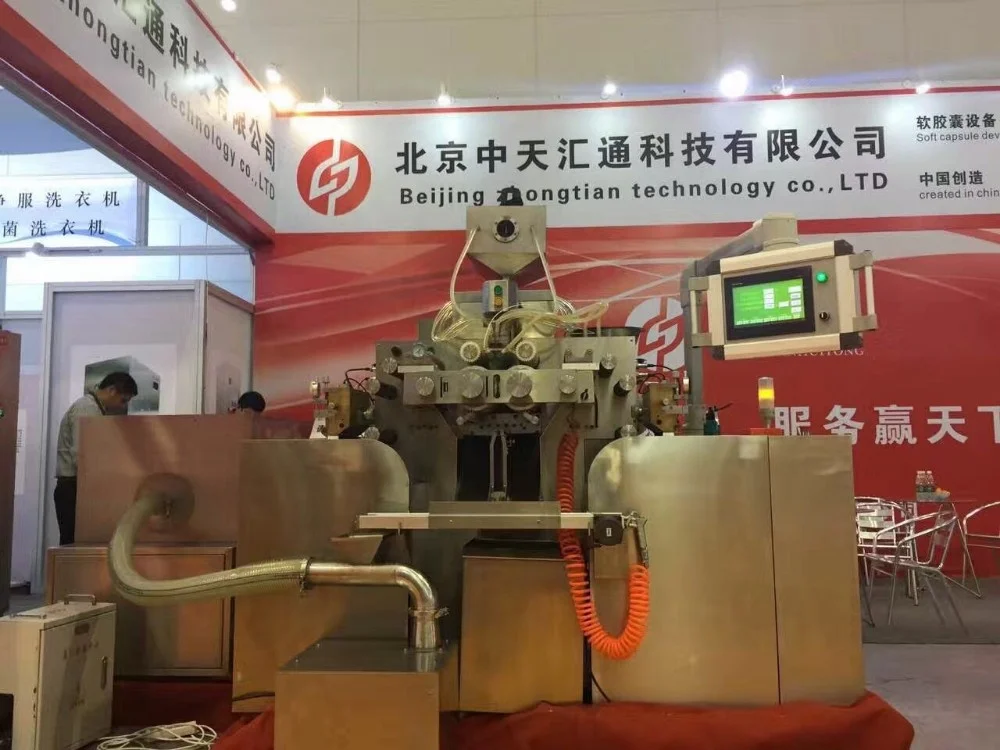

ZTHT-125B Automatic Prodction Line for soft capsule

The output of ZTHT-125B automatic production machine is 6000 pieces / hour.

Easy to operate , the control system is Simens+ PLC full touch . Fast with production ,all of the electronic component is imported from German, the PLC transducer and power transformer are stabe. at the same time, the redundancy technology is used in the system and also it has the self-diagnostic funstion.

SPECIFICATIONS OF ZTHT-125B
	Type of Machine	ZTHT-125B
		Roller die size	115mm X 125mm
		Speed	0--4 RPM
Soft Capsule machine	Piston number	12 Ea
		Loading tolerance	≤ 0.5%
		Feeding of each piston	0-2 ml
	Electric	220V / 380V / 440V
		Power	6 Kw
		Control System	PLC + Touch screen

Our Service

Before Transportation

Before the transportation , we offer the training course for your technical ,if he come to our factory, and next, after the transportation, we have 12 month warranty for the machine, and if you need we can sent our technical and engineer to your factory and help you with the equipment commissioning

After Transportation

we will take video and clearer picture for you. If chance, we can take video online and show you.Online video service ,24 hour technology support by mail or online.if you need we can sent our engineer to your place.

DETAILS OF EACH PART

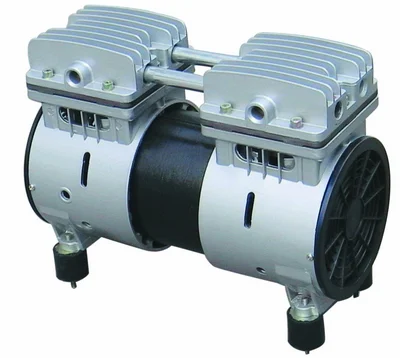

Air Compressor ( KQY65)

Material\tSUS 304
Dimension\t420mm X 220mm X 360mm
Weight\t2 Kg
Voltage\t220 V / 50 Hz
Power \t≤ 320 W
Air folw\t≤ 3.3 m / H

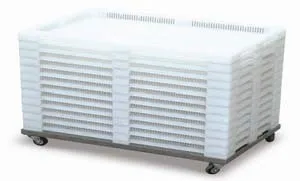

Capsule Dry Tray & Trailer

Material\tPVC
Dimension\t750mm X 480mm X 55mm
Capacity\t2500 capslue

Trailer

Material\tSUS 304
Dimension\t775mm X 510mm X 115mm
Four casters\tEquipped on the bottom
Weight\t 80 Kg

Tumble Dryer(HTR-II)

Basket Size\tΦ450mm X 500mm / central Control
Electric Spec\t220 V / 380 V
Required Power\t3.2 Kw
Main Motor\t0.2Kw X 2 Motor
Pan Motor\t0.2Kw X 2 Fans
Dimension \t1520mm X 870mm X 930mm
Weight\t220 Kg
Material\tSUS 304 for Contract area

Gelatin Melting Tank

Material\tSUS 304
Dimension\tΦ650mm X 1700mm
Weight\t140 Kg
Power\t3 Kw
Voltage\t220 V / 380 V
Vaccum degree\t0.02-0.09 Mpa
Max rate\t40 rpm( fixed)
Max temp\t50-100℃
Max capa\t100 litter each tank

Burdening Tin

Material\tSUS 304
Dimension\tΦ600mm X 1700mm
Weight\t120 Kg
Power consumption\t2 Kw
Voltage\t220 V / 380V / 440 V
Volume\t80 L
Max tem\t0-100 ℃
Revolution\t 36 R / Min
Working Pressure\t0.02-0.09 Mpa

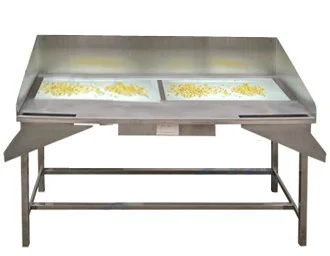

Light check up stage

Material\tSUS 304
Produce capacity\t20-100 Kg/H
Dimension \t800mm X 600mm X 800mm
Weight\t60 Kg
Power consumption\t100 W
Voltage\t220 V

Packing & Delivery

Packaging
Size	As the size of Machine
Weight	300-800 Kg
Packaging Details	The normal package is wooden box with pallet and we use the plastic and waterproof to protect the goods form moisture . If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request
