Portable 20 kv high voltage insulation tester Digital insulation test 20000v
Product Description

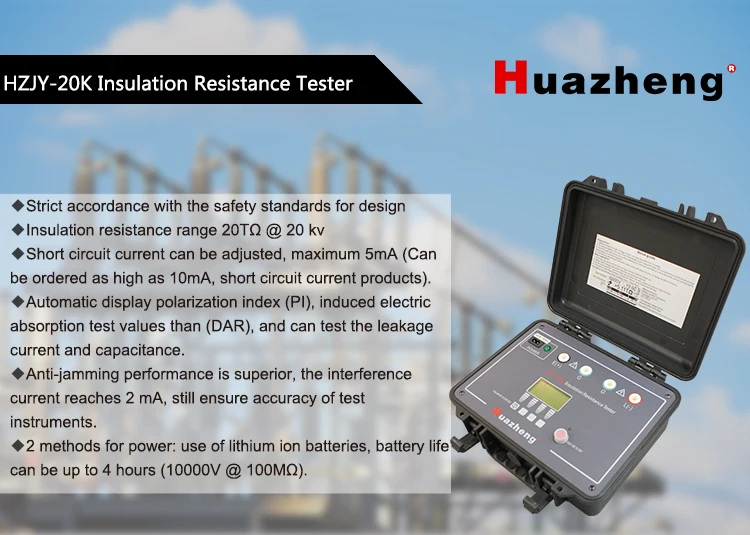

Feature:
1,Strong anti electric interference ability 2mA(50Hz),
2,Short-circuit current of the testing power>5mA,Maximum 15mA.Adapting to testing of large-capacity and high inductance.
3,Wide resistance testing range:0.5MΩ~200000MΩ.Accurate and high resolution
4,Wide voltage testing range,0.25,0.5,1,2.5,5,10,15,20kV optional,the voltage can be adjusted smoothly from 0V to the needed.
5,Timekeeping function,Analyzing the absorption ratio and polarization index
Specifications:
Model | Testing voltage | accuracy | Short circuit current |
HZ-5kV | 0~0.25,0.5,1,2.5,5kV | ±(5%+10V) | >5mA |
HZ-10kV | 0.5,1,2.5,5,10kV | ±(5%+10V) | >5mA |
HZ-15kV | 1,2.5,5,10,15kV | ±(5%+10V) | >5mA |
HZ-20kV | 0.5,1,2.5,5,10,20kV | ±(5%+10V) | >5mA |
Range and accuracy:
Range(limited voltage) | resistance measurement range | accuracy |
20MΩ/500V | 0.5~19.99MΩ | ±(5%+5) |
200MΩ/1000V | 5.0~199.9MΩ | ±(5%+5) |
2GΩ | 0.05~1.999GΩ | ±(5%+5) |
20GΩ | 0.5~19.99GΩ | ±(5%+5) |
200GΩ | 50~199.9GΩ | ±(10%+10) |
2000GΩ | 50~1999GΩ | ±(20%+10) |
GΩ range scaling voltage 2.5kV | ||
anti electric interference ability | 2mA(50Hz) | |
Timekeeping and alarm function | Maximum display of Stopwatch:19min and 59s;20 min a cycle. Sound reporting points:15s, 60s and every minute.resistance reading for 5s.when the measured resistance is less than the lower limit of the range and reading invalid ,it continuously sound alarm | |

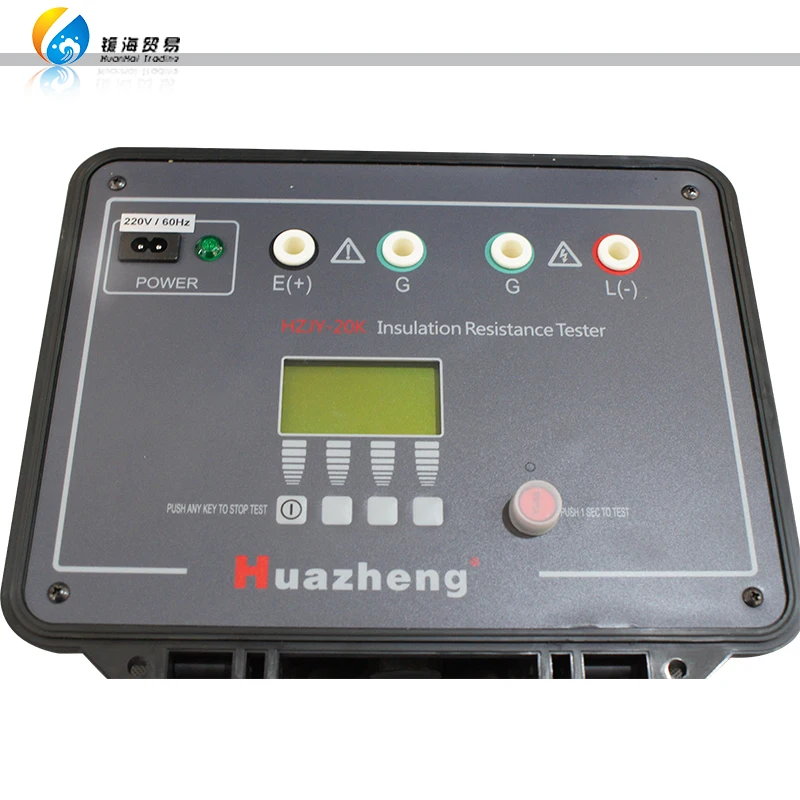

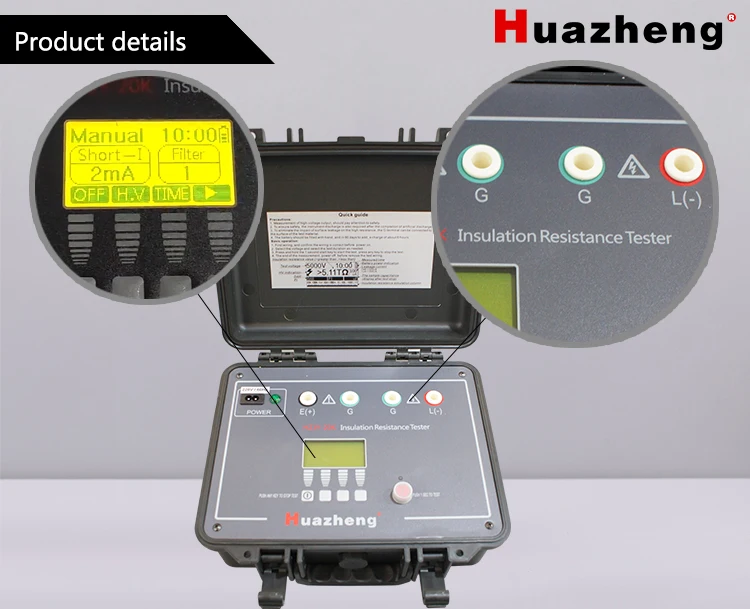

Display table | Three LED digital meter, respectively show the test voltage, resistance and time | |
Power supply | By enclosing 1.2V / 2000mAh NiMH rechargeable batteries 10, DC12V power supply. With AC (50 / 60Hz) 220V access port to Charge the battery or floating charge | |
Using environment | Temperature:0~40℃ | humidity:20~90% |

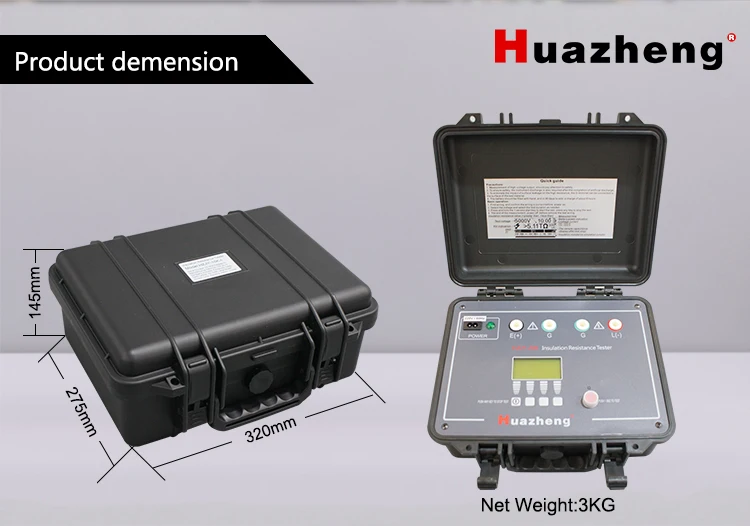

Dimension | 315×240×155mm3 | |
Weight | 5kg | |

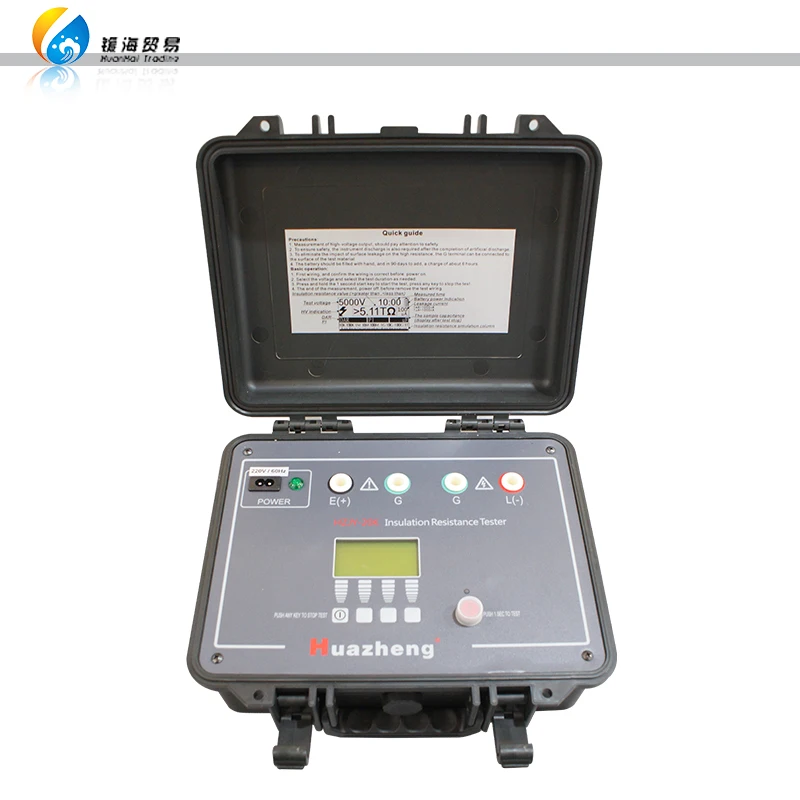

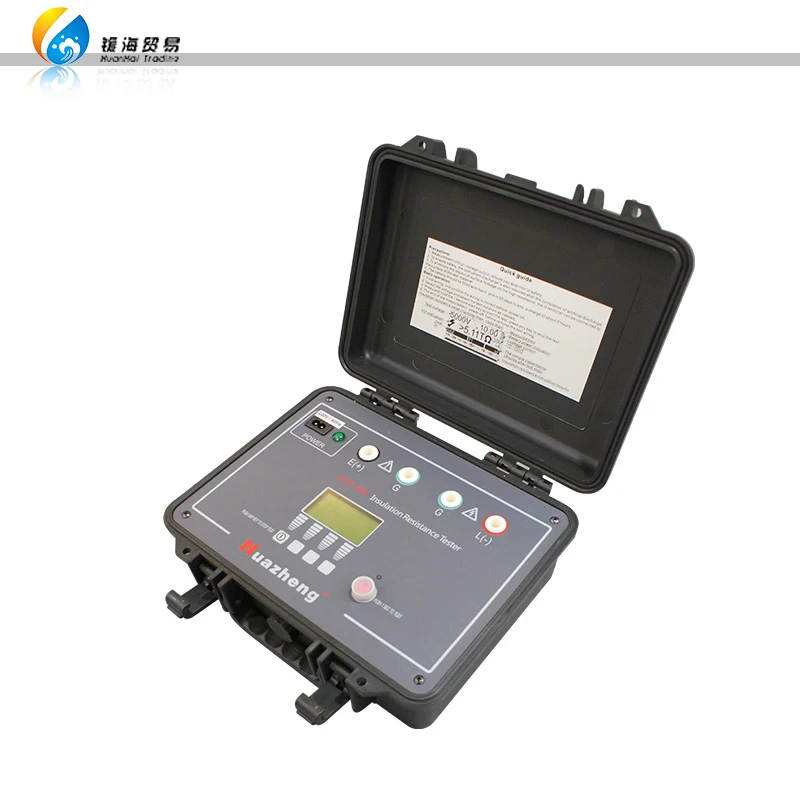

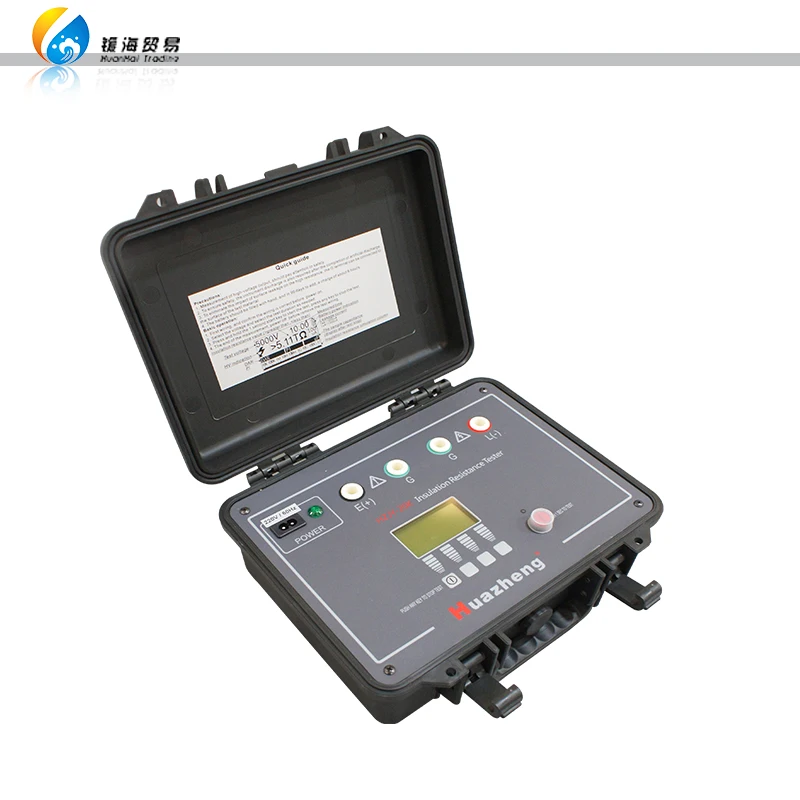

The Main Pic:
