Конвейерная лента для суши Faith Factory
US $170.00
90 градусов боковины конвейер ленточный Элеватор для
- Категория товара: Conveyors >>>
- Поставщик (Оптовый магазин): Qingdao,Zhongye,Yufeng,Tape,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
90 degree sidewall conveyor belt for sand/mine/stone crusher and coal
What is the Detail of Sidewall Conveyor Belt?
Application:
Harbor, metallurgy, mining, electricity, coal, foundries, construction, food, cement works, fertilizer, etc.
Carcass: the carcass of the base belt can be CC, NN and EP fabric
Advantages:
1. low maintenance cost
2. Large transport capacity, and it can avoid material spilling effetely
3. The belt can facilitate switching from horizontal to inclined conveying
from inclined to horizontal conveying
4. It saves a lot space as it allows material conveying at 0°-90°
What is the Main Technical Data for Sidewall Conveyor Belt?
| Base Belt Width B(mm) | Sidewall Height H(mm) | Cleat Height H1(mm) | Bf(mm) | Br(mm) | R(mm) |
| 300 | 40 | 35 | 25 | 180 | 35 |
| 60 | 55 | 50 | 120 | 40 | |
| 80 | 75 | ||||
| 400 | 60 | 55 | 50 | 180 | 60 |
| 80 | 75 | ||||
| 100 | 90 | ||||
| 500 | 80 | 75 | 50 | 250 | 75 |
| 100 | 90 | ||||
| 120 | 110 | ||||
| 650 | 100 | 90 | 50 | 350 | 100 |
| 120 | 110 | ||||
| 160 | 140 | 75 | 300 | ||
| 800 | 120 | 110 | 50 | 460 | 120 |
| 160 | 140 | 75 | 410 | ||
| 200 | 180 | ||||
| 1000 | 160 | 140 | 75 | 550 | 150 |
| 200 | 180 | ||||
| 240 | 220 | ||||
| 1200 | 160 | 140 | 75 | 690 | 180 |
| 200 | 180 | ||||
| 240 | 220 | ||||
| 300 | 280 | 105 | 630 | ||
| 1400 | 200 | 180 | 75 | 830 | 210 |
| 240 | 220 | ||||
| 300 | 280 | 105 | 770 | ||
| 400 | 360 | ||||
| 1600 | 200 | 180 | 75 | 970 | 240 |
| 240 | 220 | ||||
| 300 | 280 | 105 | 910 | ||
| 400 | 360 | ||||
| 1800 | 240 | 220 | 75 | 1110 | 270 |
| 300 | 280 | 105 | 1050 | ||
| 400 | 360 | ||||
| 500 | 460 | 125 | 1010 |

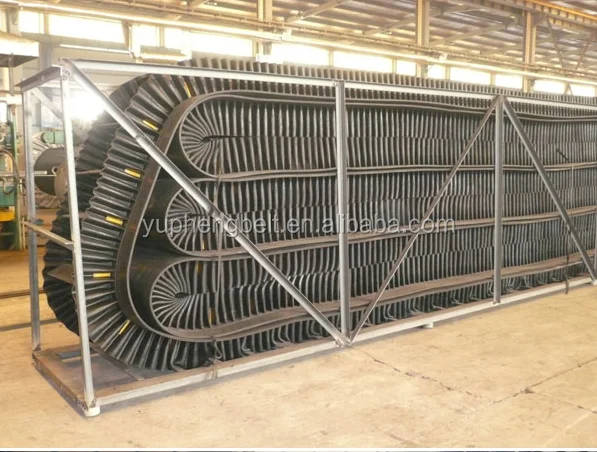

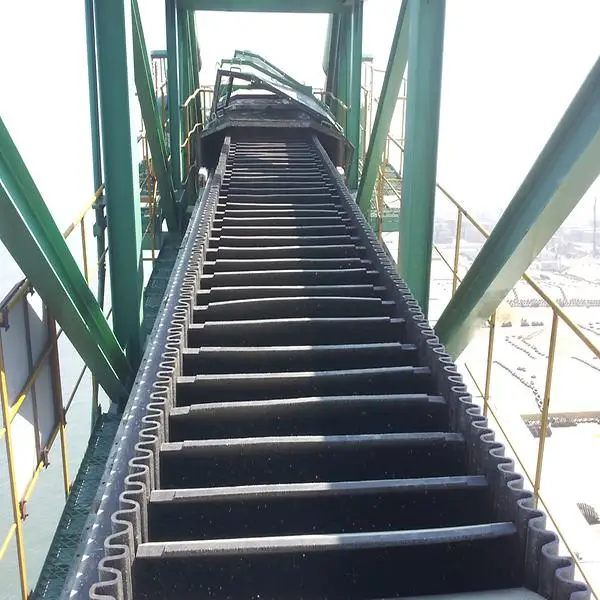

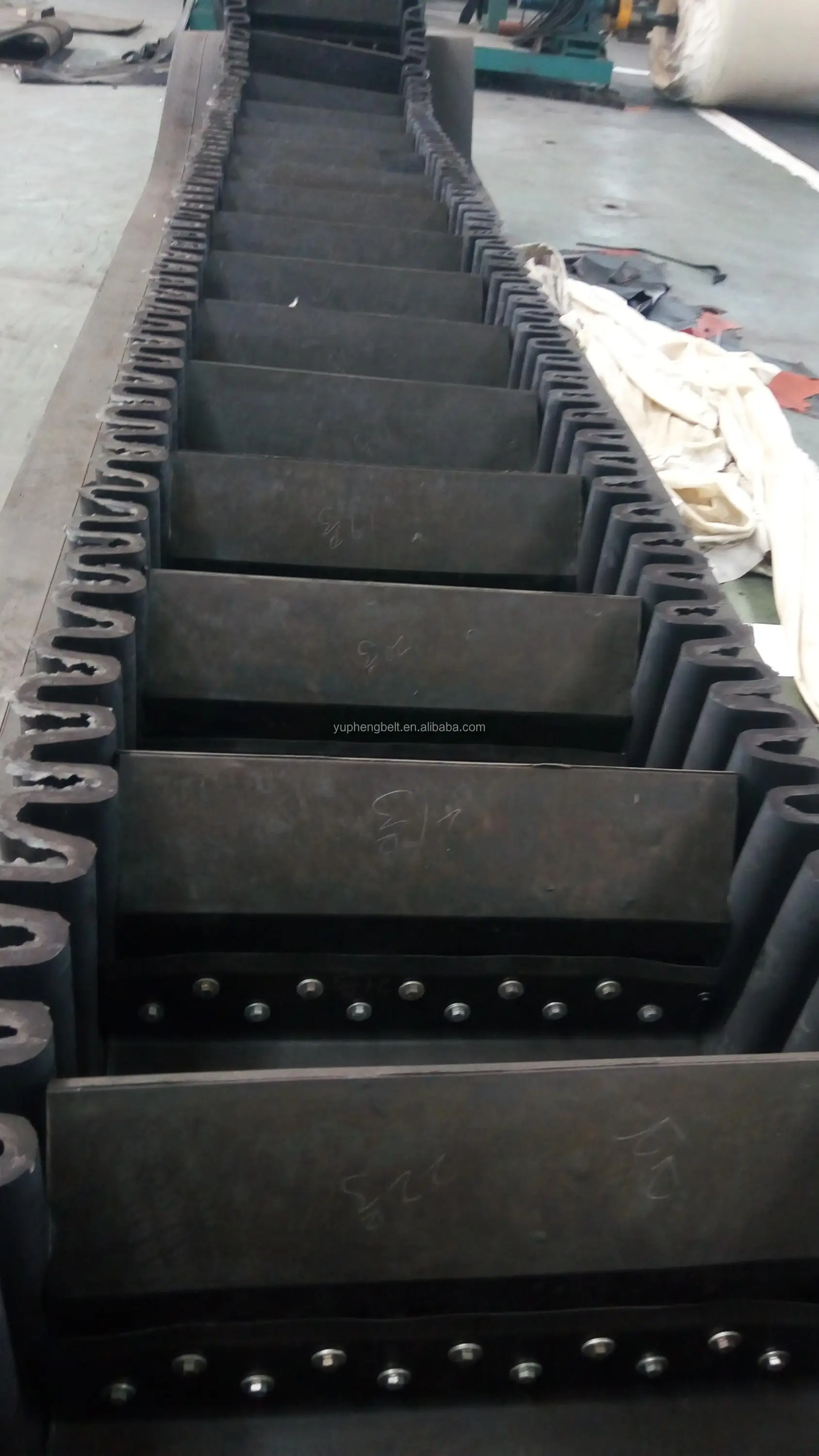

What are Pictures of Conveyor Belts Showing?
What are our HOT SALE Conveyor Belt Around the World?
 |  |  |
 |  |  |
Workshop Show
Our factory warmly welcome your customized order. You can decide any kind of conveyor belt as you like.
We will be appreciated if you can provide the following specification:
1. Conveyor belt type
2. Top cover thickness
3. Bottom cover thickness
4. No.of plies
5. Width of the conveyor belt
6. Grade
If you are not sure for any of above,we can recommend for you.
Once we get above information we will quote exact price at soonest time.
Product Uses
Strong tensile strength Steel Cord conveyor belt are widely used in distributed occasion, cement, coal mines, quarries, mining, power plants, metallurgy, ports and chemical industry, etc. It is popularly applied to main transmission lines, long overland transportation, laneway transportation, ship loader, tilt transmission, the transmission of other demanding requirements.
Main Product

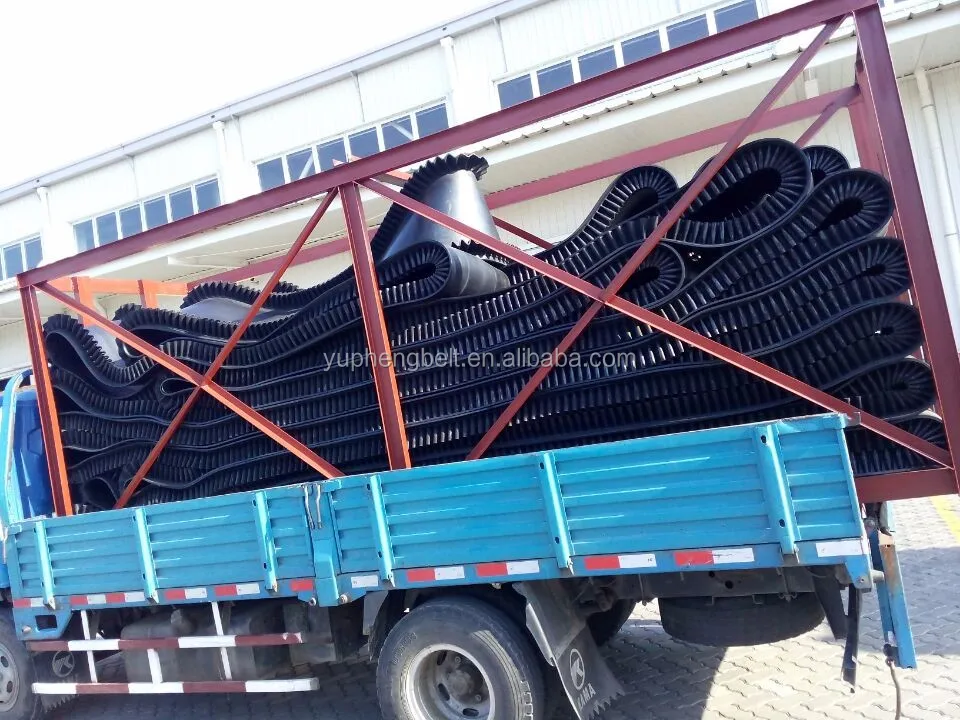

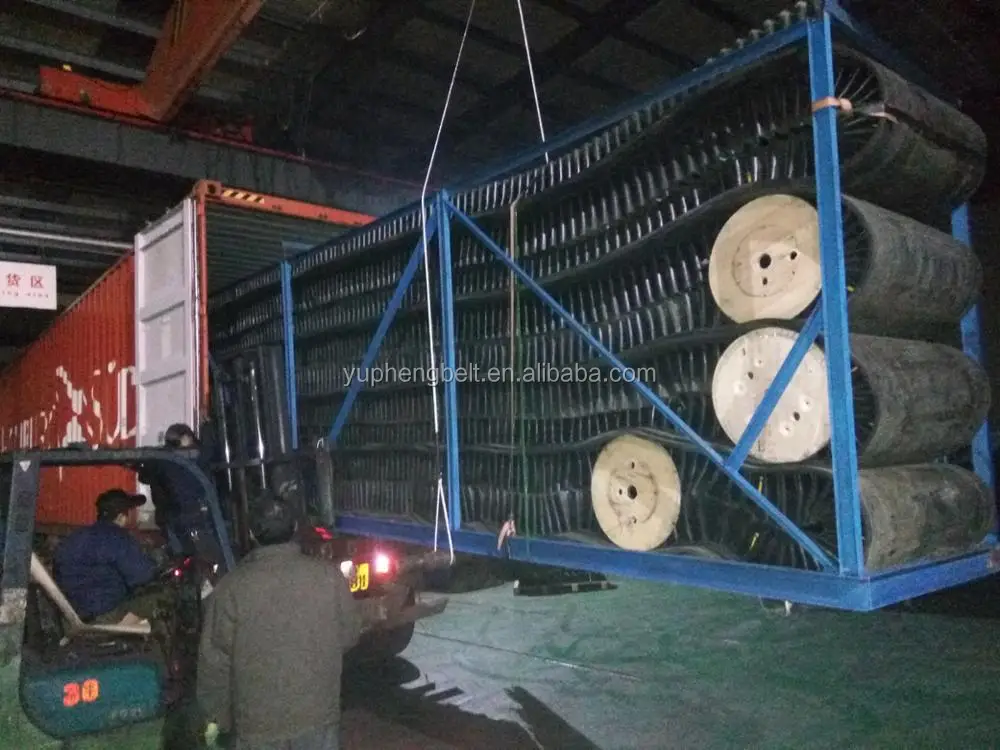

Packaging & Shipping
Company Information
Qingdao Zhongye Yufeng Tape Co.,Ltd. is located in a beautiful seaside city--Qingdao. The company was established in 2010 and it gradually became China’s leading manufacturer of rubber conveyor belts, with production capacity of 30 million square meters. At present, the company has formed Group Enterprise with research,production and sales as a whole.
Meeting With Customers
FAQ
Q1: What types of Conveyor Belt you can Produce?
A: Hello,Dear We can produce Sidewall,Flat,Chevron,Steel Cord Conveyor Belt,Heat Resistant,
Oil Resistant,Acid-Alkali Resistant Cold Resistant and PIPE Conveyor Belt etc.
Q2:Does your Company have ISO Certificate?
A: Yes of course we have ISO9001:2008 Certificate.
Q3:Can you Provide FORM E Certificate of Origin for us?
A: Yes we can do Normal CO,FROM E,FROM F,FORM A etc.
Q4:What is your Delivery Time?
A:Normally Within 10-20days after getting your Prepayment or L/C.
Q5:Can you give Guarantee if I buy your belt?
A:Of course,we must give Guarantee for all of our Products,Please tell me your Details of Requirement.
