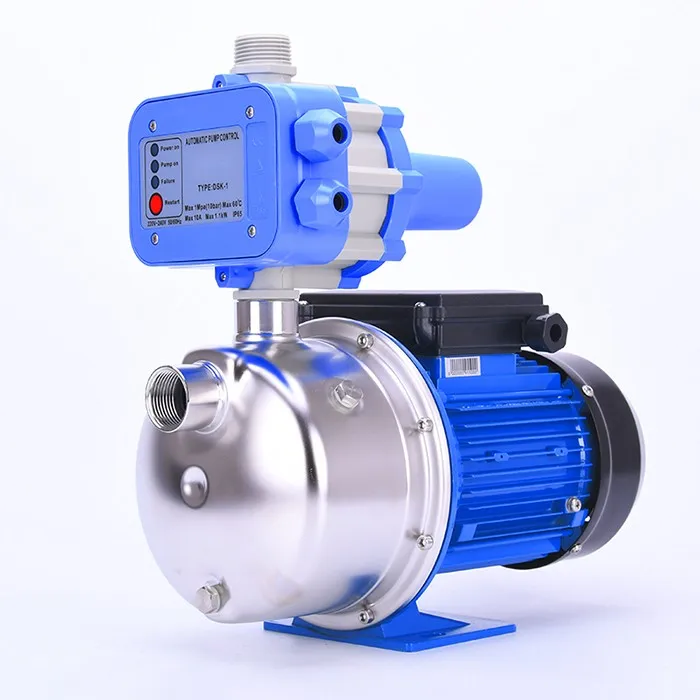

This product is mainly used in the pump pressurized water supply system to control the automatic start and operation of the pump. It is a perfect substitute for the small pressurized water supply system consisting of pressure tank, five-way, hose, pressure gauge and mechanical pressure switch. At the same time, the system cost is greatly reduced.
SPECIFICATIONS
Technical Parameters
Starting Pressure
1.5 bar
Max.Current
10 A
Max.Working Pressure
10 bar
Max.Power
1.1 kW
Voltage
220-240V, 50/60Hz
Max.Ambient Temperature
40 ℃
Max.Liquid Temperature
60 ℃
Protection Grade
IP65
Inlet and Outlet
G1"
Main Features
1) Stop and start the pump automatically 2) Stop the pump in the case of water shortage automatically 3) When power supply recovers, it can restart the pump by pressing the reset key. 4) Dry-running protection(Optional) 5) Automatically reset(Optional) 6) 2.2kW pressure controller(Optional)
7) G1.5" connection thread(Optional)
8) Cable length and plug style are optional.
9) Customized color(Optional)
10) Display real-time pressure value(Optional)
11) Adjustable starting pressure(Optional)
Certifications
Detailed Images

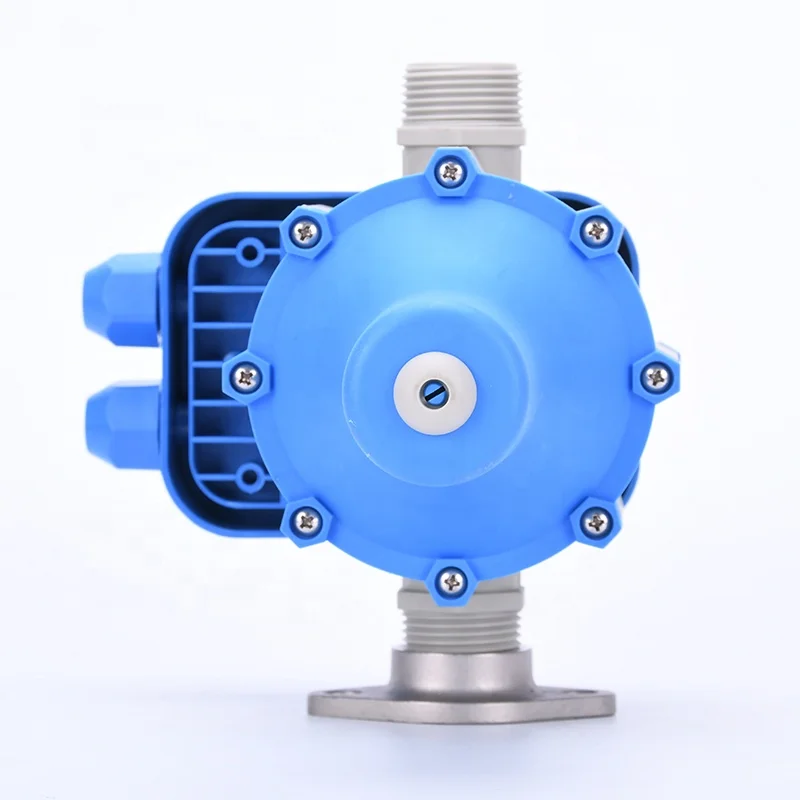

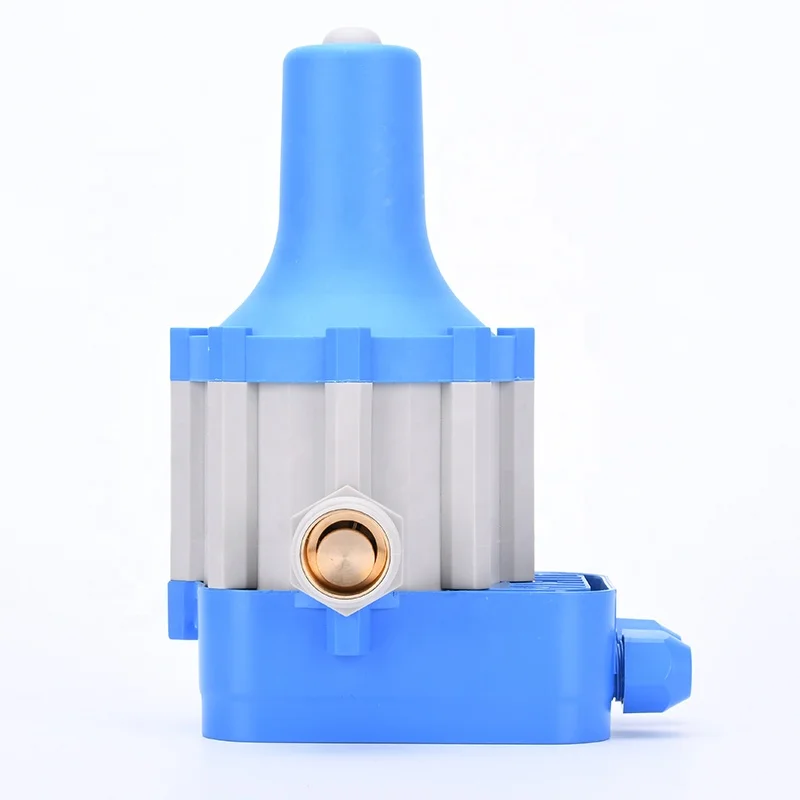

Appearance
Style: Classic style, clear lines and exquisite craftsmanship bring you beautiful enjoyment.
Material: ABS, Nylon
We provide OEM services.

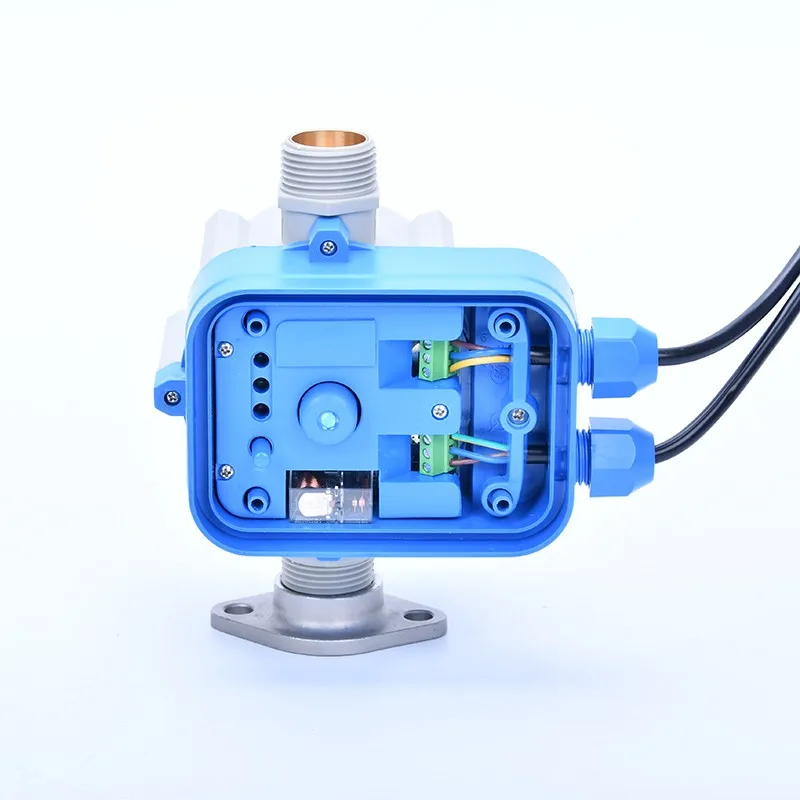

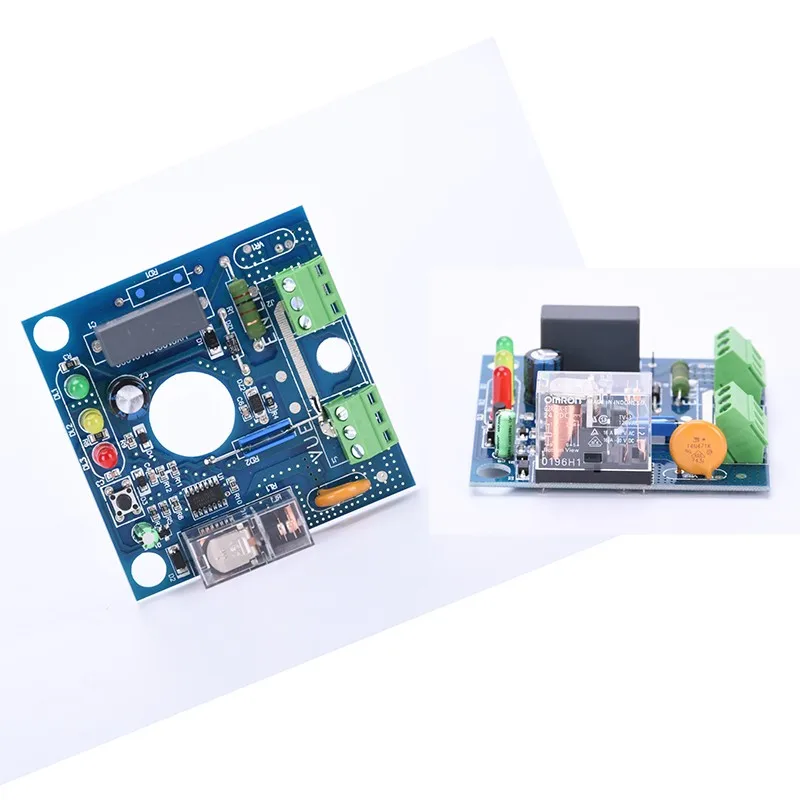

Circuit Board
Technology: SMT and Plug-in compenents Relay: OMRON brand
We promise that all the electronic components we use are of high quality and stability.

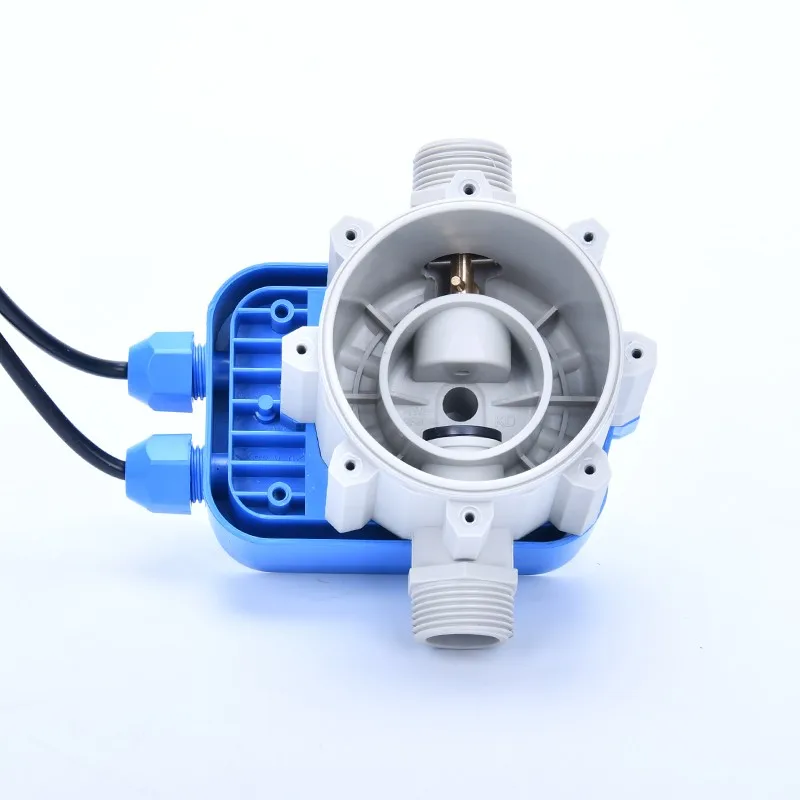

There is two check valve in the inlet. The good sealing ensures that the product itself has good pressure holding capacity

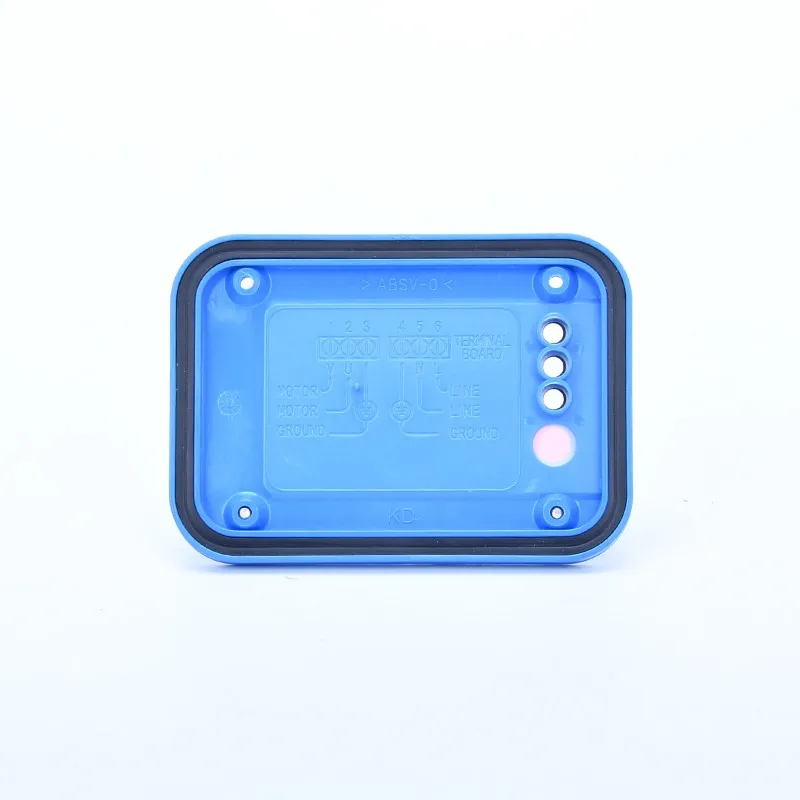

Wiring Diagram
We print a clear wiring diagram in the back of the front cover. You can know how to connect the power supply and pump even if you lost the user manual.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the product, training how to use it.
* Technology support.
* Spare parts service.
* Warranty for 18 Months.
Packing & Delivery
Packaging
Size
23 (L) * 17 (W) * 18 (D)CM
Weight
1.3 KGS
Packaging Details
Each one is packed in a box like the picture, and 12 sets in a plain carton.
