Products Description

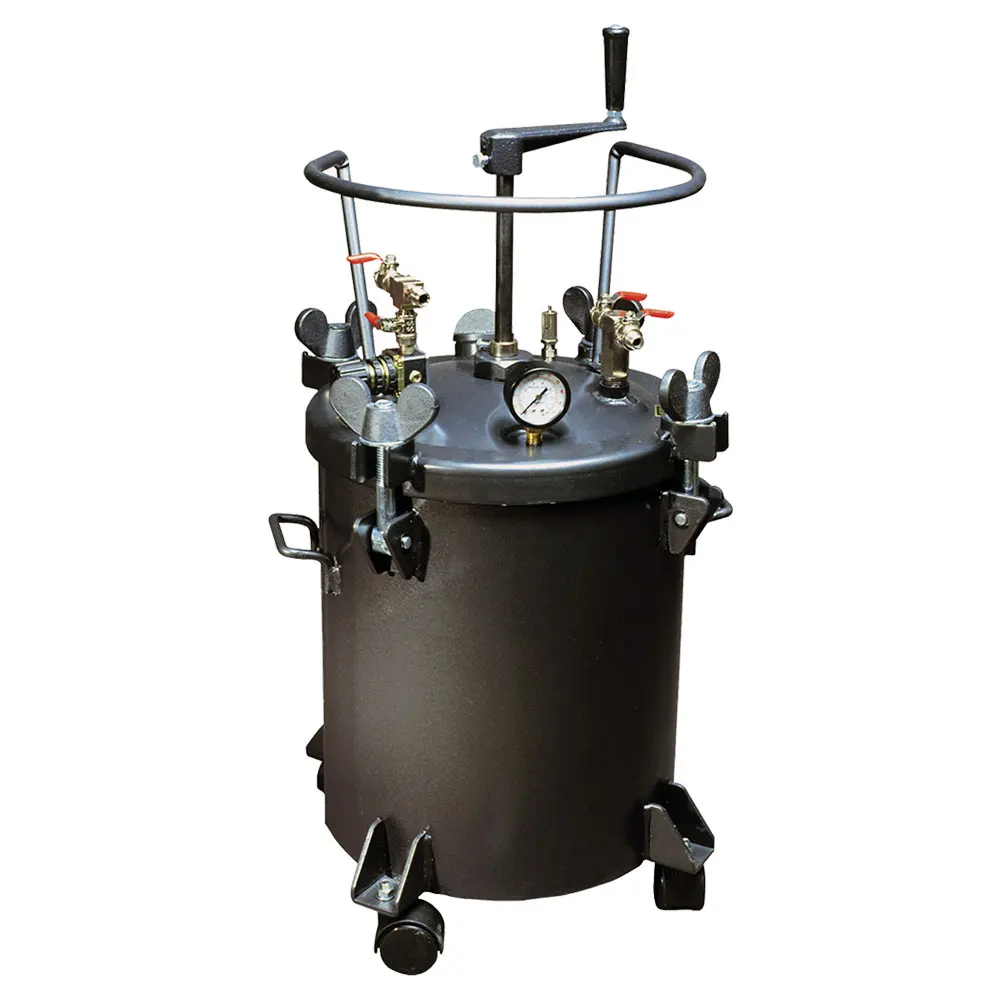

One piece steel air agitator paint pressure pot
Why choose our Pressure tank?
1. 100% made in Taiwan with superior material use
2. One-piece(unibody) manufactured, no seam caused by welding joint
3. Most pressure tanks are certificated with PED 2014/68 (pressure equipment detective) and ATEX 2014/34 (equipment for potentially explosive atmospheres)
4. 100% quality inspection, quality assurance and high safety secure
5. Wide range of accessories: inner tank, liquid level tube, dove type, wheel, agitators, air cock, pressure regulator, pressure gauge, etc
6. Application in food and chemical industry can be customized upon request
7. Variety of tank capacity: 1L up to 120L
1. 100% made in Taiwan with superior material use
2. One-piece(unibody) manufactured, no seam caused by welding joint
3. Most pressure tanks are certificated with PED 2014/68 (pressure equipment detective) and ATEX 2014/34 (equipment for potentially explosive atmospheres)
4. 100% quality inspection, quality assurance and high safety secure
5. Wide range of accessories: inner tank, liquid level tube, dove type, wheel, agitators, air cock, pressure regulator, pressure gauge, etc
6. Application in food and chemical industry can be customized upon request
7. Variety of tank capacity: 1L up to 120L
Details Images

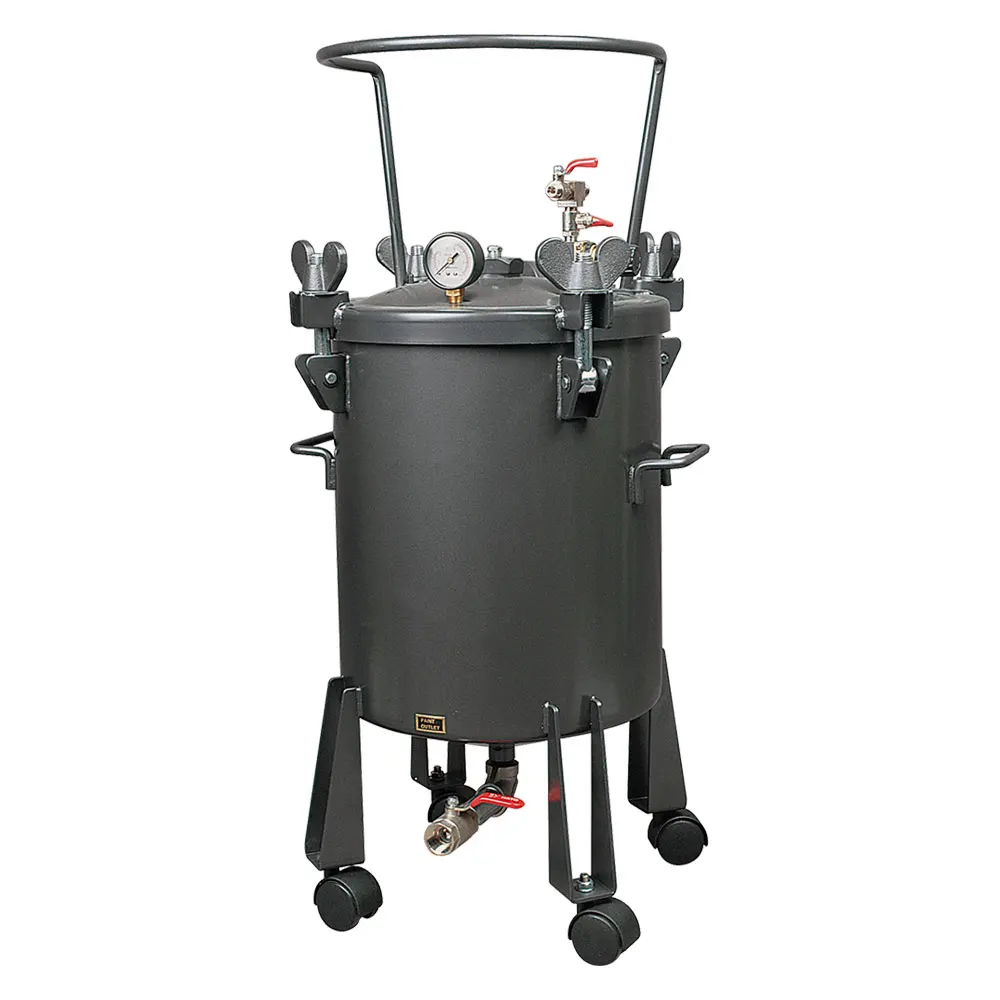

Non Agitator
PT-20E

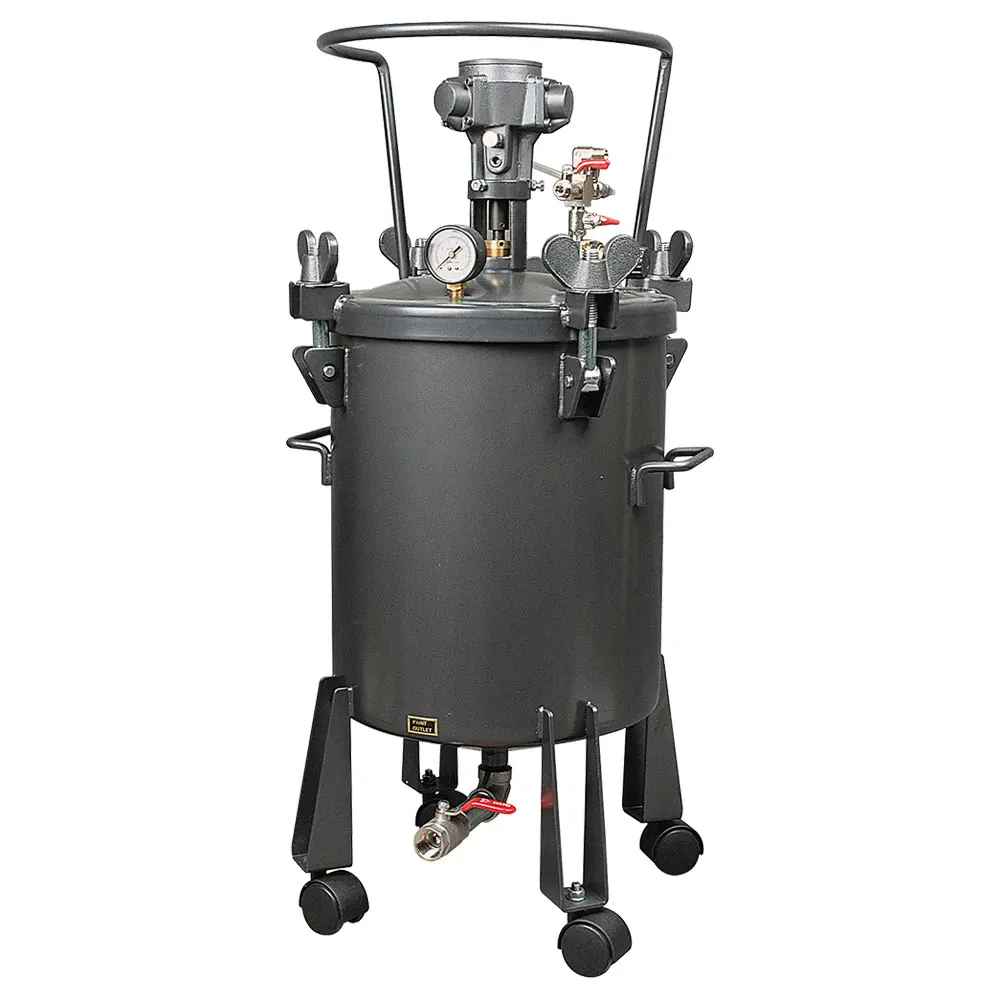

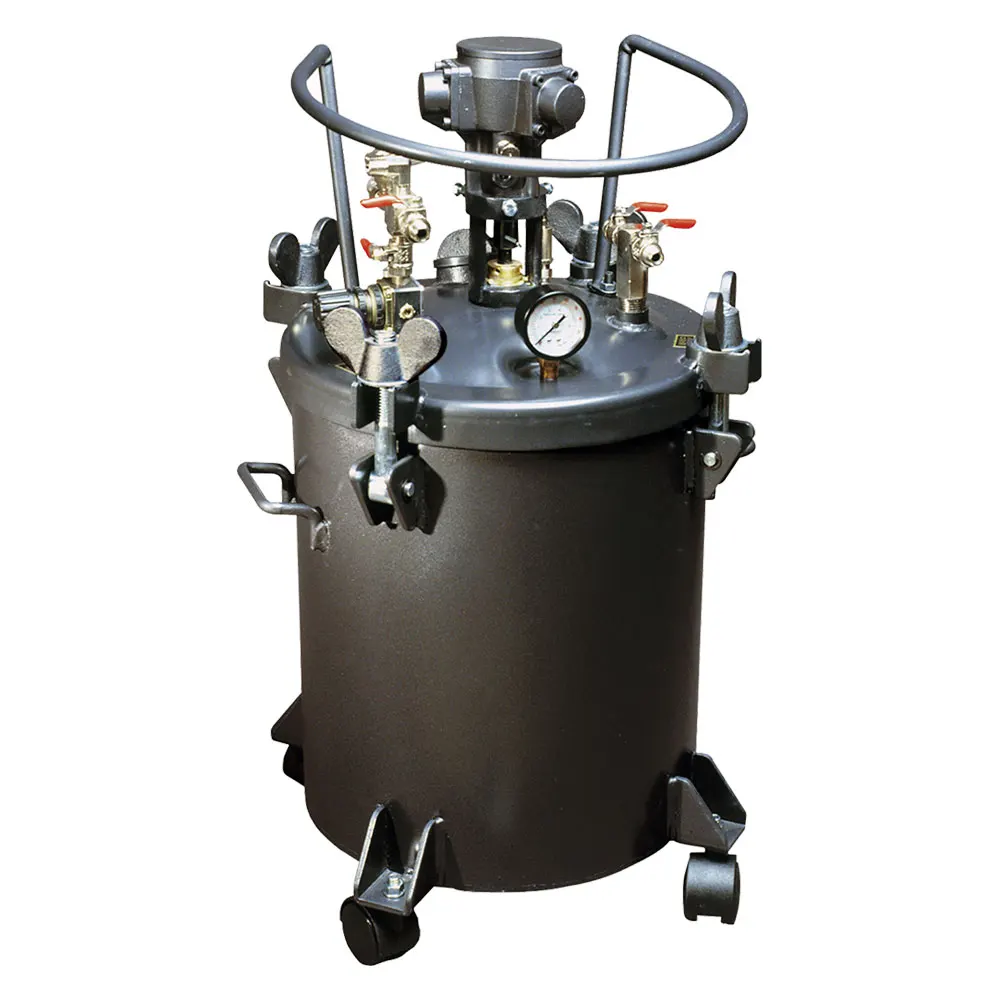

Air Agitator
PT-20A
Manual Agitator
PT-20M
Dove Type (Non Agitator)
PT-20ED
Dove Type (Air Agitator)
PT-20AD
Dove Type (Manual Agitator)
PT-20MD
Specification
Model No. | Working Pressure | Tank Dimension I.D. × O.D. × H × T | Lid Dimension I.D. × O.D. × T | Measurement L × W × H (mm) | Net Weight |
PT-20E | 318*330*397*2.5 | 330*340*5 | 410*325*710 | 23.1Kgs | |
PT-20A | 318*330*397*2.5 | 330*340*5 | 410*325*710 | 26.0Kgs | |
PT-20M | 318*330*397*2.5 | 330*340*5 | 410*325*865 | 28.0Kgs | |
PT-20ED | 318*330*523*2.5 | 330*340*5 | 410*325*840 | 20.8Kgs | |
PT-20AD | 318*330*523*2.5 | 330*340*5 | 410*325*840 | 23.2Kgs | |
PT-20MD | 318*330*523*2.5 | 330*340*5 | 410*325*925 | 22.0Kgs |
Application
1. Wooden furniture: Application of adhesives to dowels and tenon joints.
2. Metalwork: Application of abrasives for buffing
3. Electronic components: Application of liquid gasket
4. Resin coatings: Use as a hardening agent tank for two-component hardening coatings
5. Paints and coating: Delivery paint for painting guns
2. Metalwork: Application of abrasives for buffing
3. Electronic components: Application of liquid gasket
4. Resin coatings: Use as a hardening agent tank for two-component hardening coatings
5. Paints and coating: Delivery paint for painting guns
