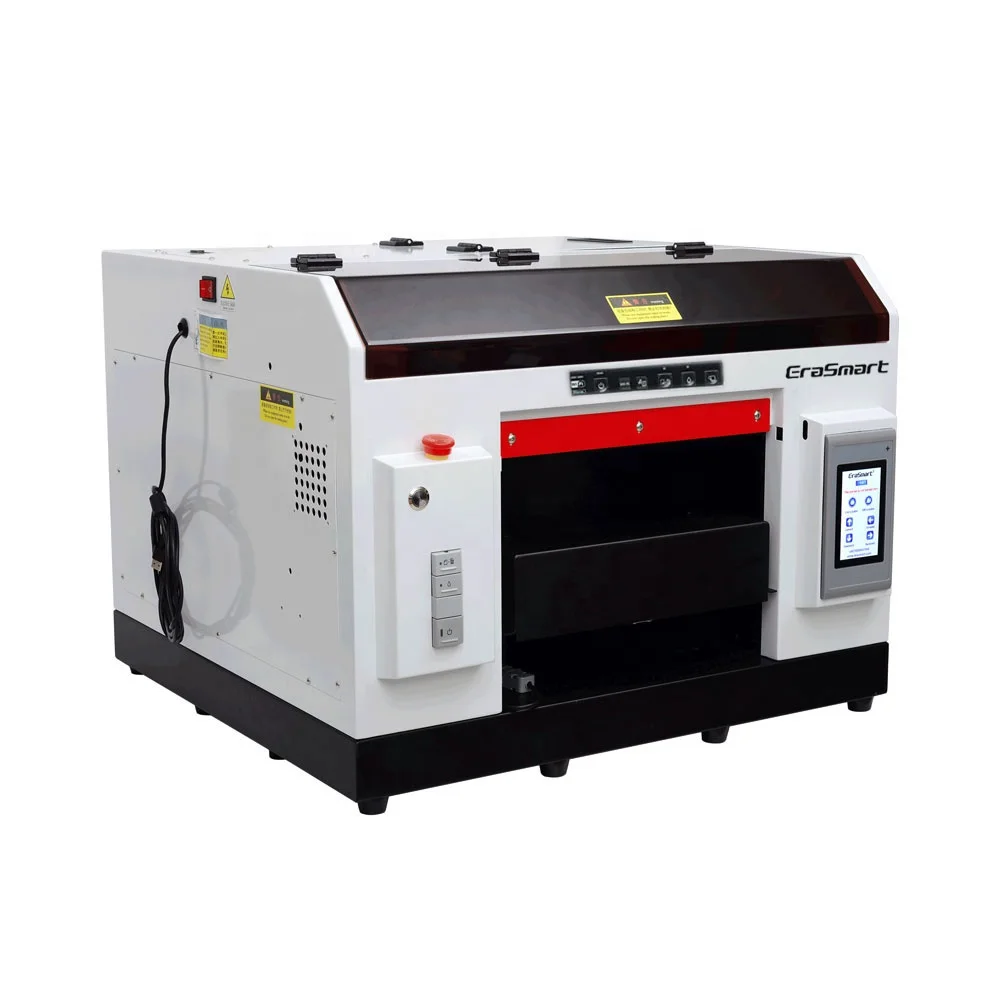

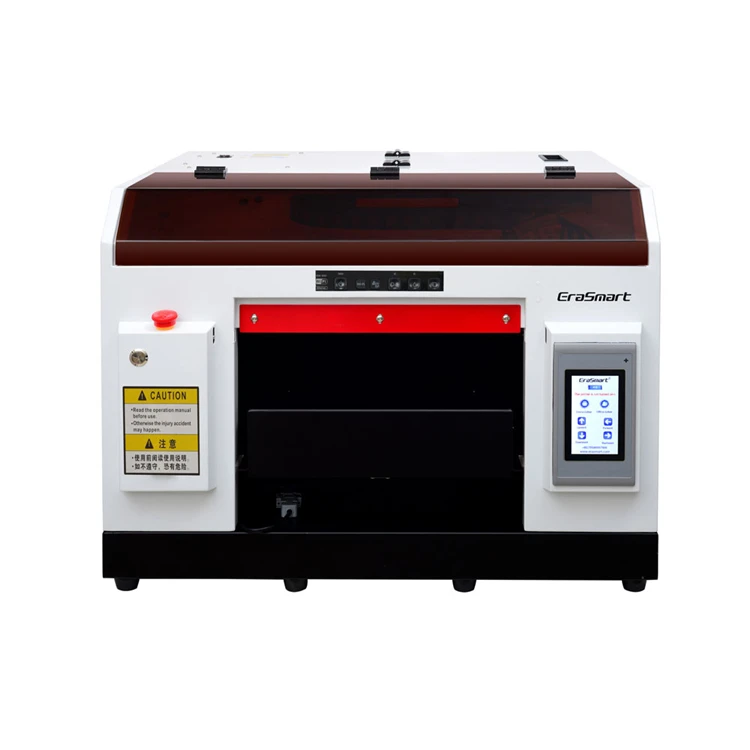

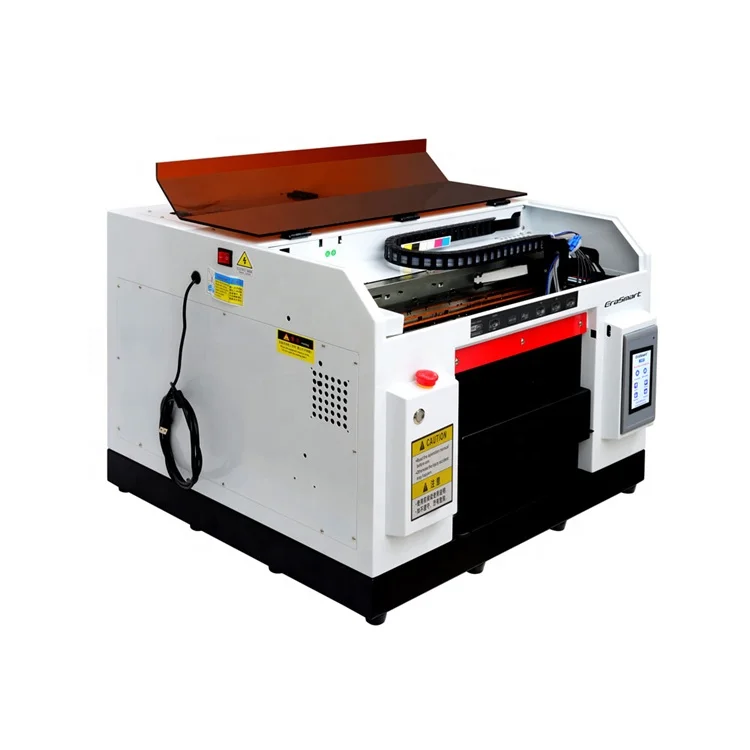

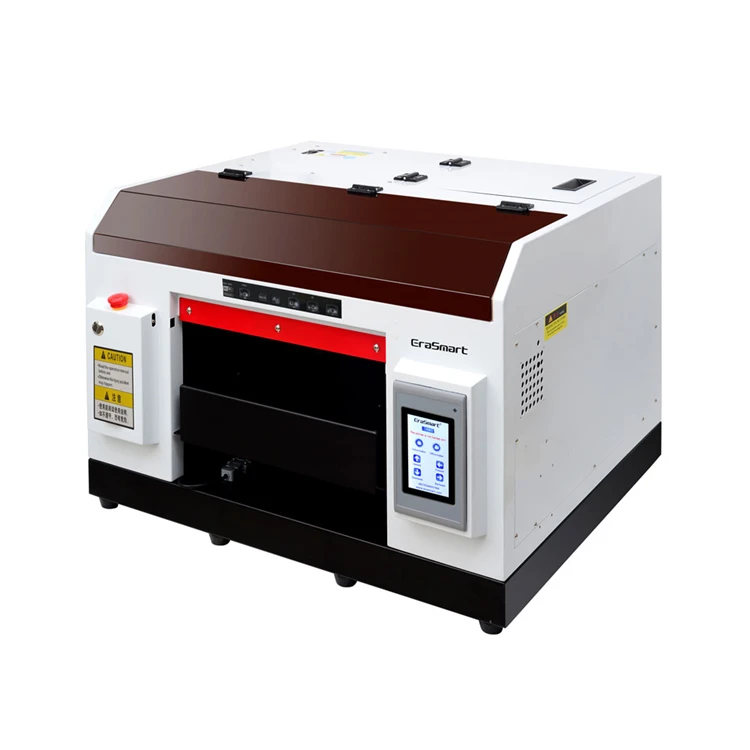

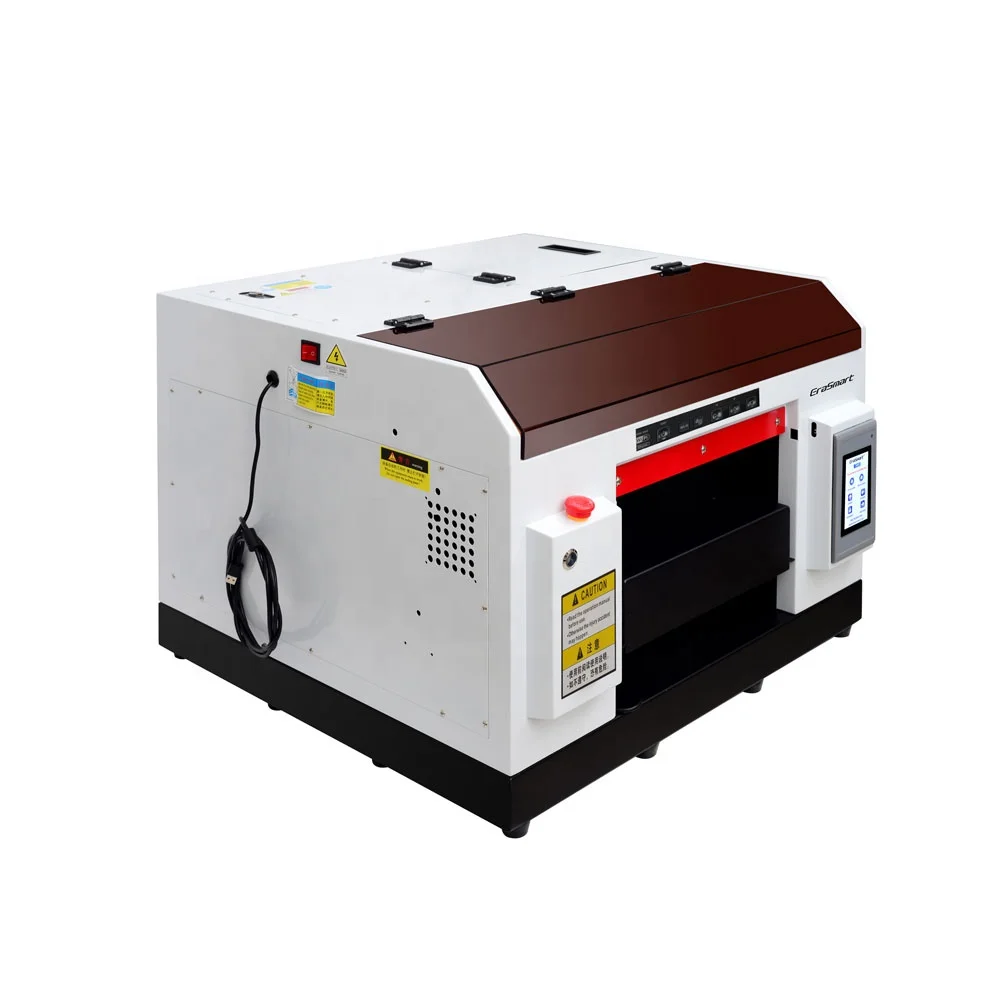

EraSmart DX5 печатная машина UV планшетный принтер для чашки
- Категория товара: Printing Shop Machines >>>
- Поставщик (Оптовый магазин): Shenzhen,Chuang,Cheng,Da,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Application
UV flat-panel printer, also known as universal flat-panel printer or UV inkjet flatbed printer, breaks through the bottleneck of digital printing technology and reach the level of staring with single page without plate-making and full-color image printing at one time in the true sense. Compared with traditional printing technology, it has many advantages. EraSmart UV flatbed printer adopts stable platform technology and advanced stepper motor drive mode. It combines infrared meanwhile, laser positioning, water-cooling and air-cooling to meet long-term continuous work requirement. It has a wide print range and can print products within 130 mm height. EraSmart UV inkjet printer can be printed with almost unlimited material. For example mobile phone case, stone cameo, acrylic board, wallet, customized steel film, wallpaper, ceramic tile, U disk, CD-ROM, glass, ABS, PVC etc.
EraSmart DX5 UV PRINTER | ||||||
Brand | EraSmart | Ink color | CMYK+WWWW | |||
Model | A3 | Ink supply | 250ml*8 continuous ink | |||
Print head | DX5 | Emboss Print | Available | |||
Print Resolution | 5760x1440dpi | Software | AcroRIP | |||
Equipment Dimension | 660*660*500mm | Effective Print Size | A3(280*420mm) | |||
Package Dimension | 760*740*690mm | Print Speed | A3(1440dpi/2min) | |||
Print Height | o-130mm, measured with infrared ray | |||||
Operating System | WindowXP,7,10 | |||||
Ink Consumption | 1m2/10ml | |||||
Platform Adjustment | Touch Screen + Height Measurement by Infrared Ray | |||||
Main Features
1) Simple structure in linear type, easy in installation and maintation.
2) Adopting advanced high quality components in pneumatic parts, electric parts and operation parts.
3) Running in a high automatization and intellectualization, no pollution.
4) 3D printing effect, real, realistic, delicate.
Certifications
Detailed Images
Machine Parts
Name:Print head
Model: DX5
Eight colors, more refined, more realistic.
Main Features
Name: Ink system
White ink double circulation system to protect the nozzle and avoid the blockage effectively.
Machine Parts
Name: ARM processor
The system uses ARM microprocessor and FIFO memory as the core, and realizes the logic control of the whole underlying data acquisition system by using programmable logic device. The whole system is open and extensible, and the software has reconfiguration, and the module can be modified or added.
Main Features
Name: Pulse stepper motor
1. The accuracy of each step is between three and five percent.
2. Excellent start and stop and reverse response.
3. No brush, high reliability.
4. Maximum torque when the motor stalls.
Main Features
Round flat clamp
Round flat clamp for round object printing.
Our Company
Packing & Delivery
Packaging | ||
Size | 760 (L) * 740(W) * 690 (H) | |
Weight | 80KG | |
Packaging Details | The normal package is wooden box with foam. The machine is first wrapped in transparent plastic film, then placed in a wooden box, and then filled with foam to fill the vacant position to better protect the machine. | |
Related Products
A4 UV inkjet printer
91.8% Response Rate
5 color special uv link
91.8% Response Rate
Special printing phone case
91.8% Response Rate
FAQ
1. Q: What materials can UV printer print on?
A: It can print almost all kind of materials, such as Metal, Wood, Glass, PVC, Acrylic, Ceramics, Plastic, PPU .etc
2. Q: What products can print on using UV Printer?
A: You can print on Phone Case, CD, Golf Ball, ID Card, Pen, Oil Painting, etc.
3. Q: What different between A4 and A3 UV Printer?
A: A4 UV printer only can print flat surface, A3 UV printer can print cylinder. A3 UV printer comes with a cylinder printing tray.
4. Q: What different between UV printer and DTG printer?
A: DTG Printer is without led lamp, UV Printer comes with UV lamp, so DTG Printer uses Textile Ink for T-Shirt and Garment printing, UV Printer uses UV ink for Metal, Wood, Glass, PVC, Acrylic, Ceramics, Plastic, PPU printing. UV ink needs to use a UV lamp to curing.
5. Q: Can the uv printer print emboss 3D effect?
A: Yes, our UV printer can print 3D effect. Please contact us for more information.
6. Q: What materials need to use pre-coating?
A: Some materials need to spray pre-coating, such as metal, glass, acrylic, etc.
7. Q: What is the warranty of the printer?
A: Our factory provides one year of warranty, except print head and other ink contact parts.
8. Q: How can we start to use the printer?
A: We will send the manual with the package of the printer. Please read the manual before using and operate strictly as manual. We will also provide teaching video and technical support online.
9. Q: Where can I buy the spare parts and ink.
A: We also provide the spare parts, ink and some printing materials, such as phone case, oil painting,
pre-coating and cleaning liquid, etc. If you need, please contact us.
10. Q: What about the maintenance of our printer?
A: We suggest to click automatic cleaning every day.
A: It can print almost all kind of materials, such as Metal, Wood, Glass, PVC, Acrylic, Ceramics, Plastic, PPU .etc
2. Q: What products can print on using UV Printer?
A: You can print on Phone Case, CD, Golf Ball, ID Card, Pen, Oil Painting, etc.
3. Q: What different between A4 and A3 UV Printer?
A: A4 UV printer only can print flat surface, A3 UV printer can print cylinder. A3 UV printer comes with a cylinder printing tray.
4. Q: What different between UV printer and DTG printer?
A: DTG Printer is without led lamp, UV Printer comes with UV lamp, so DTG Printer uses Textile Ink for T-Shirt and Garment printing, UV Printer uses UV ink for Metal, Wood, Glass, PVC, Acrylic, Ceramics, Plastic, PPU printing. UV ink needs to use a UV lamp to curing.
5. Q: Can the uv printer print emboss 3D effect?
A: Yes, our UV printer can print 3D effect. Please contact us for more information.
6. Q: What materials need to use pre-coating?
A: Some materials need to spray pre-coating, such as metal, glass, acrylic, etc.
7. Q: What is the warranty of the printer?
A: Our factory provides one year of warranty, except print head and other ink contact parts.
8. Q: How can we start to use the printer?
A: We will send the manual with the package of the printer. Please read the manual before using and operate strictly as manual. We will also provide teaching video and technical support online.
9. Q: Where can I buy the spare parts and ink.
A: We also provide the spare parts, ink and some printing materials, such as phone case, oil painting,
pre-coating and cleaning liquid, etc. If you need, please contact us.
10. Q: What about the maintenance of our printer?
A: We suggest to click automatic cleaning every day.
