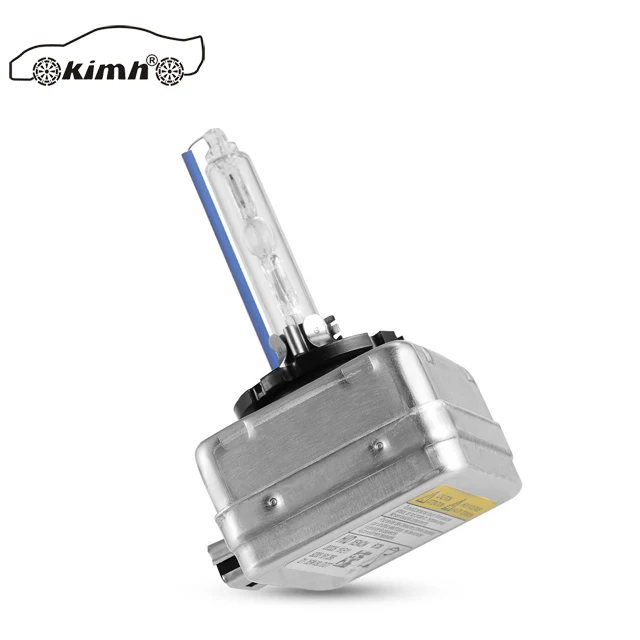

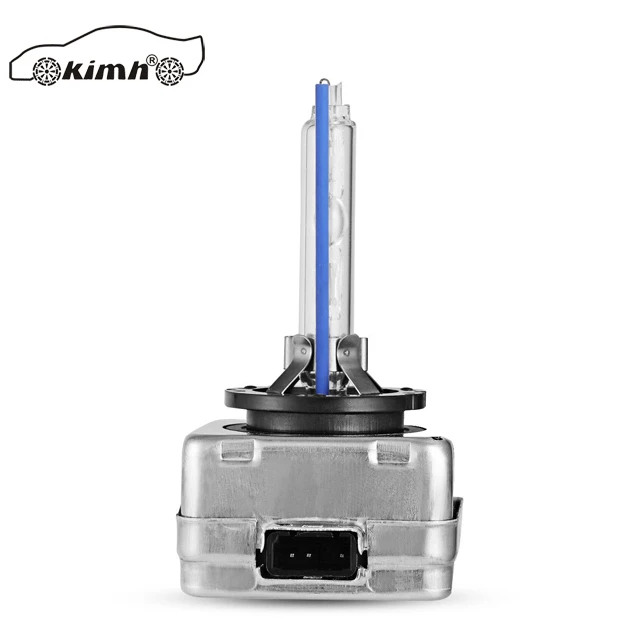

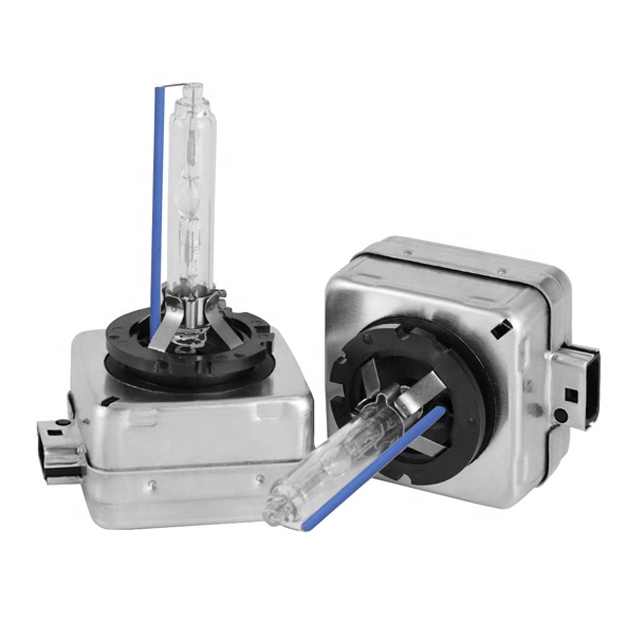

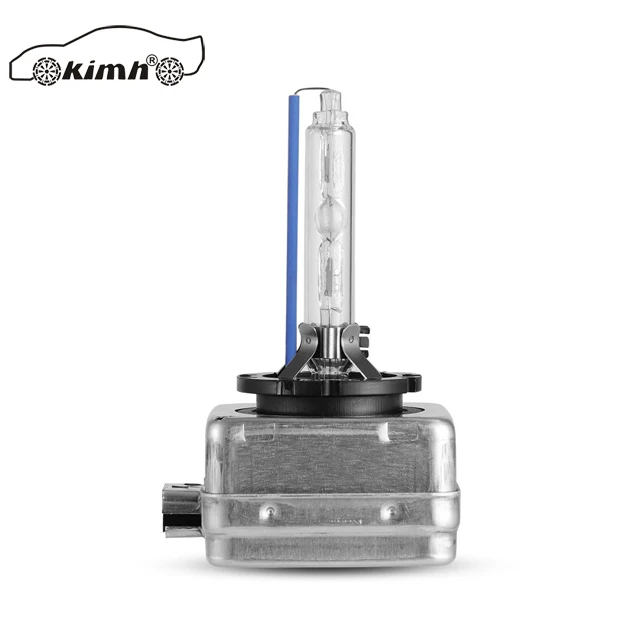

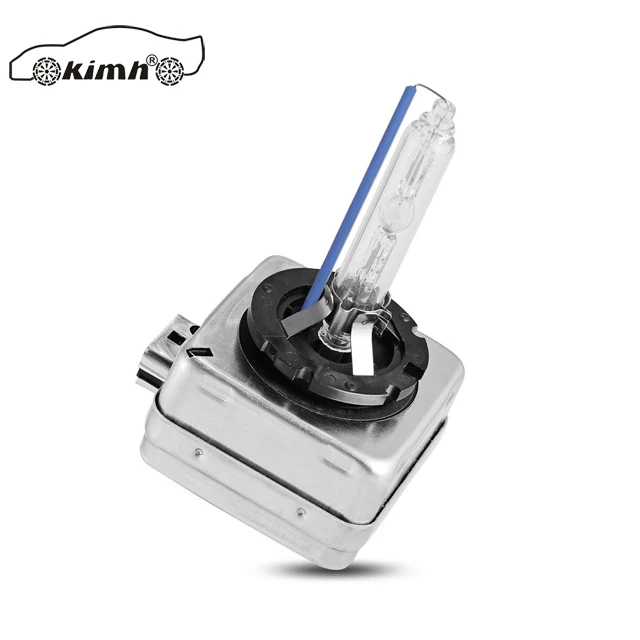

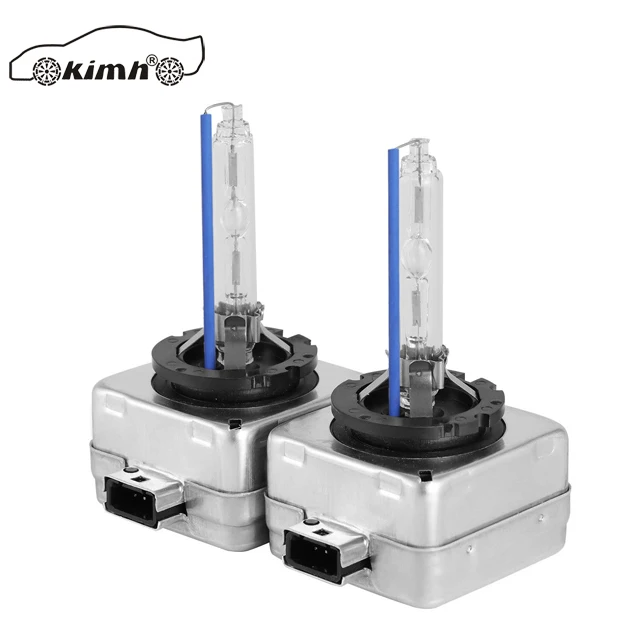

D1S D2R D3S D4R H7 H4 H11 HB3 HID ксеноновые лампы, стекло для автомобильной фары

Описание и отзывы

Характеристики

D1S D2R D3S D4R H7 H4 H11 HB3 HID Xenon light bulbs car headlight glass



1.  factory price

2.  high quality

3.  fast delivery

4.  best service



xenon light bulbs For Car Headlights



1. HID ballast specifications:



Ignition Voltage	23KV
Acceptable Voltage Range	9V-16V
Normal Working Voltage	13.2V
Output Frequency	250HZ
Normal Current	3.5A
Max. Input Current	6.5A
Rated Output Power	35W (55W is also available)
Case Working Temperature	-40~+105
Input Low Voltage Protection	9.0V 0.5V
Input High Voltage Protection	16.0V 0.5V
Open Circuit Protection	Automatic Protection in 1s
Short Circuit Protection	Automatic Protection in 3s
HID Xenon Kit Life Span	2,500 hours





2. HID bulb types and specifications:



HID Bulb Types	Single Beam: H1, H3,H3C, H4 single, H6, H7, H8, H9, H10, H11, H13 single, 9004(HB1) single, 9005(HB3), 9006(HB4), 9007(HB5), D1 series(D1C, D1S, D1R), D2C series(D2C, D2S, D2R), D3series, D4 Series, 880, 881, etc.
	H/L Beam: H4 H/L, H13 H/L, 9004 H/L, 9007 H/L.
	Bixenon: H4, H13, 9004, 9007
	HID Xenon Halogen: H4, H13, 9004, 9007
HID Kit Colors Temperature	3000K(Golden), 4300K, 5000K, 6000K(pure white), 8000K, 10000K, 12000K, 15000K, 20000K, 30000K, Purple, Green, Red, Blue, etc.
HID Lumen	3200lumens
HID Voltage	12V
HID Bulb Lifespan	more than 3500hours
HID ballast Switch Lifespan	more than 100000times





3. Bulb cross reference:



HB3 = 9005

HB4 = 9006

9008 = H13

H11 = H8 =H9

9145=9140=H10

HB2 = 9003 = H4

9004=9007=HB1=HB2

880=884=885=892=893=899=881=886=889=894=896=898



4. HID xenon kit Advantages:



1. Stable performing hid xenon kit

2. Extension of life span of battery due to the low power consumption

3. Constant power output, extending the bulb life

4. Waterproof, dustproof and shockproof with perfect performance

5. Good thermal performance

6. High efficiency, over 80%

7. Low margin of error, less than 1%

8. Super brightness: three-time brightness than normal halogen lamp

9. High quality, 14 months warranty





5. How to choose hid ballast kit:



1	Strict-Testing
2	High/low Temperature Testing;
3	IEC 68-2-6 Tremor Testing;
4	EN60529 Waterproof and Dustproof Testing;
5	DIN Antisepsis Testing;
6	Instant Hi/Low Voltage testing;
7	1000 times /one minute Open-Circuit-Testing;



6. The Packing included :



Bulb	2 pcs
Whie box	1 pc



7. Warranty:



For the failure product, just cut the wire and take picture show us, we will send new product to you with next shipment.
