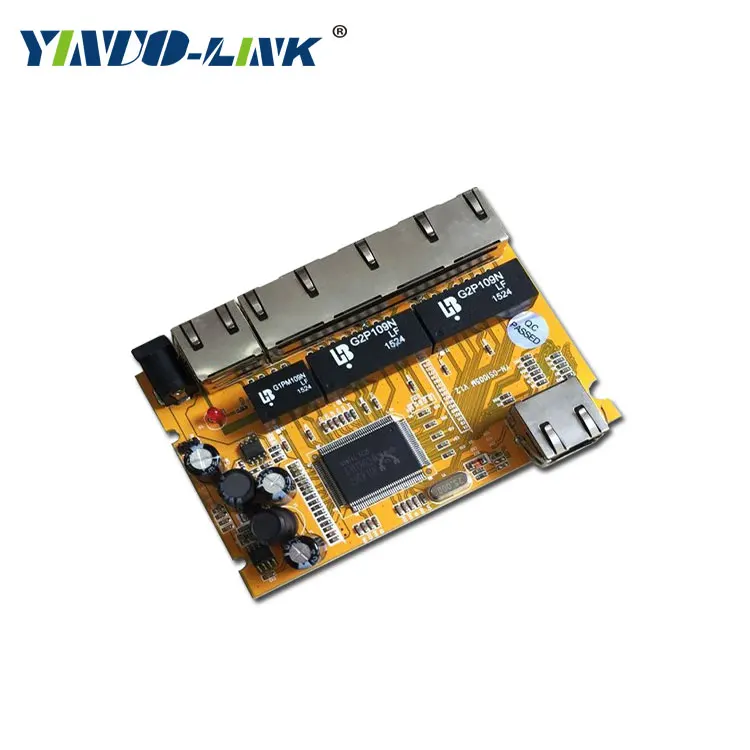

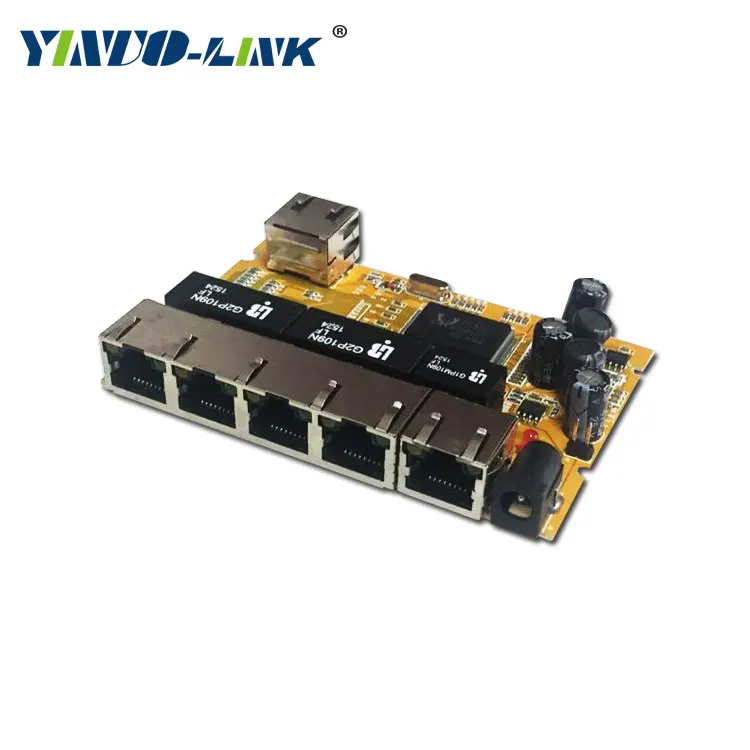

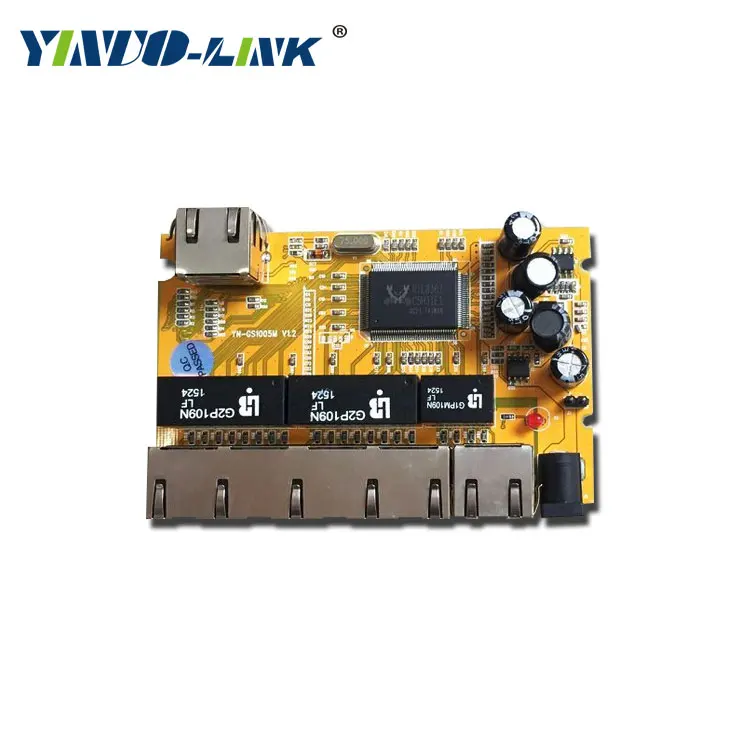

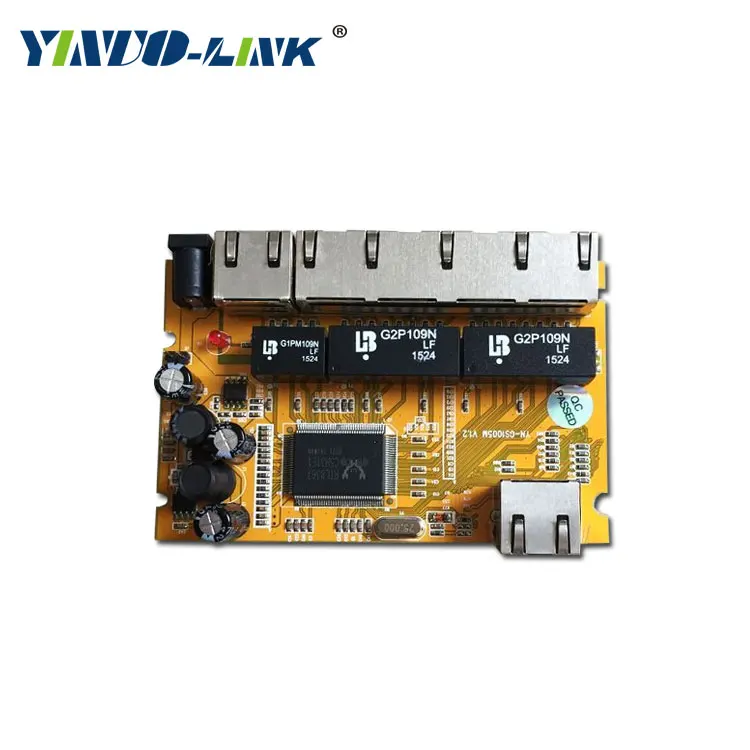

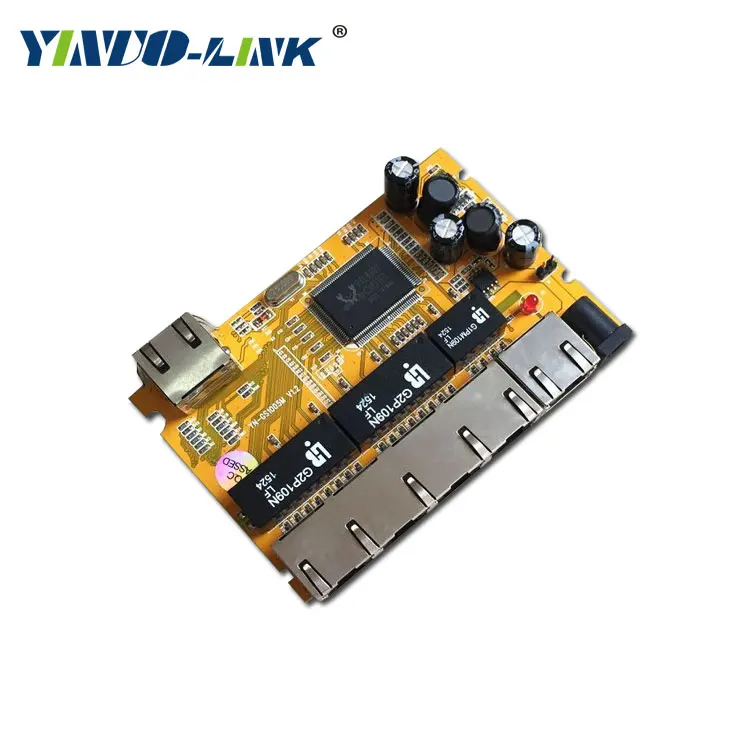

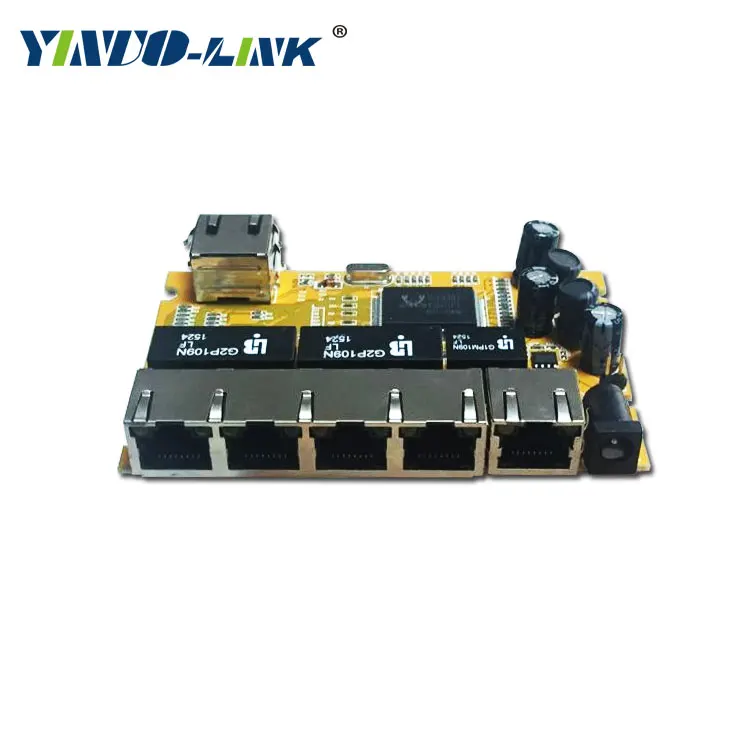

RTL8367 6 Port Gigabit Ethernet Switch Module Support OEM/ODM
Model:YN-GS1005M-A1
Product Description:
YN-GS1005M-A1 is a unmanaged commercial Ethernet switch module that supports 5 10/100/1000mbps ethernet ports. The ethernet port adopts the network port form. It supports one DC 9-24VDC power input. Embedded development integration for different scenarios.
Product Features:
1. Support IEEE802.3, 802.3U, 802.3ab, 802.3x standards
2. Supports 6 10Base-T/100Base-T(X)/1000Base-T(X) Ethernet Gigabit RJ45 network ports. Single port Gigabit is parallel, only one can be used at the same time.
3. Support full/half duplex mode, MDI/MDI-X automatic detection
4. Support full speed forwarding, non-blocking communication
5. Support 9-24VDC power input
6. Capacitors use industrial solid capacitors
Product Specification:
Technology | Standard:IEEE802.3,IEEE802.3u,IEEE802.3x Flow Control:IEEE802.3x.Back Pressure |
Interface | 100Mbps network port: 10Base-T/100Base-TX/1000Base-Tx self-adapting |
Transmission Distance | Twisted Pair: 100M (standard CAT5/CAT5e cable) |
Indicator Light | Interface Indicator:1-5(LINK/ACT) Power Indicator : PWR |
Exchange Attribute | 100mbps Forwarding Speed:148810pps 1000mbps Forwarding Speed:1488100pps Transmission Method : Store and Forward System Switching Broadband:10G Memory:1M MAC Address:1K |
Power | Power Input : 12VDC (9~24VDC) |
Consumption | No Load : 0.9W@12VDC Load : 2W@12VDC |
Working Environment | Operating Temperature : -10~+75℃ Storage Temperature : -40~+85℃ Humidity: 10%~95 %( no condensation) |
Product Structure | Weight:75G Dimension: 97.6X70X17MM (Length * Width * Height) |
Packing List | 1* 5 Ports 10/100/1000mbps Switch Core Module |
Warranty | 2 years |

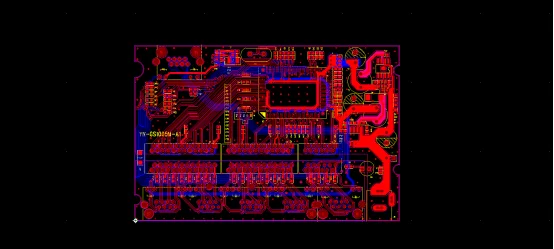

Product Design

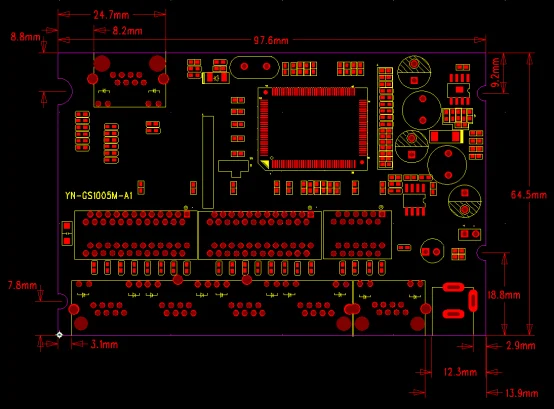

Product Structure

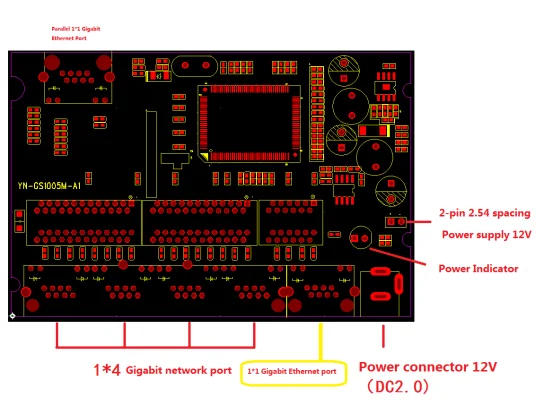

Interface Details
Application
This product is an embedded integrated module,can be used on:
1. Conference room system
2. Education system
3. Security system
4. Industrial computer
5. Robot
6. Gateway, etc.
