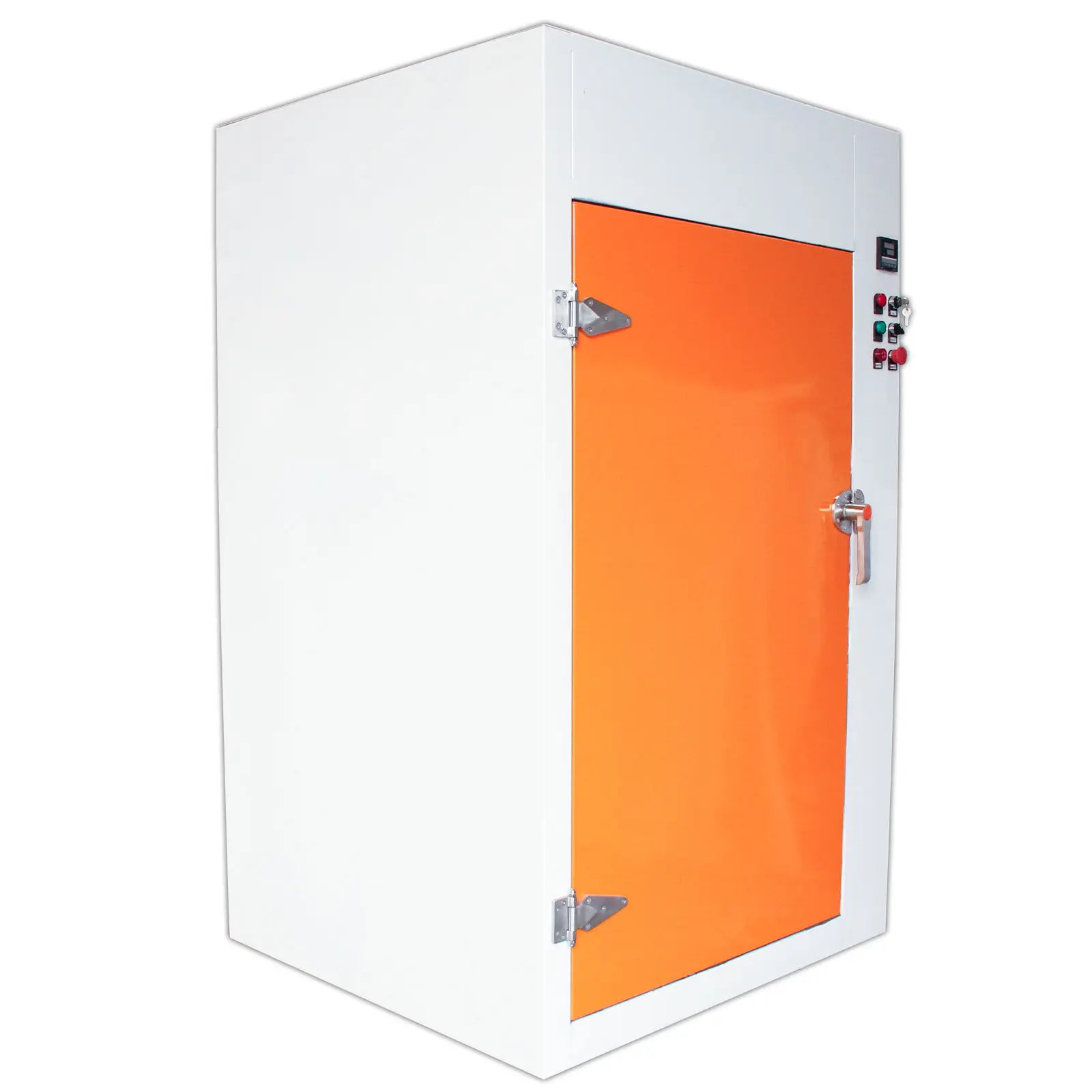

Небольшая печь с порошковым

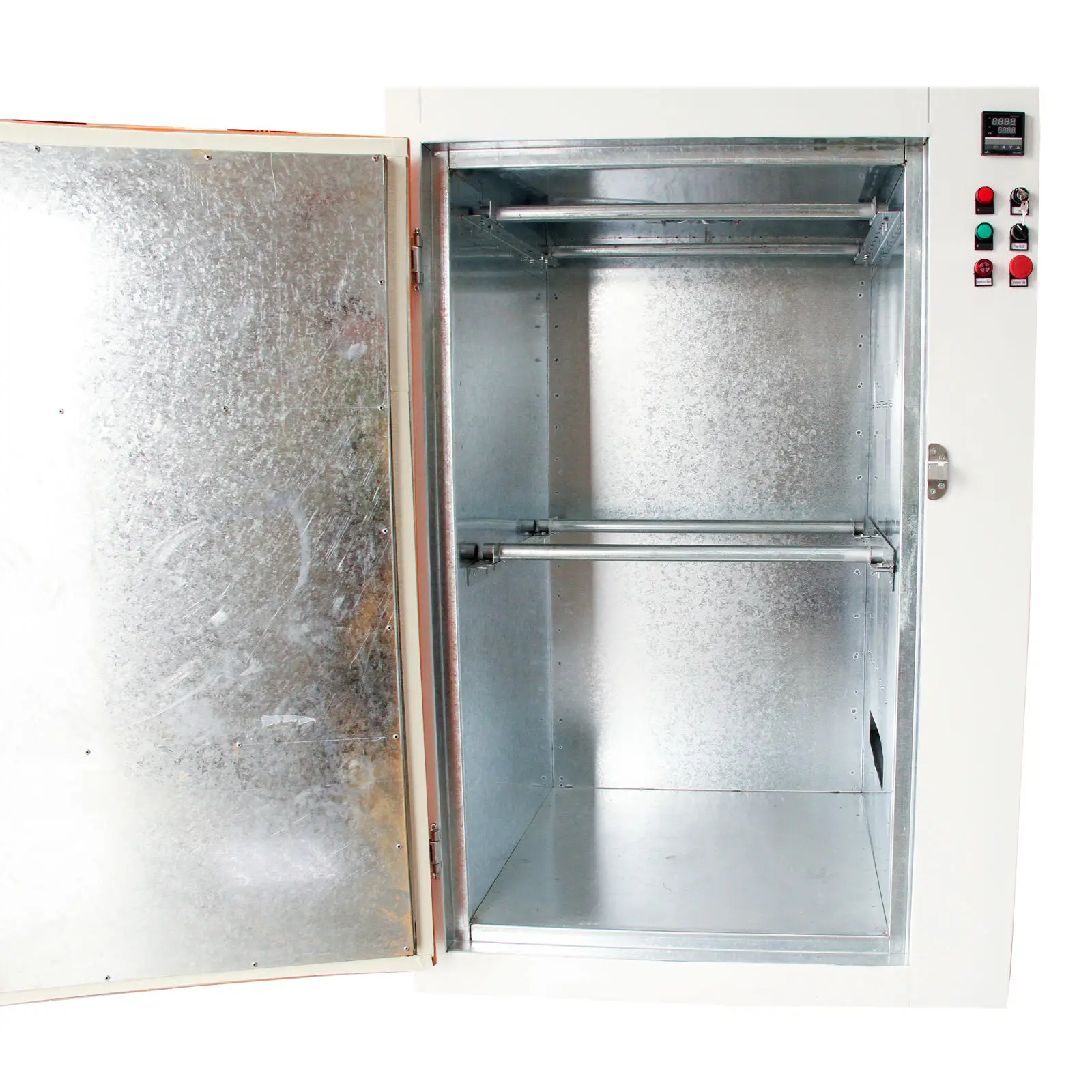

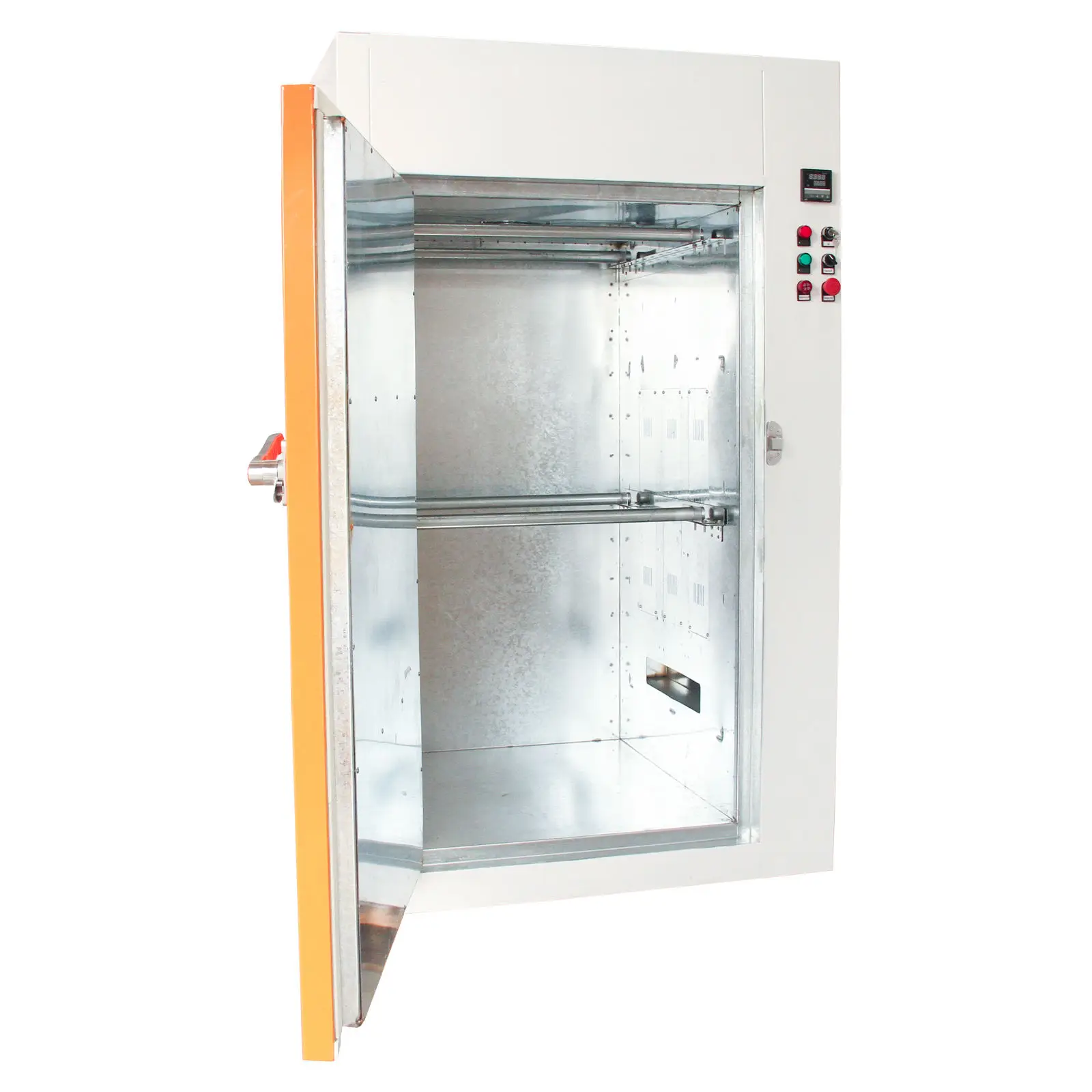

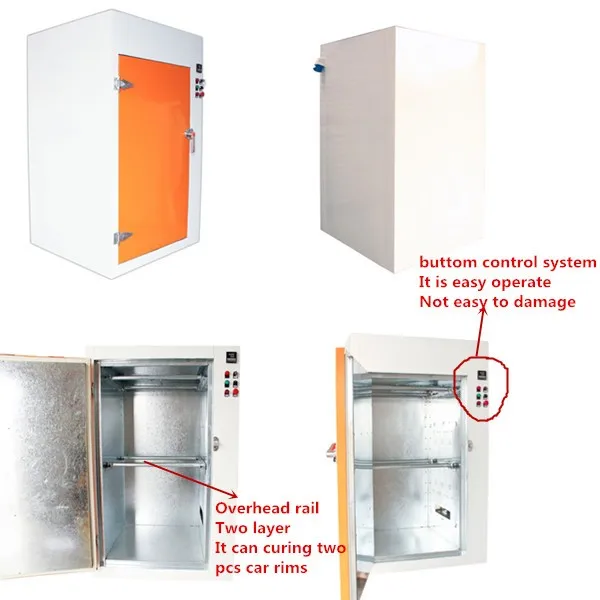

Powder coating curing oven for wheels refurbishing with CE is specially designed for the small parts curing after coating, like alloy wheels coating curing, etc.

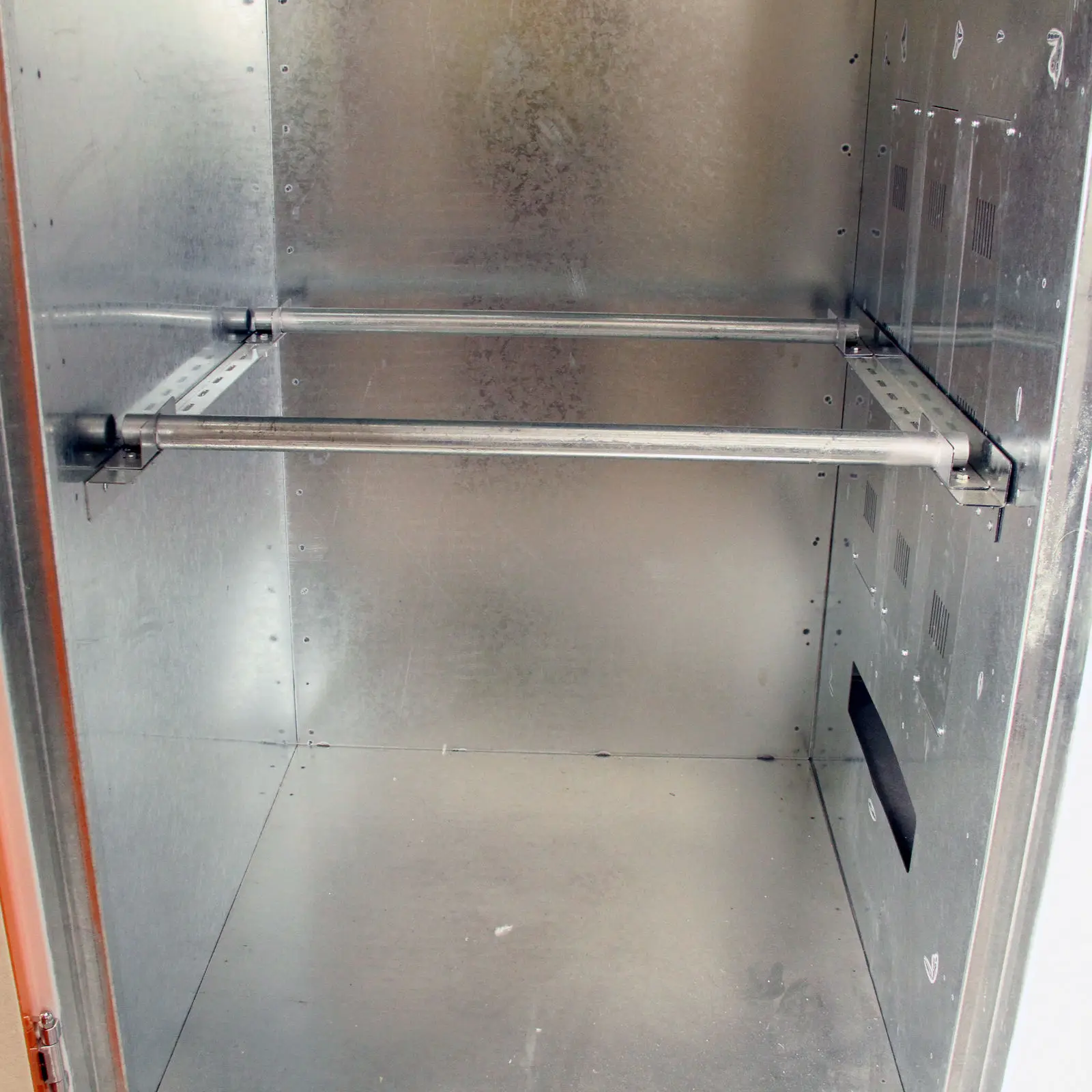

The inner / available dimensions are 800*800*1400mm ( LXWXH), and stainless steel electric heating tubes will supply enough heating for the whole oven's running and make sure the best curing effect.

A high temprature resistance motor / fan is specially designed for the air recirculations.

Wheels are designed for the easier operations and operator can move the oven around.

Colin - 160

- Available dimensions: 875x845x1600mm (L*W*H);
- Exterior dimensions: 1115x 1165x 2040mm (L*W*H);
- Power supply: Electric/ 3x2kw
- Voltage/Frequency: 380V/220v(50-60hz);  The voltage will  be customized ;
- Warm-up time: 15-30 min. (180°C)
- Temperature stability : < ± 1-3°C
- Temperature max. 250° C
- Warranty: 12 months

Colin - 300

- Available dimensions: 3000*1000*1600mm ( L*W*H );
- Exterior dimensions: 3300*1500*2100mm ( L*W*H );
- Power supply: FS5 LPG burner;
- 1 unit 0.55kw high temperature resisting
fan;
- Voltage/Frequency: 380V/220v(50-60hz);
- Warm-up time: 15-30 min. (180°C)
- Temperature stability : < ± 1-3°C
- Temperature max. 250° C
- Warranty: 12 months

Colin - 460

- Available dimensions:
4600 * 2850* 2650 mm ( L*W*H );
- Exterior dimensions:
4850*3450*3200mm ( L*W*H );
- Power supply: Electric / 42sets *3kw =138kw Sustainless electric heating tubes;
- 2 unit 4kw YW5-47 high temperature resisting fan;
- Voltage/Frequency: 380V/220v(50-60hz);
- Warm-up time: 15-30 min. (180°C)
- Temperature stability : < ± 1-3°C
- Temperature max. 250° C
- Warranty: 12 months

Colin -560

- Available dimensions:
5600*2300*3300mm ( L x W x H);
- Exterior dimensions:
5900*2600*3525mm ( L*W*H );
- Power supply: Diesel/ 1unit Riello Brand diesel burner G20
- 1 unit 5.5kw high temperature resisting fan;
- Voltage/Frequency: 380V/220v(50-60hz);
- Warm-up time: 15-30 min. (180°C)
- Temperature stability : < ± 1-3°C
- Temperature max. 250° C
- Warranty: 12 months

Colin-600

- Available dimensions:
6000 * 1700* 3200 mm ( L x W x H);
- Exterior dimensions:
6300 * 2150 * 3580 mm ( L*W*H );
- Power supply: Diesel/ 1unit Riello Brand diesel burner FS20
- 1 unit 5.5kw Y5-48-5C high temperature resisting fan;
- Voltage/Frequency: 380V/220v(50-60hz);
- Warm-up time: 15-30 min. (180°C)
- Temperature stability : < ± 1-3°C
- Temperature max. 250° C
- Warranty: 12 months

Colin -700

colin -1000
