Industrial grade Handheld Android Uhf Rfid Reader Portable
Product Description
android pda rfid reader
H5100 serial products extend Handheld-Wireless product serials into Android OS 7.0 with 4G high speed network communication with pistol grip. Inside the compact handheld device, sealing level of IP65 water/dust proof, 1.5m/4.5ft drop survival, ergonomic design, over-molding structure, quick- charging technology, large built-in battery of 8000mAh, and 5.0 inch tough Gorilla Glass 3 9H screen are all equipped to ensure performance. Latest 1.3GHz quad-core processor 2GB RAM/16GB ROM and up to 128GB expansion are all designed to boost up experience level.
| SPECIFICATIONS | ||
| PHYSICAL CHARACTERISTICS | ||

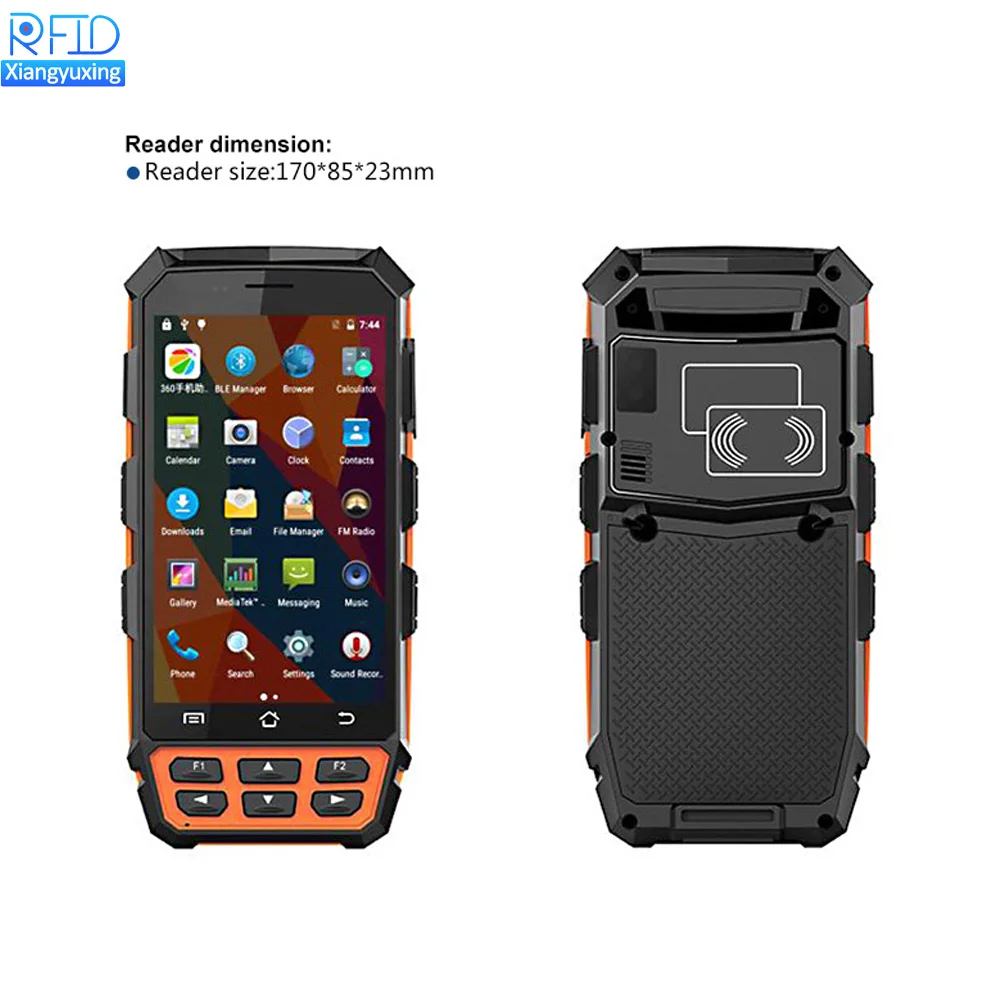

| Dimension | 170mm(H)x85mm(W)x23mm(D)±2 mm | |
| Weight | Net Weight :1000g (including battery) | |
| Display | 5.0 inch Gorilla Glass 3 9H TFT-LCD(720x1280)touch screen with backlight | |
| Backlight | LED backlight | |

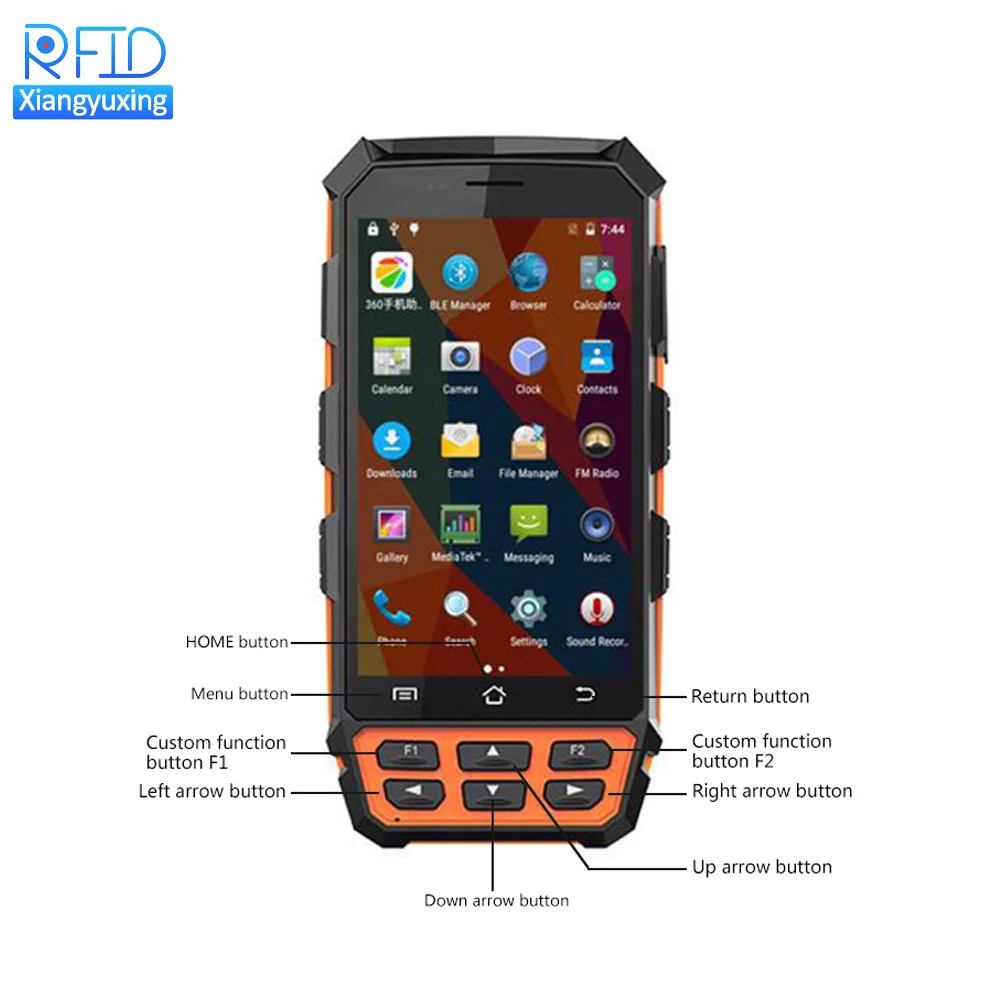

| Keypads | 3 TP keys, 6 function keys, 4 side buttons | |

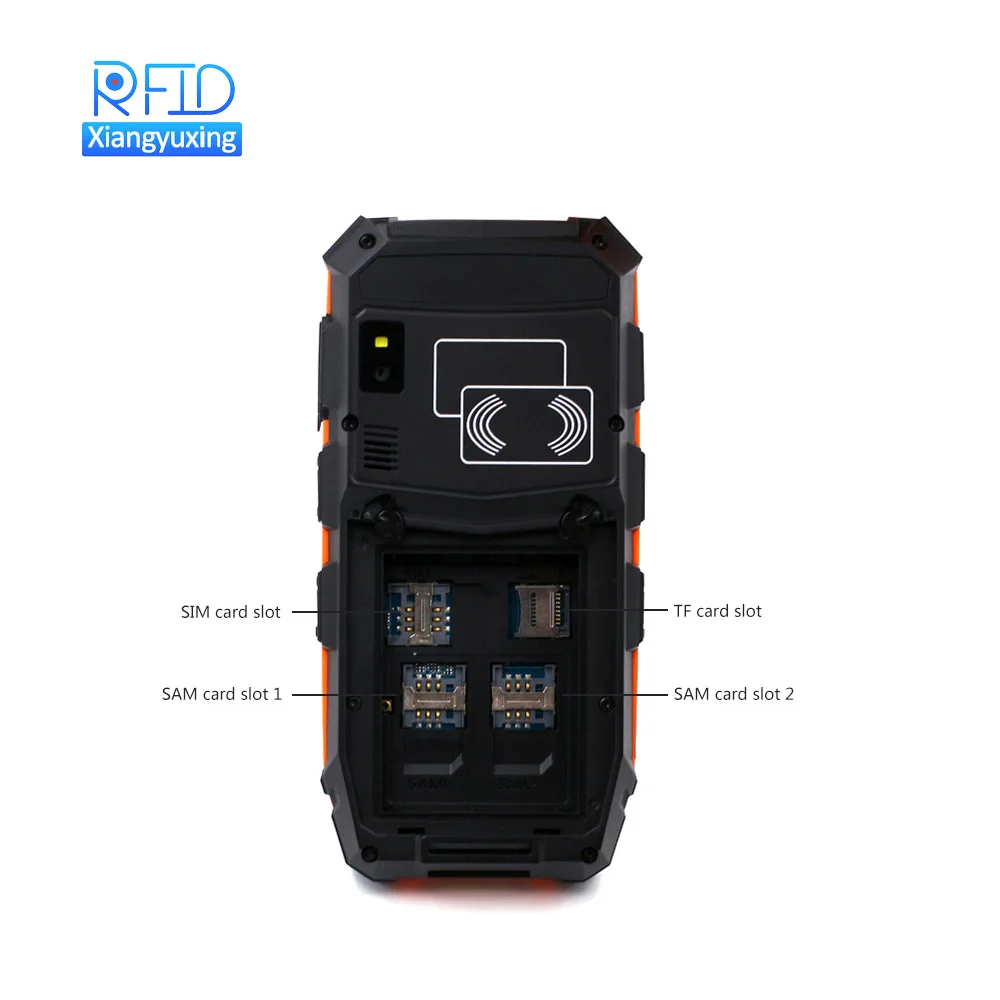

| Expansions | 2 PSAM, 1 SIM, 1 TF | |
| Battery | Rechargeable li-ion polymer, 3.7V, 8000mAh | |
| PERFORMANCE CHARACTERSTICS | ||
| CPU | Quad A53 1.3GHz quad-core | |
| Operating System | Android 7.0 | |
| Storage | 2GB RAM, 16GB ROM, (max 128GB expansion) | |
| USER ENVIRONMENT | ||
| Operating Temp. | -20℃ to 50℃ | |
| Storage Temp. | -20℃ to 70℃ | |
| Humidity | 5%RH to 95%RH(non-condensing) | |
| Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range | |
| Sealing | IP65, IEC compliance | |
| ESD | 15kv air discharge, ±8kv direct discharge | |
| DEVELOPMENT ENVIRONMENT | ||
| SDK | HHW Software Development Kit | |
| Language | Java | |
| Environment | Android Studio or Eclipse | |
| DATA COMMUNICATION | ||
| WWAN | TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7,17, 20; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz); | |
| WLAN | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac | |
| WPAN | BT Class v2.1+EDR, BT v3.0+HS, BT v4.0 | |
| GPS | GPS(embedded A-GPS), accuracy of 5 m | |
| DATA CAPTUER | ||
| BARCODE READER(OPTIONAL) | ||
| 1D barcode | 1D laser engine | Symbol SE955/N431X |
| Symbologies | All major 1D barcodes | |
| 2D barcode | 2D CMOS Imager | N6603 |
| Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Japan Postal, Dutch Postal. etc. | |
| COLOR CAMERA | ||
| Resolution | 8.0 megapixel | |
| Lens | Auto-focus with LED flash | |
| RFID READER(OPTIONAL) | ||
| RFID LF | Frequency | 125KHz/134.2KHz(FDX-B/HDX) |
| Protocol | ISO 11784&11785 | |
| R/W Range | 2cm to 10 cm | |
| RFID HF | Frequency | 13.56MHz |
| Protocol | ISO 14443A&15693 | |
| R/W Range | 2cm to 8cm | |
| RFID UHF | Frequency | 865~868MHz or 920~925MHz |
| Protocol | EPC C1 GEN2/ISO 18000-6C | |
| Antenna Gain | Circular antenna(3dBi) | |
| R/W Range | Default: 6 m to 7 m(tags and environment dependent) R2000 UHF Reader: 5 m to 7 m(tags and environment dependent) ThingMagic M6E Micro: 6m to 8 m(tags and environment dependent) | |
| Active 2.45GHz | Read range more than 200 m | |
| 433MHz | Read range more than 200 m | |
| FINGERPRINT READER(OPTIONAL) | ||
| Sensor | TCS1CT | |
| Sensor type | Capacitive, area sensor | |
| Resolution | 508 DPI | |
| Performance | FRR<0.008%, FAR<0.005% | |
| Capacity | 1000 | |
| PSAM SECURITY(OPTIONAL) | ||
| Protocol | ISO 7816 | |
| Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 | |
| Slot | 2 slots(Standard) | |
| ACCESSORIES | ||
| Standard | 1xPower Supply 1xLithium Polymer Battery 1xDC charging cable 1xUSB data cable | |
| Optional | Carrying case; Cradle | |
