Professional Manufactures Prefab House Wallboard Plant Concrete Wall Panels Making Machine
Outline
Annual output (m2) | Quantity of moulding cars (set) |
Workers required
| Prodction area (m2) | Stacking area (m2) |
| 100,000 | 5 | 8-13 | 500 | 1,000 |
| 200,000 | 8 | 10-18 | 600 | 2,000 |
| 300,000 | 10 | 12-20 | 700 | 3,000 |
| 400,000 | 11 | 15-23 | 800 | 4,000 |
| 500,000 | 12 | 18-28 | 900 | 5,000 |
| 600,000 | 13 | 22-32 | 1000 | 6,000 |
| 700,000 | 14 | 25-35 | 1,100 | 7,000 |
| 800,000 | 15 | 28-38 | 1,200 | 8,000 |
| 900,000 | 16 | 32-42 | 1,300 | 9,000 |
| 1,000,000 | 17 | 35-46 | 1,400 | 10,000 |
| Remarks |
The parameters above in only for your reference.
| |||
Features of Sandwich Panel Machine
1) Automatic controlled by Siemens PLC Controller.
2) Vertical molde car can move automatically.
3) Rail transfer system is remote controlled.

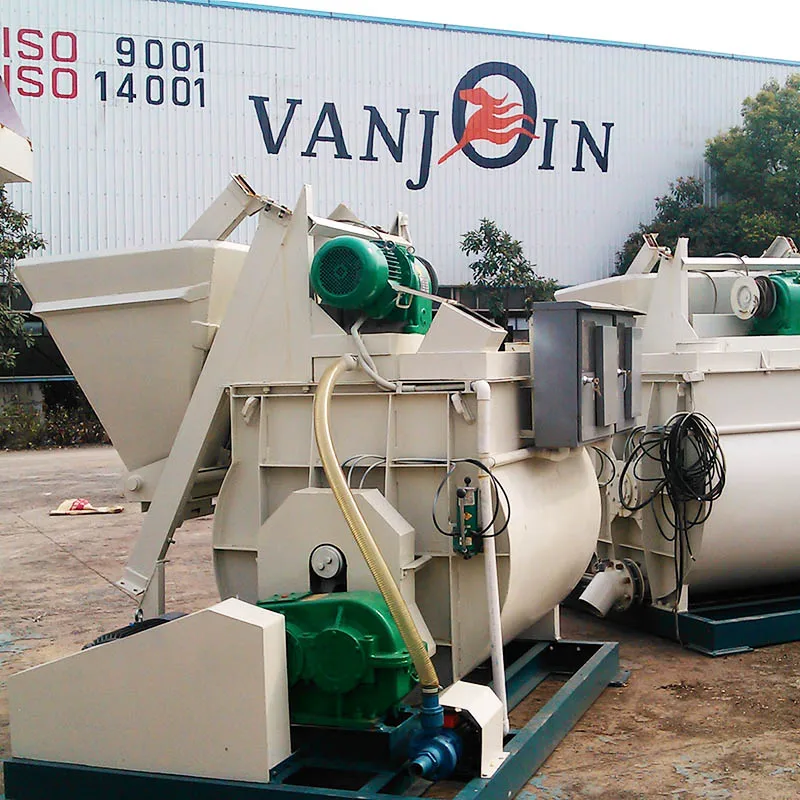

4) Vanjoin use 3m3 large-capacity mixer instead of mixer whose capacity is only 0.75m3. It can save time for both mixing and pouring.
5) Wall panel machine can make wall panels with board (calcium silicate board or fiber cement board), or panels without board.
Product Description
Main systems of Vanjoin Wall Panel Production Line.
1) Foaming system (include boiler, eps foaming machine);
2) Raw materials storage / measuring / conveying system (include raw materials silo, storage& weighing &measuring hopper, pump, etc);
3) Mixing system (include mixing machine, electric control system);

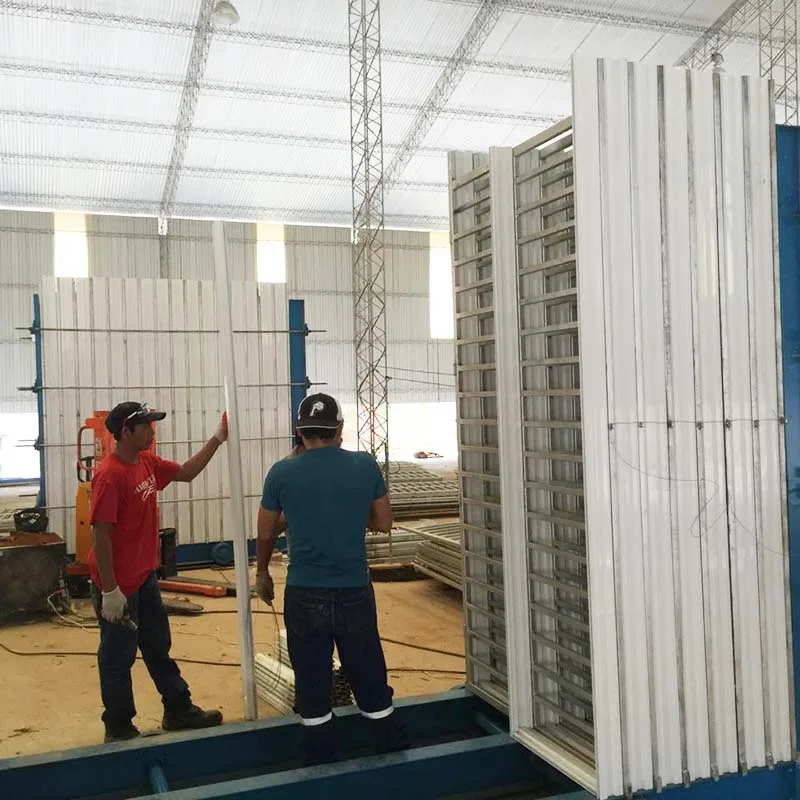

4) Foaming and gating system (include vertical mould car)
Specification:
| VJ-HT2270 | ||||||
| Name | Main Components | |||||
Overall Dimensions (Length x Width x Height) | 3180x1380x3480mm | |||||
| Weight | 2800KG | |||||
| Mobie Power(KW) | 2.2 | |||||
| Mobie Speed(m/min) | ≤60 | |||||
| Main Components | Host | Chassis assembly (powder device),former stands, after stands, after plate,rod | ||||
| Accessories | Pressing Plate, side mould | |||||
| Production Information | Thickness (mm) | Width (mm) | Length (mm) | Quantity (pcs/set) | Area (m2/set) | Raw Material (m3) |
| 60 | 610 | 2270 | 60 | 83.0 | 4.15 | |
| 75 | 610 | 2270 | 50 | 69.2 | 4.50 | |
| 90 | 610 | 2270 | 42 | 58.1 | 4.65 | |
| 100 | 610 | 2270 | 40 | 55.3 | 4.98 | |
| 120 | 610 | 2270 | 34 | 47.0 | 5.17 | |
| 150 | 610 | 2270 | 28 | 38.7 | 5.42 | |
| 180 | 610 | 2270 | 22 | 30.4 | 5.77 | |
| Remarks | 1. Two ranistion car production line conversion use, One set cheer machine, spray release agent use, Pour table, track. 2. The height of the mould can be customized by customers specific requirements. | |||||

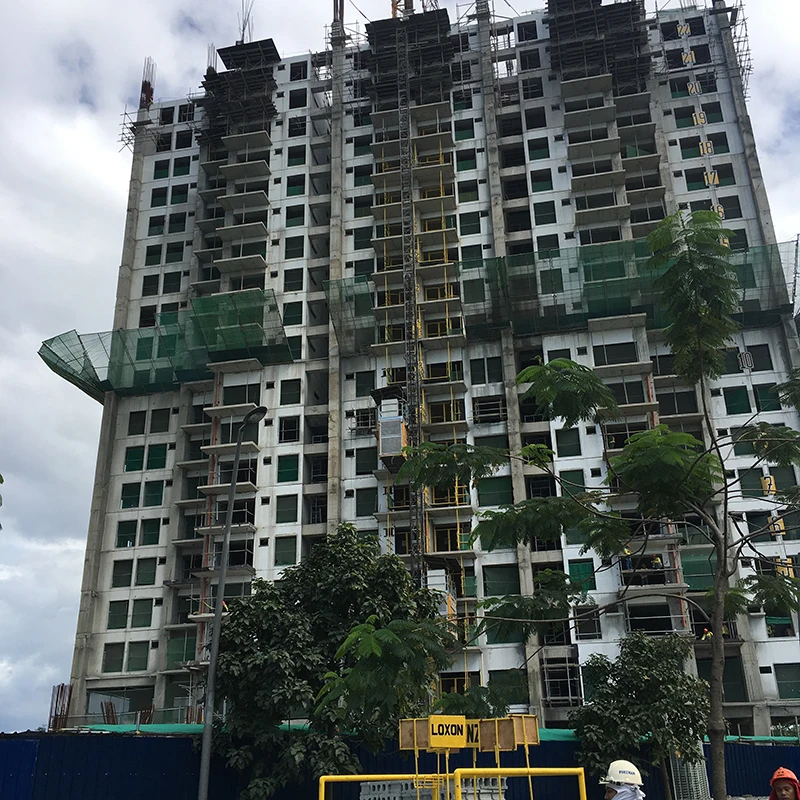

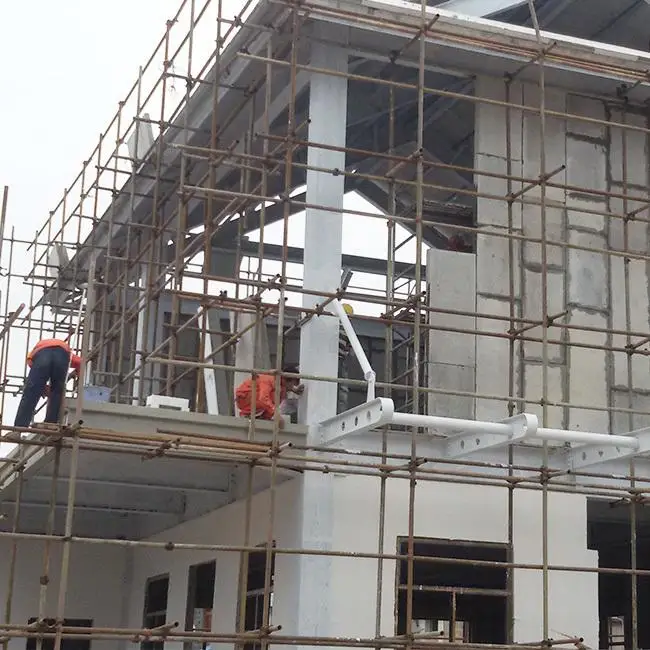

Project Case
Vanjoin extra service: Plant design, Drawings provided, Free training, Equipment installation and commissioning, Lifetime technology supporting.

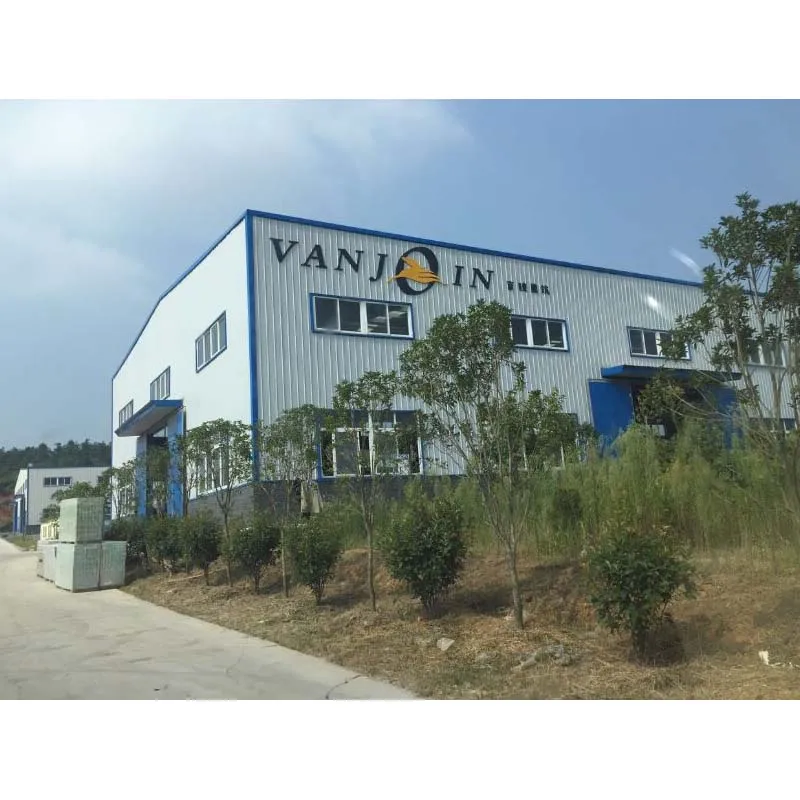

Company Information
We are proud to provide green wall system services covering designing, sampling, testing, manufacturing, quality control, inspection and logistic service to companies that need a reliable supply of flexible wall tile, eps panels and sandwich panel production line from China.
Related Products

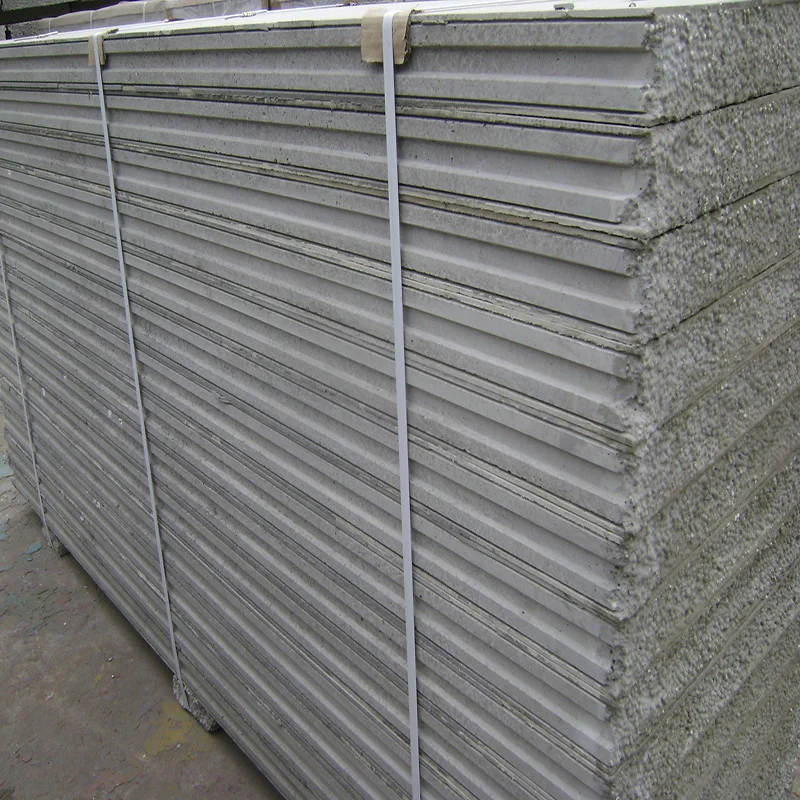

Lightweight Concrete Wall Panels
Certifications
Packaging & Shipping
1. Load in 40HC,
2. Machinery packed into pallets and protect by epe films,
3. Spare parts packed into cartons.
