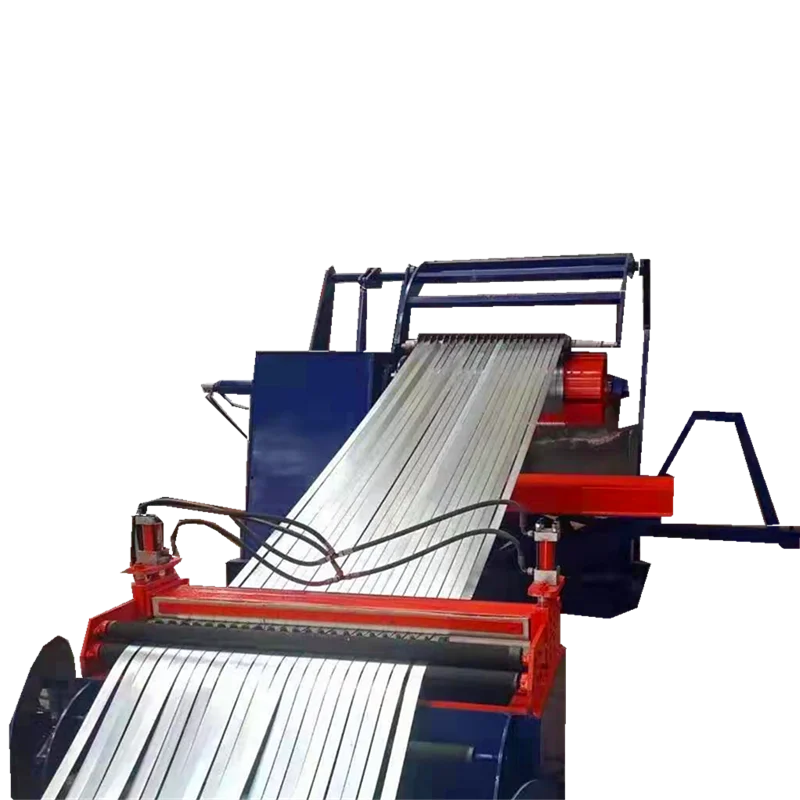

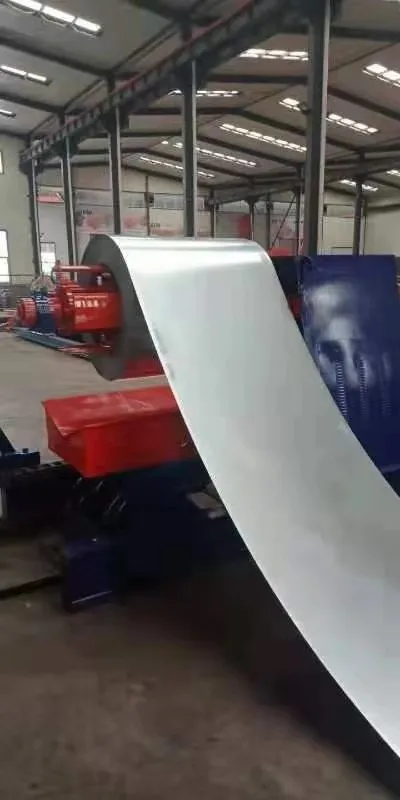

Стальной лист металла катушки сократилась к линии длины разрезая машины

Here please check some main machine units as below:

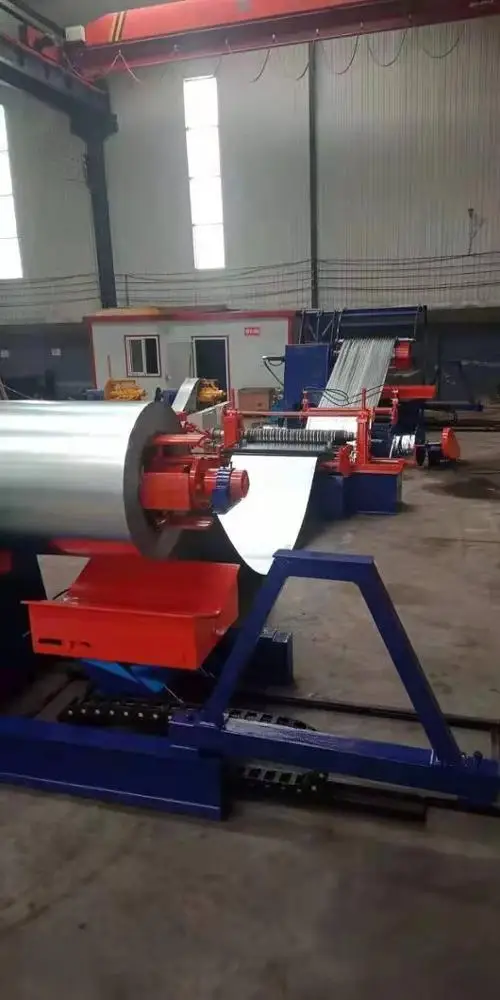

The hydraulic decoiler with coil car

support the steel coil and de-coiling ,its max capacity is 15 T

It can expand and shrink with hydraulic oil cylinder and fit with the inner hole of the steel coils

and is equipped with supporting stand.

It is equipped with adjustable brake system to prevent the steel coil from free running

It is made by welding the steel plate and profiled bar.

the coil car makes the inner holes of steel coils aim at the de-coiler center.

The hydraulic expand and shrink de-coiler is driven by the pushing of center shaft to tight the inner hole of steel coil.

Slitting machine:

ower part: This is composed of power-stand, 650decelerator, 45KW direct current motor,

gear distributing case, coupler, spindle, connecting-cover, etc.

Host machine: This is composed of bottom-stand, fixed bracket, big slide, knife pivot(φ180mm, 2pcs),

movable bracket, slide, the front and back adjustable device of bracket, knife pivot lifting and pressing down adjustment device,

accompany of  blade, separating cover, rubber band and 10 blades with the machine

It change the blades through moving out the bracket hydraulically and is very convenient and fast

The scrap winder:

It consists of base, the shaft and plate of scrap material, friction wheel,

supporting wheel chain, chain, 350 decelerator and 7.5Kw electric machine.

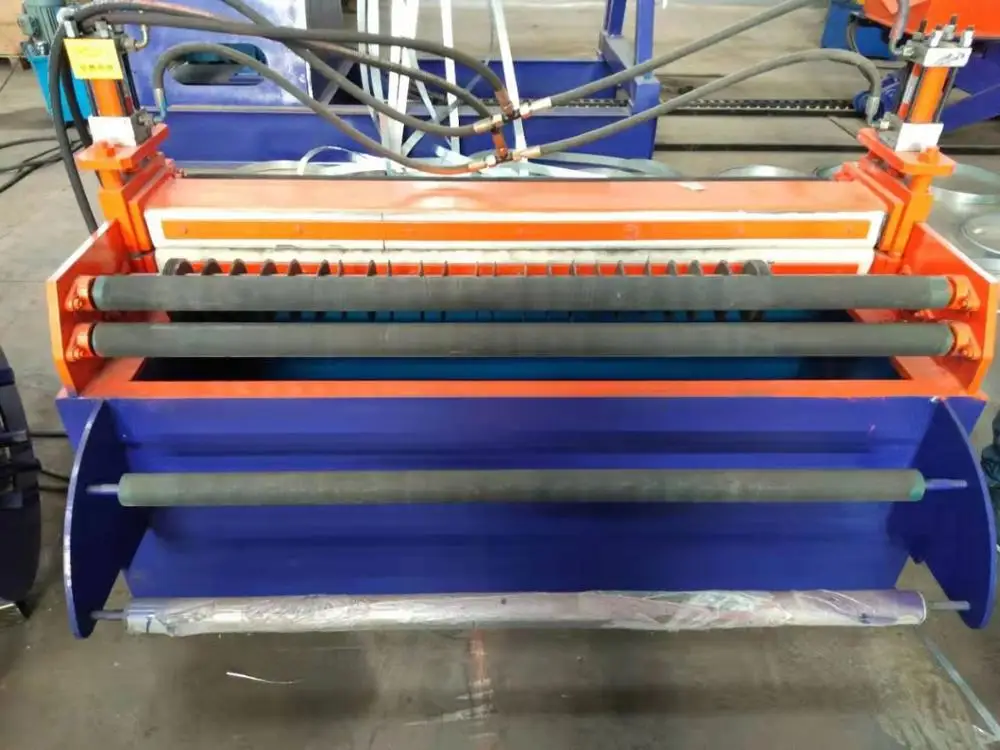

The tension stand:

This is composed of frame, preliminary dividing shaft, bracket, pressing shaft, hydraulic damping device,

lifting and pressing device for pressing shaft, set of dividing slice and cover, etc.

 Block device: hydraulic drives it up and down according to the material thickness.

Three hydraulic cylinders to make the pressure adjustable so that it can make the different thickness material’s tension power.

It also can ensure the recoiling quality.

The automatic recoiler:

This is composed of frame, bearing-stand, recoiling shaft, expand recoiling device and plate,

movable supporting stand, accompany of decelerator, direct-current speed adjustable motor: 85KW

and direct-current electronic cabinet, etc.

Designed with the seamless expand and shrink structure and hydraulic clip-mouth

so that when the heads feed into the clip-mouth, it will close automatically and start winding.


1. Installation: The seller will send technician to buyer's factory, and the buyer should pay for the flight,

the visa and the food and accommodation. Pay for 100 USD per person one day.

2. Service promise: The supplier designs and makes the equipment with quality guarantee period of one year.

The supplier will provide free maintenance while quality guarantee period, except for the human mechanical fault;

and collect only the part costs and the travel expense of the serviceman.

 Remark:

1. In the guarantee equipment main technical parameters and installed level, the user and consultation,

and manufacturing process has the right to modify some parameters

2. Seller needs to supply following items

(1) Mechanical foundation installation drawing and production line arrangement as well as the operation manual.

(2) All the below spare parts are provided with the machine, any extra spares, that would be ready by customer self.

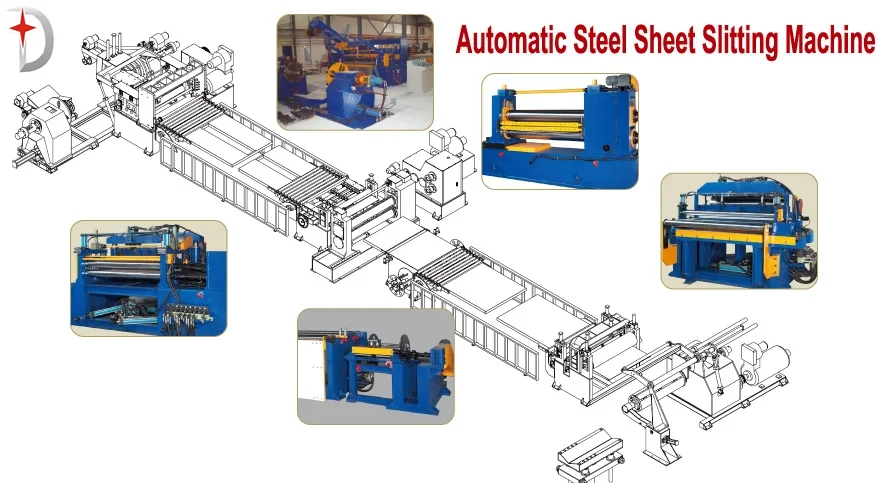

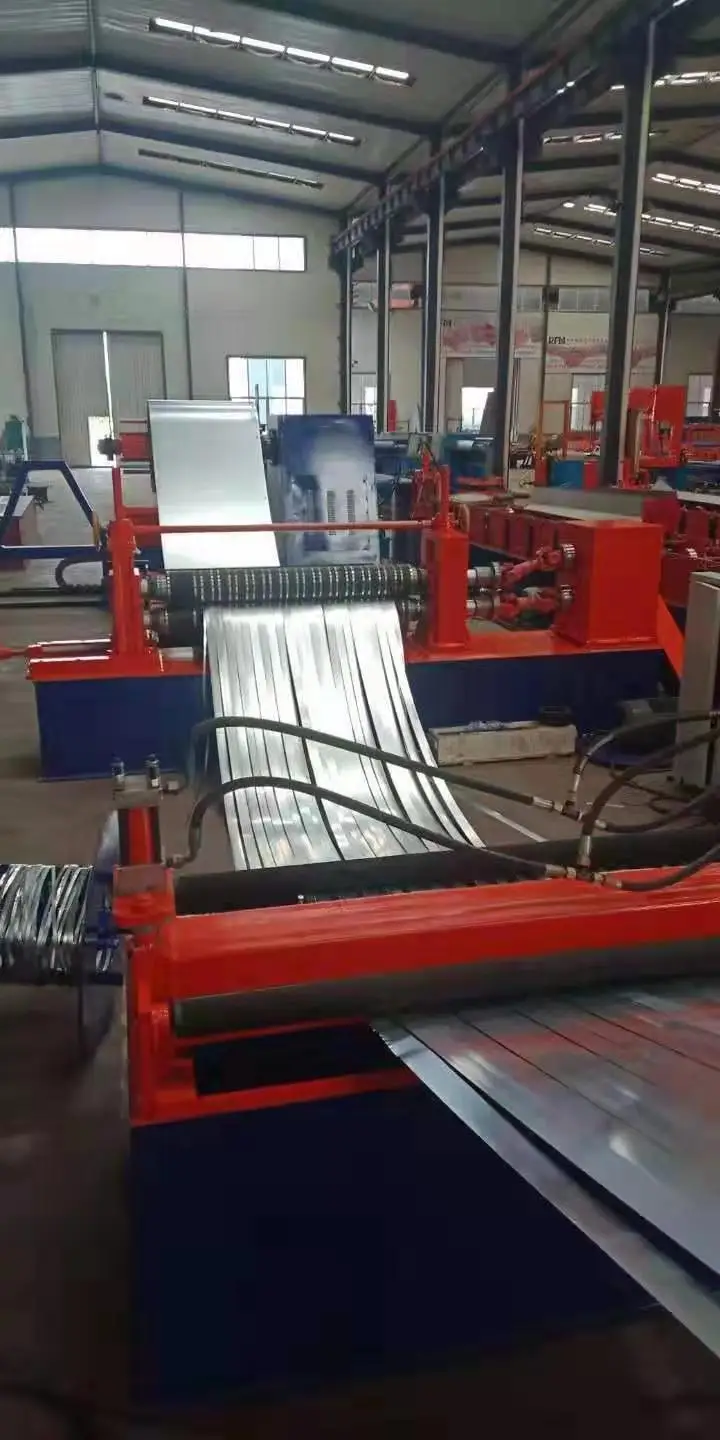

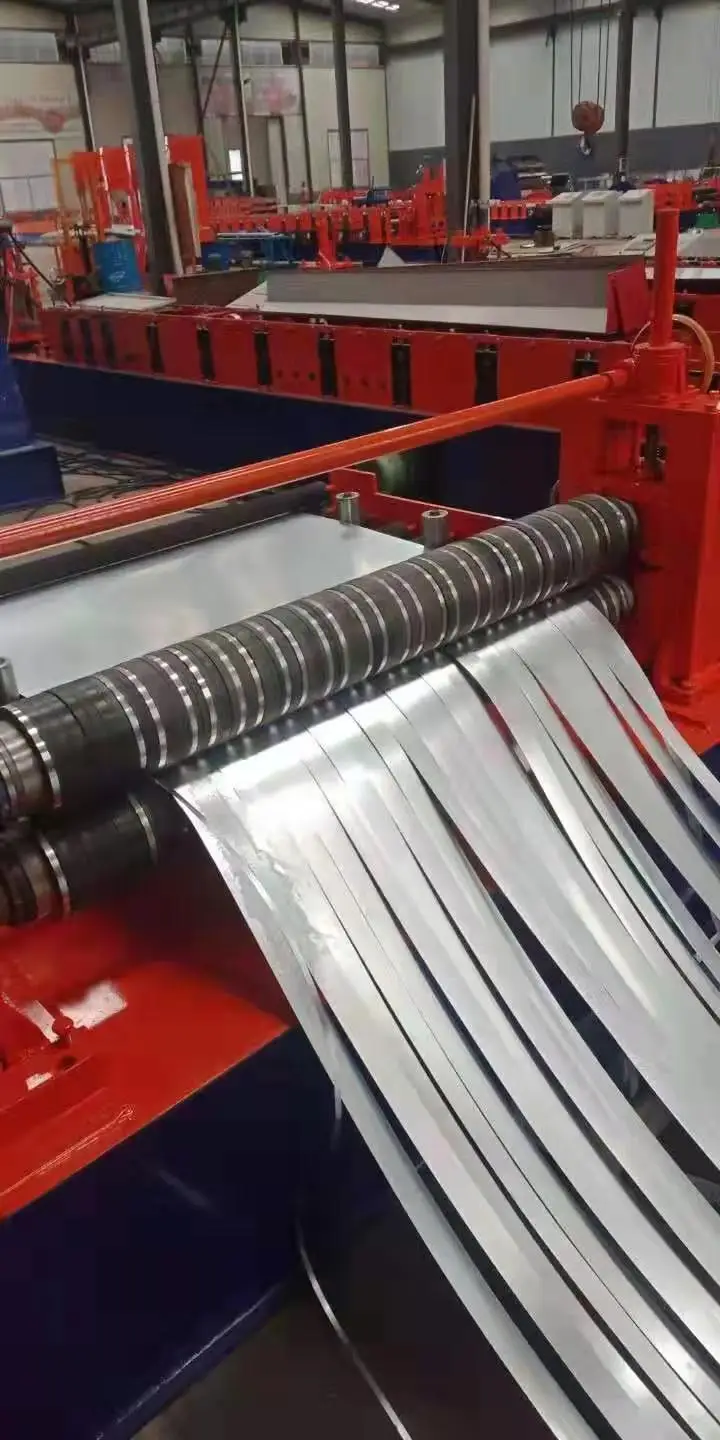

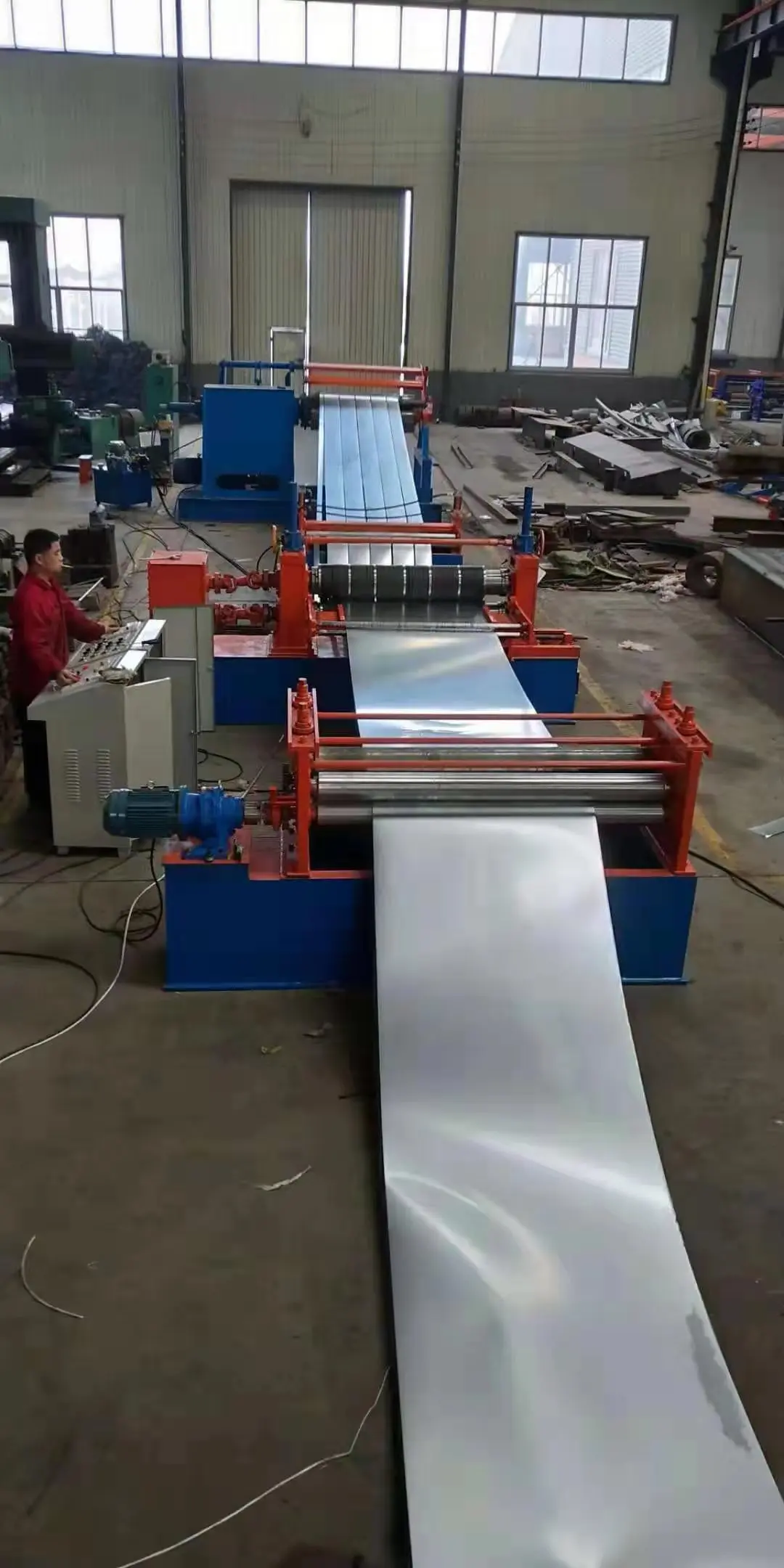

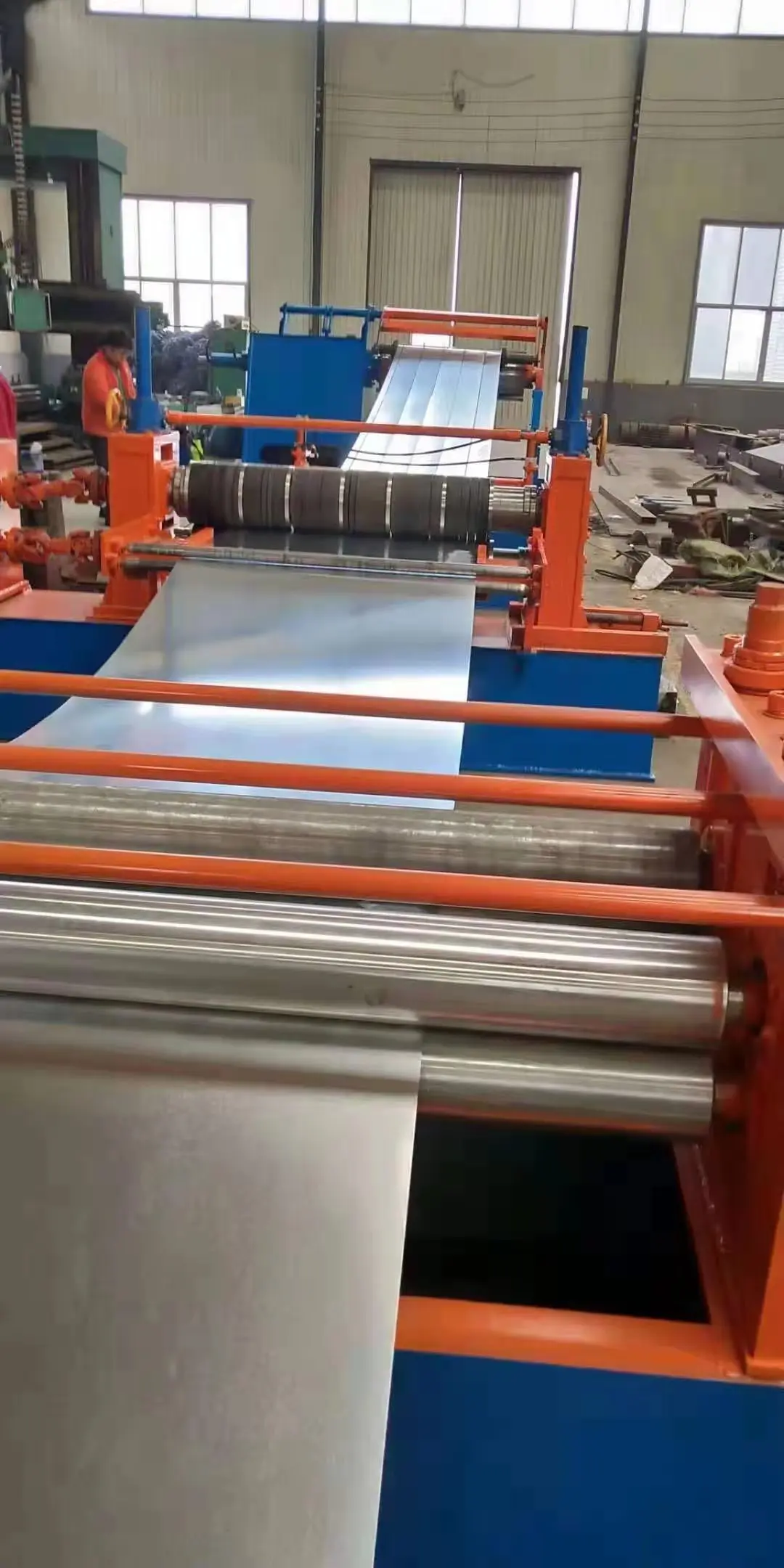

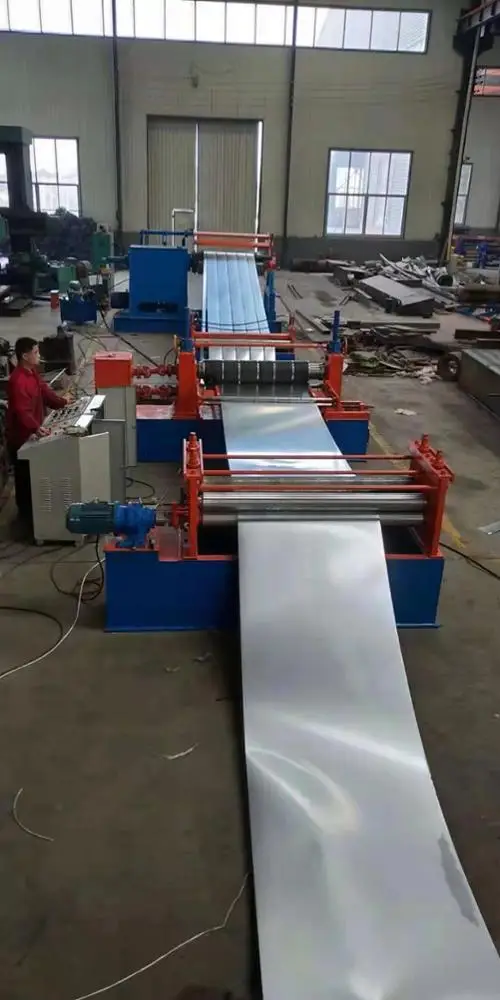

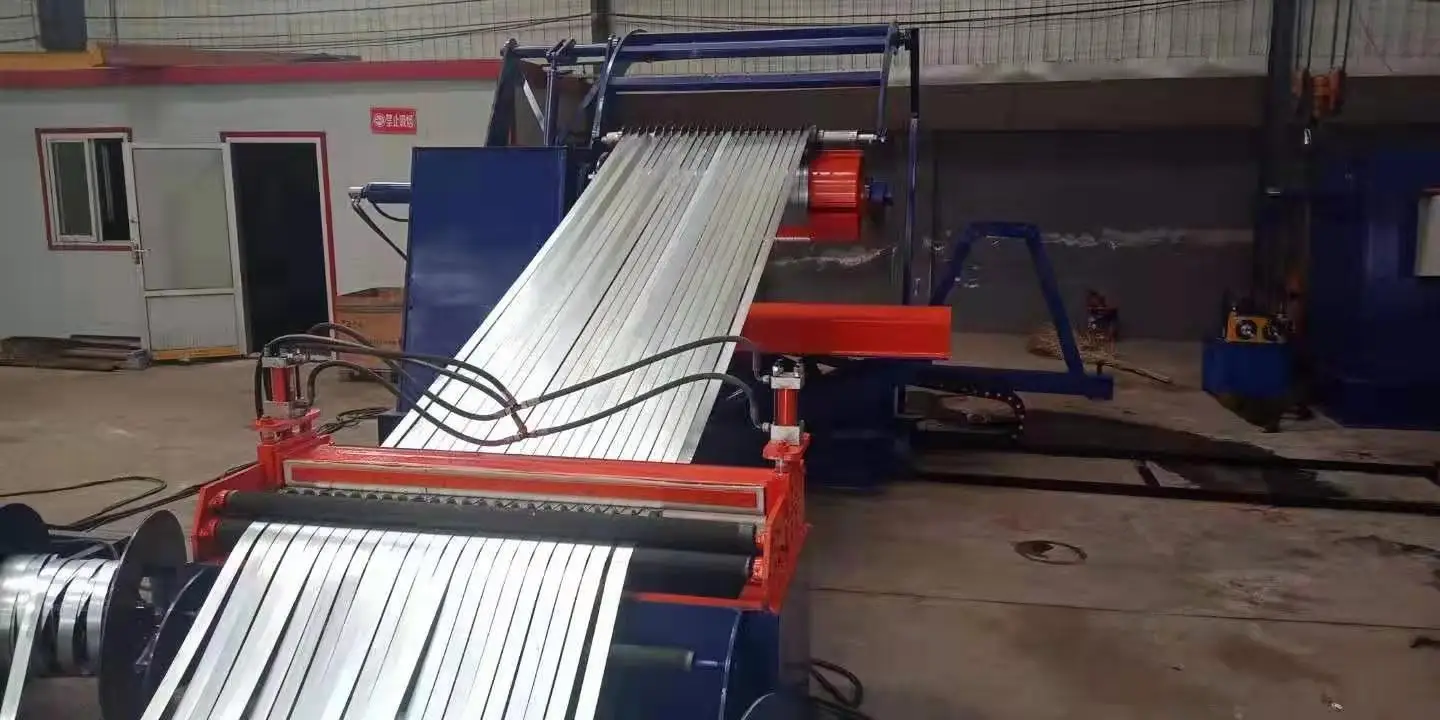

Here are more clear photos for the automatic slitting machine

Our  factory have 20 years' experience, ISO, CE certificated, we always keep superior quality and competitive offers for customers.

Our machines are sold to worldwide, and feedback very well.

Our main products cover corrugated tile roll forming machine, trapezoidal panel roll forming machine,glazed roofing roll forming machine, C purlin roll forming machine, roll shutter door roll forming machine and so on.

We also can design and produce machine according to customer's requirement.

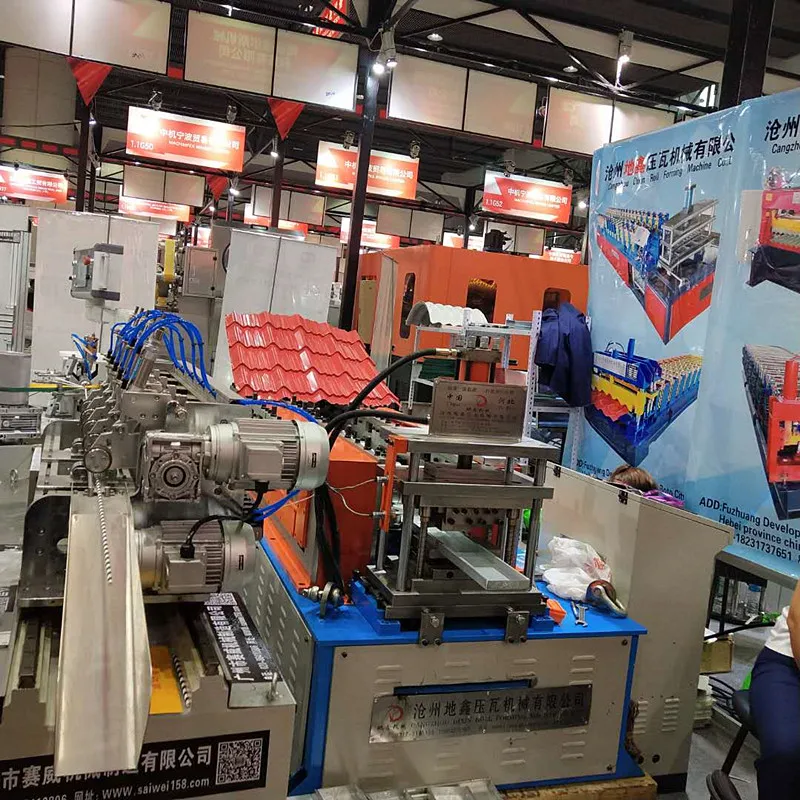

Our company successfully participated in this year's Canton fair, which was recognized and highly praised by customers,We sincerely invite you to visit our factory and establish a good business relationship with your company.

Packaging Details .......
1.Tighten to container with steel wire rope and welded angel iron.
2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic)
3.Roll forming machine PLC control system and moter pump are packed with water-proof plastic coveragePortTianjinLead
Time :30 days after your pre-deposit

Many customers wait until their machines are finished then come to our factory To check their machines.When they are very satisfied.They will order the machine again,because We hope to establish long-term business relationship with our customers.Therefore, we have always attached great importance to the quality of machinery and good after-sales service.

1:How to play order:

Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2 :How to visit our company:

Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

3:When we exported the machines:

We have been making and exporting the machines for years

4:If you want to get more pictures or videos of the machines, pls send me an inquiry.

Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available.

1. As the factory, we will recommend the right profile machine to customer, and give the professional advice.

2. Confirm the final decision during the discussion.

3. The sale person will give customer updates for each period during the production process.

4. We finish the machine within the confirmed date, and shipping the goods to cutomers safely and faster.

5. Provide the right documents to customers.

6. Give the tips(include photos, videos and manual) for installation and operation.

7. If the buyer can not make the installation or machine appeared the problems,

we will creat a group first with our technician and customer.

To solve it in a short time.

8. If can not solve online, we will arrange the technician solve it overseas within one week.

The charge for technician include the visa,

round tickers, food, accomdation and USD80/person/day for salary.

The advantage of my factory:

We have a team of skilled engineers and one group for after-sale service.

The customer can find us in China or aboard.

We go aboard 2-3 times each year to participate exhibition and visit customers.
