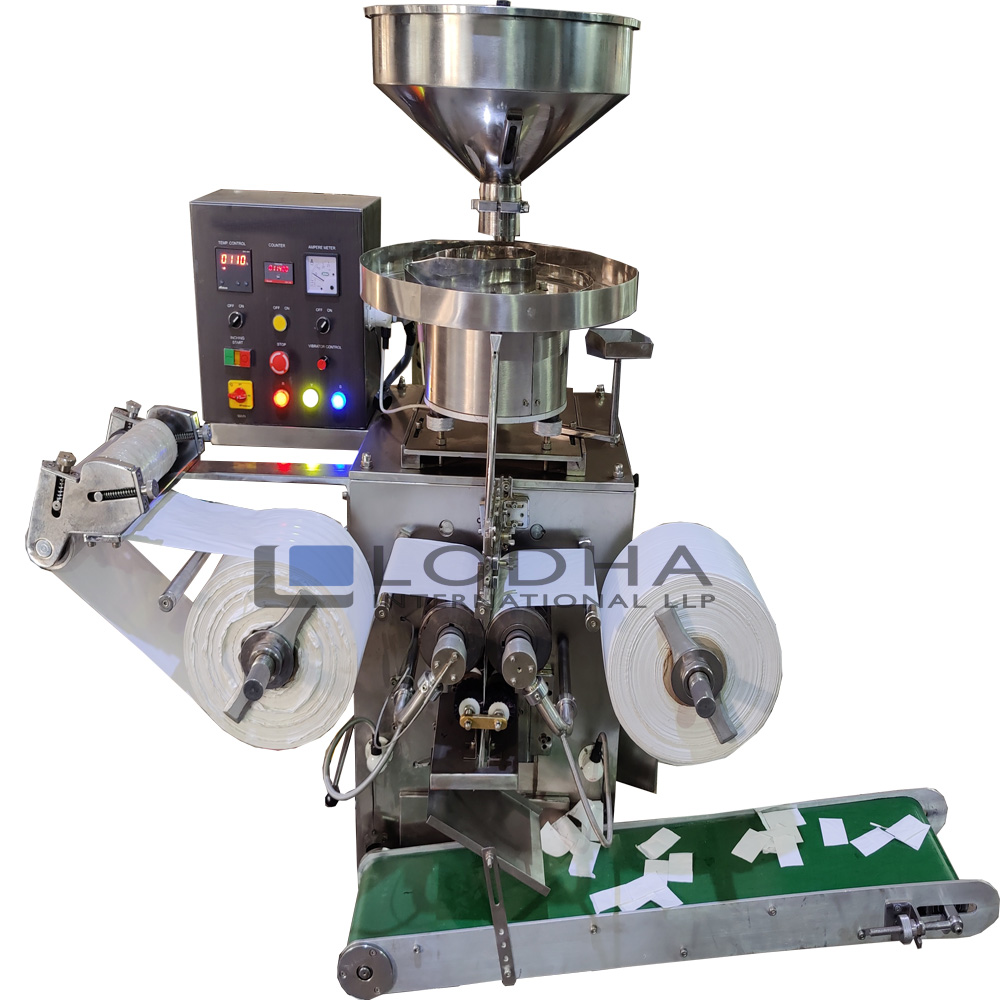

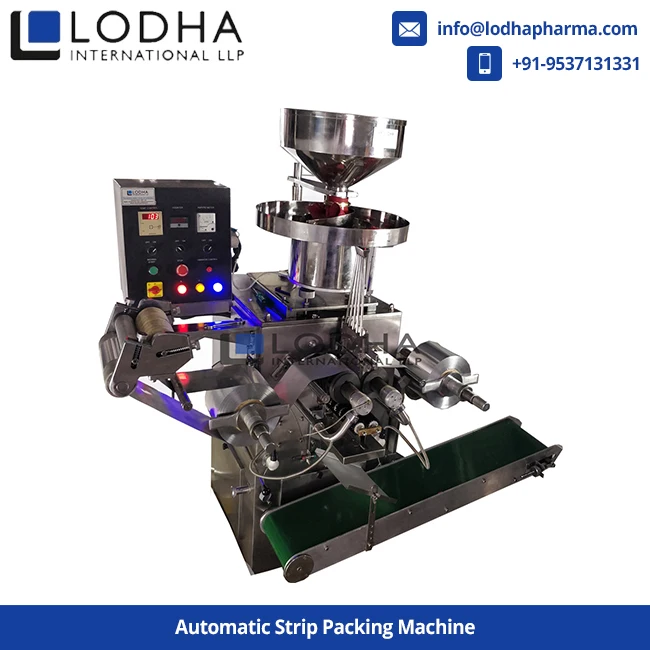

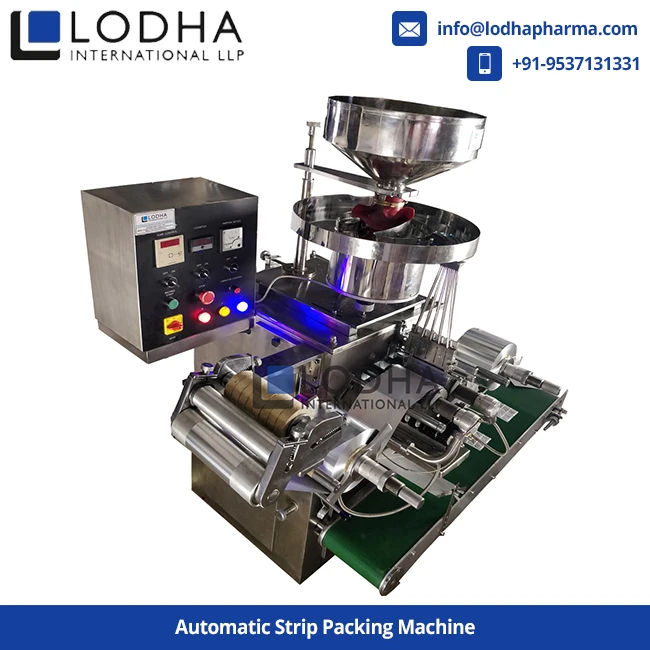

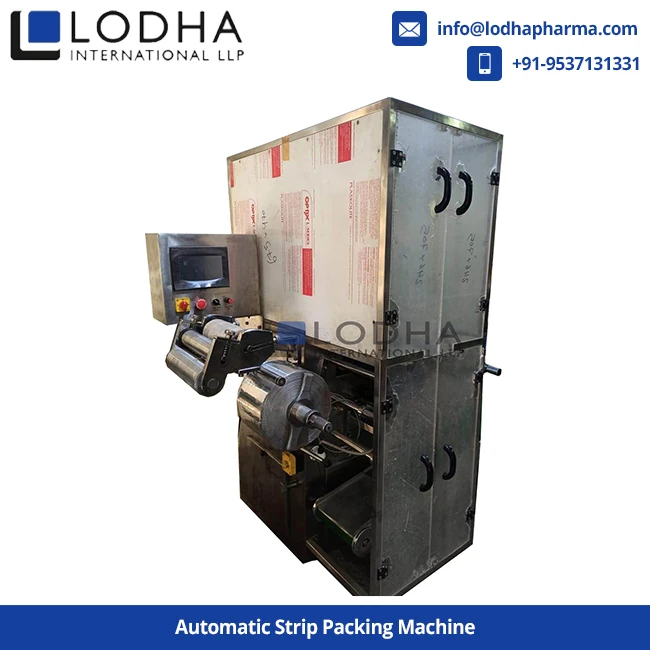

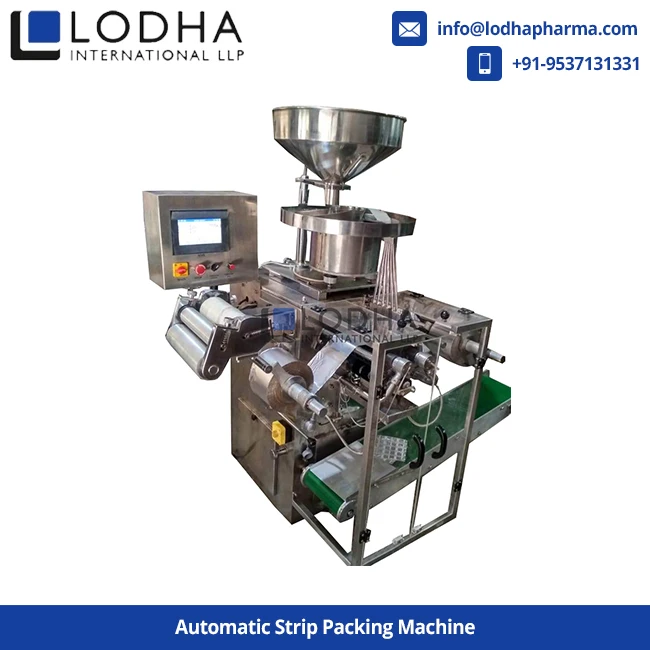

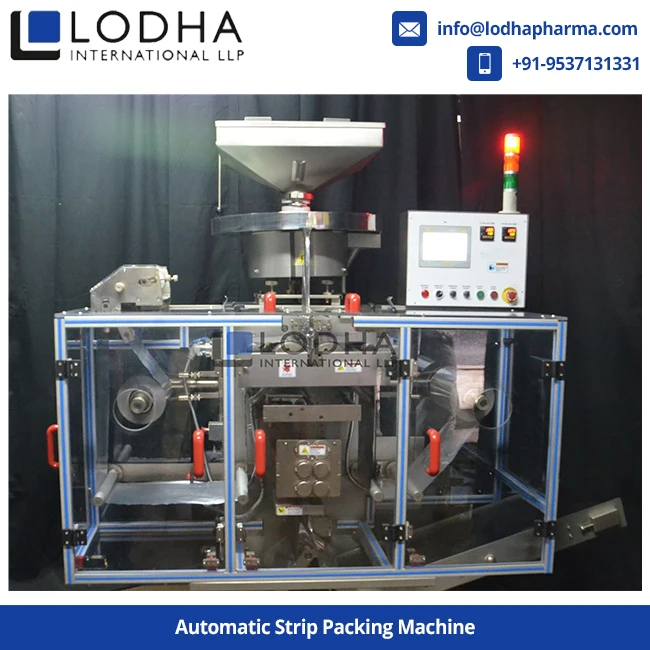

Automatic Pharmaceutical Double Soft Aluminum Foil Strip Packing Machine

Automatic Pharmaceutical Double Soft Aluminum Foil Strip Packing Machine

• LODHA Automatic Strip Packing Machine packs a wide range of products in to easily dispensable strips with economy and speed. It has capacity between 500 units / min to 2500 units / min. It handles a wide variety of products like coated and uncoated tablets of any size / shape, hard and soft gelatine capsules, confectionary products like lozenges, toffees, chewing gums as well as electronic devices, among others. is built on advanced technology to fulfil the requirement in Pharmaceutical Packing Industry. Strip Packing Machine gives high speed and uninterrupted performance at low maintenance cost. They are ideal for high speed sealing of coated or uncoated tablets, capsules or lozenges of any shape or size in Aluminium foils, Polythene, cellophane or any other heat-sealing material.

Special Features

• Automatic Feeding, Sealing, Slitting and Cutting are done simultaneously.


• Therefore, its efficiency is high, meaning production cost is decreased due to reduction of labour cost.

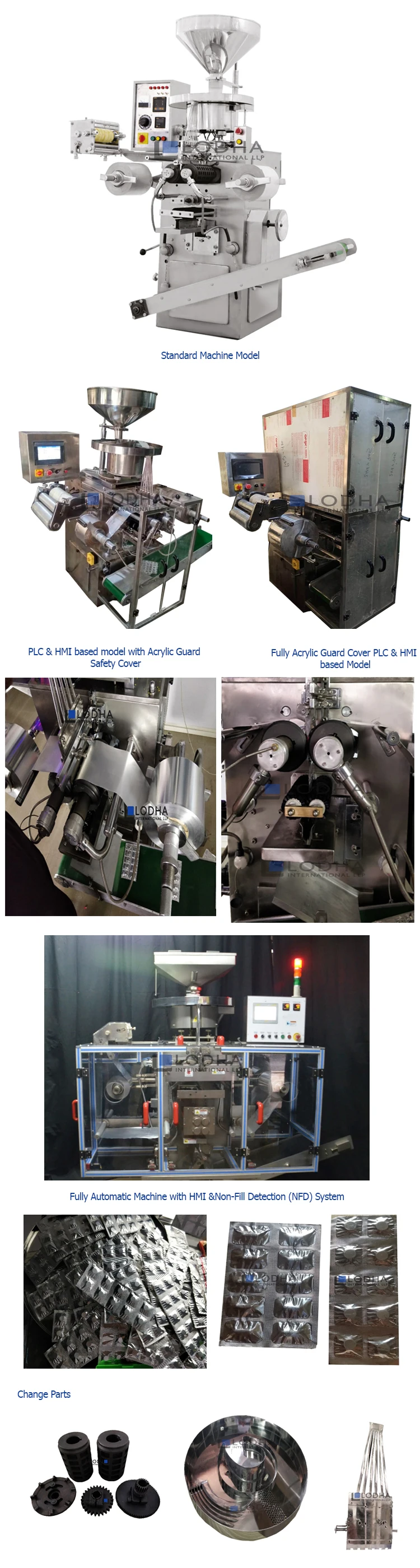

• Models ranging from 2 tracks to 10 tracks,



• Minimum 40mm to Maximum 310mm sealing width.



• Take off conveyors of different sizes to convey strips to inspection and packing table.



• Machine suitable for different heat sealable packing laminates.



• Electrical motor suitable for 415 V/ 380 V/ 3 PH/ 50 CS/ AC Supply.



• All contacts parts are SS316.



• In compliance with cGMP.



• The change parts can easily replace.

Special Accessories

• Synchronized Batch Coding



• Print Registration Control



• Horizontal Perforation



• Vertical Perforation



• Zig-Zag Cutting



• Non-Fill Detection (NFD) System



• Programmable Logic Controller



• Multiple Product Feeding



• Use of Preforming Rollers



• Safety Guarding



• Notching for Easy Tearing



• Batch Coding Using Metal Types



• Irregular shaped pockets



• Engraving on strip



• Use of Ink-Jet Printing



• Strips of 5/7 Tablets/Capsules

Flow Chart:

• Vibrator: Which Transports the product through supply tablets to the Chute.



• Chute: The Device grips the various pieces and centres them for their entry in to the sealing Roller.



• Sealing Roller: The Temperature of Sealing Roller can be steadily maintained because precise temperature control device is adopted.



• Slitting: The column number and location of the slitting can have adjusted easily.



• Draw Brushes: Tense the strip makes sure the Sealing and Cutting is perfect.



• Cutter: The row number of cutting can be adjusted as per your
