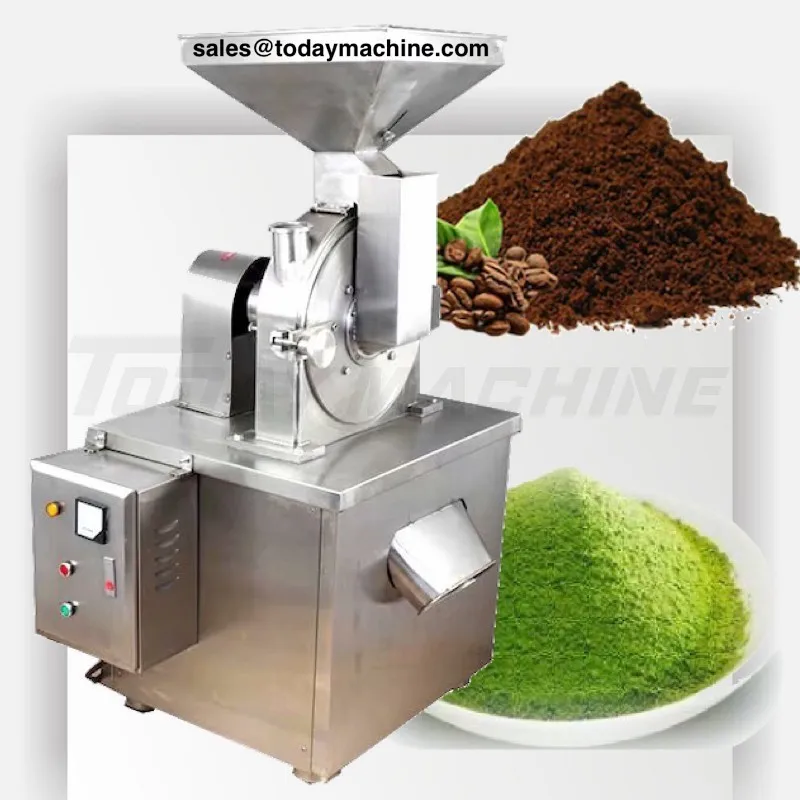

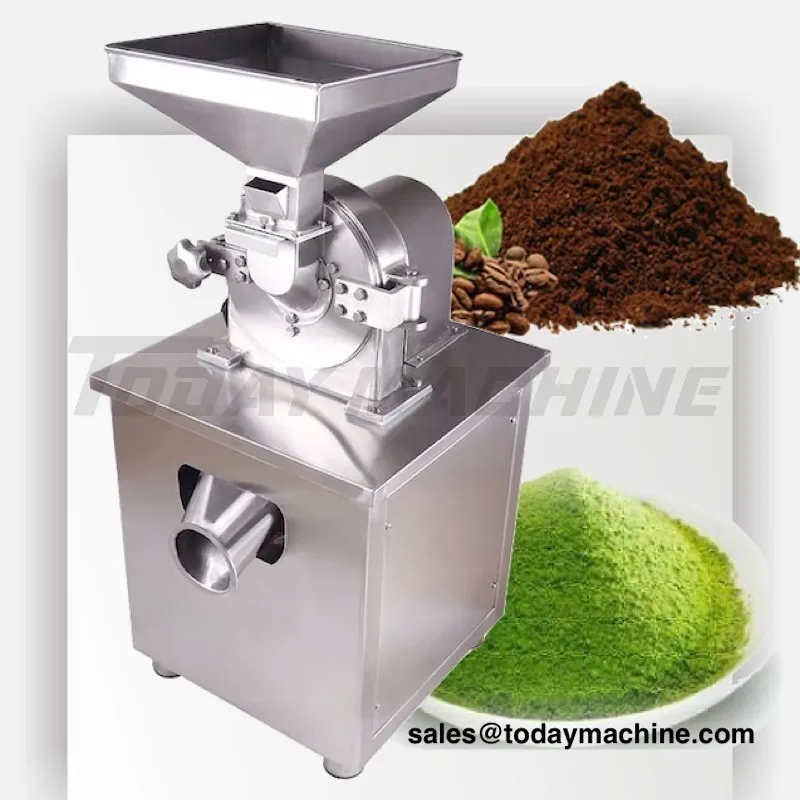

Мельница для листовой мельницы/дробилка для чайных листьев/машина для резки листьев, машина для измельчения порошка
- Категория товара: Grinding Equipment >>>
- Поставщик (Оптовый магазин): Shantou,Today,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Dry Grinding Machine
Option
Stainless steel grade
Frequency control
Inlet feeder with Magnetic suction, to Detect and retain metal subjects
Dust collection container system.
Stainless steel grade
Frequency control
Inlet feeder with Magnetic suction, to Detect and retain metal subjects
Dust collection container system.
Model | Voltage | Capacity(kg/h) | Speed(r/min) | Fineness(mesh) | Power(kw) | Weight(kg) | Dimension(mm) |
FG-180 | 220V 380V | 40-120 | 4200 rpm | 60-150 | 2.2 | 90 | 700*480*1000 |
FG-250 | 380V | 50-200 | 4500 rpm | 10-150 | 5.5 | 200 | 750*600*1350 |
FG-320 | 380V | 100-300 | 4200 rpm | 10-150 | 7.5 | 250 | 1100*700*1250 |
FG-400 | 380V | 300-800 | 3400 rpm | 10-150 | 12 | 440 | 1200*950*1300 |
FG-500 | 380V | 400-1000 | 3600 rpm | 10-120 | 15 | 500 | 1300*1000*1380 |
FG-600 | 380V | 500-1500 | 2800 rpm | 10-120 | 22 | 680 | 1400*1350*1500 |

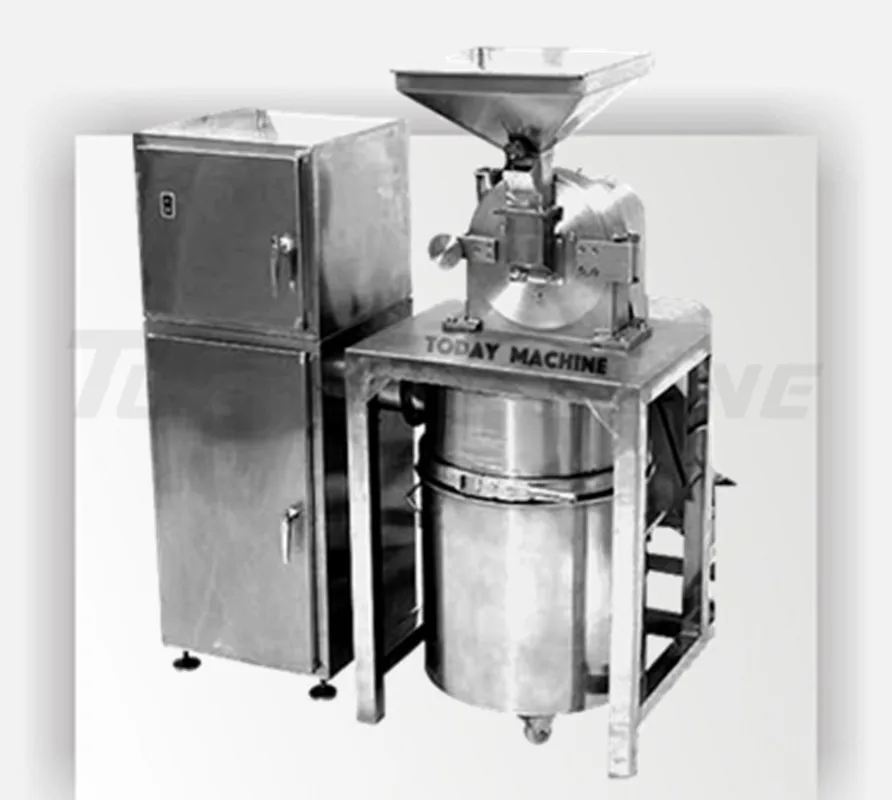

Dry grinder with dust collection function
Adopts the high-speed spinning blade of wind wheel and stationary knife. It has advantages of low noise, light vibration and no
dust flying in the course of production.
Made entirely of stainless steel.
It is a new generation of pulverizer with long working life and reliable quality.
Stainless steel grade
Frequency control
Inlet feeder with Magnetic suction, to Detect and retain metal subjects
Dust collection container system
dust flying in the course of production.
Made entirely of stainless steel.
It is a new generation of pulverizer with long working life and reliable quality.
Stainless steel grade
Frequency control
Inlet feeder with Magnetic suction, to Detect and retain metal subjects
Dust collection container system
Model | Capacity(kg/h) | Speed(r/min) | Voltage | Power(Kw) | Grinding density(mesh) | Dimension(mm) | Weight(kg) |
FG-D18B | 40-100 | 4500 | 220V | 3+1.5 | 60-150 | 1000×950×1550 | 200 |
FG-D20B | 60-200 | 4500 | 380V | 4+1.5 | 60-150 | 1100×1000×1650 | 280 |
FG-D30B | 100-300 | 3800 | 380V | 5.5+1.5 | 60-120 | 1200×1050×1650 | 350 |
FG-D40B | 300-800 | 3400 | 380V | 11+1.5 | 60-120 | 1350×1100×1700 | 500 |
FG-D60B | 500-1500 | 2800 | 380V | 15+2.2 | 60-120 | 1550×1200×1750 | 600 |
Swing Granulator
Working Principle
Mechanical transmission, the drum/roller swings back and forth, and the material is processed into granules or squeezed into the screen.
The swinging granulator is driven by a mechanically driven drum to swing back and forth to extrude the material from the screen, granulate or pulverize for granulation or fast shaping. All stainless steel appearance, in line with GMP standards for dry granulation materials in pharmaceutical, chemical, food, feed, ceramics, metallurgy and other industries.
Mechanical transmission, the drum/roller swings back and forth, and the material is processed into granules or squeezed into the screen.
The swinging granulator is driven by a mechanically driven drum to swing back and forth to extrude the material from the screen, granulate or pulverize for granulation or fast shaping. All stainless steel appearance, in line with GMP standards for dry granulation materials in pharmaceutical, chemical, food, feed, ceramics, metallurgy and other industries.
Model | YK-60 | YK-90 | YK-160 | YK-250 | YK-320 |
Roller Diameter(mm) | 60 | 90 | 160 | 250 | 320 |
Working Capcity(kg/Hour) | 20-30 | 30-100 | 100-300 | 200-400 | 300-600 |
Swing Time | 46/min | 46/min | 46/min | 46/min | 46/min |
Motor power(kw) | 0.55 | 1.1 | 2.2 | 5.5 | 7.5 |
Weight(kg) | 70 | 150 | 300 | 400 | 500 |
Size(mm) (L x W x h) | 400x560x600 | 500x760x840 | 970x760x1240 | 1270x750x1250 | 1500x1200x1500 |
