Product Description
Product Application

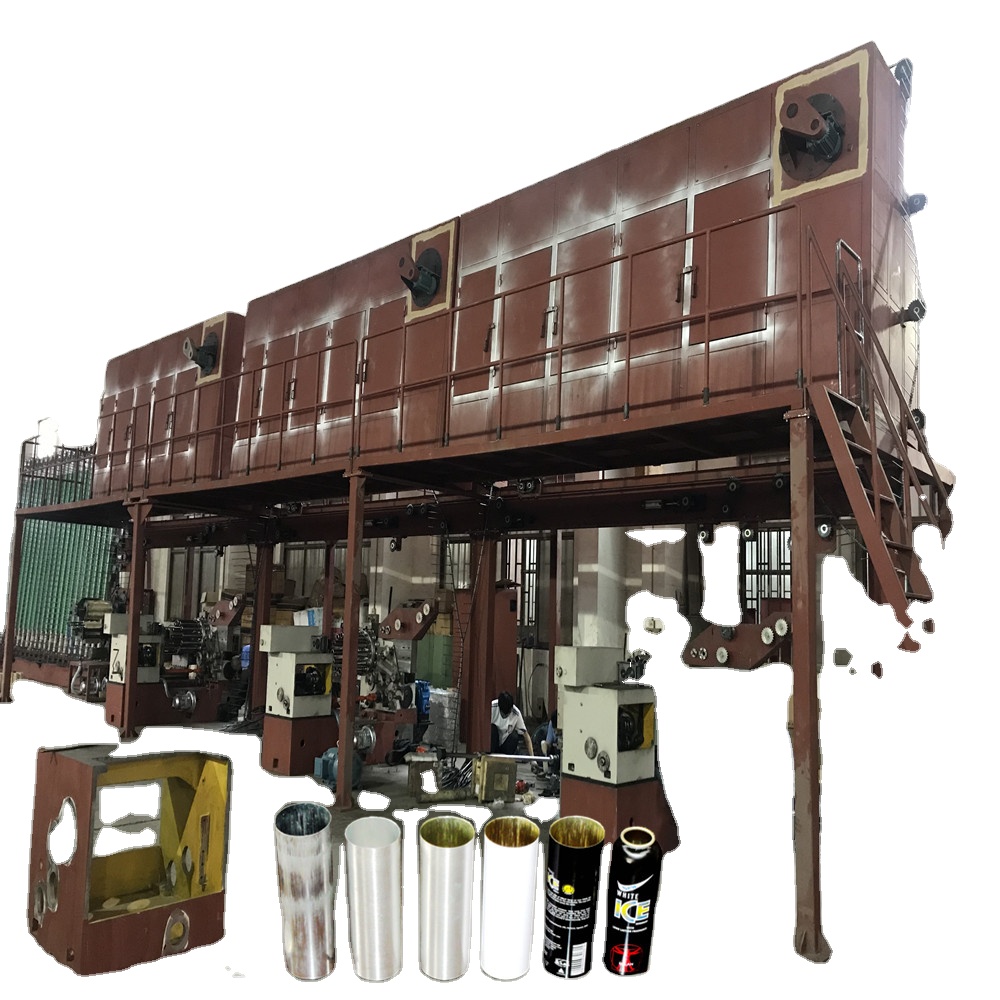

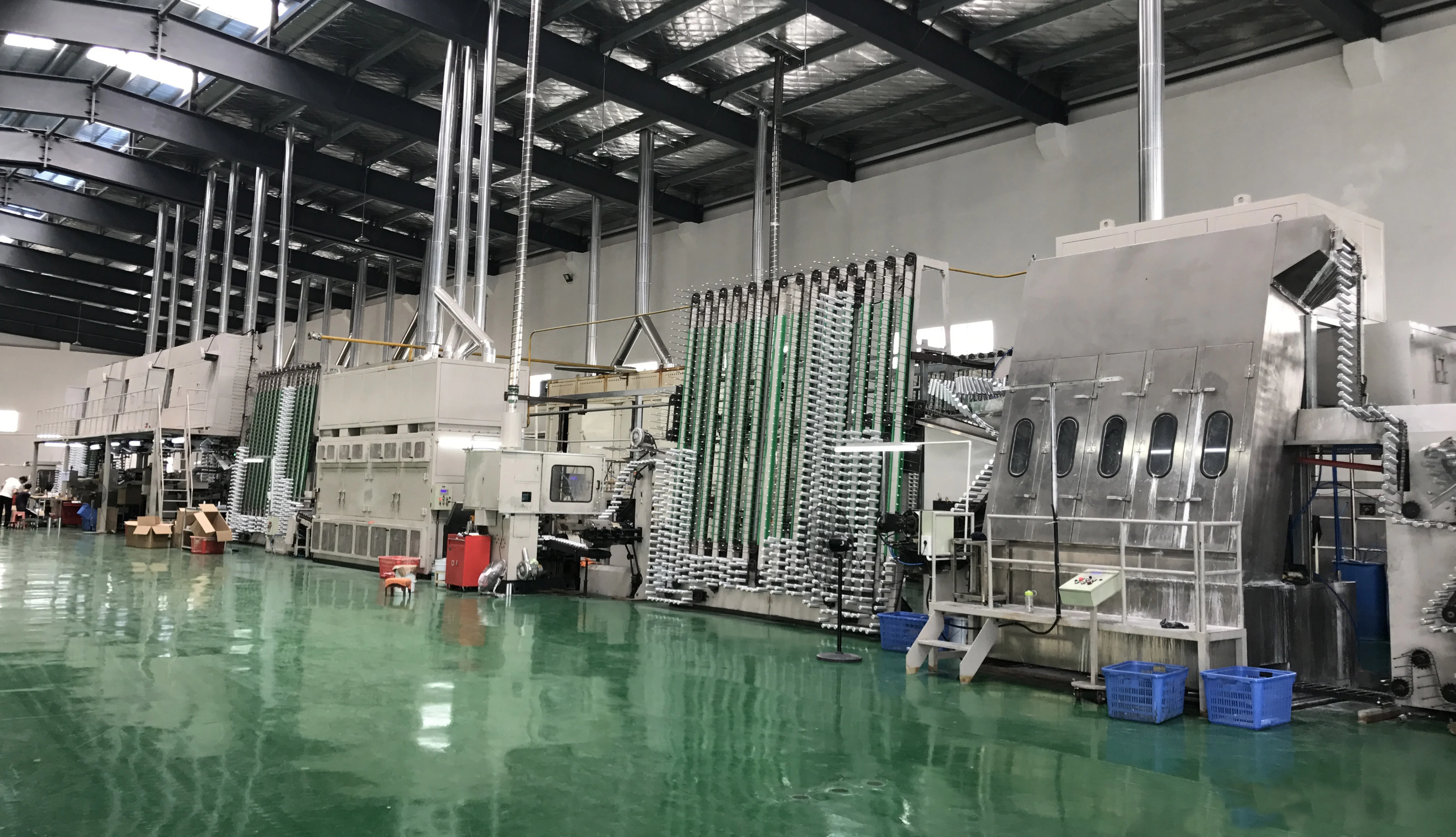

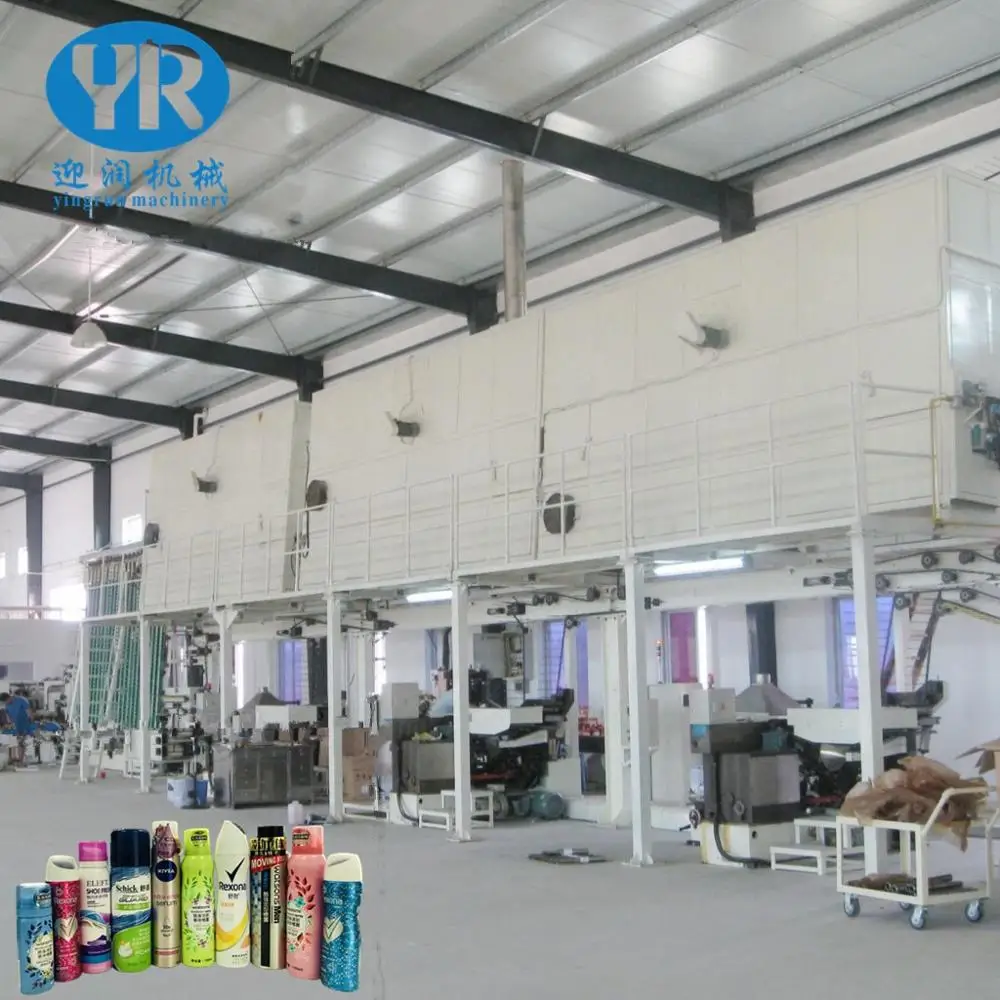

Aluminum can line are a set of machines to produce mono block aerosol cans and bottles.

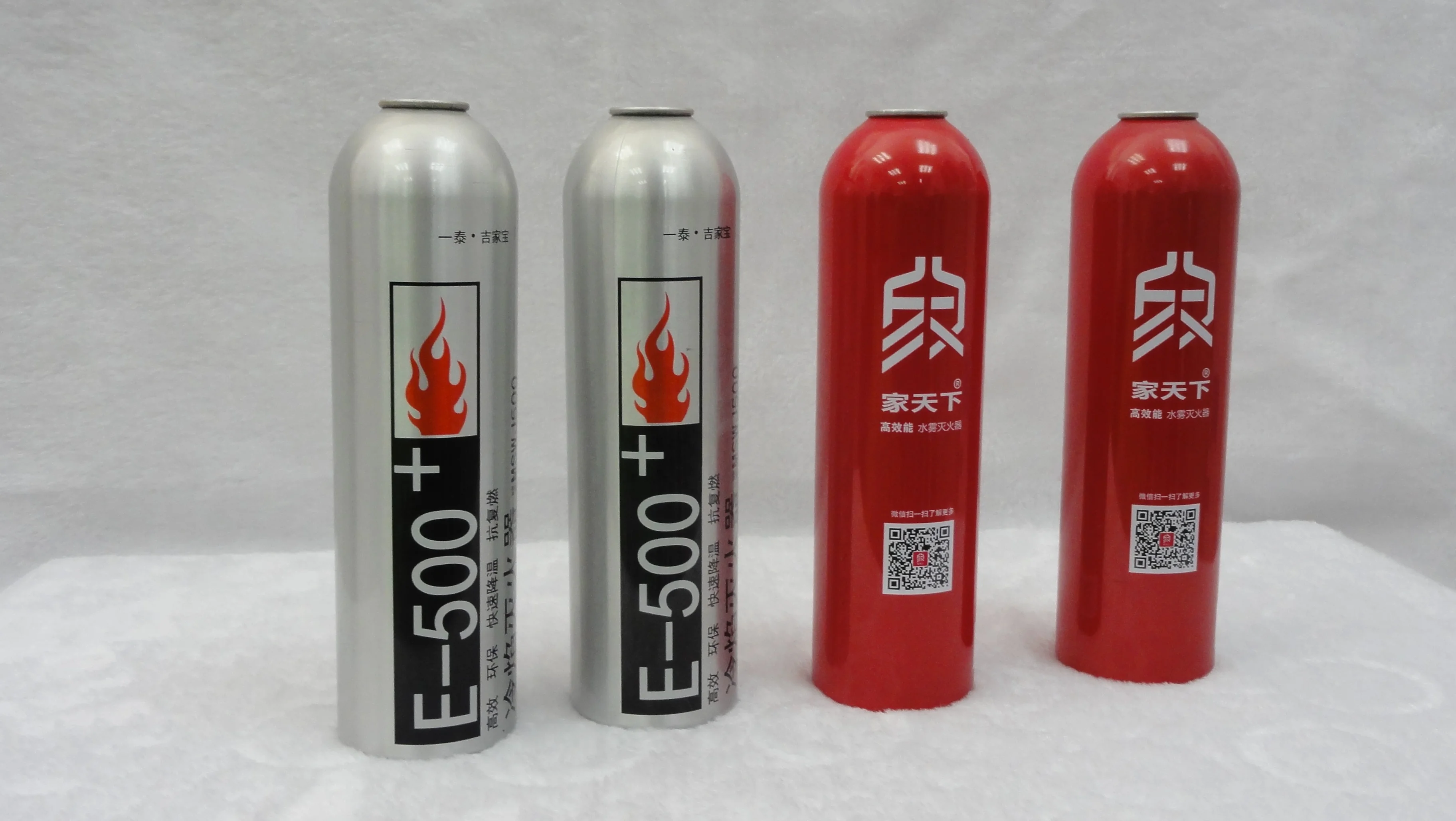

Mono block cans and bottles are used for perfume, deodorant, hair sprays, shaving creams, pesticide bottles, aluminum tubes, hair sprays, conditioners, medicines, fire extinguishers, oil and paints.

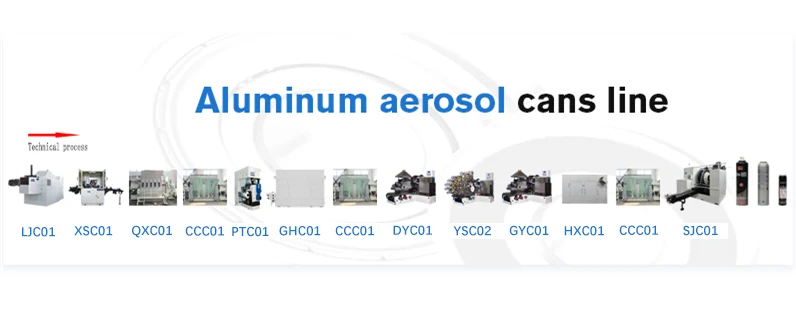

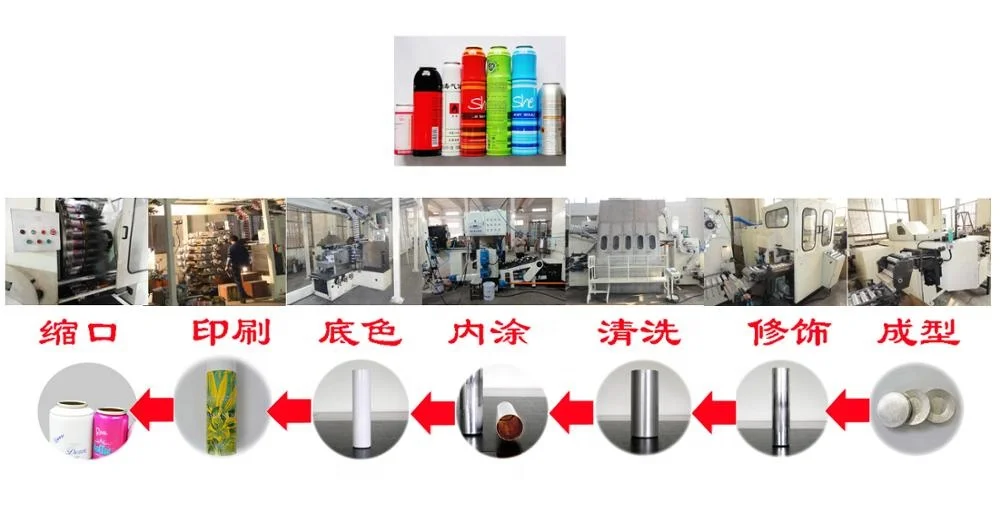

The aluminum can lines produced by us are fully automatic. Each equipment of this series can work alone or form partial production lines according to client's needs. The main machines include Extrusion press, Trimmer cum brushing, can washer or degreasing Spray washing machine,Accumulator, Internal lacquering machine, Lacquer curing oven, Base-coating machine, 6-color or 8-color printing machine, Drying oven, Necking machine, etc.
\tAll the equipment of the series are properly aligned in structure, having advance design, highly automated for fast production. All machines are controlled with SIEMENS PLC to ensure stability. To save energy consumption, all lacquer curing machine and drying oven adopt gas heating. Main units and controlling components all adopt branded products to ensure reliable and stable performance. All the products can be passed automatically through the production line. The color touch screen can display the instant information of speed and production, making it convenient for management.
SPECIFICATIONS FOR AlUMINUM AEROSOL CAN PRODUCTION LINE | ||||||
Production speed | ≤120pieces/min | |||||
Diameter | φ22㎜- φ35㎜,φ35㎜-φ53㎜ or φ45㎜- φ66㎜ | |||||
Motor power | 230KW | |||||
Dimensions | 69000×4500×6300(㎜) | |||||
Intake pressure | 0.55 MPA | |||||
Gas consumption | 500M^3/24h | |||||
Main Configuration List
1) PLC: SIEMENS
2) Touch screen: Pro-face
3) Pneumatic element:FESTO
4) Terminal display:SIEMENS
5) Bearing:NSK or NTN
6) Approach switch:BANNER
7) Photo switch:TURCK
8) Divider:TANTZU
9) Electrical component:SCHNEIDER or OMRON

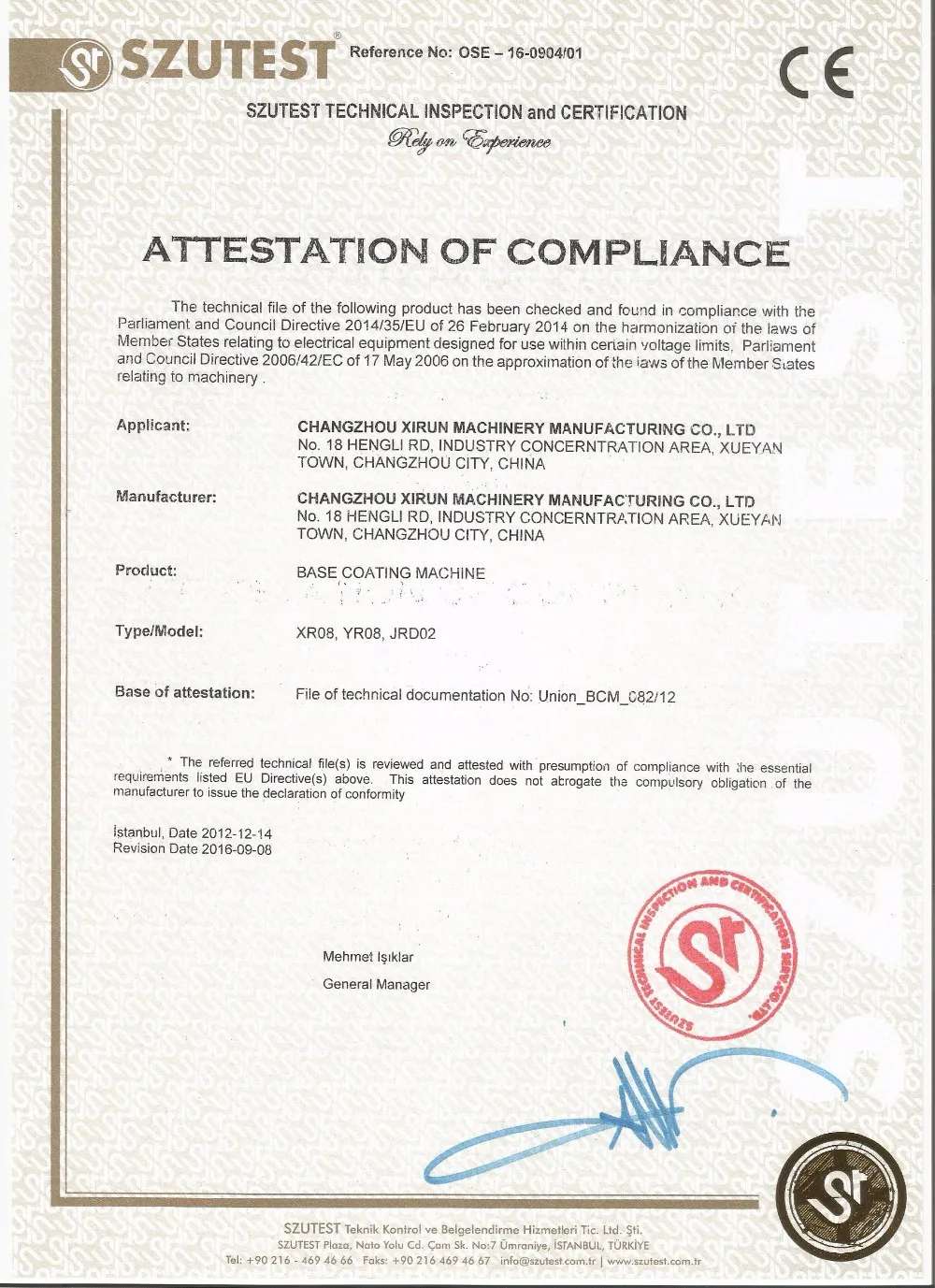

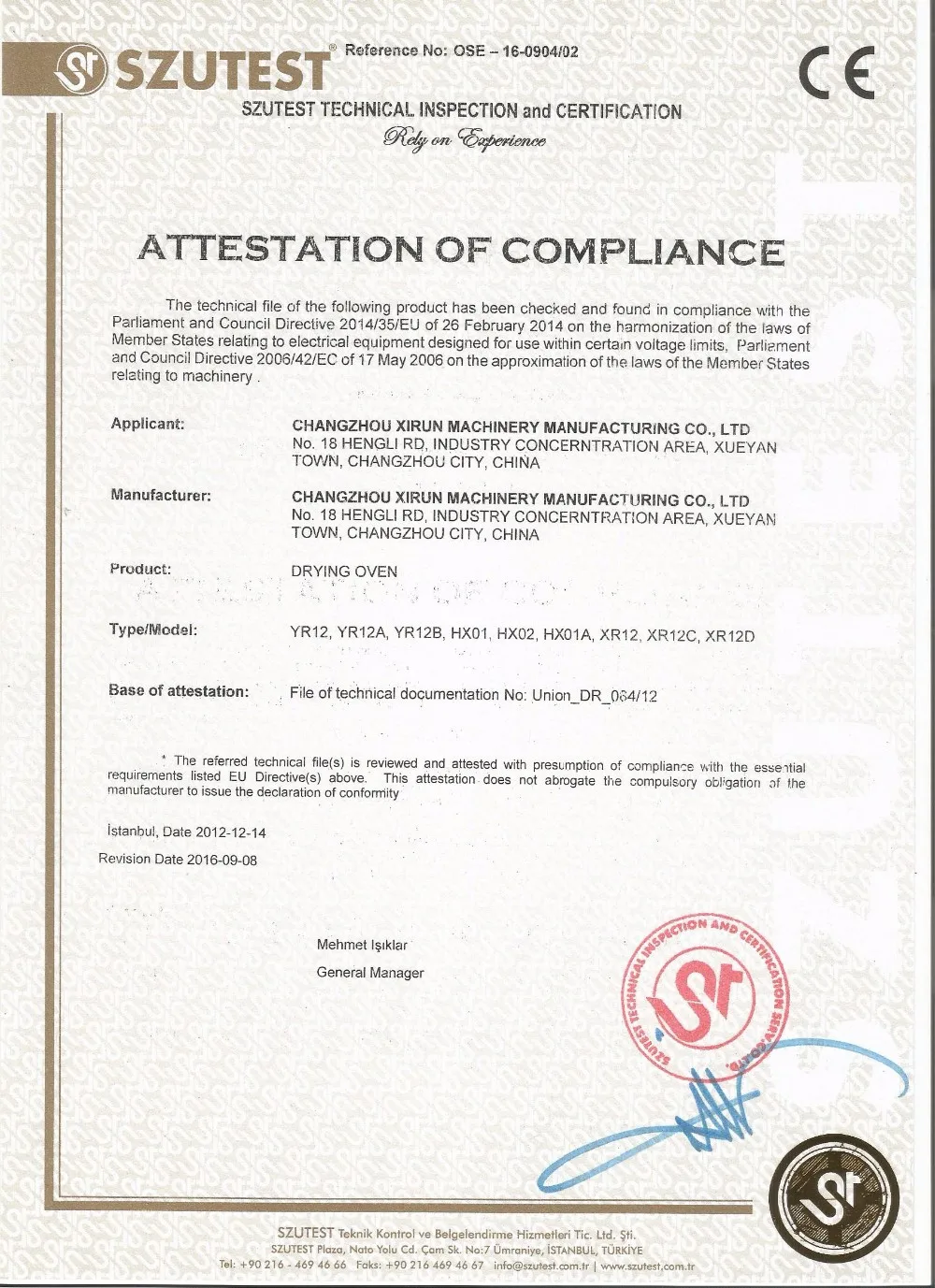

Certifications
Detailed Images
Main machine

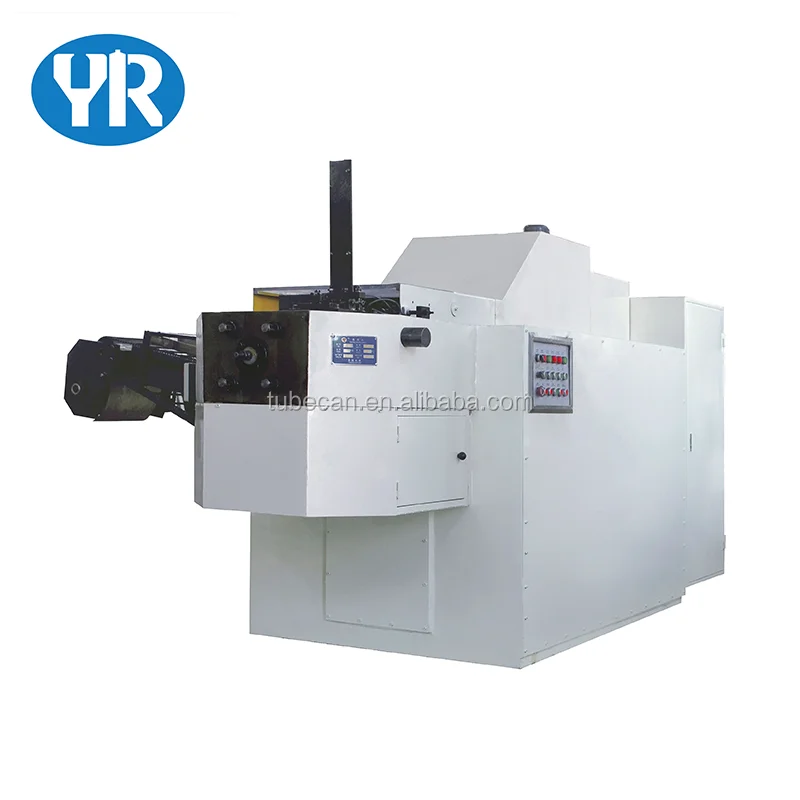

Name: Extrusion press machine
Main technical parameters
A.\tCan diameter range: φ35mm-φ59mm
B.\tCan length range: 80-250mm
C.\tProduction speed: ≤120cans/min
D.\tMain motor power: 37KW, Total power:37.28KW
E.\tIntake pressure: ≥0.4Mpa
F.\tSlide stroke:350mm
G.\tNet weight: 11000 KG
H.\tDimensions: 3195*1558*1585mm(conveyer belt and vibration hopper not included)
Main machine

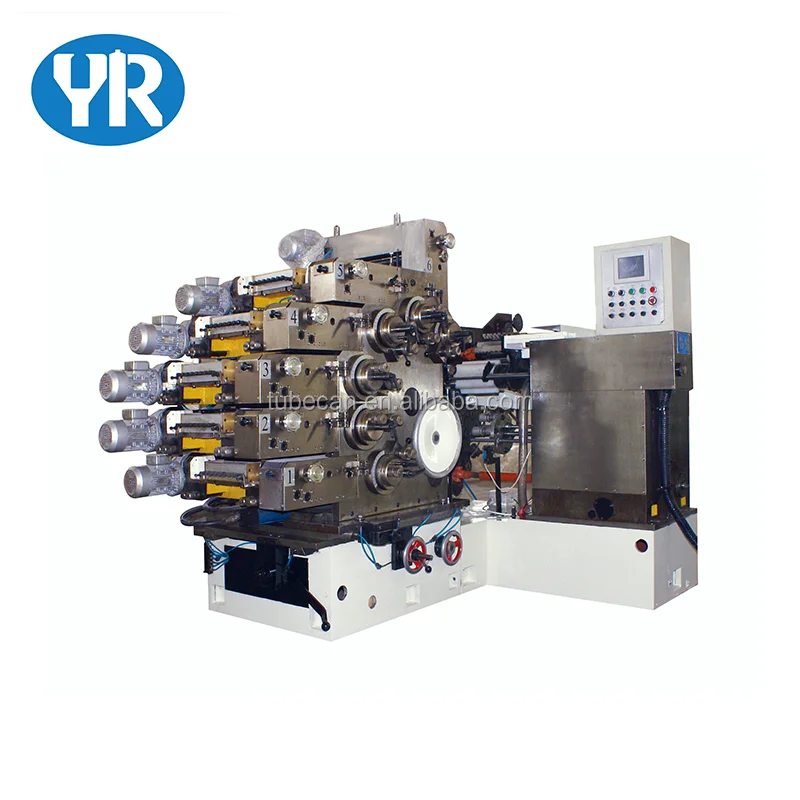

Name: 6-color Printing Machine
Main technical parameters
A.\tCan diameter range: φ35mm-φ66mm
B.\tCan length range: ≤230mm
C.\tProduction speed: ≤120cans/min
D.\tMotor power: 19.17KW
E.\tDimensions: 3340×2330×2100mm
F.\tNet weight: 7600KG
G.\tIntake pressure: 0.6Mpa
Main machine
Name: Trimming cum brushing machine
Main technical parameters
A.\tCan diameter range: φ35mm-φ53mm
B.\tCan length range: ≤250mm
C.\tProduction speed: ≤120cans/min
D.\tMain motor power: 4KW, total power:12.85KW
E.\tIntake pressure: P=0.6MPa
F.\tDimensions: 2940*2600*1820mm
G.\tWeight: about 2800KG
Main Features
Name: Base-coaitng machine
Main technical parameters
A.\tTube diameter range: φ35-φ53mm
B.\tTube length range: ≤250mm
C.\tProduction speed: ≤120cans/min
D.\tMotor power: 5.15KW
E.\tDimensions: 2750*2330*1760mm
F.\tNet weight: 4500KG
G.\tIntake pressure:≥0.5Mpa
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 69 (L) * 4.5 (W) * 6.3 (D)m | |
Weight | 90T | |
Packaging Details | Vacuum treatment, wooden-case package | |
