Product Description
Main Feature
1) The machine is equipped with 2 heating systems, which are controlled separately, and alarm when the butyl rubber content is low.
2) 4 variable frequency adjustable processing speed, maximum speed: 28m / min. With independent parameter memory, the corresponding parameters are automatically changed after adjusting the speed, no need to adjust again
3) Nozzle width can be adjusted using hydraulic cylinder system, reliable performance
4) Semi-circular surface with butyl characteristics, not used for bending
5) The nozzle can be automatically adjusted to the thickness of the spacer (4-20mm) and manually adjusted from 20mm to 24mm.
6) Production timing function, workers can be set according to actual conditions.
Options:
1) Working height adjustment system (the height parameter is negotiated in advance, from the conveyor belt to the maximum height of 15mm, the adjustment range is 3-15mm from the basic position to the highest position of the nozzle movement, including two modes: one is 3-8mm; One mode is 8-15mm, and the default mode setting before leaving the factory is 8-15mm mode).
2) Added curve spacer for curved
Technique parameter:
Machine size | 3000mm(L)x600mm(W)x950mm(H) |
Spacer width | 6mm-25mm |
Minimum size | 250mmx250mm |
Maximum size | 2500mmx2500mm |
Speed | 0-25m/min |
Butyl volume | 14L |
Power supply | AC380V 3ph 50HZ |
Total power | 3.75kw |
Main components
No. | Name | Brand |
1 | Low-voltage electrical component | SCHNEIDER |
2 | PLC | OMRON |
3 | Touch screen | OMRON |
4 | Transducer | OMRON |
5 | Temperature controller | OMRON |
6 | Approach switch | AUTONIC |
7 | Photoelectric switch | AUTONICS |

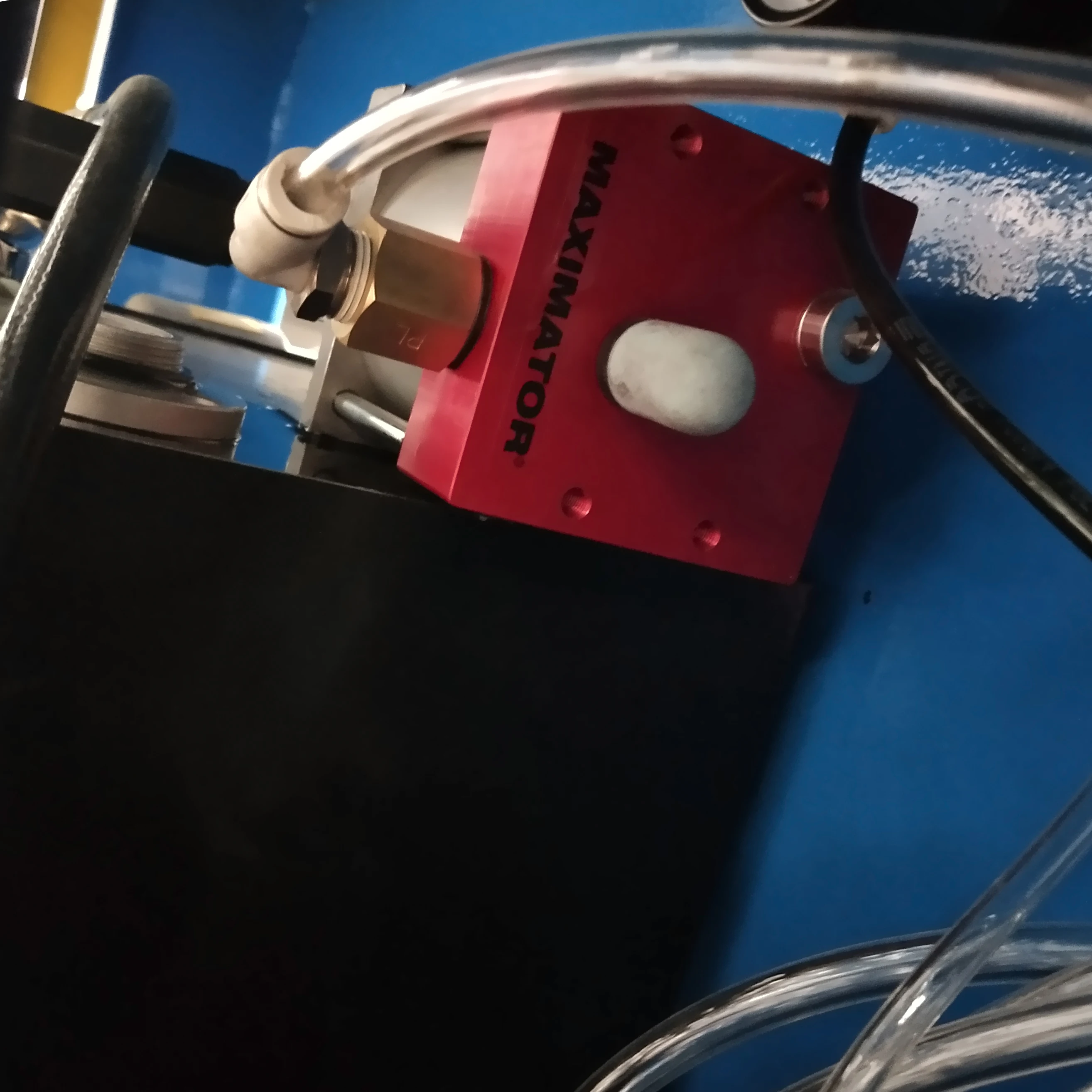

8 | Pneumatic pump | MAXIMOTOR |
9 | Hydraulic solenoid valve | AUTONICS |
10 | Air parts | AIRTAC |
11 | Air-hydraulic pressure cylinder | HUAYING |
12 | Motor | DONGBANG |
Related Products
Company Profile

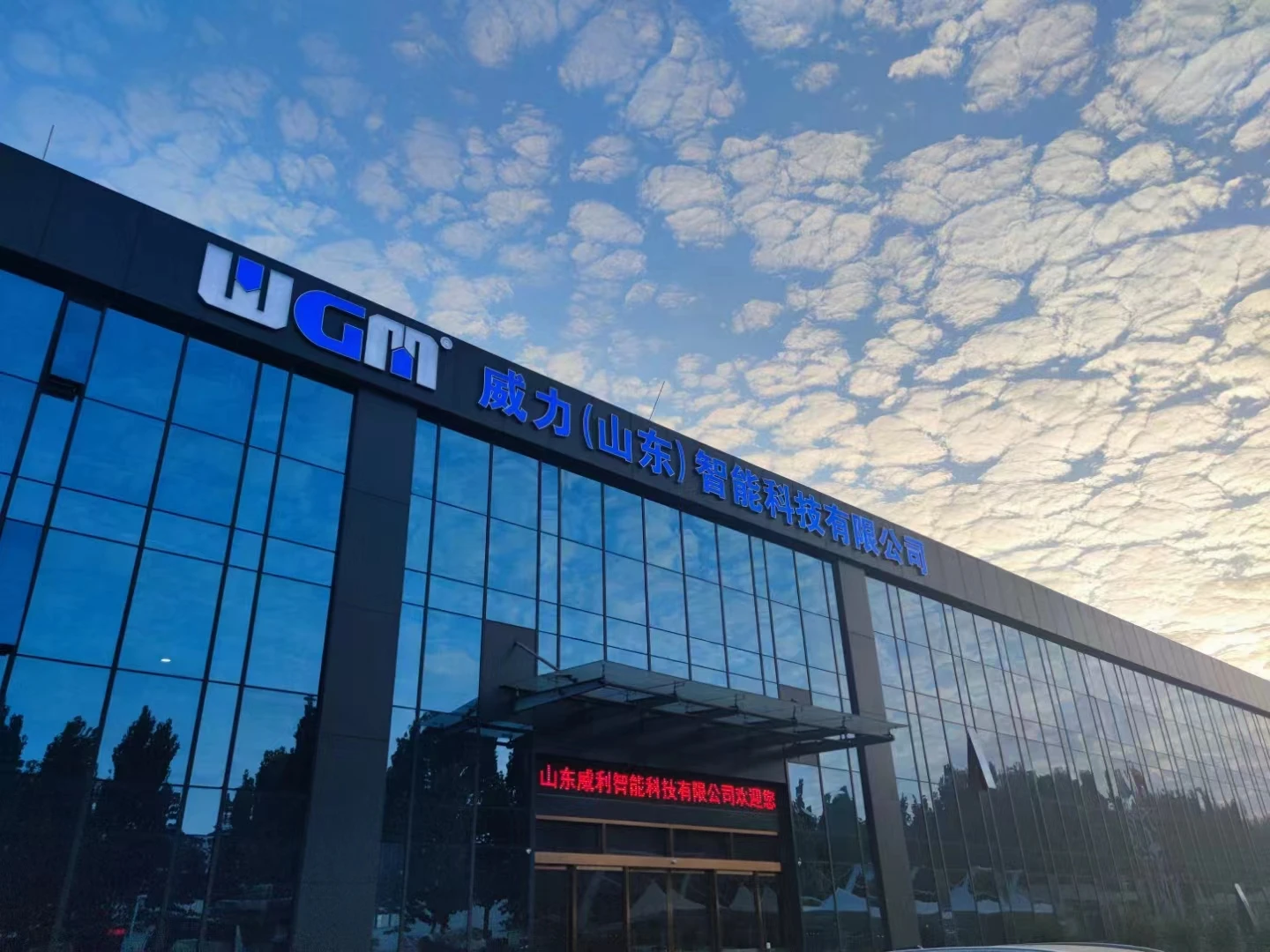

Jinan Weili Machine Co.,Ltd is in the service of construction glass and glass industries. It is mainly specialized in producing door-window of energy conservation insulated glass production line of curtain wall, and glass deep-processing equipment.
Since the company established from 2001, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipment. The products sell well at home and abroad, and some were exported to Europe, Africa, Middle east, Southeast Asia and more than 50 countries and areas.
Since the company established from 2001, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipment. The products sell well at home and abroad, and some were exported to Europe, Africa, Middle east, Southeast Asia and more than 50 countries and areas.
Our Advantages
* Provide factory layout according to your factory size in advance.
* Provide English Version of Installation / Operation/Service/Maintenance Manual.
* Engineers available to service machinery overseas.
* Online support, video technical support
* Field installation commissioning and training.
* Provide English Version of Installation / Operation/Service/Maintenance Manual.
* Engineers available to service machinery overseas.
* Online support, video technical support
* Field maintenance and repair service.
* Field installation commissioning and training.
18 years experience
Jinan Weli Machine is a profession insulating glass machine manufacturer with 18 years experience.
Quality guarantee
We have professional after-sale service team for debugging installation and maintenance.
24-hour service
If you have any questions, please contact us and we will reply in time.
Packing & Delivery
Delivery
1.Machine packing with plastic film and plywood pallet for necessary parts.
2.Packing with wooden box ccording to customers' requirements.
