Product Description

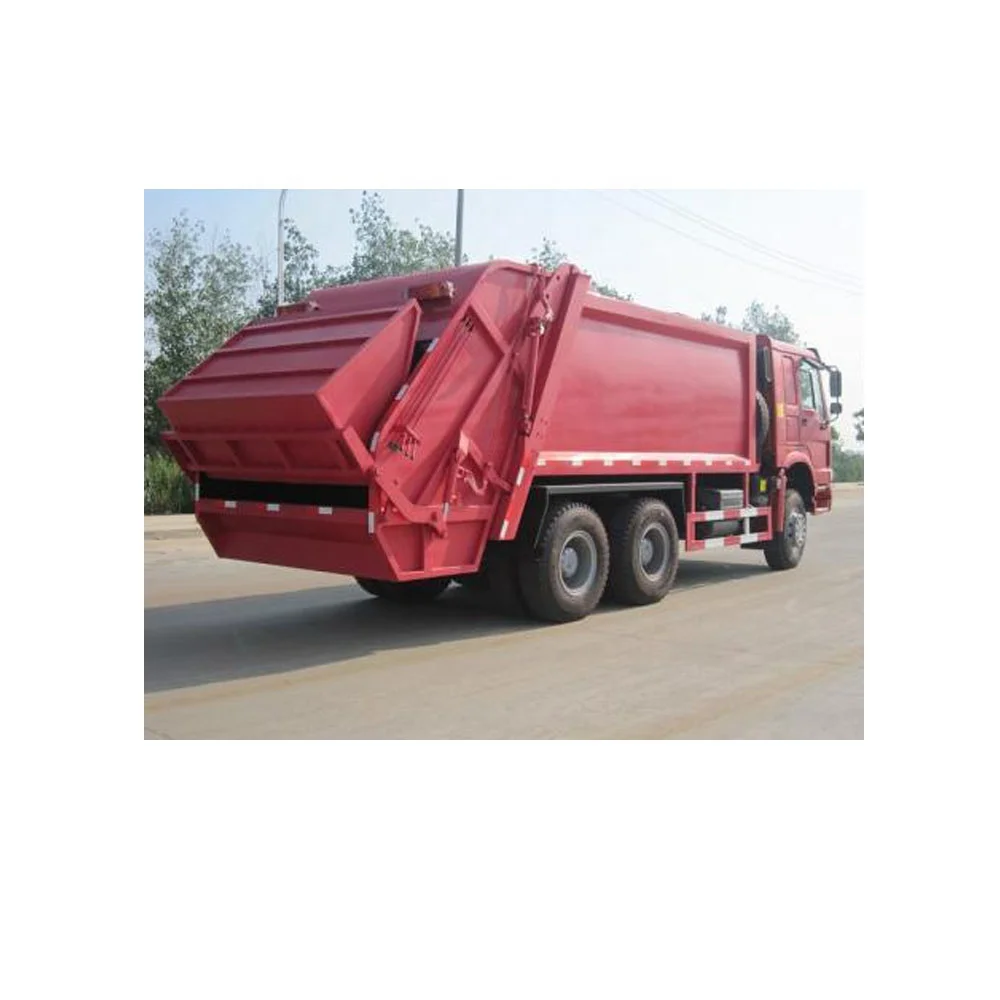

Rear compactor garbage truck

1. Equipped with double pump and double circuit hydraulic system, high efficiency and energy saving; With two-way compression function, the density of ordinary solid waste can reach 700-800kg/m3 after compression;

2. Equipped with two sets of control mode of electric control and manual control, electric control is the main and manual is the auxiliary, high attendance;

3. Equipped with electronic control automatic acceleration and fixed speed system to make the operation efficient and energy saving;

4. The sealing device adopts patent sealing tape technology, which is automatically locked by hydraulic pressure. The compression of the tape is 6-8mm, and the sealing is reliable without sewage leakage. This technology is at the leading level in China.

5. A variety of feeding mechanisms can be selected, such as square barrel manipulator, round barrel manipulator, square and round barrel mixed manipulator multi-functional manipulator, dustpan manipulator, etc., and can increase specific functions according to demand.

6. The filling mechanism has the function of obstacle avoidance when working. In case of large and hard obstacles, the scraper can be overloaded and turned on to avoid collision, so as to avoid damage to the filling mechanism;

7. The volume and loading capacity of compartment and rear hopper have obvious advantages over similar domestic products.

Specification

SPECIFICATION
VEHICLE SPECIFICATION	DESCRIPTION
Truck Model	ZZ1257N4647N1
Type of Vehicle	28M3 compactor truck
Truck Brand	SINOTRUK—HOWO
Driving Position	Left hand Driving
The Total Mass	25,000kg
Dead Weight	13820
Max speed(km/h)(km/h)	101
Color	Optional
Manufacture	China National Heavy Duty Truck Group Co., Ltd.
Chassis & Add Components
Frame Details	parallel ladder with U-profiles and riveted cross members
Dimension(Lx W xH)(unloaded)(mm)	10415x2496x3630
Approaching angle/Departure angle(°)	15/12
Overhang(front/rear) (mm)	1540/2875
Wheel base (mm)	4600+1400
Engine
Model	WD615.47
Brand	SINOTRUK
Power	371HP
Emission	EURO II
Displacement(L)	9.726
Type	water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection
Kind of Fuel	Diesel
Clutch & Gear Box System
Clutch	Single-plate dry clutch, hydraulically operating with air assistance
Gear Box	HW19710 10 forwards and 2 reverse.
Brand	SINOTRUK
Axles
Front Axle Model	HF9 axle. Capacity: 9000kg
Rear Axle	HC16 axle. Capacity:2*16000kg
Electrical System
Battery	2X12V/165Ah
Alternator	28V-1500w
Starter	7.5Kw/24V
Brake System
Service brake	Dual circuit compressed air brake
Parking brake	spring energy, compressed air operating on rear wheels
Auxiliary brake	Engine exhaust brake
Steering system
Brand	Germany Brand
Wheels & Tyres
Type	12.00R20
Material	Steel tire
Quantity	10+1 spare

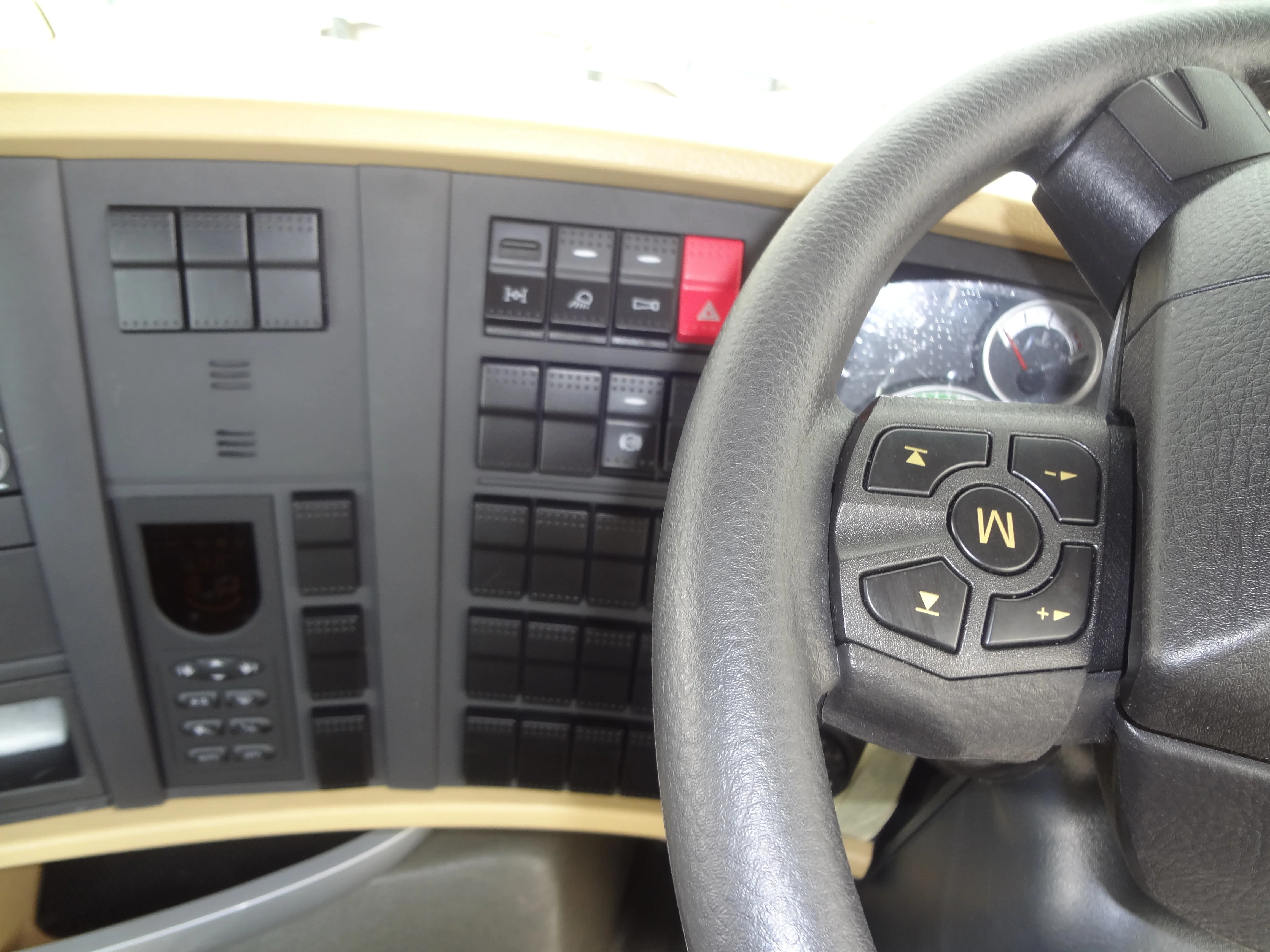

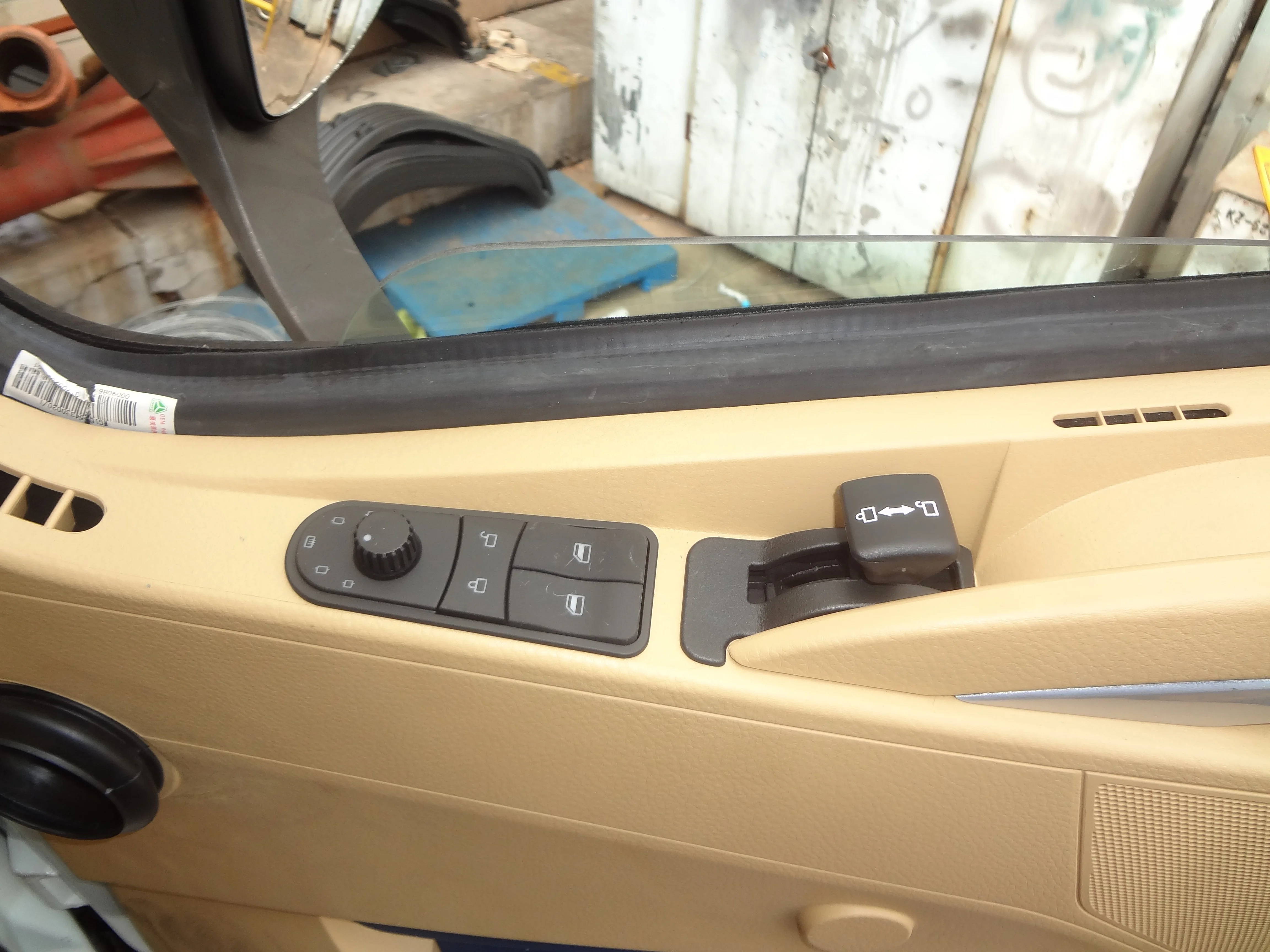

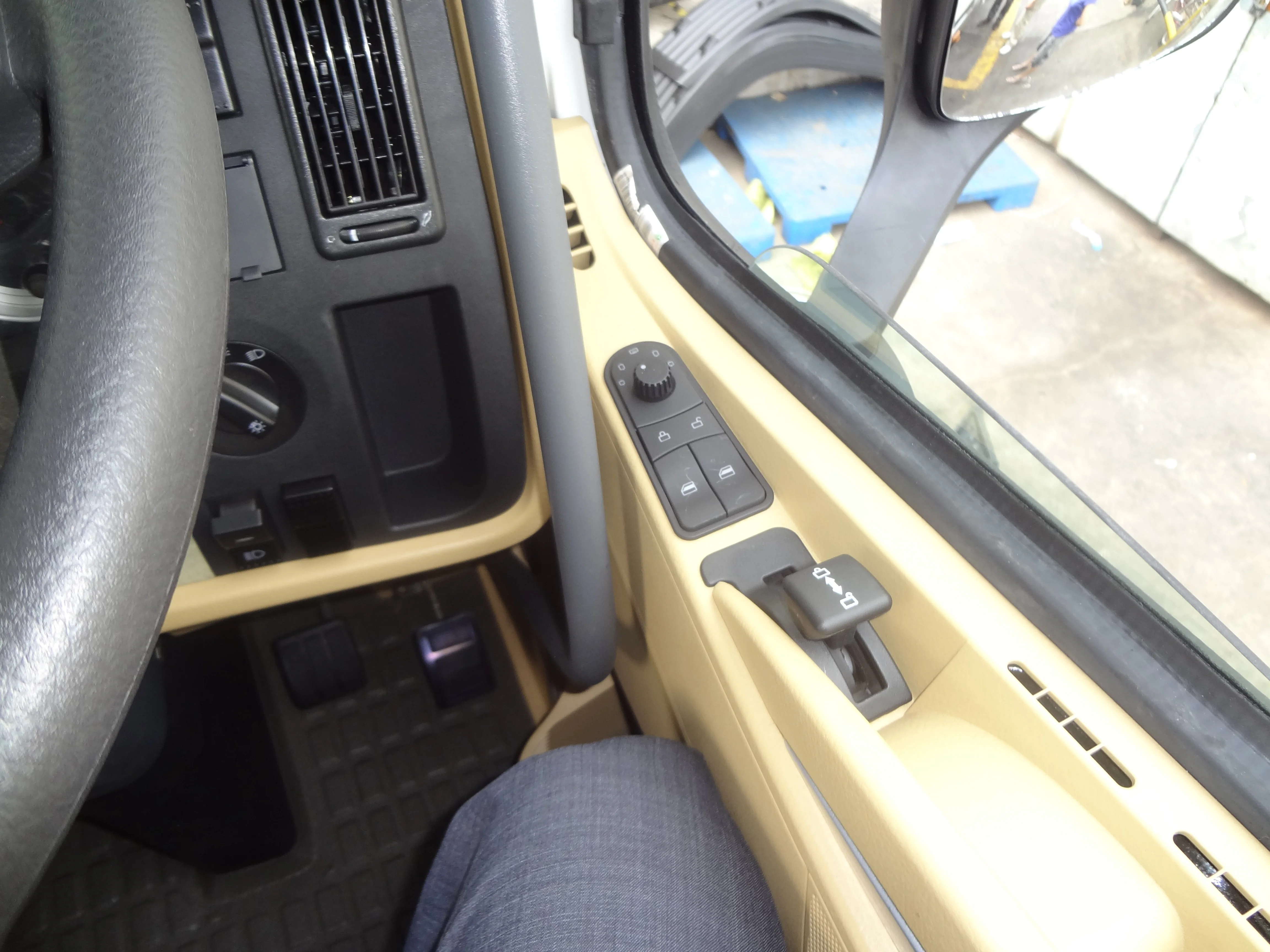

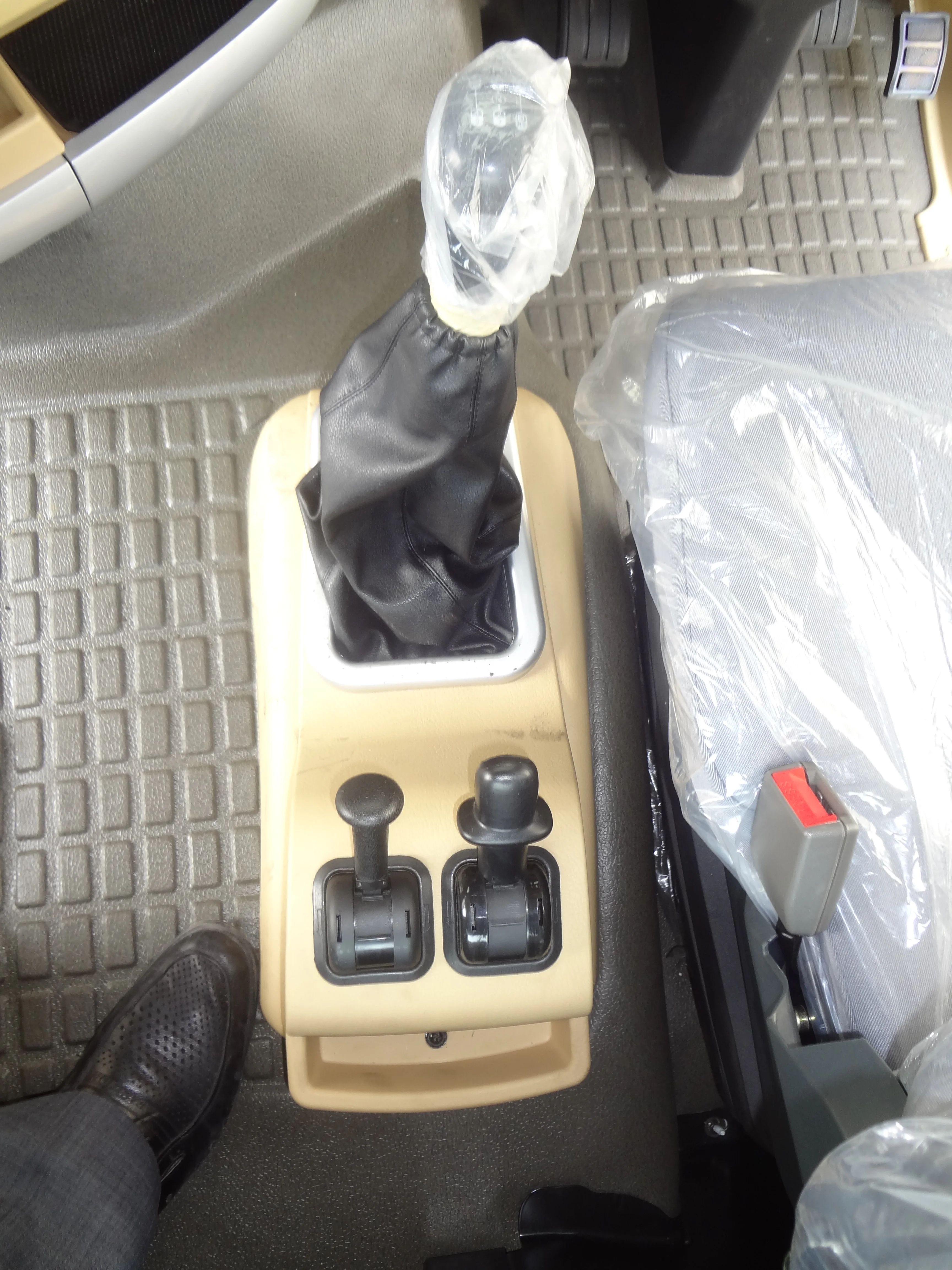

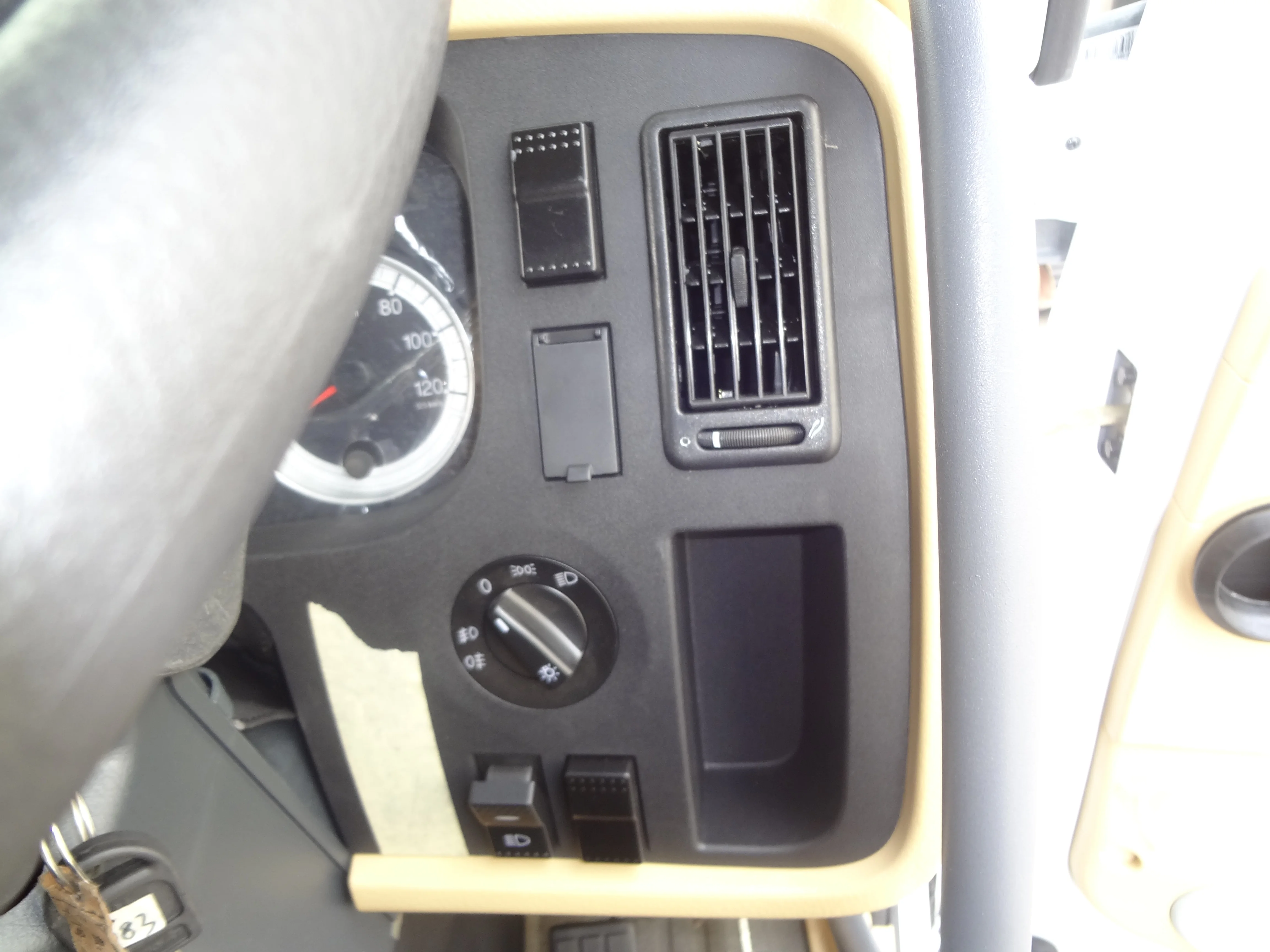

Cabin
Type	HOWO A7-W standard cabin
(single sleeper, with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
Body
Volume of body(m3)	28
Volume of filler(m3)	2.5
Time of one filling cycle(s)	<25
Time of discharge(s)	<45
Pressure of fluid system(Mpa)	20
Hydraulic system control	Manual
Max compression force(kg)	>25000
Lifting time of filler(s)	8-10
The hydraulic oil tank volume	150L
Oil cylinder type	Double acting piston
Operating voltage	24V
Reversing valve	Multiple directional control valve

Packing & Delivery

Packaging Details: All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way. There are three way can be choose, RORO, BULK CARGO VESSEL AND FLAT RACK CONTAINER
Port: Tianjin,Qingdao
Lead time: Shipped in 30 days after payment
