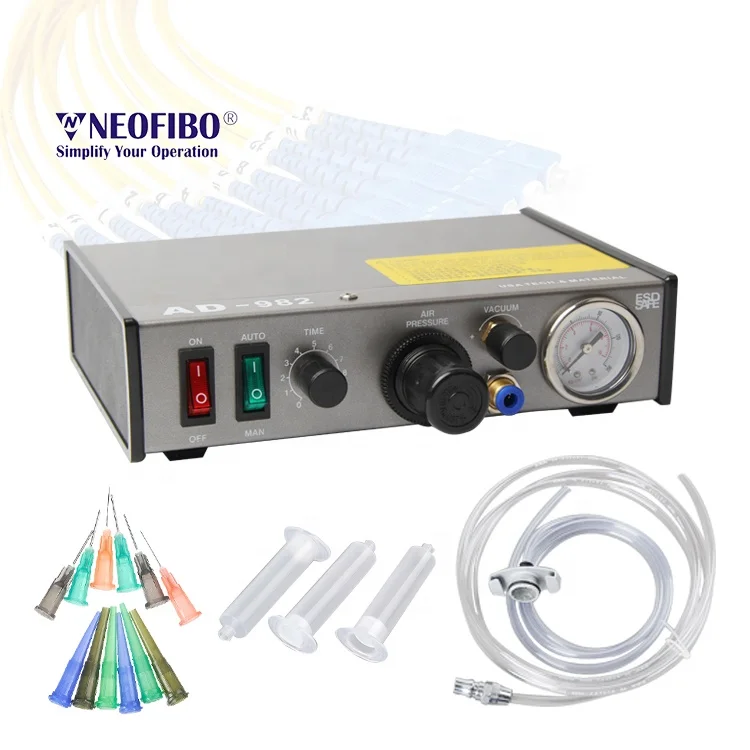

Neofibo EIM-200 Ab Glue Dispenser Fiber Optic Epoxy Injecting Machine for Patch Cord Production Line
3D reality showroom of our factory↓
VR
Neofibo : Your Reliable Supplier
① Can provide you with reliable polishing solution；
② 13-year Manufacturing Experience for OEM/ODM polishing program；
③ Independent research and development patent - Neoholder®；
④ Products have CE, ROHS certification；
⑤ Support online video synchronization inspection machine；
⑥ Equipment test report and operation guide can be provided；
⑦ SGS certified factory, delivery speed and secure,50 units in stock；
⑧ 30 days quality problems can be returned；
⑨ Free polishing film sample.
Products Description
Feature:
1. The EIM-200 semi-automatic glue dispenser uses high-pressure air to push out the liquid within a set time using a foot switch.
2. The manual and semi-automatic states can be adjusted flexibly, and the high-precision digital timing controller can be used to accurately control the time of each titration, accurate to milliseconds.
3. The function is more user-friendly and the operation is simpler.
4. As long as you adjust the air pressure, time and choose the appropriate needle, you can easily change the amount and time of each drip.
5. Simple to use, quick and easy to use, equipped with a vacuum suction function, which can control liquids of different viscosities, prevent dripping, high efficiency, and consistent glue output.
6. It is not easy to be fatigued, has no waste, has a wide range of uses and complete products.
2. The manual and semi-automatic states can be adjusted flexibly, and the high-precision digital timing controller can be used to accurately control the time of each titration, accurate to milliseconds.
3. The function is more user-friendly and the operation is simpler.
4. As long as you adjust the air pressure, time and choose the appropriate needle, you can easily change the amount and time of each drip.
5. Simple to use, quick and easy to use, equipped with a vacuum suction function, which can control liquids of different viscosities, prevent dripping, high efficiency, and consistent glue output.
6. It is not easy to be fatigued, has no waste, has a wide range of uses and complete products.
Caution:
>make sure dry and clean high-pressure air(≤100psi) to be used.
>The proper liquid volume shall remain≤3/4 of the total volume of the barrel.
>Clean the barrel in time after use to avoid glue sticking on the barrel.
>The suck-back air force should be adjusted to Min. During long-intervaluse.
>The noise of extracting air can be heard.This is normal,not a trouble.
Application
Application:
1.Fiber Optic
2.Non-Conductive
2.Non-Conductive
3.Optical Materials
4.Optical-Packaging
4.Optical-Packaging
Specification
Main Parameters:
Time Setting | 0.001 sec to 9.999 sec |
Injecting time | 0.007 sec to 9.999 sec (with air pressure) |
Cycle break | 0.1 sec to 9.9 sec |
Input Pressure | 1bar to 7bar (1 bar =1.01972 kg/cm2 =14.5038 psi) |
Output Pressure | 0.1 bar to 7 bar |
Repeat Accuracy | 0.00005 sec |
Minimum Droplet | 0.005 ml |
Frequency | No fewer than 600 times per minute |
Input Voltage | 110VAC+/-11VAC 50Hz ; 220VAC+/-22VAC 50Hz |
Power Consumption | Less than 15 Watt |
Size | 70 mm x 210 mm x 256 mm |
Net Weight | Less than 4 kgs |
Standard configuration：

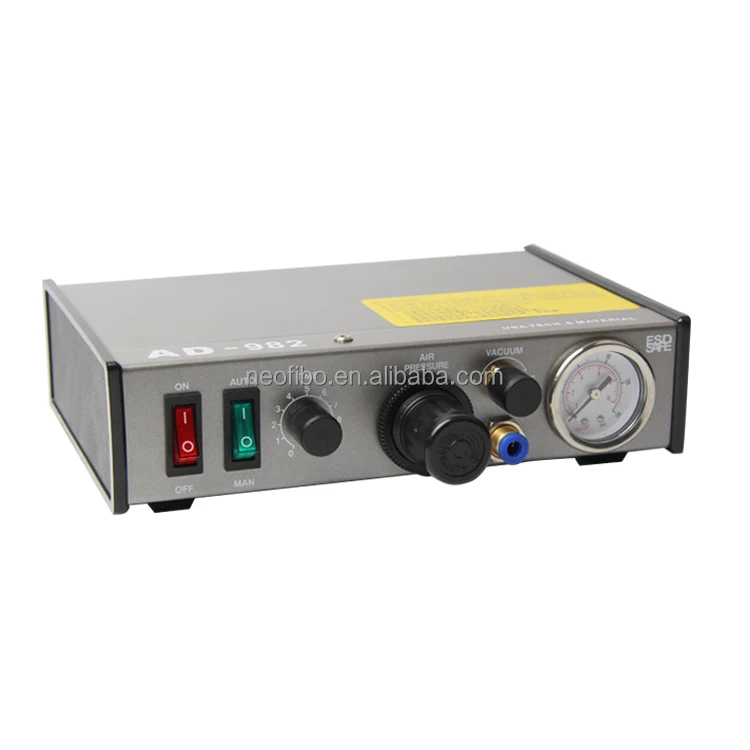

1. One host of dispenser
2. A foot switch
3. One power cord

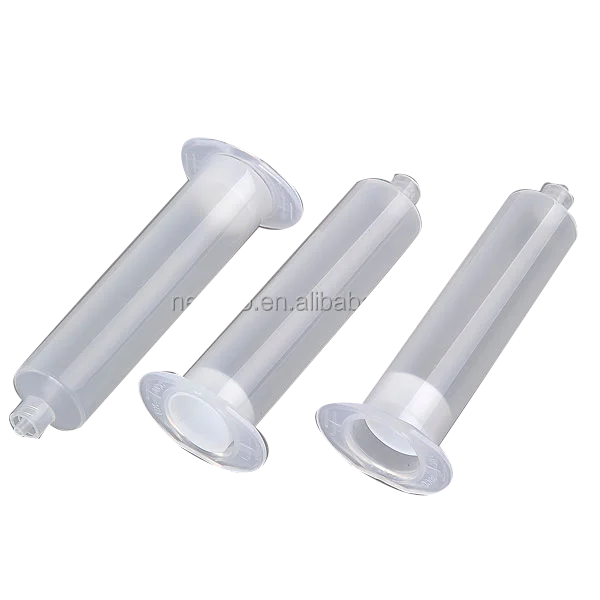

4. 3 30CC syringes, 1 30CC connector

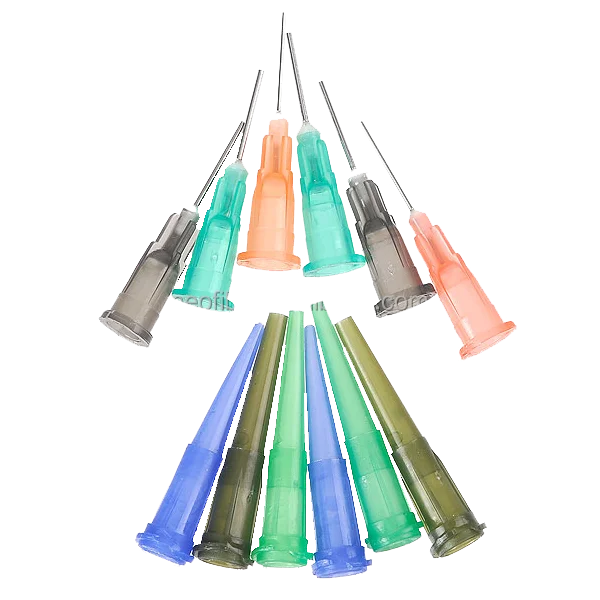

5. 8 needles and 1 bracket
2. A foot switch
3. One power cord
4. 3 30CC syringes, 1 30CC connector
5. 8 needles and 1 bracket
