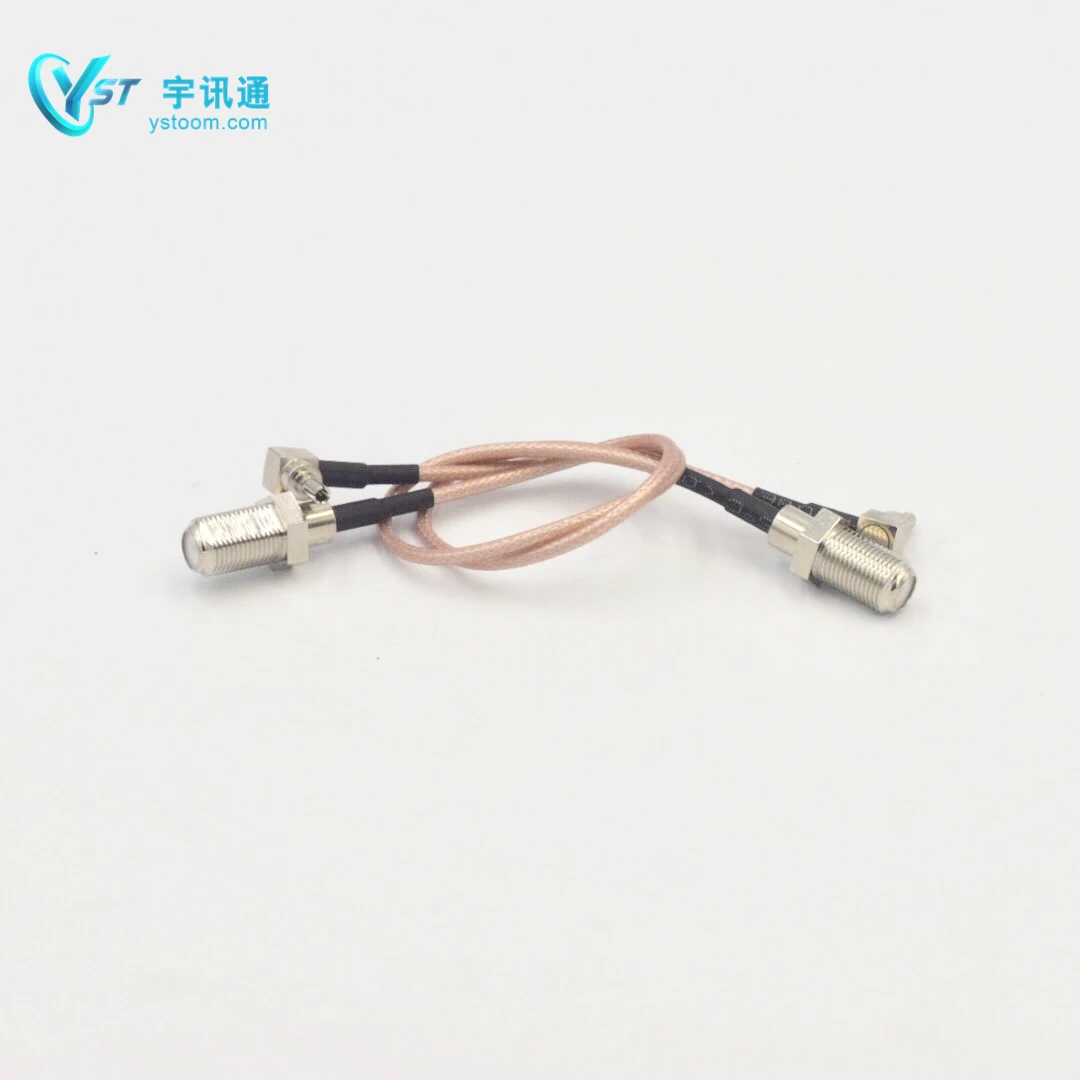

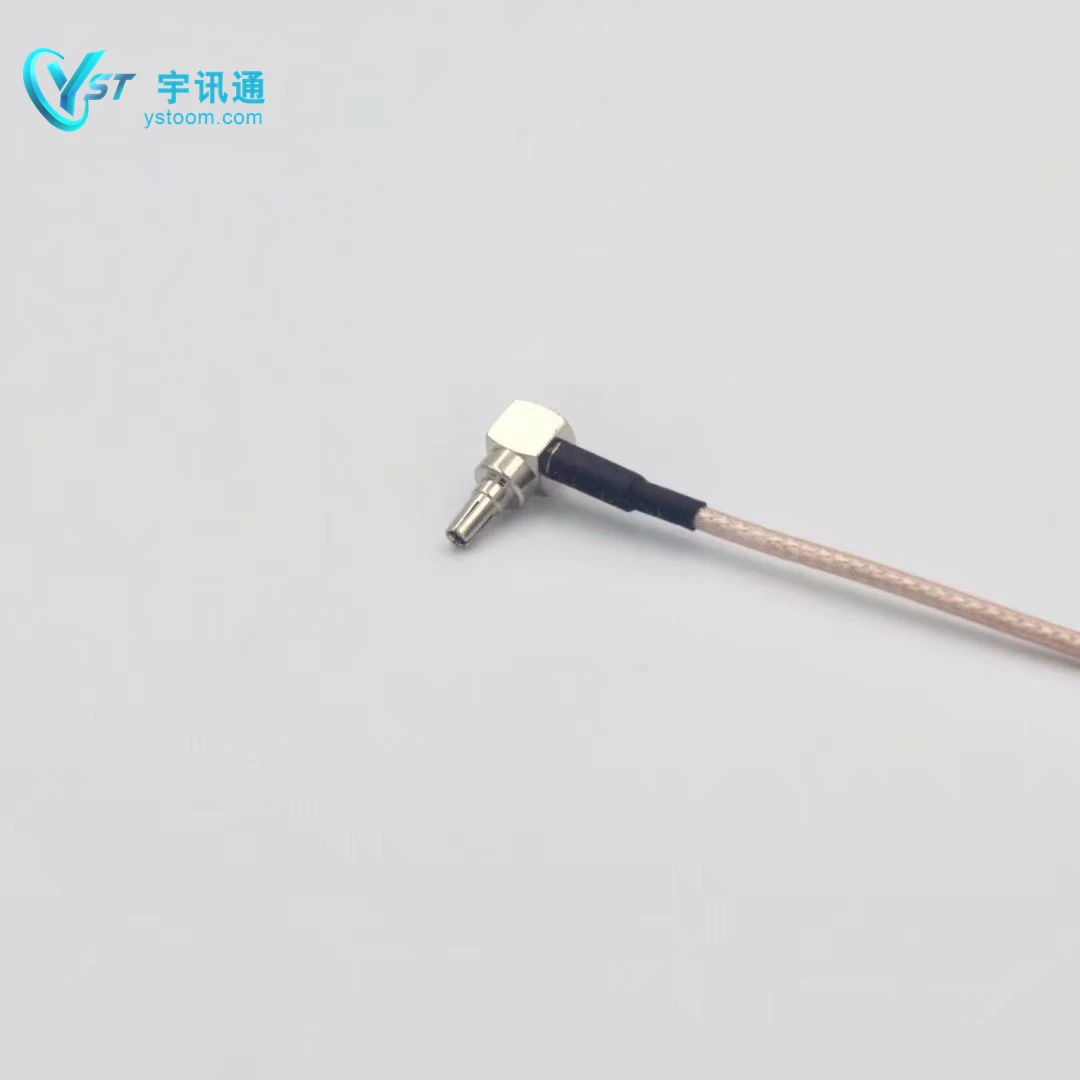

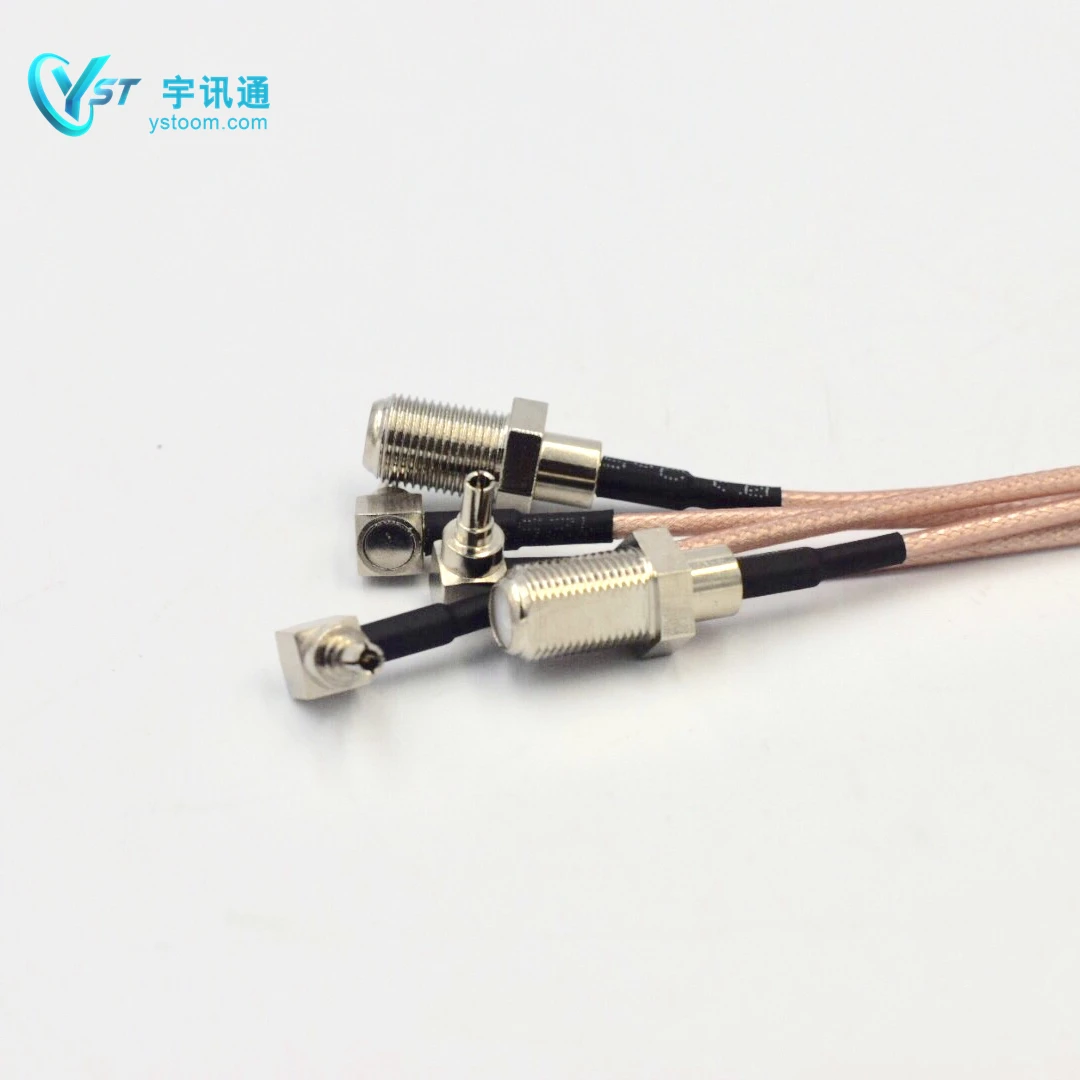

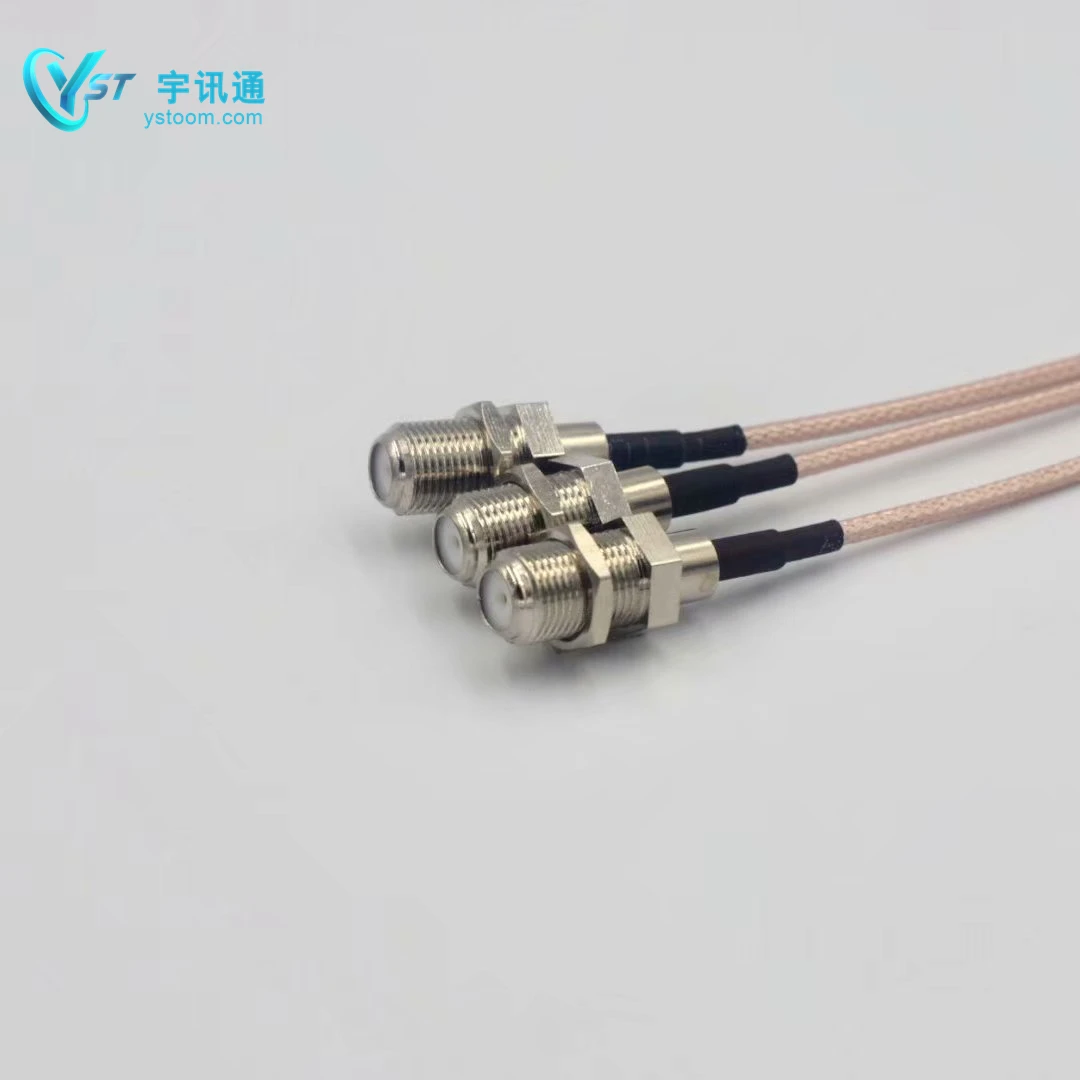

YC-Crc9/Ff25CM-01 is an extend cable include both CRC9 male connector & F female connector. We use RG316 low loss copper cable and the standard cable length is 25cm.According to varieties of application, Micro-coaxial connector MHF connects to different cables, such as RG174, RG178,RG316,1.13,1.32,RG58 cables,etc. It is widely used in wireless routers,wireless network devices,laptops,tablet PC,and GPS signal lines of Smartphone .
High frequency coaxial cable with FEP(black) | 316 cable | ||
Cable type | RG316 | Cable color | Black |
SMA connector type | Crc9 to F female | connector type | crc9 |
Frequency range | DC-6GHz | Impedance | 50ohm |
VSWR | ≤1.5 | Voltage | 500V |
Cable loss | ≤2.2db/m 1GHz | Insulation resistance | 500M ohm |
SMA connector pull test | 3KG | IPEX connector pull test | 1KG |
SMA connector material | CU,Gold Plated | IPEX connector material | CU,Gold plated |
Insulation | PTFE | Operating temperature | -40~+65 |
Storage temperature | -40~+65 | Marking printing | No |
Standard Tips :
1* Cable
1* Plastic bag
Ystoom provides RF cable assembly solutions from conventional standard to customized binding assembly projects.
Our RF connectors are adequate for standard RG braiding cable,1.13 LMR low loss cable,miniature coaxial cable,semirigid cable,semi-flexible cable,corrugated steel cable, and customized cable.Due to the materials,we can offer copper. aluminum copper,steel copper etc. Above all,we provide excellent solutions for customers.
Cable installtion
Make the cable through the connecting rod.
install the one side connector to the equipment.
install the other side connector to the antenna
Use extend cable to test antenna receiving signal,adjust the antenna azimuth to receive maximum signal.

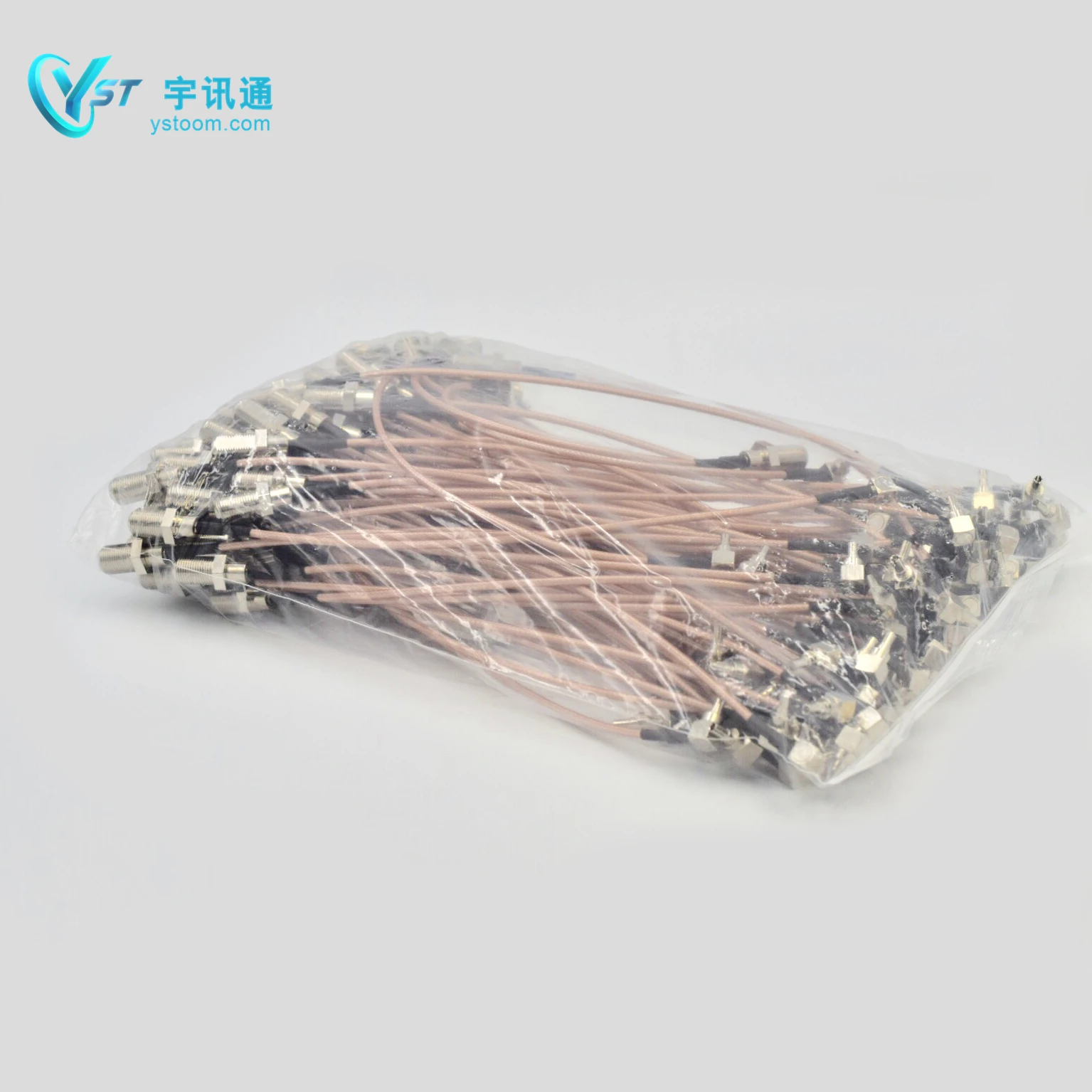

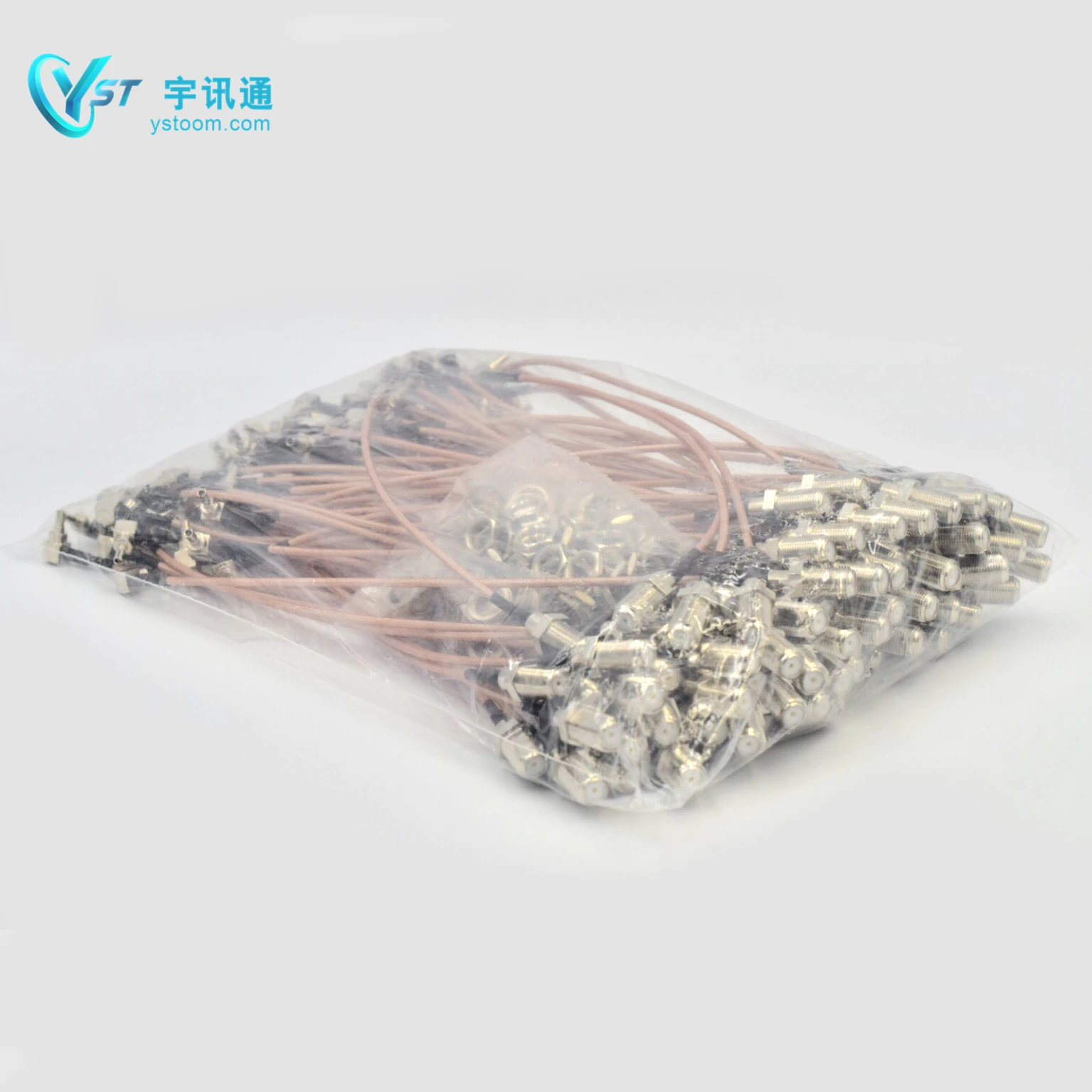

Package: Standard export cartons.
Package size :25*25*25CM
Quantity : 600pcs
Carton Weight : 16KG

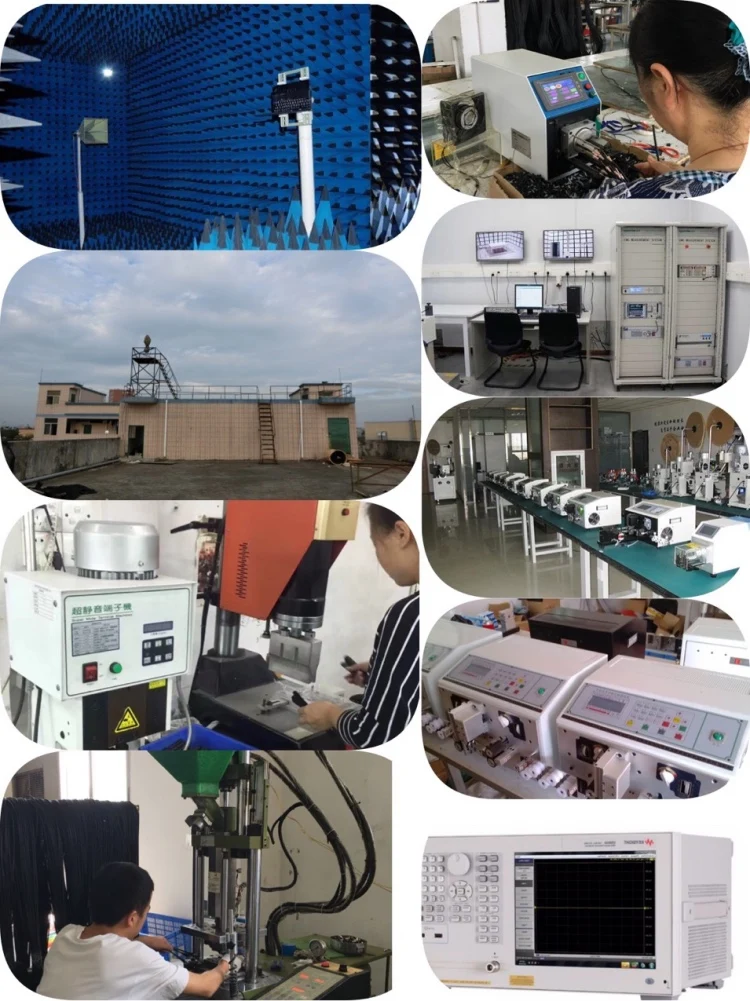

We owned adcanced test equipments as following :
Mocrowave Chamber : for Near-field vacuum test. it can help to test the performance simulation state of the antenna, which including patterns,VSWR,gain in simulation state.
Antenna far-field automatic measurement system : For far-field vacuum test. It can help to test the antenna performance simulation state if the antenna ,which including patterns,VSWR,gain in true state
The automatic wire stripping machine can accurate to 0.001mm to ensure accurate stripping while stripping .The rate equivalent to 2-3 times as old machine and it can ensure product consistency.
Salt Mist Corrosion test : Make sure antenna can work in different condition. it can help to test the antenna enclsoure,antenna material antenna bracket in bad enviroment and check out if the materials is ok or not .
Drop tester : Make sure antenna can work under tensile. Because some time, we are worry about our cartons is easy broken during the delivery by express company .
Network analyzer : There are 8pcs network analyzer in our factory,which can test VSWR,Attenuation return loss,Isolation and there are 2pcs network analyzer are for testing when making the antenna in production line .
