B5040 высококачественная металлическая Вертикальная Пазовая машина, цена
- Категория товара: >>>
- Поставщик (Оптовый магазин): Tengzhou,Hipow,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
 |

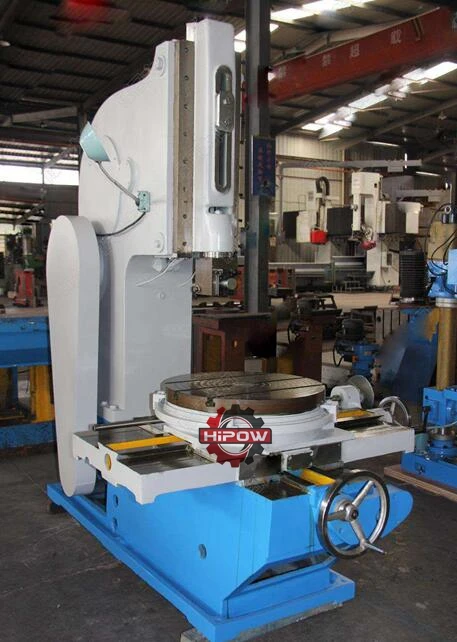

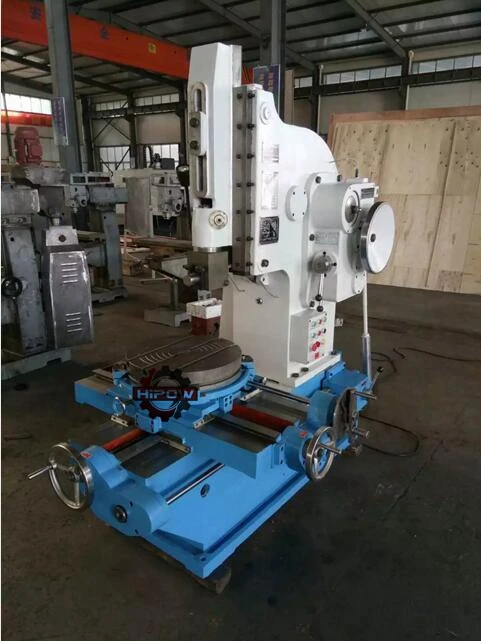

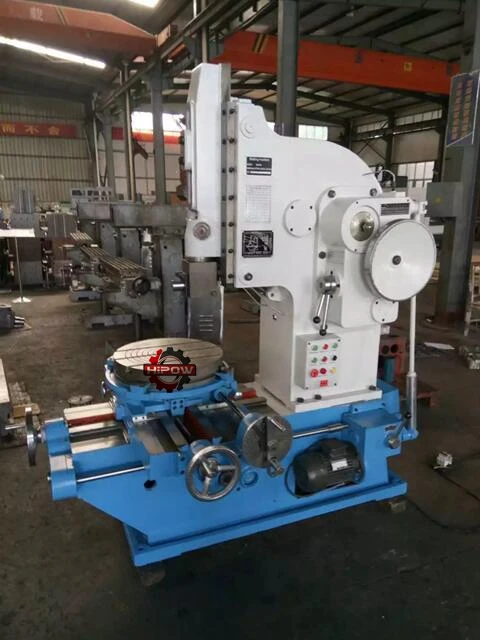

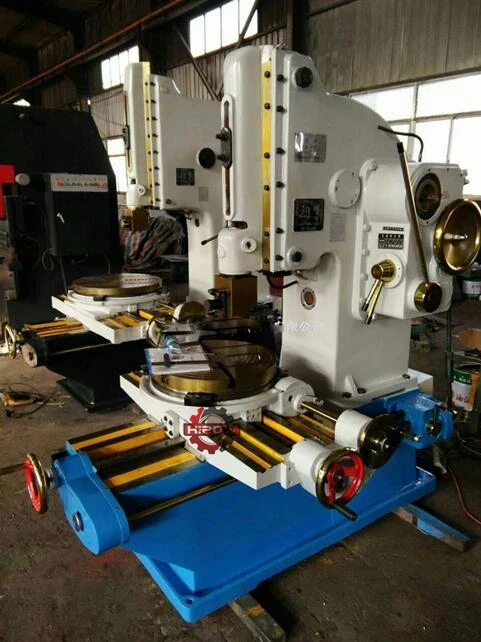

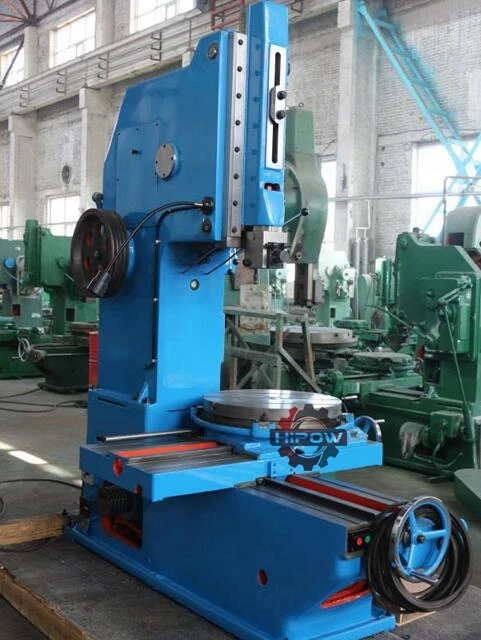

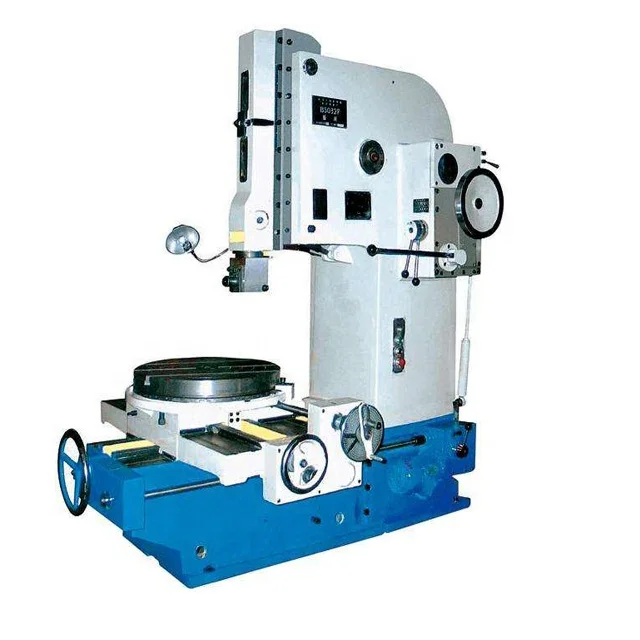

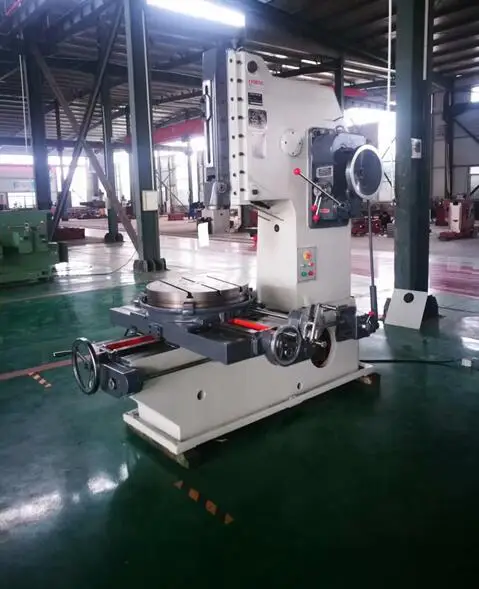

B5040 High Quality Metal keyway vertical slotting machine price |
 |
Main Feature. 1. B5040 slotting machine is used for slotting the flat and formed surface keyways 2. B5040 slotting machine is suitable for either single piece of small batch production 3. B5040 slotting machine`s main transmission mechanism is used for converting the rotating motion of the crank gear into reciprocating motion of rain 4. B5040 slotting machine`s worktable Is designed for longitudinal, cross and rotary feeding both automatically (only for D type model) and manually 5. B5040 slotting machine is stopped automatically, when the worktable is in case of trouble
|
Model | B5040 |
Max Slotting length(260mm for internal slotting) | 400mm |
Max Load on Table | 500KG |
Max Cutting Force | 7500N |
No of ram strokes per minute | 32,50,80,125 |
Vertical adjustment of ram | 315mm |
Inclination of Ram | 0-8° |
Max Tool Shank Size | 25*40mm |
Table Diameter | 630mm |
Max Longintudinal travel | 620mm |
Max Horizontal travel | 560mm |
Distance from table surface to low end of ram | 690mm |
Distance from tool holding surfect to column | 600mm |
Range of longtudinal and horizontal feed (ram stroke per min) | 0.08---1.21 |
Range of table rotary feed(ram stroke per min) | 0.052-0.783 deg |
Main motor(Kw) | 4KW |
Main motor speed | 960rpm |
Overall Size(mm) | 2290*1525*2485 |
Net Weight(KG) | 3700 |
Company Information
 |

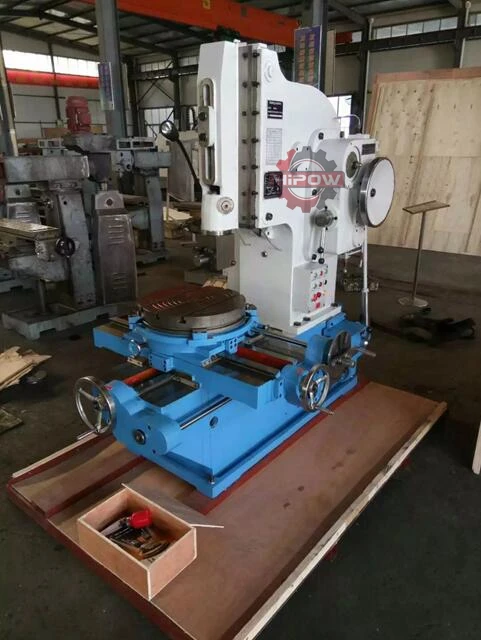

Packaging & Shipping
 |
| Packing of exported CNC machine is usually in wooden case. Small CNC machine can be packed in wooden case in whole. |
FAQ
 | |
| Q1. | How can I get a quotation? |
| A. | Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone. |
| Q2. | Can you provide customized machine or SPM (Special purpose machine)? |
| A. | Yes, we provide smart CNC solutions for our customer, in order to increase efficiency. |
| Q3. | Can you provide training for operation CNC machines? |
| A. | Yes, free training in our factory is available. |
| Q4. | How about your price? |
| A. | Send me details about what you need, you will get the best price in China. The price is competitive over the world. |
| Q5. | What’s the delivery time, and what’s the package? |
| A. | Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package. |
