Product Description

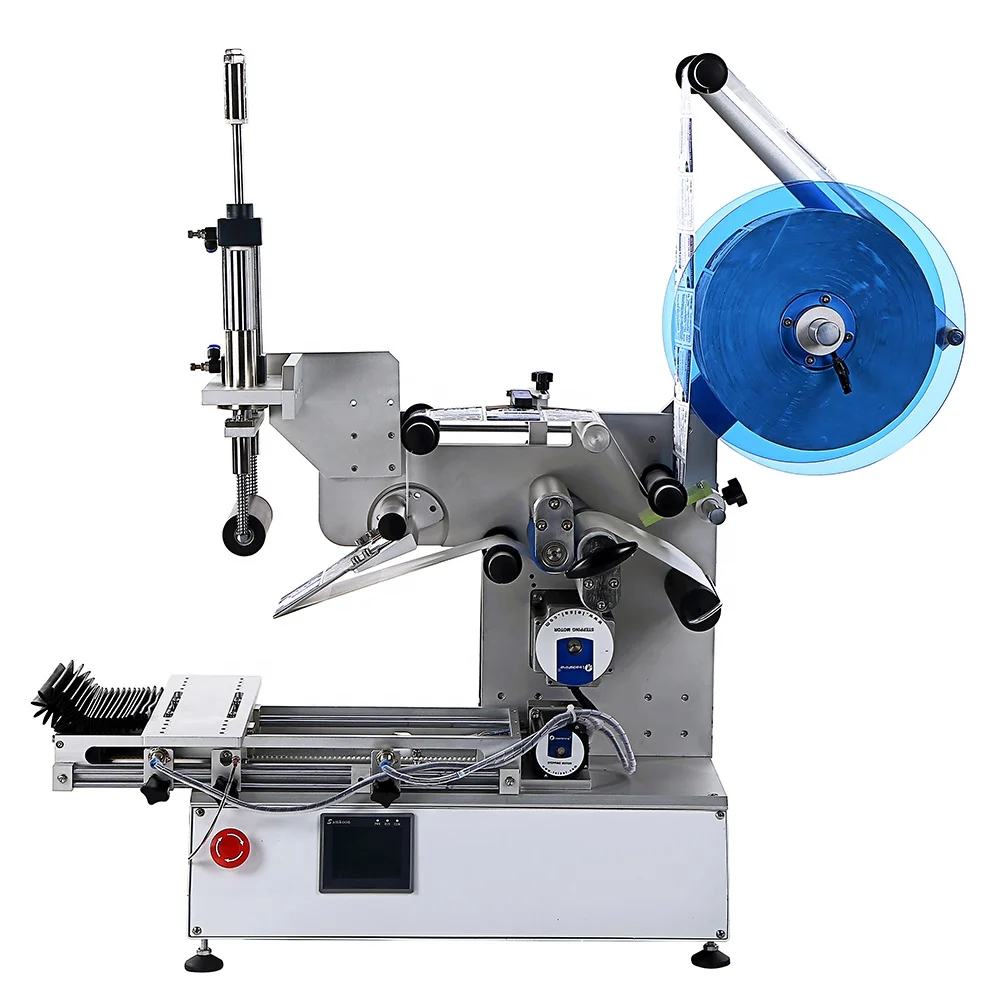

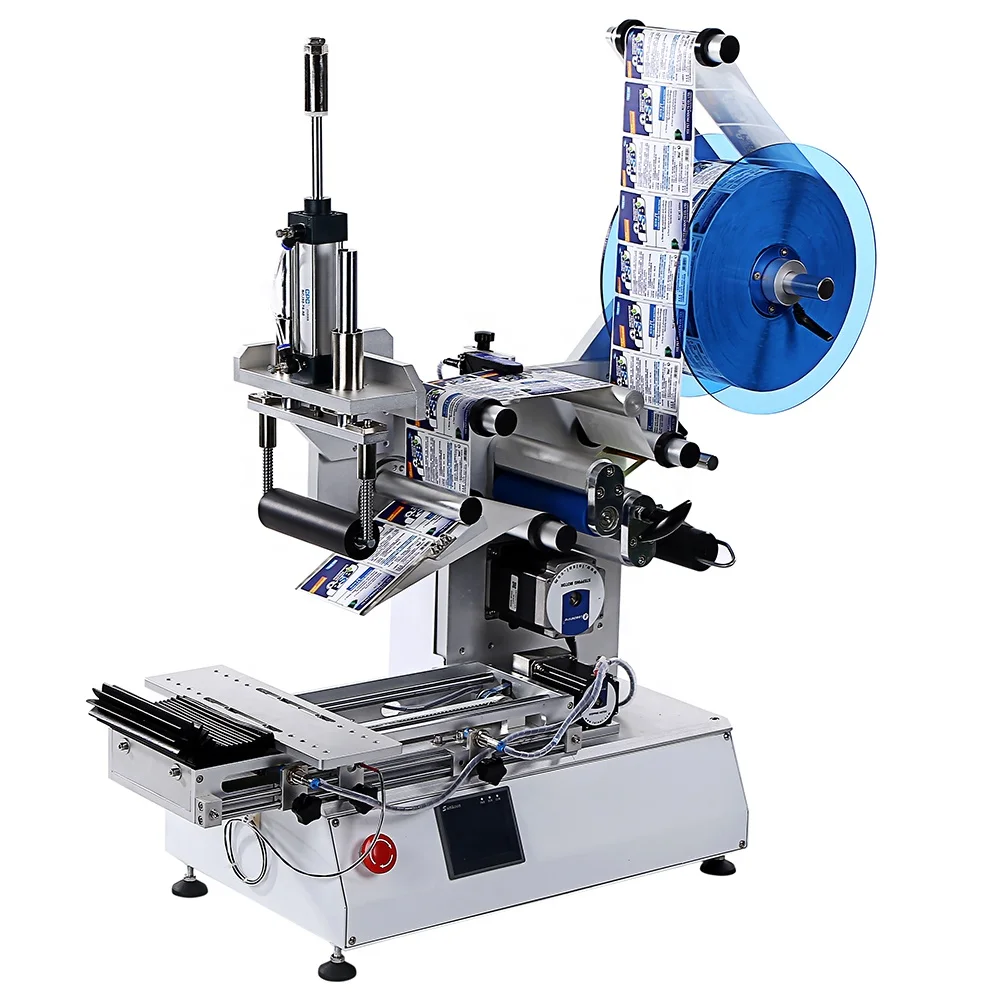

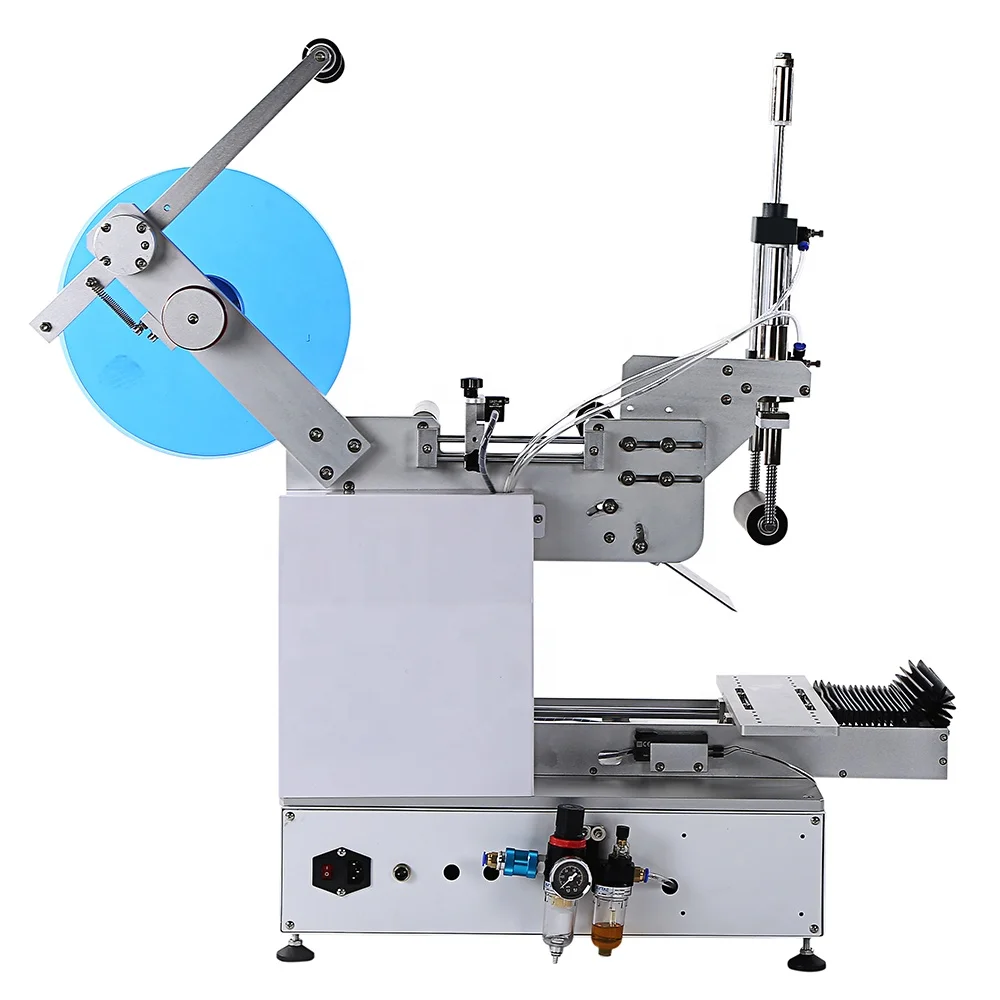

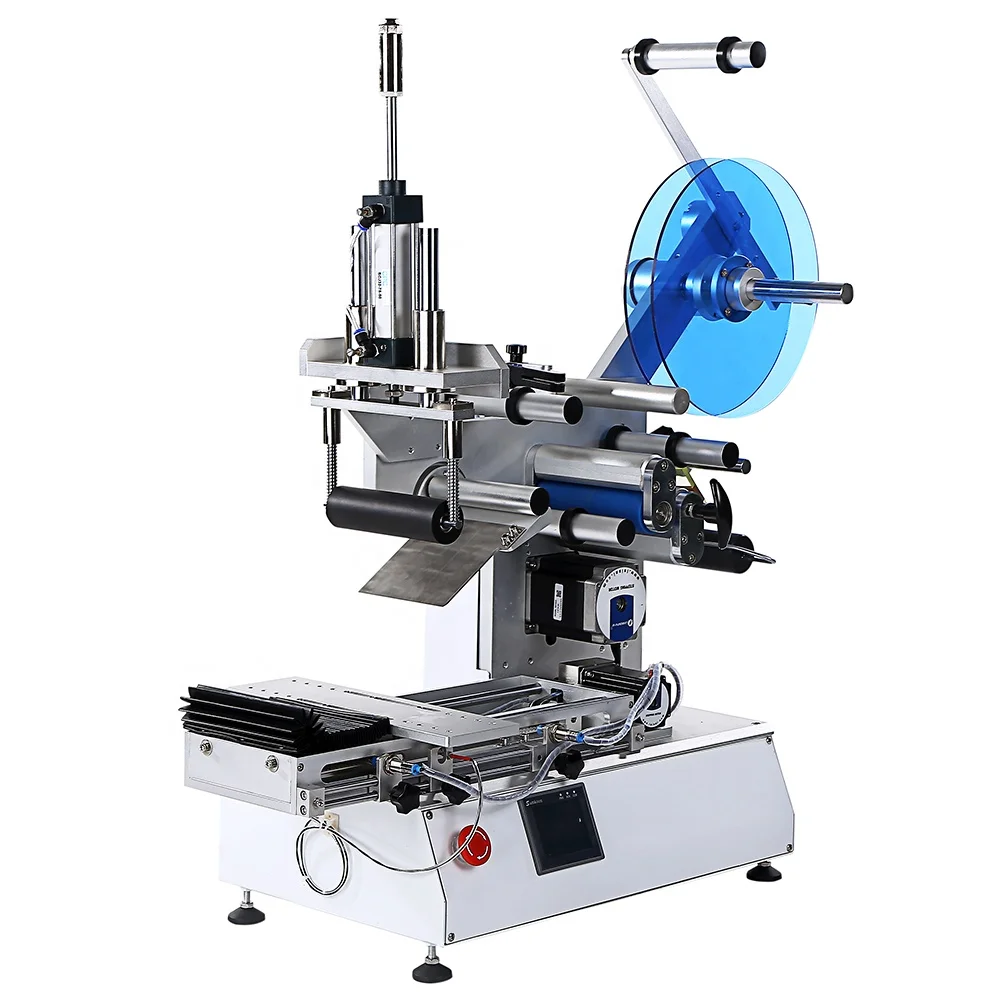

TY-801 semi automatic plane front and back side rolling labeling machine from flat bottle
Main Features
1)\tApplicable labels: stickers labels, stickers film, electronic monitoring code, bar code and so on.
2)\tApplicable products: flat shape objects, the arc, the circumferential surface, concave, convex, or other surface attached to the label of the product; such as: Shampoo flat bottle, packaging box, caps, plastic shell and so on
3)\tChange the labeling mechanism, can be applied to the uneven surface labeling, such as prism surface, circular surface labeling and so on.
4)\tBy change the mold, can labeling irregular production.
5)\tWidely used in daily chemical, bio-medical, food, stationery supplies, mechanical hardware and other industries.
Technical Parameters | ||||||
Labeling accuracy | ±0.5mm (excluding products, labels, error) | Labeling speed | 15--35 pcs/min(related to the product and label size) | |||
Apply the product size | Length: 20-200mm Width: 20-150mm Thickness: 20-120 (Can be customized) | Apply label size | Length:15-100 mm; Width: 15-110 mm (Can be customized) | |||
Applicable to the power supply | 220V/50HZ (Need to add a voltage converter, according to the local voltage of different country) | Apply labels inside diameter | ￠76mm | |||
Apply labels outside diameter | ￠240mm | Voltage | 220V | |||
Power consumption | 330W | Air pressure | 0.3---0.6Mpa | |||
Net size (length*width* height) | Machine size: 950*780*900mm Packing size: 1220*640*1100mm | Weight | NG:70Kg GW: 80KG | |||
Detailed Images
LABELING SAMPLE
Powerful
Ideal suitable for labeling large size labels, sponge material made with the labeling mechanism, to achieve no bubble and a solid labeling effect
bottle mold
Each set machine freely for one piece production mold. If more production can do more mold for fixed production when labeling. But price calculated separately.
Front and back side label
Can labeling front and back side label together, but the label roll should make in the same roll. paste front side first, then turn back for the back side label.
Color touch screen in English
Panasonic PLC, Simple operation, do not need high-quality technical workers, easy to get started.

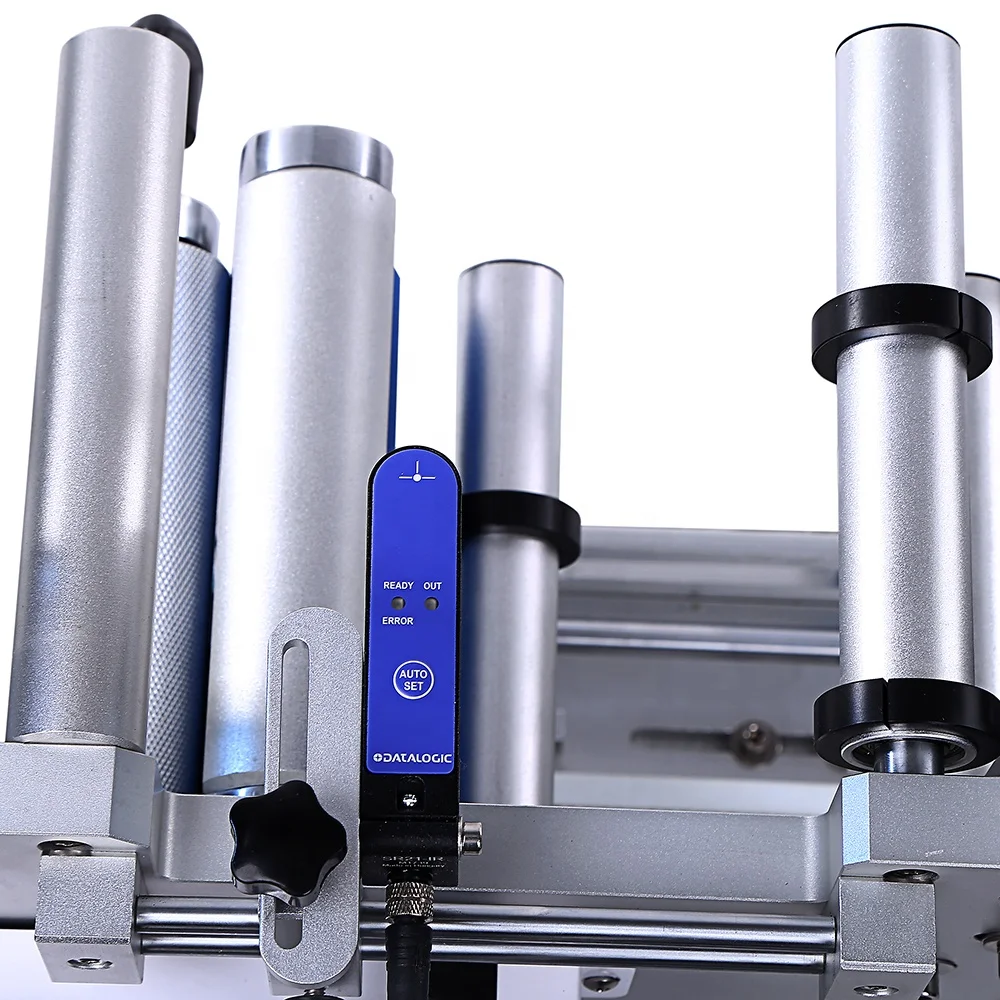

Import label sensor
1. Germany Sick and Italy Data logic of self-adhesive label sensor. (standard model)
2. Germany Sick and LEUZE sensor not only can use for self-adhesive label, but also can use for transparent label. (price calculated separately).
Electrical and circuit separate
The inside of machine to keep dry, use longer. it connect electric and air compressor. working pressure: 0.3-0.6 MPA
Main electrical configuration
Packing size
1100*570*1040mm
GW: 93.5kg
Available function(customized type)
Hot coding machine
1. code content usually be:
MFD(manufacture date)
EXD(expiry date)
BATCH( batch lot)
can printing 3 lines content, Area can not be greater than length: 3.5cm, width:2.5cm.
2. Ribbon specifications: 30*100mm-2 rolls
3. Number character 0-9 freely. But English alphabet, punctuation should be customized, Price calculation separately.
For example: a, A, E, /, =, -, &. And so on.
MFD(manufacture date)
EXD(expiry date)
BATCH( batch lot)
can printing 3 lines content, Area can not be greater than length: 3.5cm, width:2.5cm.
2. Ribbon specifications: 30*100mm-2 rolls
3. Number character 0-9 freely. But English alphabet, punctuation should be customized, Price calculation separately.
For example: a, A, E, /, =, -, &. And so on.
Customized machine
By customized machine, one set machine can with 360° rotating function and front&back side labeling function.
Thermal transfer Printer
The code content usually be :MFD(manufacture date),EXD(expiry date) and BATCH(batch lot)
Bar code
Data field
Pattern: JPG, BMP, GIF, PNG format
Rotary printing: 0°, 90°, 180°, 270°
Mirror printing
Bar code
Data field
Pattern: JPG, BMP, GIF, PNG format
Rotary printing: 0°, 90°, 180°, 270°
Mirror printing
Double pieces product molds
One time labeling two pieces labels by do a double pieces molds. but two labels should make in the same roller.
Payment terms and service
Payment terms.
L/C at sight, T/T, alibaba trade assurance(BOLETO, Mastercard, Visa, e-Checking, PAYLATER). 40% deposit, 60% balance pay before send out the good or see the scan bill of lading.Pre-Sales Service.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Core tamp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Core tamp has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Core tamp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Core tamp has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.
Packing & Shipping
Packing.
Export wooden box
1) Deduct & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules Into Plywood Cases
6)mark Shipping Mark In The Cases
if Any Special Requirements, We Will Pack It As Requested.
Shipping.
Upon receipt of payment , delivery date will be in 5 days, standard model with in stock. By Air, by Sea or by Express (DHL etc),
Shipment cost will depend on the destination, shipment way and the weight of the goods.
Export wooden box
1) Deduct & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules Into Plywood Cases
6)mark Shipping Mark In The Cases
if Any Special Requirements, We Will Pack It As Requested.
Shipping.
Upon receipt of payment , delivery date will be in 5 days, standard model with in stock. By Air, by Sea or by Express (DHL etc),
Shipment cost will depend on the destination, shipment way and the weight of the goods.
