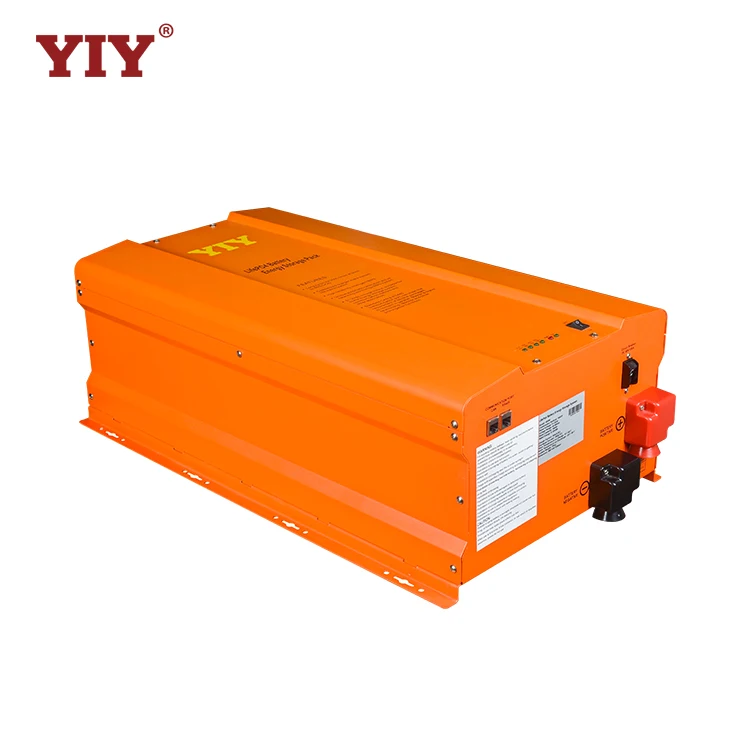

10 kWh High Capacity Rechargeable LiFePO4 Battery Packs for Residential Workplace Energy Systems


The latest YIY 10 kWh Lithium Iron Phosphate (LFP) Battery Packs are specially designed for small-scale solar or electric energy storage systems, which are perfectly suitable for residential, office and RV applications.


Product Description




YIY LFP battery rechargeable packs employ state-of-art lithium-ion battery technologies. Our LiFePO4 electrodes possess many advantages over other mainstream Li-ion battery products, including long 3500+ cycle life, constant output voltage, higher energy density, cost-effective and safer operation.




Specification


Battery
Details
Normal specification
Model
LFP24400H
LFP48200H
1
Rated Voltage
25.6V
51.2V
2
Rated Capacity
400Ah
200Ah
3
Rated Energy
10.24KWH
4

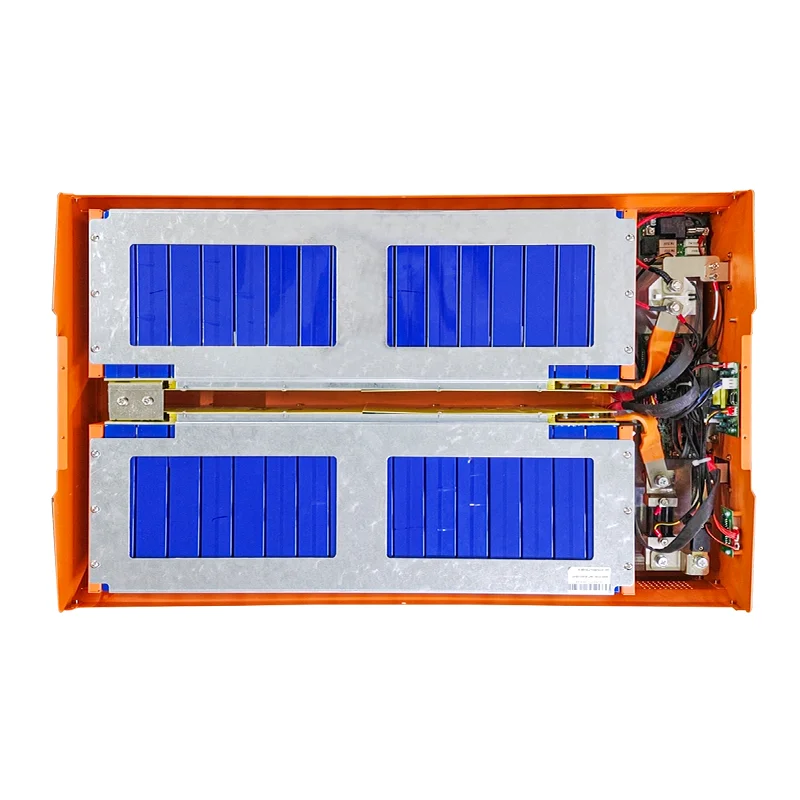

Cell Configuration
8S4P
16S2P
5
Battery Cell
3.2V100AH 32PCS
Standard Charge
1
Charge operation temperature range
0~45℃
0~45℃
2
Rated charge voltage
27.6±0.2V
55.2±0.4V
3
Max charge voltage
28.4±0.2V
56.8±0.4V
4
Overcharge protection
29.2±0.2V
58.4±0.4V
5
Allowed MAX charge current
220A
withstand 30s
110A
withstand 30s
6
Peak charge current
240A
withstand 5s
120A
withstand 5s
7
Rated charge current
200A
100A
8
Recommend charge current
<200A
<100A
Standard discharge
1
Discharge operation temperature range
-20~60℃
-20~60℃
2
Output Voltage Range
20~28Vdc
40~56Vdc
3
Recommend Working Range
23~27Vdc
46~54Vdc
4
Discharge Cut-off voltage
20V
40V
5
Allowed MAX discharge current
440A
withstand 30s
220A
withstand 30s
6
Peak discharge current
480A
withstand 5s
240A
withstand 5s
7
Rated discharge current
400A
200A
8
Recommend discharge current
<400A
<200A

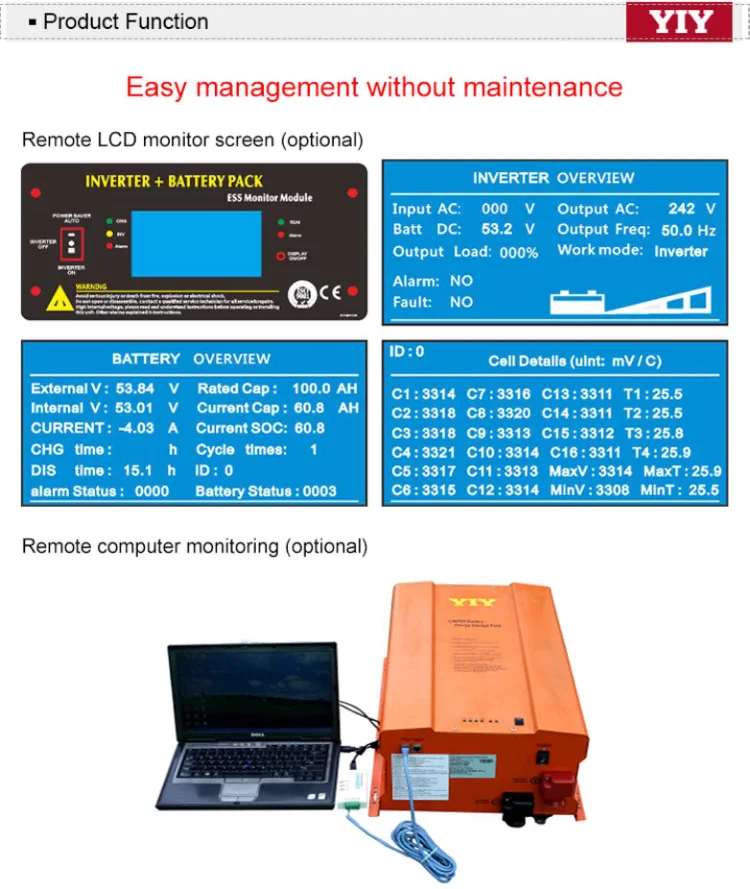

Communication
1
RS485
For LCD remote
2
CAN
PC control and monitor

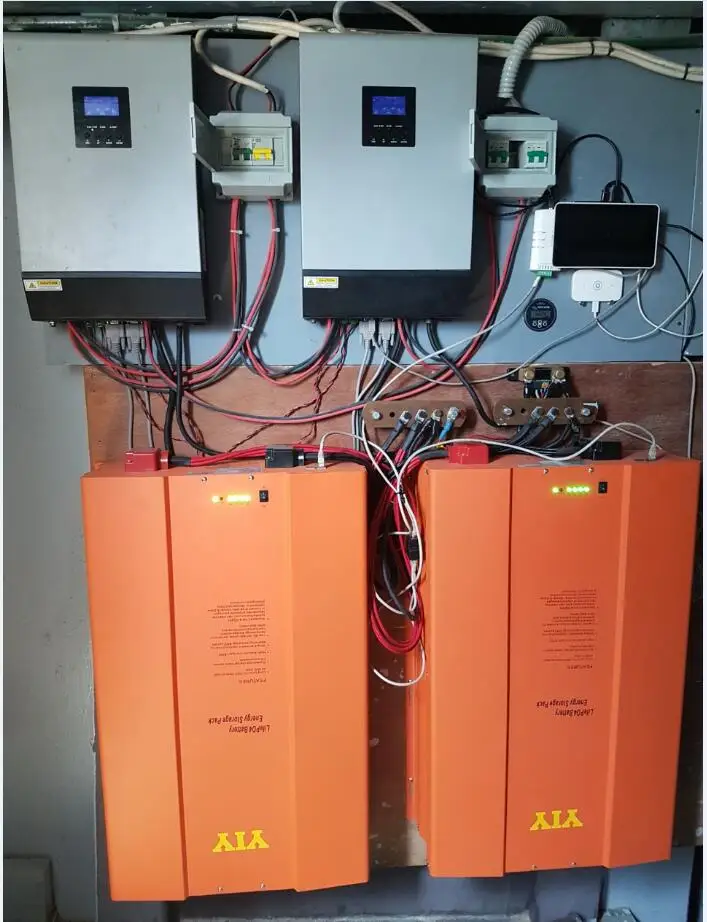

YIY LFP battery rechargeable packs play a vital role in our solar/electric energy storage system (ESS) which can possess a storage capacity of up to 100 kWh for various green applications!




Company Profile




Shenzhen Yiyuan Technology Co., Ltd was founded in 2011, it is the branch company of Yiyuan Electric Co.,Ltd which was founded in 2008. It is a high and new tech enterprise specialized in manufacturing electrical power products for power supply systems and renewable energy system.Our main products are Inverters, MPPT Solar Controllers, UPS and Automatic voltage regulators (AVR). Our inverter is widely used in Commercial, Residential, Industrial applications including UPS market, utility market, RV market, renewable energy systems.
As a result of our attention on quality and reliability, our products have been approved by CE, UL and ETL certificates. In addition to our economical prices and customer service, it has helped our products to gain popularity and good reputation globally.

Our mission is to build up a mature, efficient and skilled R&D team by recruiting top technicians and investing 10% of annual turnover. So that the advancement and innovation of product can bring us good and competitive force to meet customers' requirements.

Operation principle: Strive for efficiency on basis of quality ; science & technology to seek development. We will keep promoting management level; improving production technology; perfecting product quality and variety.

We dedicate ourselves to serve all customers, societies and partners to maximize the mutual benefits. We are ready to establish long-term business with your esteemed company. Ten years of specializing production has made our products best-selling in the world market, like North America, South America, Europe,Southeast Asia, Africa, Mid-east regions etc, and have enjoyed good reputation from the customers all over the world.














Packing & Delivery






We generally provide standard exporting packaging for our goods. For small quantities, we use standard cartons. For large quantities, we use wooden pallets. Means of transportation and pricing can be negotiated.


FAQ


1. Who are we?
We are based in Guangdong, China, start from 2012,sell to North America(80.00%),Mid East(7.00%),Western Europe(7.00%),Africa(3.00%),Domestic Market(3.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Inverter and UPS Products,Inverter with Charger,LiFePo4 Battery,Solar Charger Controller,All In One Energy Storage System

4. Why should you buy from us not from other suppliers?
We have the advanced R&D technology and experience, it makes us meet different customers' ODM&OEM requirement. Also with high quality and performance, it keep our products at the first rate in the market.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
