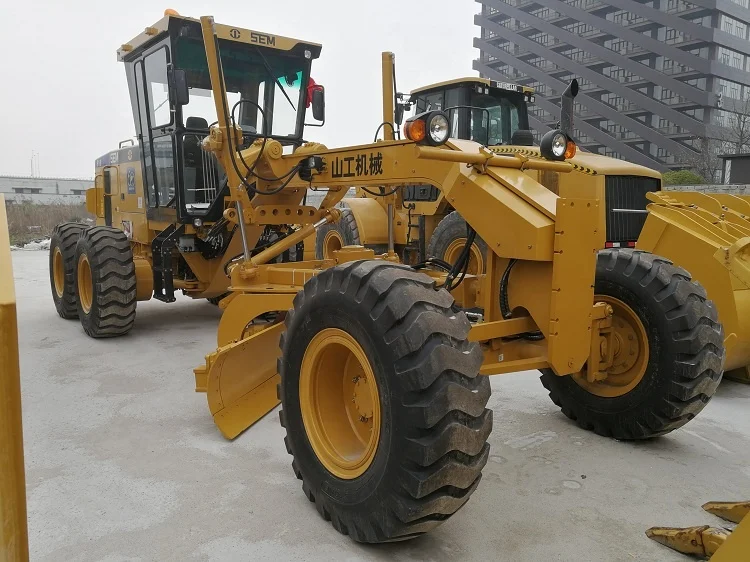

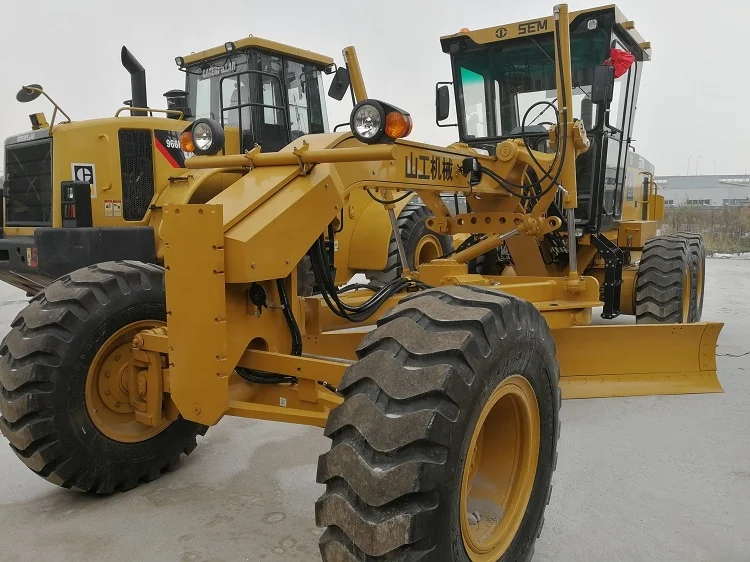

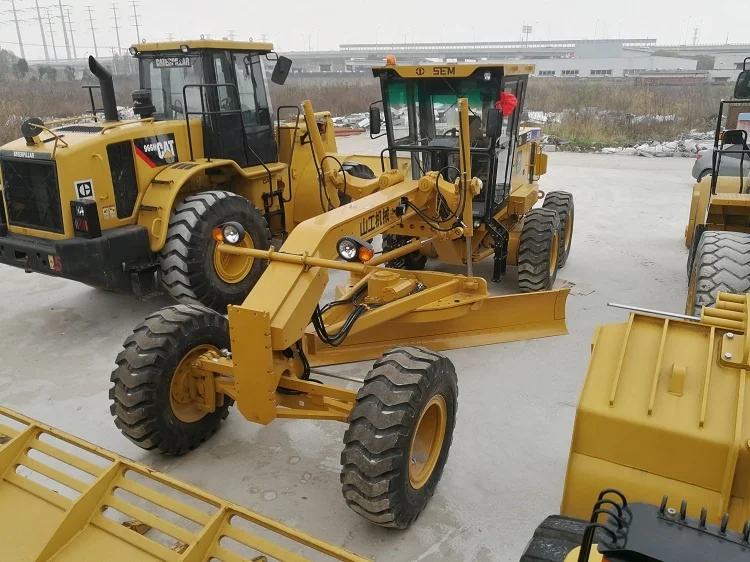

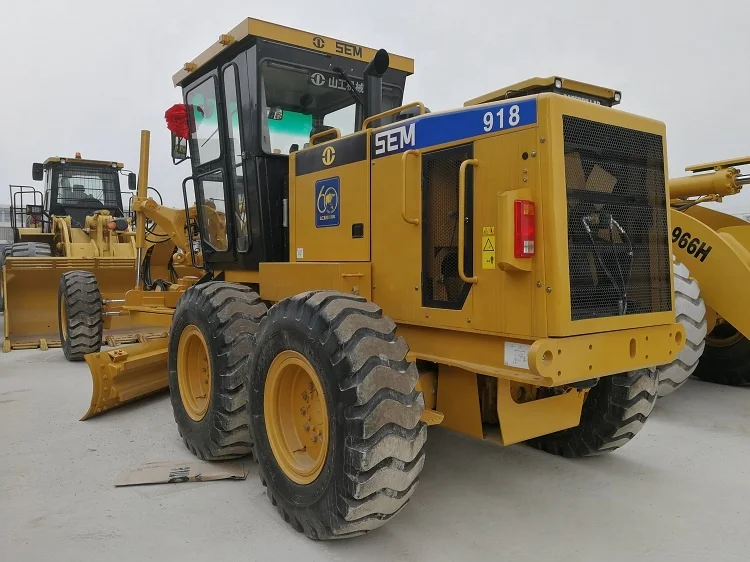

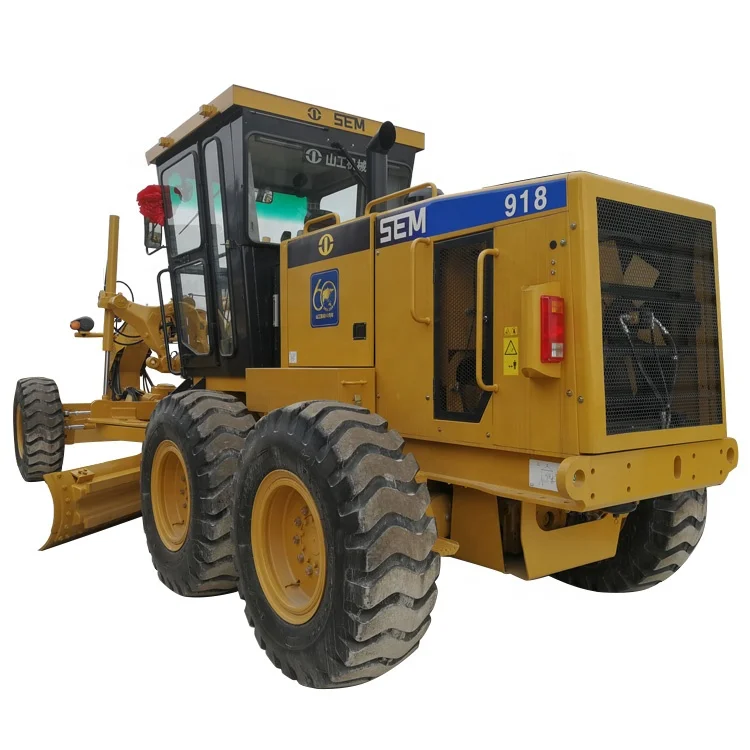

Автогрейдеры SEM 918, цена, Новинка
- Категория товара: Motor Graders >>>
- Поставщик (Оптовый магазин): SUPPLY,SOLUTION
Поделиться:
Описание и отзывы
Характеристики
CONTACT US
CONTACT US

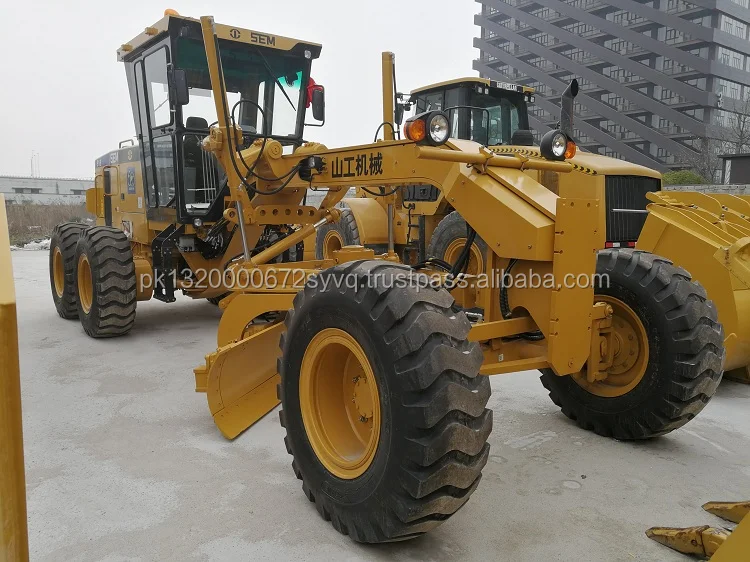

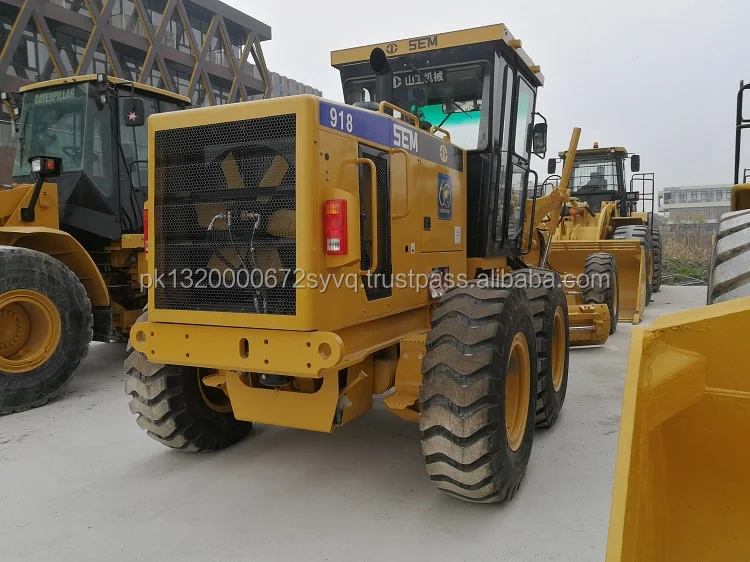

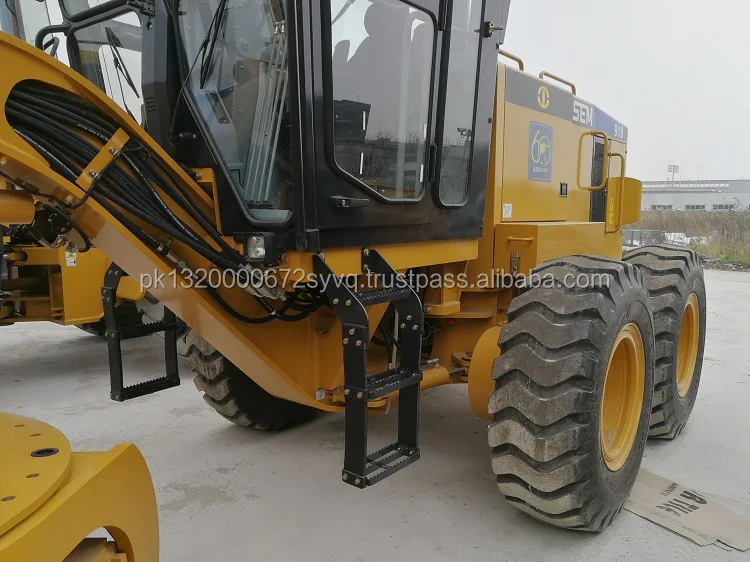

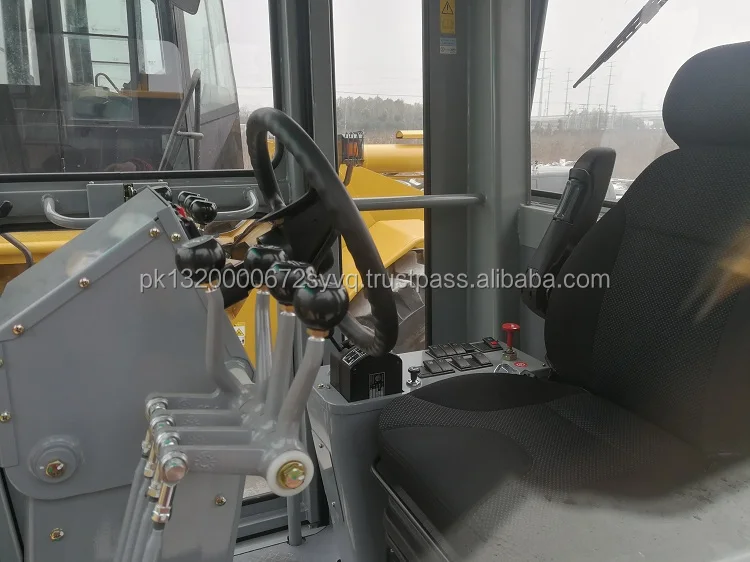

DETAILED IMAGES
PRODUCT ANATOMIC
| Major Technical Parameters | |
| Machine Weight | 15,070 kg |
| Blade Length | 3974 mm |
| Max. Drawbar Pull | ≥78 kN |

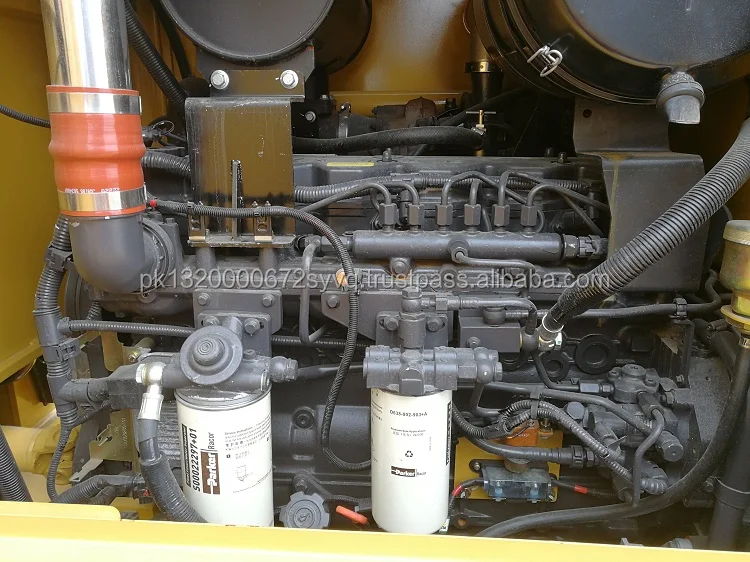

| Engine | |
| Rated Power | 140kW |
| Rated Revs | 2200rpm |
| Model | SDEC |
| Max. Torque | 720 Nm |
| Blade | |
| Max. Lifting Height | 475mm |
| Max. Depth of Cut | 715mm |
| Max. Blade Tip - Forward | 40º |
| Max. Blade Tip - Rear | 5º |
| Tires | |
| Specification | 17.5-25 |
| Hydraulic System | |
| System Pressure | 22 MPa |
| System Characteristics | Load Sensing |
| Steering System | |
| Max. Steering Angle of Front Axle | 47.5° |
| Min. Turning Radius | ≤7.8m |
| Rear Alex/Tandem | |
| Oscillation (Front Up) | 15° |
| Oscillation (Rear Up) | 25° |
| Brake System | |
| Service Brake | Drum Brake |
| Parking Brake | Drum Brake |
| Transmission | |
| Model | 6WG180 |
| Type | Countershaft,EH |
| Max. Speed | 40km/h |
