Трехмерный смеситель движения/3D машина для смешивания сыпучих веществ 3D MIXER Horizontal Ribbon Blender

Трехмерный смеситель движения/3D машина для смешивания сыпучих веществ 3D MIXER Horizontal Ribbon Blender

Категория товара: Химическая техника и оборудование >>>
Поставщик (Оптовый магазин): Shantou,Today,Machine,Co.,Ltd.

Цена:222 981,30 ₽

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

Customization proces

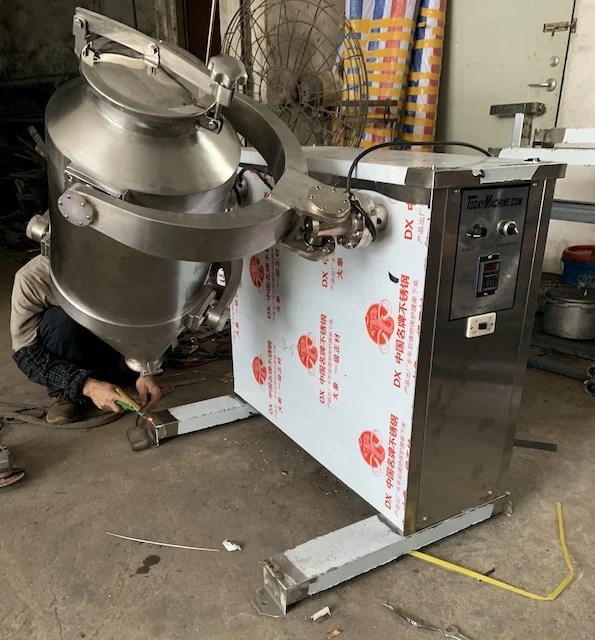

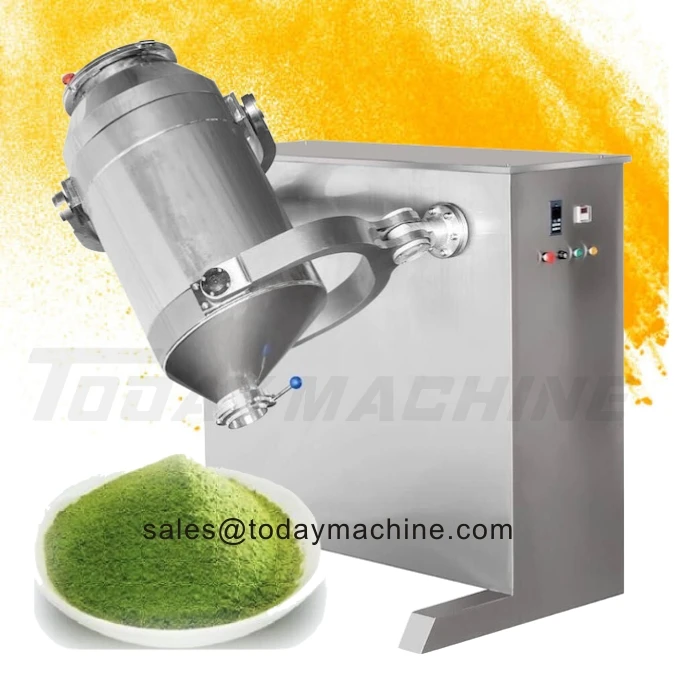

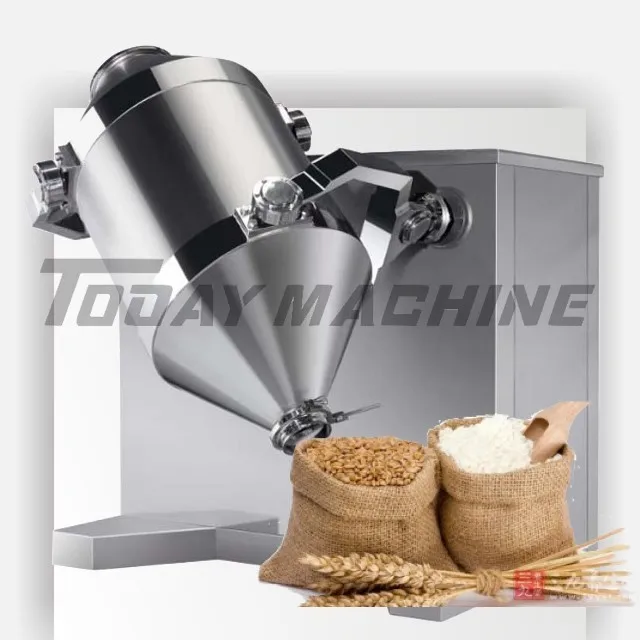

3D MIXER

High efficiency and short mixing time
Pharma mixer
Made of SUS304
GMP Provide

SYH

Description

Three dimension mixer. The mixing barrel of the machine moves in multi-direction. For the materials, there is no centrifugal function, without the specification gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate. The mixing rate is high. The machine is the desired one of various mixers at present.

Working Principle

The barrel for charging the materials is driven by the driving shaft. The barrel body carries on the repeated level movement, rotation, turning and other complex movements so that the materials will carry out the three dimensions and complex movements along the barrel body so as to realize the various movements of the materials. Through disseminating, gathering, agglomerating and mixing to realize uniform mixing.

Characteristics

The material charge rate of barrel is large. Maximum rate can be up to 80% (while normal mixer has only 40-50% of charge rate.). It is high in efficiency and short in mixing time.

The barrel adopts arc shape connections and it’s well polished.

Technical parameter

Model	Barrel volume (L)	Max contain (L)	Speed (r/min)	Electric	Power (kw)	Dimension LWH (mm)	Weight (kg)
SYH-16	16	12	10-30	110V 220V 380V	0.37	800x800x800	70
SYH-50	50	40	10-30	110V 220V 380V	0.75	1000x1000x1000	150
SYH-150	150	120	10-30	110V 220V 380V	1.5	1200x1200x1450	250
SYH-200	200	160	10-30	110V 220V 380V	2.2	1350x1350x1600	400
SYH-300	300	260	10-30	220V 380V	2.5	1500x1500x1800	480

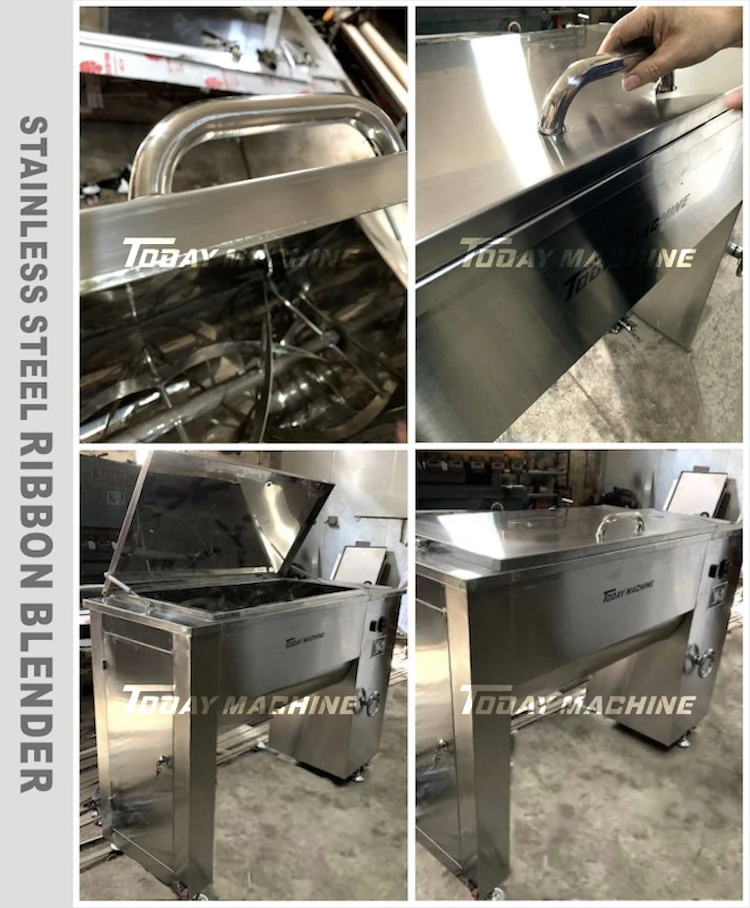

Horizontal Ribbon Blender

Used in the mixing of solid-solid (ie powder and powder) solid-paste (ie powder and cement) for pesticides, veterinary drugs, food, chemicals, biology, aquaculture, ceramics, refractories, plastics, compound fertilizers, etc. It is also specially adapted to the mixing of viscous materials.

Characters

It consists of a U-shaped container, a ribbon stirring blade and a transmission component;
The U-shaped long body cylinder structure ensures small resistance movement of the mixed material (powder, semi-fluid) in the cylinder.
The positive and negative rotating screws are installed on the same horizontal axis to form a low-dynamic and high-efficiency mixed environment. The ribbon-shaped blades are generally made of double or triple layers, and the outer spirals gather the materials from the sides to the center. The spiral transports the material from the center to the sides, allowing the material to form more eddy currents in the flow. Speed up mixing and increase mixing uniformity;
Horizontal ribbon mixer is a new type of mixing and mixing equipment with high efficiency, high uniformity, high loading factor, low energy consumption, low pollution and low crushing.

Technical

Model	Volume (L)	Voltage	Max contain (L)	Speed (r/min)	Motor power (kw)	Feed motor power (kw)	Dimension (LWH) (mm)
RB-200	200	380V	160	26	2.2	0.55	15505501100
RB-300	300	380V	240	23	3	1.5	19206501450
RB-500	500	380V	400	20	4	2.2	19507501480
RB-600	600	380V	480	20	5.5	2.2	23808501500

Double Cone Mixer

Mixing the powder state and grain state materials

Application

Metal powder: aluminum. Metals such as lead, zinc, copper, iron, nickel, alloys, and magnetic materials are powders.

Chemical chemical materials such as resins, plastics, rubber additives, dyes, fillers, etc.

Foods designed to meet health indicators: flour, cocoa, coffee, condiments, additives, etc.

Grain, corn, beans, sesame and other crops are selected, shelled and miscellaneous.

Abrasives: glass powder beads, alumina, corundum, chlorocarbon, corundum, quartz sand and other abrasive materials.

Fertilizer raw material screening and other finished fine screening.

Various mineral powders in minerals and their finished products are screened.

Fibrous materials: wood chips, wood flour, charcoal, activated carbon, carbon black and other fiber materials.

Recycling of various materials and resources such as electric solder, refractory materials and phosphors.

Character

Made of 304 stainless steel. Can stir food chemical raw materials.

Stainless steel drum mixer is resistant to corrosion and oxidation.

The 360 degree rotation of the large outlet butterfly valve discharge saves a lot of manpower.

Technical parameters

Model	Capacity	Volume	Speed (round/min)	Power	Voltage	Weight	Dimension (mm)
SZH-30	30kg	80L	0-25	2.2kw	220V 380V	100kg	1030x1020x1030
SZH-50	50kg	120L	0-25	3kw	220V 380V	120kg	1100x1040x1100
SZH-100	100kg	220L	0-25	3k	220V 380V	150kg	1100x800x1100
SZH-200	200kg	440L	0-25	3kw	220V 380V	200kg	1200x900x1200
SZH-300	300kg	650L	0-25	3k	220V 380V	250kg	1300x950x1300
SZH-500	500kg	900L	0-25	7kw	220V 380V	400kg	1400x1100x1400
