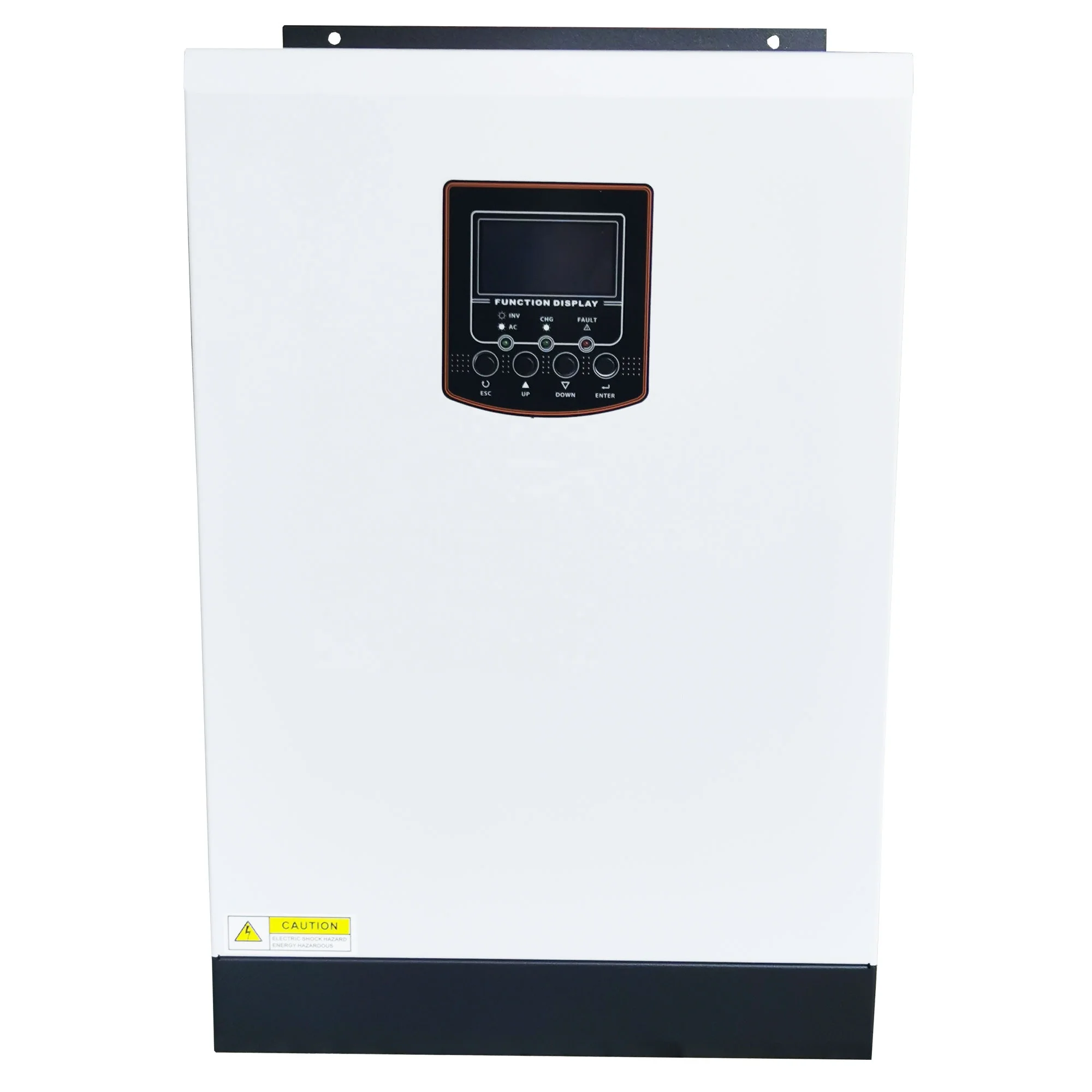

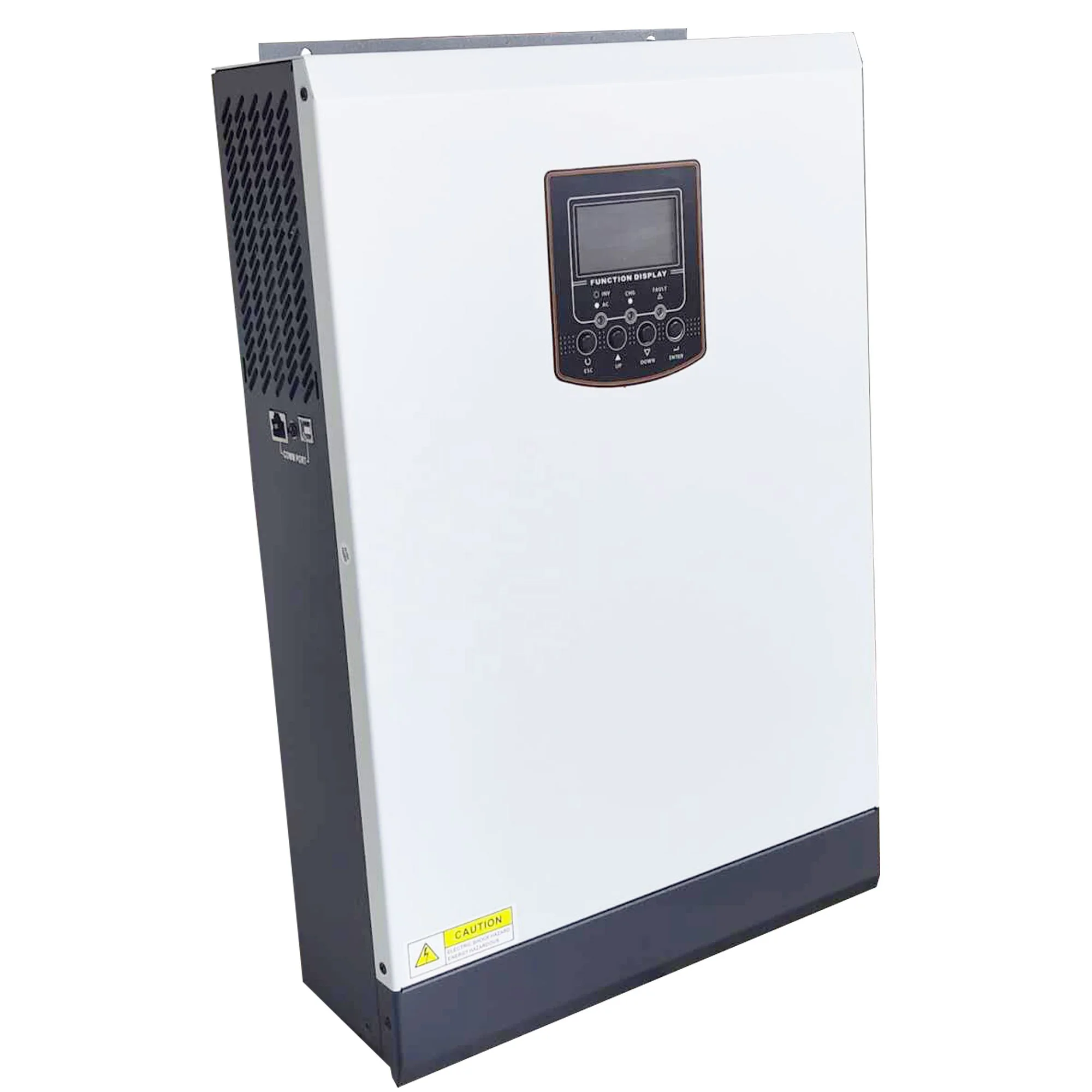

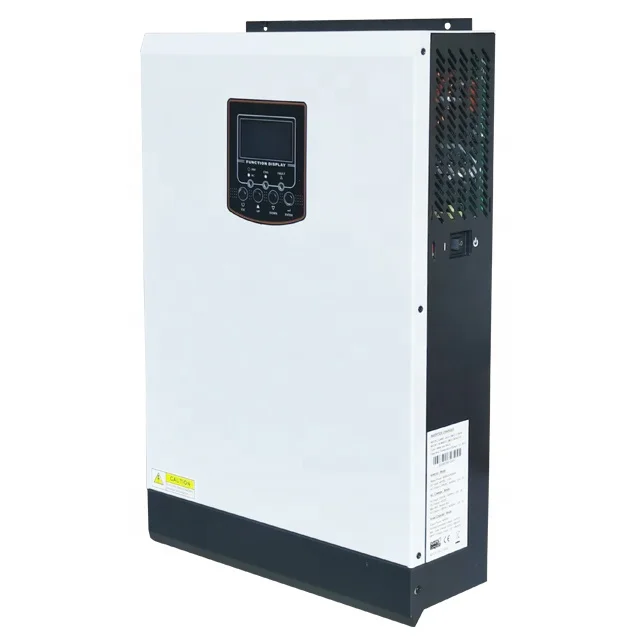

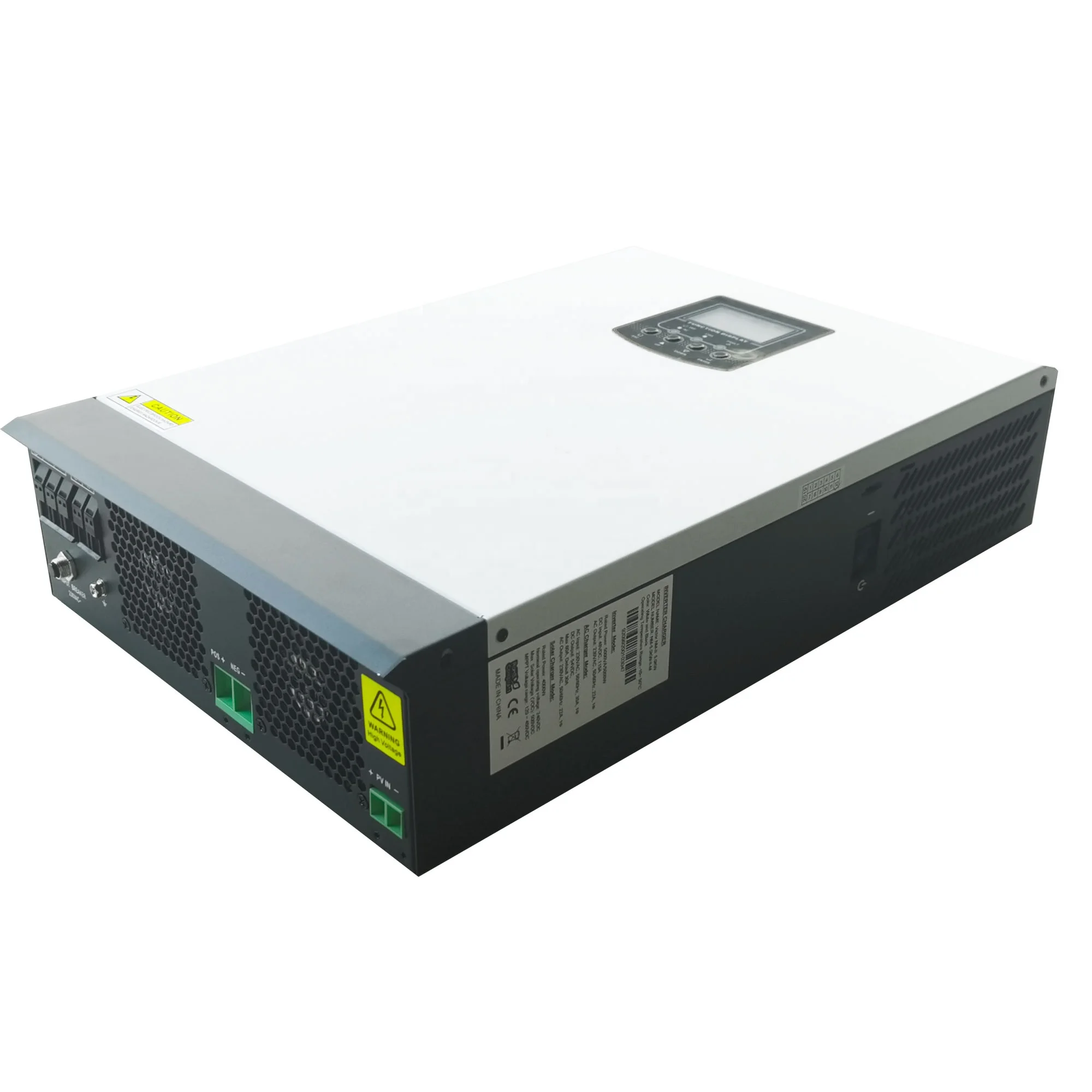

Автономный инвертор немодулированного синусоидального сигнала без батареи, гибридный солнечный инвертор 3 кВт 5 кВт
- Категория товара: Inverters & Converters >>>
- Поставщик (Оптовый магазин): Foshan,Sunmart,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
off grid pure sine wave inverter without battery solar hybrid inverter 3kw 5kw
Features:
1.High effciency pure sine wave inverter(PF=1);Wide PV input range (120V dc -500V dc) 80A MPPT SCC;Intelligent 3stage 80A AC battery charger.
2. Surges to 2X continuous power for 5 seconds for motor loads.
3. Intelligent functionality enables utility and solar input prioritization.
4. Wide ulility input range (90Vac _280Vac) for unreliable grid even in the most challenging environments.
5. Field serviceable with replacement boards and spare parts.
6. Monitor, troubleshoot, or communication with USB/RS 232.
7. System configures quickly into compact, wall-mounted system.
8.Working without batteries in sun day .
Specifications:
| Model | MPS-V-5000-48 |
| RATED POWER | 5000VA/5000W |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170-280VAC(For Personal Computers) |
| 90-280VAC(For Home Appliantions) | |
| Frequency Range | 50HZ/60HZ(Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation(Batt.Mode) | 230 VAC ± 5% |
| Surge Power | 10000VA |
| Efficiency (Peak)PV to INV | 97% |
| Efficiency (Peak)Battery to INV | 94% |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Max. PV Array Open Circuit Voltage | 500VDC |
| Max. PV Array Power | 4000W |
| MPP Range @operating Voltage | 120~450VDC |
| Max. Solar Charge Current | 80 A |
| Max. AC Charge Current | 60A |
| Max. Charge Current | 80A |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 100 x 300x 440 |
| Net Weight (kgs) | 10 |
| Communication Interface | USB/RS232 |
| ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
Working way

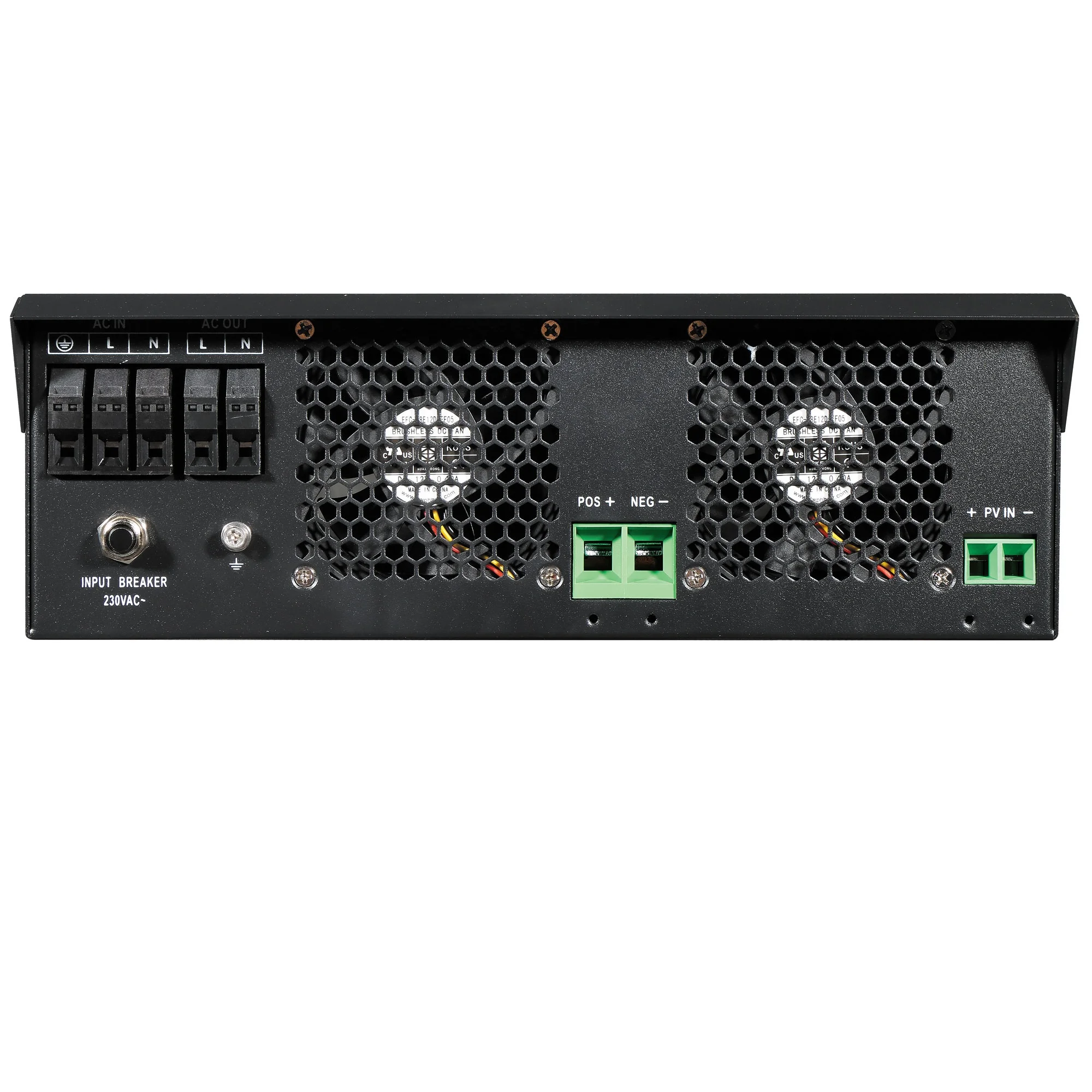

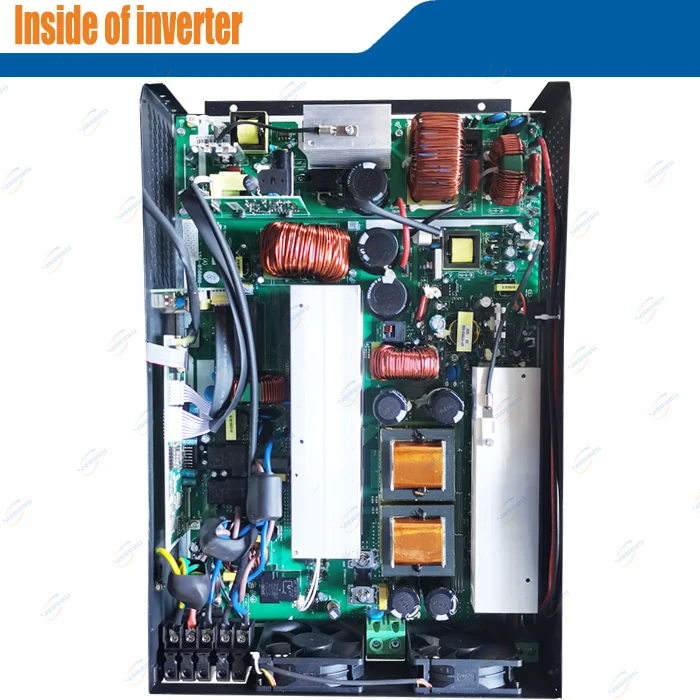

Detail of the inverter
5KW Solar hybrid inverter LCD showing :
PV power (watt) , PV voltage , PV charging cunnert , AC grid voltage /frequency , AC charging current ,Battery voltage ,Load power (VA) ,Load connect percentage
FAQ
Q1. What's the payment term?
A. We accept TT,30% deposit and 70% balance before shipment.
Q2. How's the delivery time?
A. usually it will take about 3 days for production 50pcs
Q3. Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q5. Would you accept to use our logo?
A. Yes, But MOQ should be more than 20pcs
Q6. We want to know month capacity.
A. It depends on which model. For example for relay type small capacity , month capacity can reach near 2000pcs and big capacity near 3000pcs.
Q7. Where is your market?
A. Our products are popular in Africa ,Russia, Indonesia, Philippines, Italy, Pakistan and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
Q8. Does the inverter connect with solar system ?
A.Yes.Because of the unique feature which combine invert,charge and AC auto-transfer switch into one complete system,made inverter not only connect with solar system,also could be used in& officer equipment,household items,power tools ans etc..
Q9. What kind of certificate you have ?
A. Our company already achieve ISO, CCC, and for products, we have CE, SONCAP, GOST .
