Машина для производства печенья для собак разных размеров и форм
US $40000-$60000
Sinobake автоматический многофункциональный печенье звезда колесо укладчик конвейер машина
- Категория товара: Машина для изготовления печенья >>>
- Поставщик (Оптовый магазин): Guangdong,Shunde,Huaji,Machinery,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
The price in the this table is only for reference. The exact price needs to be decided by the real solution.
Product Description

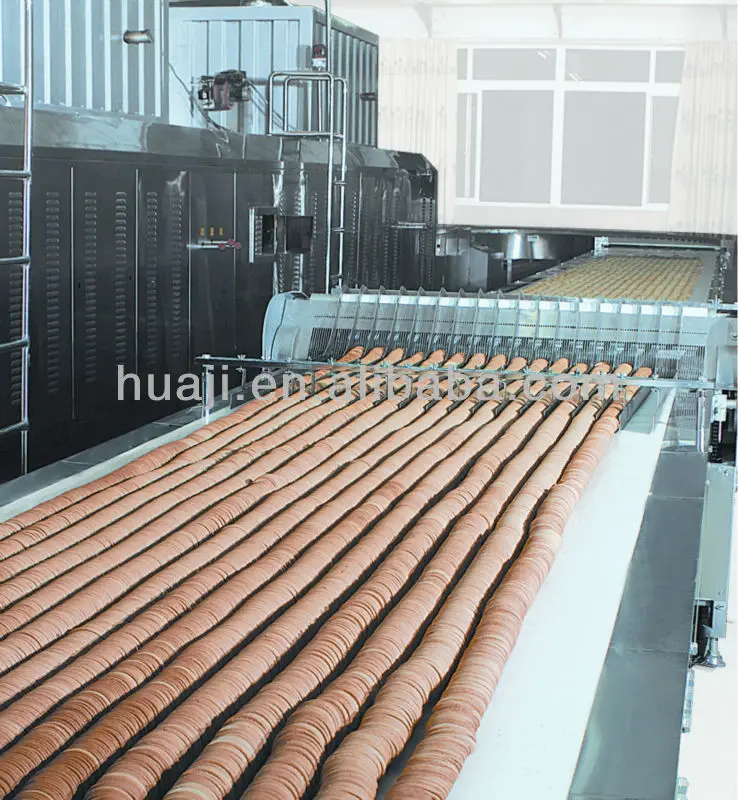

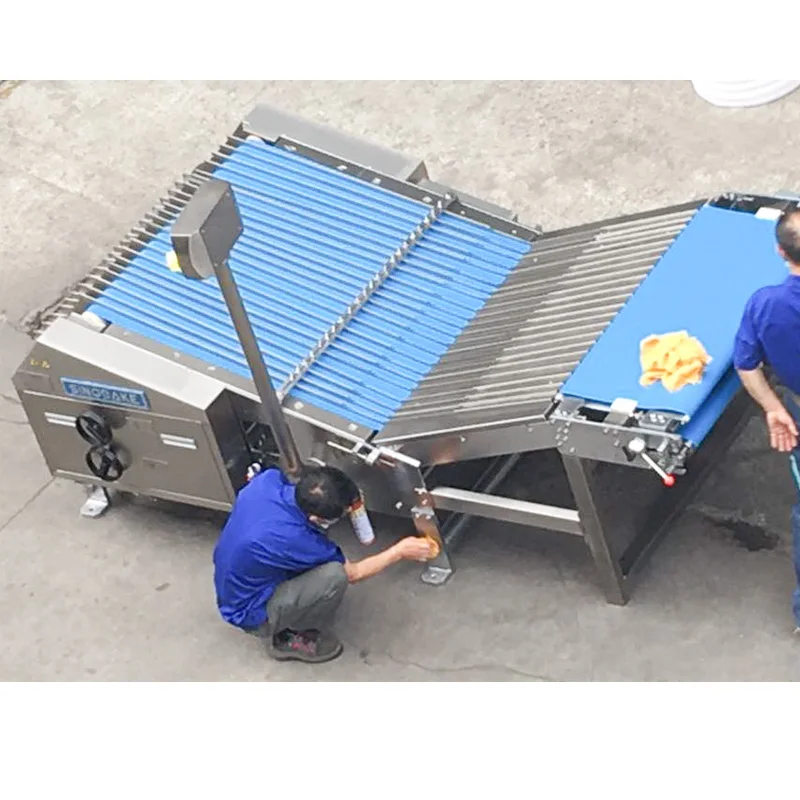

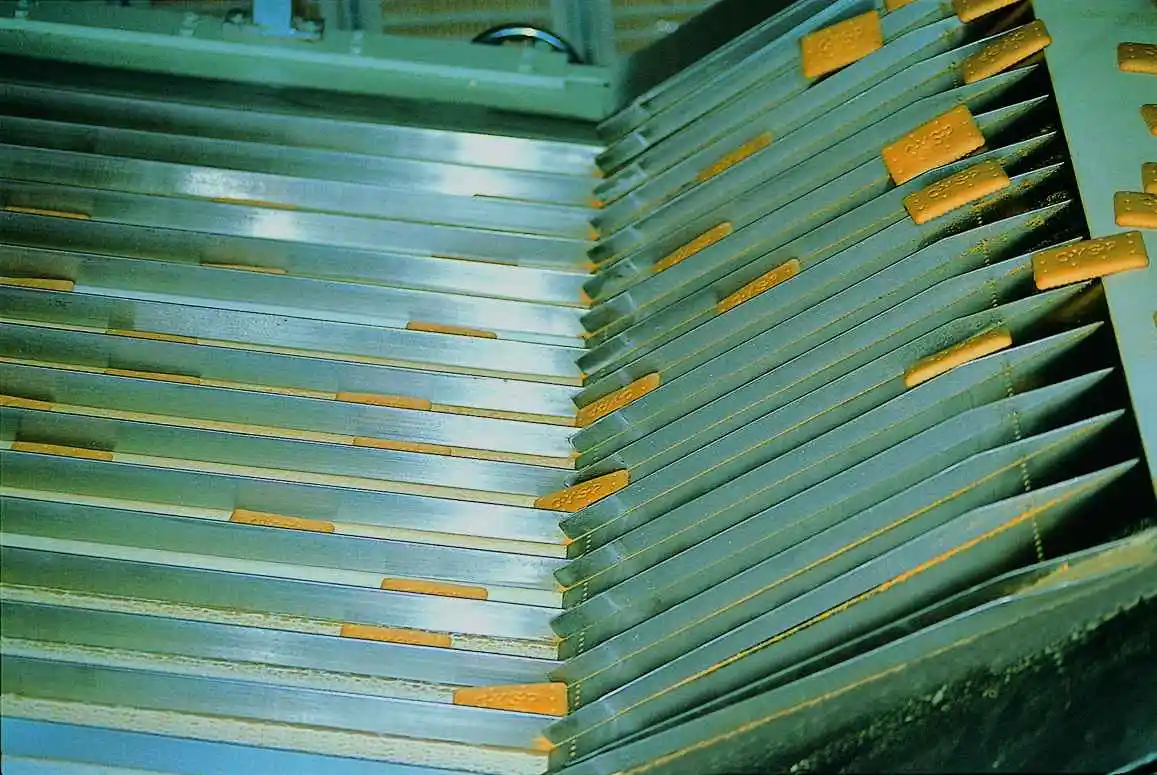

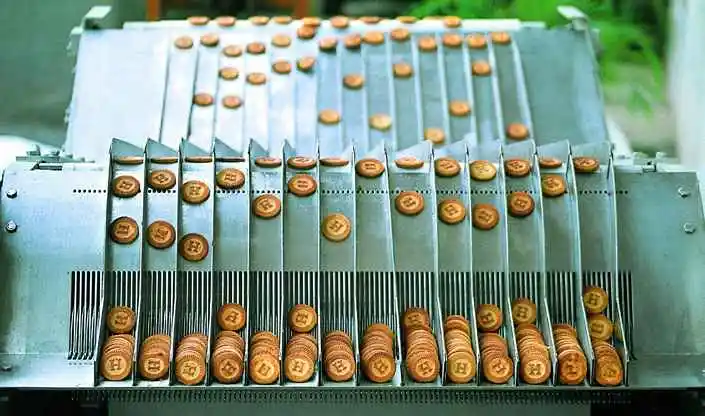

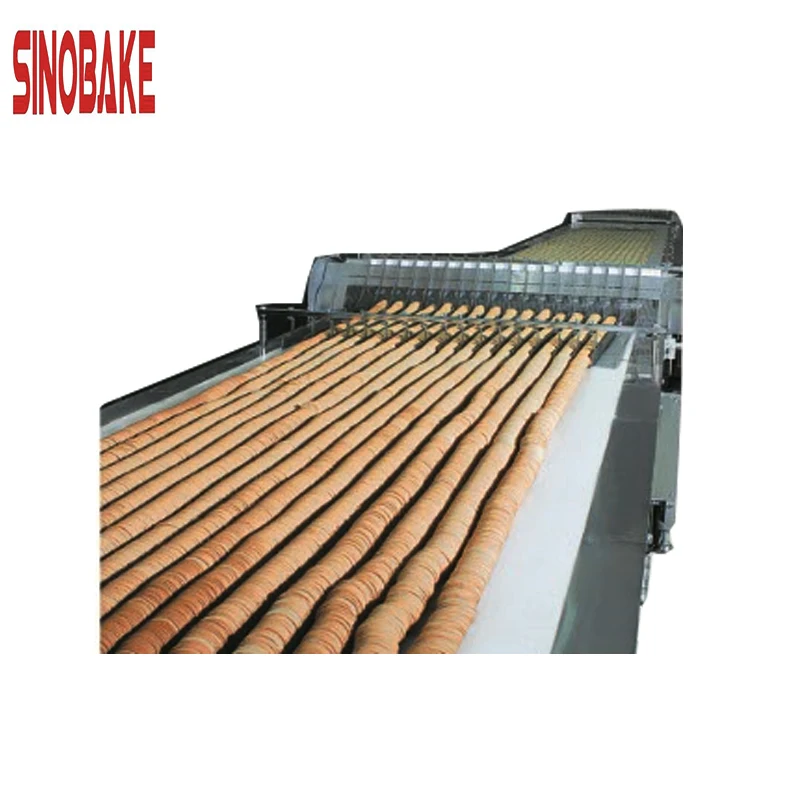

Star Wheel Stacker Machine
Star wheels stacking structure, composed by transition conveyor, divided biscuits in order rows and stacking, total two conveyor belts. Imported PU conveyor belt 1.3mm thickness, bevel wheel with high drive efficiency, low noise and work stability and so on.
SIEMENS motor, high efficiency, low noise and long using life and so on. Stacking by star wheels, stacking star whels and conveyor belt controlled by separately motor, easy to adjusted, rubber covered main drive roll. Full stainless steel one 160mm diameter steel roller for PU conveyor belt.
Star wheels stacking structure, composed by transition conveyor, divided biscuits in order rows and stacking, total two conveyor belts. Imported PU conveyor belt 1.3mm thickness, bevel wheel with high drive efficiency, low noise and work stability and so on.
SIEMENS motor, high efficiency, low noise and long using life and so on. Stacking by star wheels, stacking star whels and conveyor belt controlled by separately motor, easy to adjusted, rubber covered main drive roll. Full stainless steel one 160mm diameter steel roller for PU conveyor belt.
Our company have 2 model of Stacker for customers' choose.
One is Star wheel structure, it is composed by transition conveyor, divided biscuits in order rows and stacking, total two conveyor belts.
The other is Penny Biscuit stacker, usually it combined by 3 units of different speed conveyors, the speed from fast to slow,through discrepancy speed to make the biscuits lay down as lines, to easy transport to packaging machine.
A whole line consists of:One is Star wheel structure, it is composed by transition conveyor, divided biscuits in order rows and stacking, total two conveyor belts.
The other is Penny Biscuit stacker, usually it combined by 3 units of different speed conveyors, the speed from fast to slow,through discrepancy speed to make the biscuits lay down as lines, to easy transport to packaging machine.
1.Horizontal dough mixer 150-750kg/batch;500kg Vertical dough mixer
2.Tilting machine
3.Auto dough feeding system
4.Metal detector
5.Laminator/overlapping machine
6.Gauge rollers(standard line includes 3 sets)
7.Dough relaxing machine
8.Rotary cutter
9.Separating machine
10.Side type scrap return system
11.Sugar sprinkler
12.Enter oven machine
13.Oven drive and belt tension system
14.Oven(Gas,electric and diesel oven can be provided)
Length is depends on the capacity(capacity option:150-3000kg/h)
15.Out-oven machine
16.Oil sprayer
17.180 degree plane turning conveyor
18.Cooling conveyor
19.Star wheel stacker
20.Packing table
2020 Latest technology biscuit machine for hard biscuit, cracker biscuit, animal biscuit, number biscuit, etc
It can be customize according the customer requires. The dough can be fed from second floor or same floor.
It can be customize according the customer requires. The dough can be fed from second floor or same floor.
If you need to make soft biscuits,a dough feeding system for soft biscuit dough and rotary moulder are needed.
To make a various of tasty biscuits, you can equip your production line with salt & sugar sprinkler, egg sprayer, egg painter, printing machine etc. And oven can bake raw biscuit pieces into delicious food. You can choose different types of ovens to bake different biscuits.
To make a various of tasty biscuits, you can equip your production line with salt & sugar sprinkler, egg sprayer, egg painter, printing machine etc. And oven can bake raw biscuit pieces into delicious food. You can choose different types of ovens to bake different biscuits.
Capacity(for reference):
Working width(mm)&length of oven | Capacity(kg/h) | ||||||
400(below 15m) | below 150 | ||||||
600(below 30m) | below 500 | ||||||
1000(above 30m) | above 500 | ||||||
1200(above 30m) | above 600 | ||||||
1500(60m-81m) | 1500-3000 | ||||||
Above capacity data is only for reference. Capacity is influenced by many factors, like:recipe,baking time,baking temperature and so on.Above dates are just for reference. Pls let us know the capacity you need and your factory size to make a suitable solution for you.
Machine components:
1) AC Motors and gear box are imported brand SEW / SIEMENS
2) Industrial Bearings are Japanese brand NSK.
3) Cylinders are Korean brand YSC.
4) Electrical Units are French brand Schneider / SIEMENS.
5) Guarantee period of 12 months.
1) AC Motors and gear box are imported brand SEW / SIEMENS
2) Industrial Bearings are Japanese brand NSK.
3) Cylinders are Korean brand YSC.
4) Electrical Units are French brand Schneider / SIEMENS.
5) Guarantee period of 12 months.
biscuit making machines main characteristics:
Horizontal dough mixer: --vertical mixer, horizontal dough mixer, different mixers are provided for different dough.
Features: This type of mixer is suitable for both soft and hard biscuit dough.
We have 50,150,250,350,750kg types for your choose.
Tilting machine
Tilting machine is used to pour the dough into the hopper of the dough feeding system.
We have 500kg/time and 1000kg/time for your choose.
Dough feeding system with metal detector
Auto Dough feeding system is used for cutting the dough into small pieces and sending them to the feeding machine(overlapping machine, three roll sheeter, rotary moulder etc.). Automatic feeding.
Metal detector is fixed up on the Dough feeding system, Metal Detector is designed for checking the metal particles in the mixed dough.

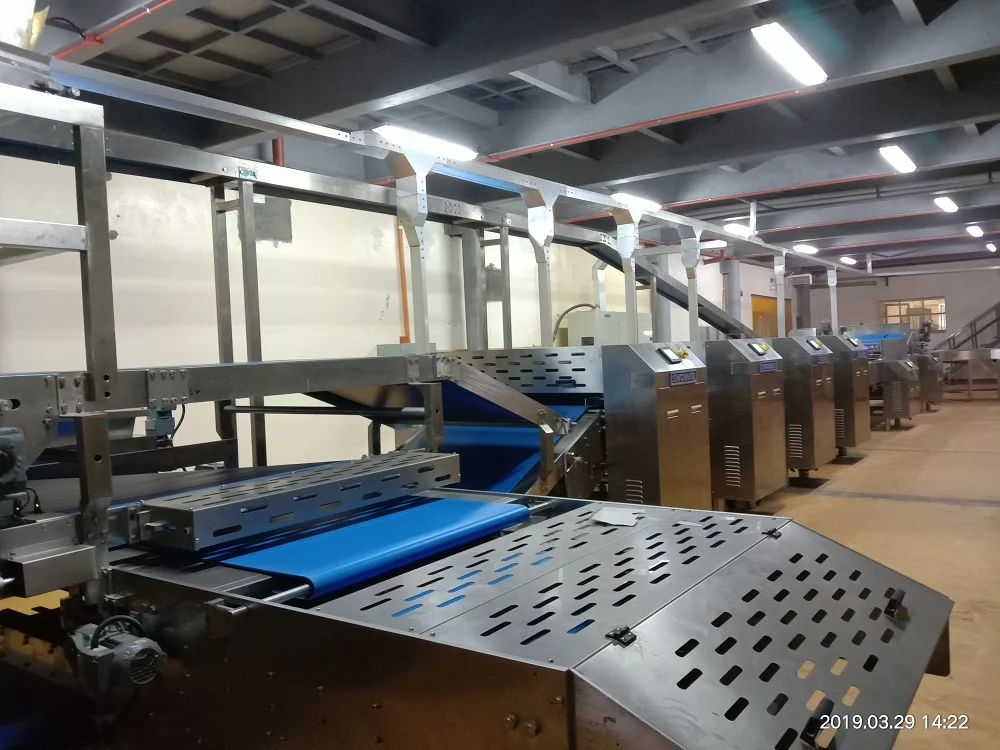

Hard and soft biscuit forming parts
We provide different solutions according to the type of dough and the space of workshop.This production line has three standard width: 1000mm,1200mm and 1500mm. Capacity: 500-3000kg/h (depend on the length of oven and different products)
For 400 and 600mm model, compact soft and hard biscuit forming machine are suggested, and the oven length is below 30m we suggest.
Oven belt drive and tension machine
mainly provide motive power to oven belt,drive the mesh belt,the mesh belt can be tensioned and offset adjusted automatically. It has functions such as mesh belt cleaning and power cut automatic UPS device. It includes oven drive and oven driven--two set of it before oven and after oven.
For steel band oven, the oven drive comes with an oil device.
Tunnel oven
Gas,electrical and diesel ovens.can be chose – depending on your products.All ovens are pre-manufactured and supplied in 3meters per section or each independent temperature zone has built up before shipment.
Out oven machine
Out oven conveyor is neccessary device to convey the baked biscuits to cooling conveyor
Cooling and stacking parts
Staright type cooling conveyor or Z type cooling conveyor, penny stacker or star wheel stacker can be choosed according to your biscuits and your factory size.
Finished products
Company Introduction
SINOBAKE (Guangdong Shunde Huaji Machinery Industrial Co.,Ltd) has been supplying biscuit machine and process technology to biscuit industry since1994.We have been export our biscuit production lines and machines all over the world for more than 100 countries.
Thanks for the well professional staffs and engineers,with their experience and know-how we can meet your requirements when supply either single biscuit machines or complete production lines and the turn-key projects.Our company operates the production and assembly in strict compliance with ISO 9001 and CE standards to provide reliable and safety products for customers all over the world.
Thanks for the well professional staffs and engineers,with their experience and know-how we can meet your requirements when supply either single biscuit machines or complete production lines and the turn-key projects.Our company operates the production and assembly in strict compliance with ISO 9001 and CE standards to provide reliable and safety products for customers all over the world.
Our Services & Strength
(1)We have more than 27 year's experience in manufacturing food processing machine.
(2)Professional technical team,Company own's research and development team ,Top quality ,Reasonable price,Timely delivery and first-class service.
(2)Professional technical team,Company own's research and development team ,Top quality ,Reasonable price,Timely delivery and first-class service.
FAQ
1.Are you manufacturer?
Yes, we are professional biscuit and cookie machinery manufacturer. We have professional engineers and manufacturing technologist to help you make a suitable solution.
2.Why SINOBAKE can do better than other factories?
Our company specialize in this industry for 27 years. Quality first is our tenet. We study Europe technology and improve our machinery. We provide the best service for all of clients. We do long-term cooperation with our clients.
3.How is the package?
We pack almost all machines with plywood,except oven.
4.How is the delivery time?
It depends on the line you purchased. Normally for whole 1000mm model soft and hard biscuit production line, the delivery time is within 120 working days. If you purchase single/stand-alone machine, we need to check if it's in stock first. Pls contact us to know the detailed time.
5.How is the installation and commissioning?
Supervision of Installation and commissioning work will be carried out by technical staff together with the technical staff from Huaji Industrial Co, Ltd ; the buyer will provide round-trip tickets, food and hotel for about 2 to 3 technical persons. The buyer will pay each technicians installation fee.
Contact us
Send inquiry, get best quotation:
Atom Lin
whatsApp/wechat/Tel:0086 137 9464 0490(24 hours online)
Email:atom@sinobake.net
Guangdong Shunde Huaji Machinery Industrial Co., Ltd
Kunzhou Industrial Zone, Beijiao, Shunde, Foshan City,
Guangdong Province, China
Kunzhou Industrial Zone, Beijiao, Shunde, Foshan City,
Guangdong Province, China
