CE сертифицированная лабораторная маленькая настольная Точная Алмазная проволочная пила для резки кристалла и
- Категория товара: Отрезной станок >>>
- Поставщик (Оптовый магазин): Zhengzhou,Tainuo,Film,Materials,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Introduction of diamond wire saw
TX-202 s a CE certified, small precision diamond we saw for cutting sample ≤ 2" diameter or square up
to 50mm in thickness. It is designed to provide a smooth cutting for many kinds of materials, especially for
fragile crystals and TEM or IC sample by using 0.28mm diameter x 15-meter long diamond impregnated wire.
It is an ideal cutting tool for material research, TEM sample preparation, and IC failure analysis.
Technical parameters of diamond wire saw
Power | Wire Saw Control Consol: Universal 110V or 240VAC 50/60Hz, 200W max. |
Structure | Heavy-duty aluminum alloy structure with compact size automatically controlled Y axis by the digital panel single wire swing cutting with adjustable wire length from 5-15mm (broken wire still can be used) Transparent plastic plates are included to prevent Coolant splashing Add an oil refill cup behind the forming tube (New design), please apply 10-15 drops Anti-Wear Oil before first-time use. Wire spooler motor, 3 Amps, Torque=1.8Nm |
Sample stage | Z axis: 50mm, automatically controlled by digital panel Y axis: 50mm, automatically controlled by digital panel Two dimension sample stage built in 360° degree horizontal rotating and +/-10° tilting |
Cutting parameters | Feed Speed: 0.01 mm/min to 40 mm/min adjustable Back Speed: 1 mm/min to 100 mm/min adjustable Spooler spin speed: 1-260 RPM adjustable Cutting depth: 0.1 - 50mm Positional accuracy: +/- 0.01 mm |
Controller & Touch Screen | Color touch screen controller will set up wire travel speed, cutting speed along Z axis and cutting width along Y axis |
Diamond wire | ≤ 15 meters used for each installation |
Wire tension system | Steel spring wire tension system with break wire alarm |
Pneumatic tension system (optional) | The wire saw can be upgraded with the pneumatic tension system. Because cutting wires with different diameters have different tension requirement for optimizing the cutting performance. With the pneumatic tensions system, the wire saw can handle different cutting wires from 0.1mm - 0.5mm dia. An air compressor is required. Please contact us for detail information. |
| One water pump is included for cooling diamond wire during cutting. You must use anti-corrosive oil or radiator water as coolant ( buy from any auto store ) Warning: must clean the machine after each cutting, especially using tap water as the coolant to prevent rust. |
Product dimensions | Saw: 414mm(L) × 500mm(W) × 750mm(H) Controller: 340mm(L) x 290mm(W) x 170mm(H) |
Crate dimensions | 27"(L) x 23"W) x 40" (H) |
Shipping Weight | 188 lbs with 48x40x44" |
Warranty | One year limited with lifetime support, not including cutting wire |

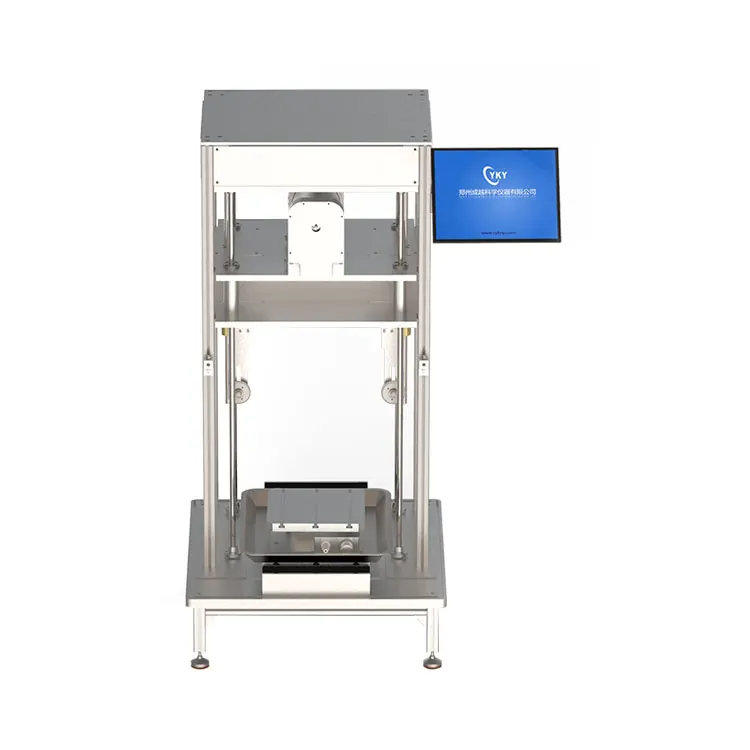

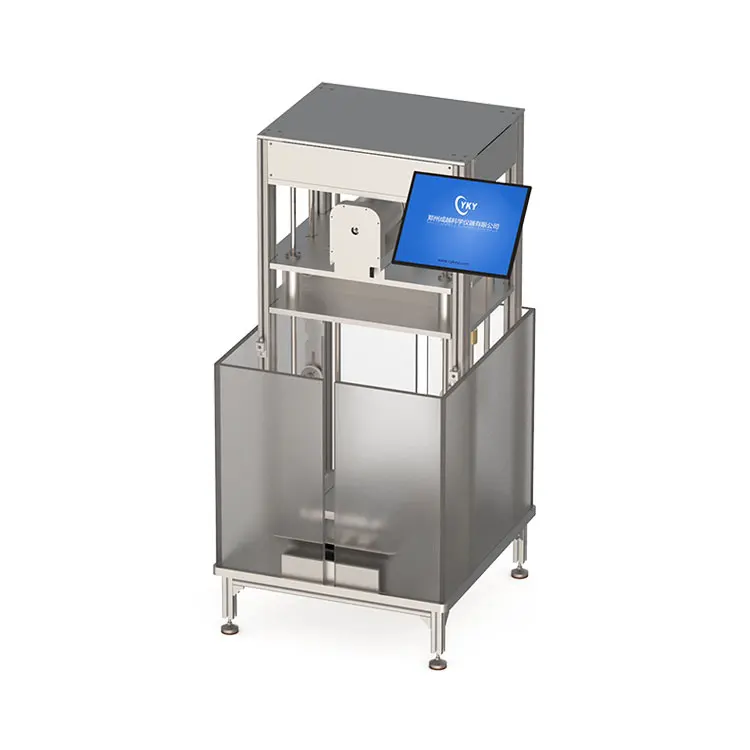

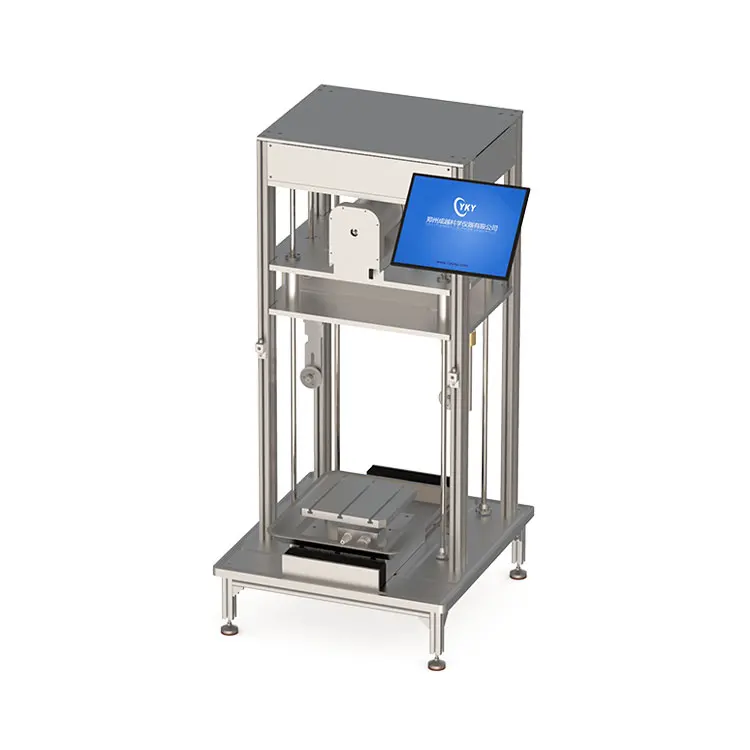

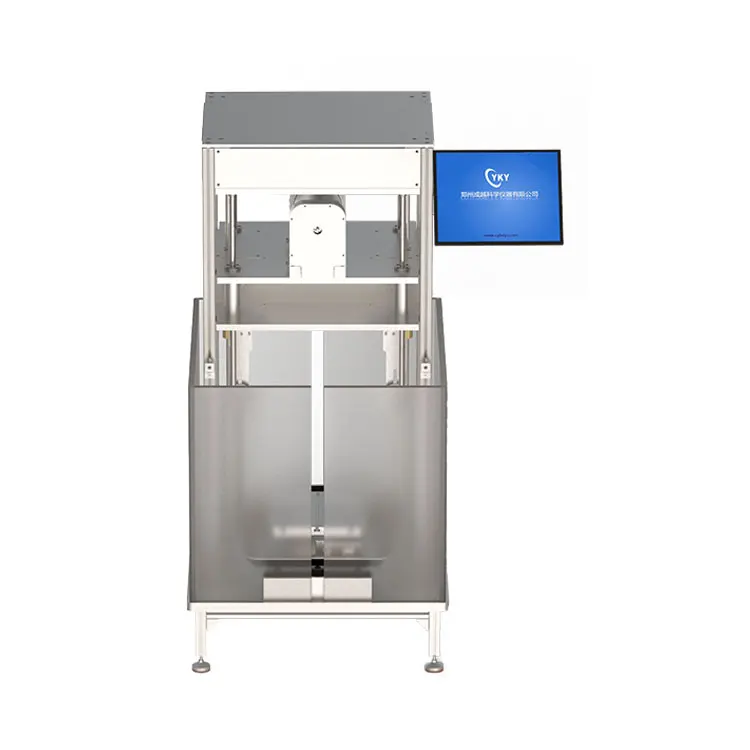

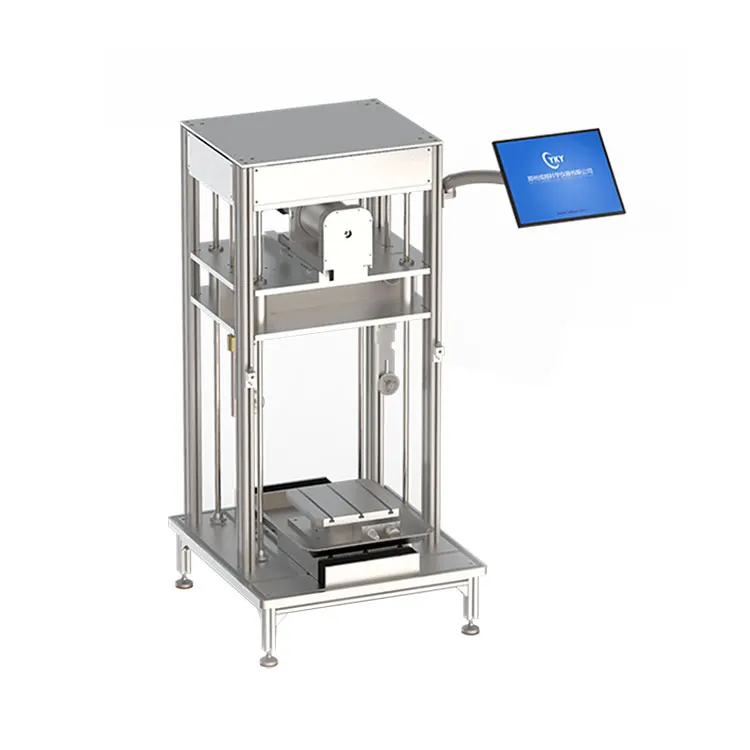

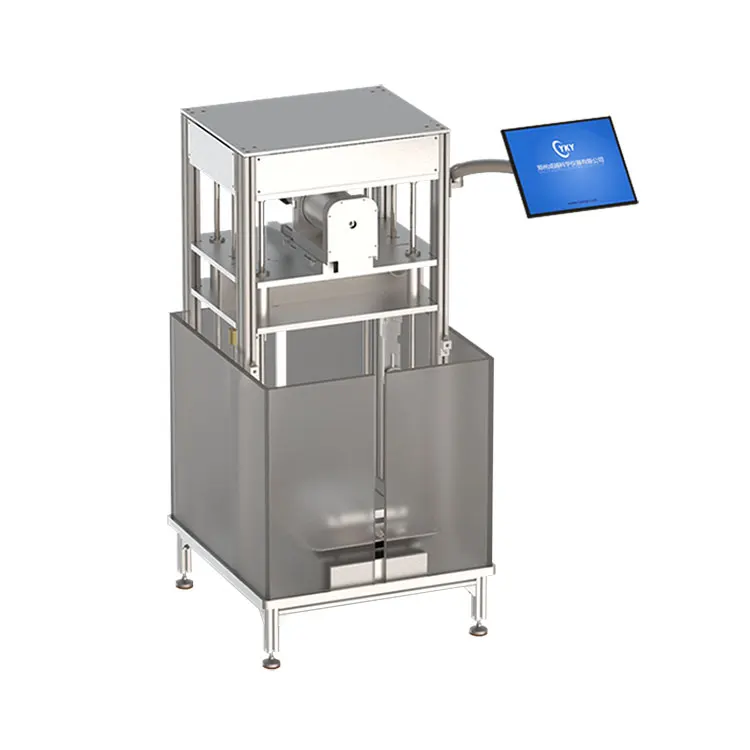

More photos of diamond wire saw
online service
Company Introduction
Founded in 2005, Zhengzhou Tainuo Film Materials Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
Package
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
More questions, please contact customer service
