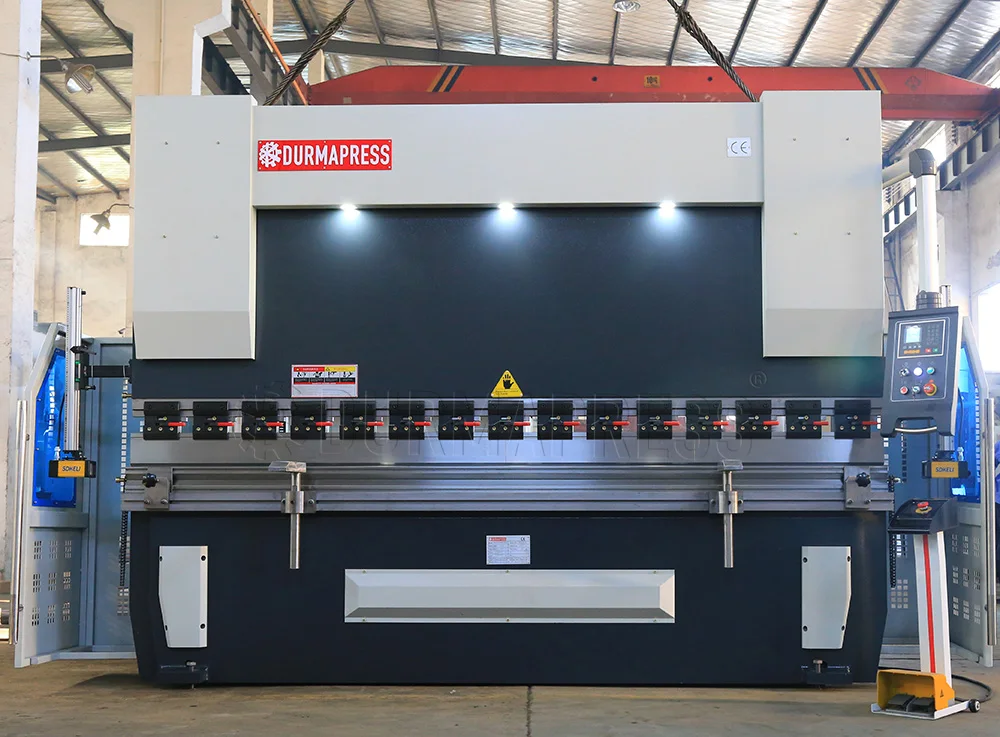

Китай (материк) металлическая пластина гибочная машина/Cnc металлическая пластина обработки пресс листогибочный WC67K-100T2500
- Категория товара: Оборудование для обработки металлических листов >>>
- Поставщик (Оптовый магазин): Maanshan,Durmapress,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Standard Equipment :
• Total steel welded structure and stress elimination by vibration
• High mechanical strength and strong rigidity
• Ram stroke hydraulic approaching downward,stable and reliable
• E21 can control the movement of ram stroke and backgauge,achieving efficient and highly precise positioning
• Wedge compensation on top punch clamping
• Simplified top blades clamping with micro-adjustment wedges,for easy operation and high precision
• 2 Sliding front sheet support arms mounted onto T slot of the bed
• Segmented 88° top blade
• Solid one block four face multi V die
• Approved stable and reliable hydraulics
• Stop fingers with milscale for plate bending machine
• High mechanical strength and strong rigidity
• Ram stroke hydraulic approaching downward,stable and reliable
• E21 can control the movement of ram stroke and backgauge,achieving efficient and highly precise positioning
• Wedge compensation on top punch clamping
• Simplified top blades clamping with micro-adjustment wedges,for easy operation and high precision
• 2 Sliding front sheet support arms mounted onto T slot of the bed
• Segmented 88° top blade
• Solid one block four face multi V die
• Approved stable and reliable hydraulics
• Stop fingers with milscale for plate bending machine
SPECIFICATIONS FOR WC67K 100T 3200MM | ||||||
Normal Pressure | 1000 | MM | ||||
Worktable Length | 3200 | MM | ||||
Distance between holes | 2600 | MM | ||||
Depth of throat | 350 | MM | ||||
Ram travel | 150 | MM | ||||
400Max opening height | 400 | MM | ||||
Main power | 7.5 | KW | ||||
Overall Dimension | 3740*1650*2355 | MM | ||||
• The whole EU streamlined design, heat treatment rack, high rigidity worktable, optional mechanical compensation device, to achieve precision bending.
• Hydraulic synchronous control and Estun NC programmable logic controller ensure accurate repeatability and ease use.
• Integrated hydraulic system (Bosch Rexroth Germany) allows automatically switch to slow bends in a quick way.
• X axis and Y axis realize accurate positioning function by frequency converter through NC E21 system programming control.
• Cutting-edge frequency response hydraulic control technology, more stable machine tools, more reliable operation.
• The best ratio of parameters, optimal core configuration ensure stable performance, more convenient operation.
• WC67K standard single-axis back gauge system and single-axis bending angle system, you can choose to add the V-axis
compensation function, and select the appropriate mold to bend complex shape workpieces easily.
• Hydraulic synchronous control and Estun NC programmable logic controller ensure accurate repeatability and ease use.
• Integrated hydraulic system (Bosch Rexroth Germany) allows automatically switch to slow bends in a quick way.
• X axis and Y axis realize accurate positioning function by frequency converter through NC E21 system programming control.
• Cutting-edge frequency response hydraulic control technology, more stable machine tools, more reliable operation.
• The best ratio of parameters, optimal core configuration ensure stable performance, more convenient operation.
• WC67K standard single-axis back gauge system and single-axis bending angle system, you can choose to add the V-axis
compensation function, and select the appropriate mold to bend complex shape workpieces easily.
Details Images
American Sunny Oil Pump
Using Sunny Pump from USA guarantee the machine service life,and reduce the noise
when working.
when working.

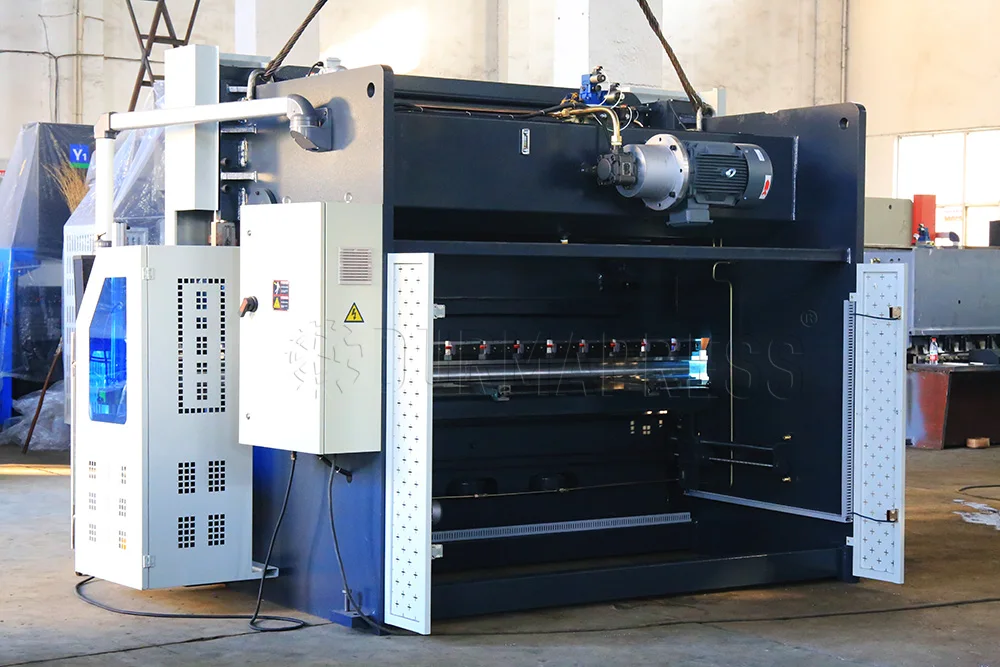

Motor
Using Germany Siemens Brand motor guarantees the machine service life, and reduce the machine noise when working.
Electrical
Stable France Schneider electrics TAIWAN DELTA frequency converter to prevent X-axis swinging when postioning

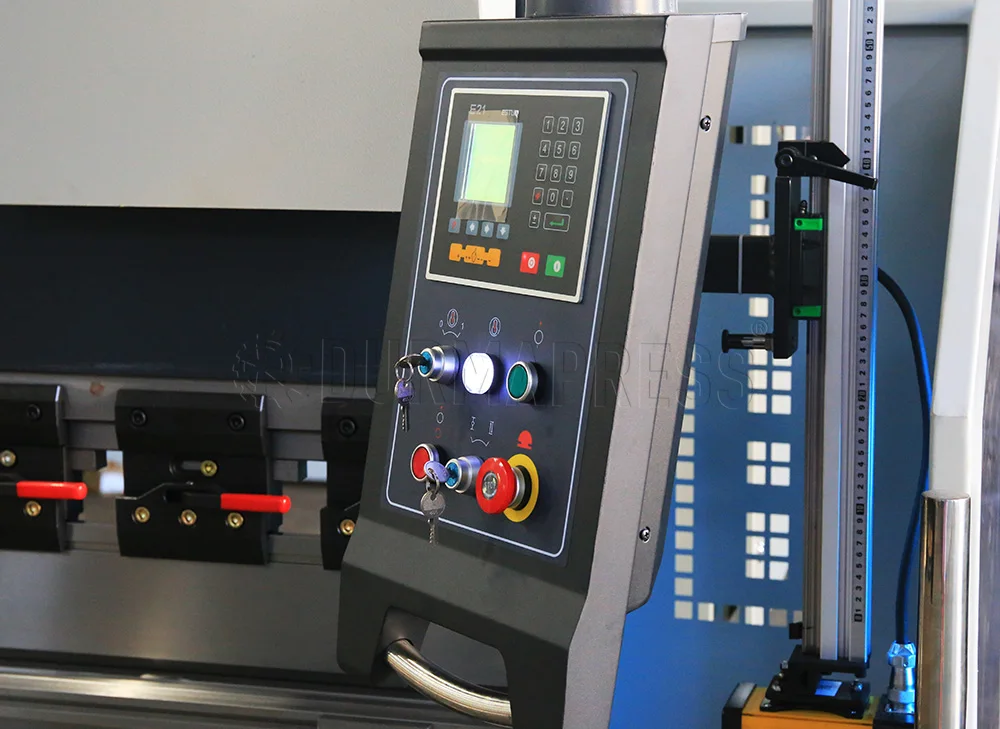

ESTUN E21S Controller
• Backgauge and block control • Stock counter
• Control for general AC motors • Frenquency inverter
• Intelligent positioning • Retract function
• Up to 25 steps per program • One side positioning
• mm /Inch • Chinese / English
• Holding / decompression time setting
• Program memory of up to 40 program
• One key backup / restore of parameters
• Control for general AC motors • Frenquency inverter
• Intelligent positioning • Retract function
• Up to 25 steps per program • One side positioning
• mm /Inch • Chinese / English
• Holding / decompression time setting
• Program memory of up to 40 program
• One key backup / restore of parameters
Ball Screw
Equipped with Taiwan Hiwin Ball Screw and polished rod sturcture , backgauge adpots horizontal installation shell sturcture with
high stability, single shell double guide rail, high precision.
high stability, single shell double guide rail, high precision.
Pedal Switch
South Korea Kacon pedal switch, enhancing the service life and operational sensitivity.

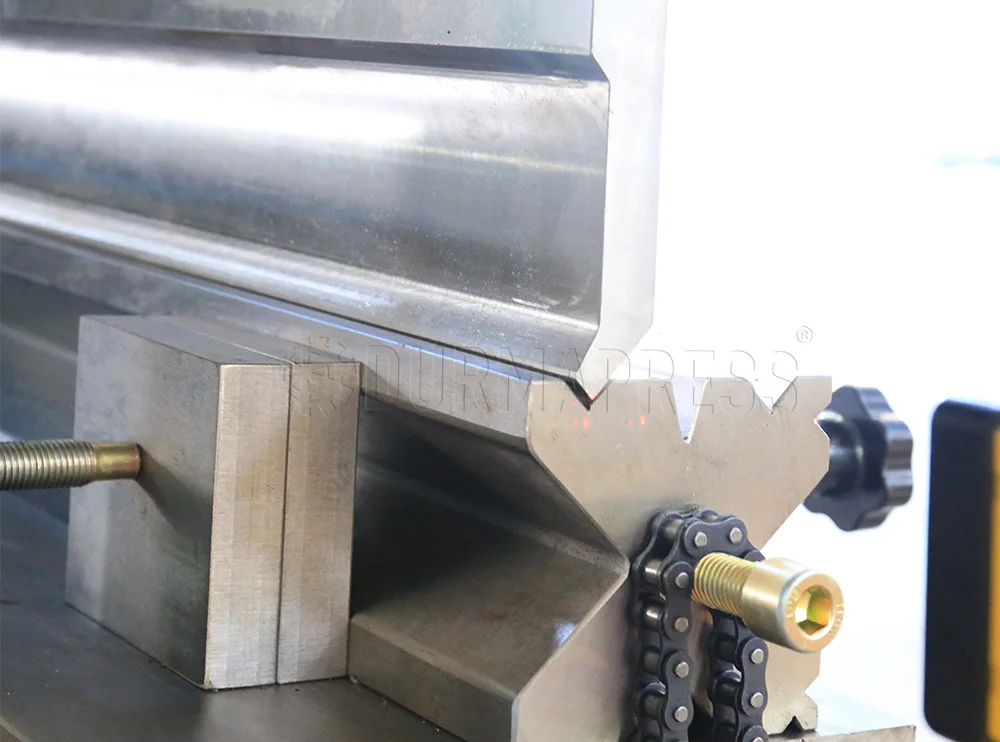

Upper and lower die
Standard multi-V lower dies, varying V-groove sharp and outline size are available ，convenient for exchanging dies, capable for
bending regular plates, with high cost performance.
bending regular plates, with high cost performance.

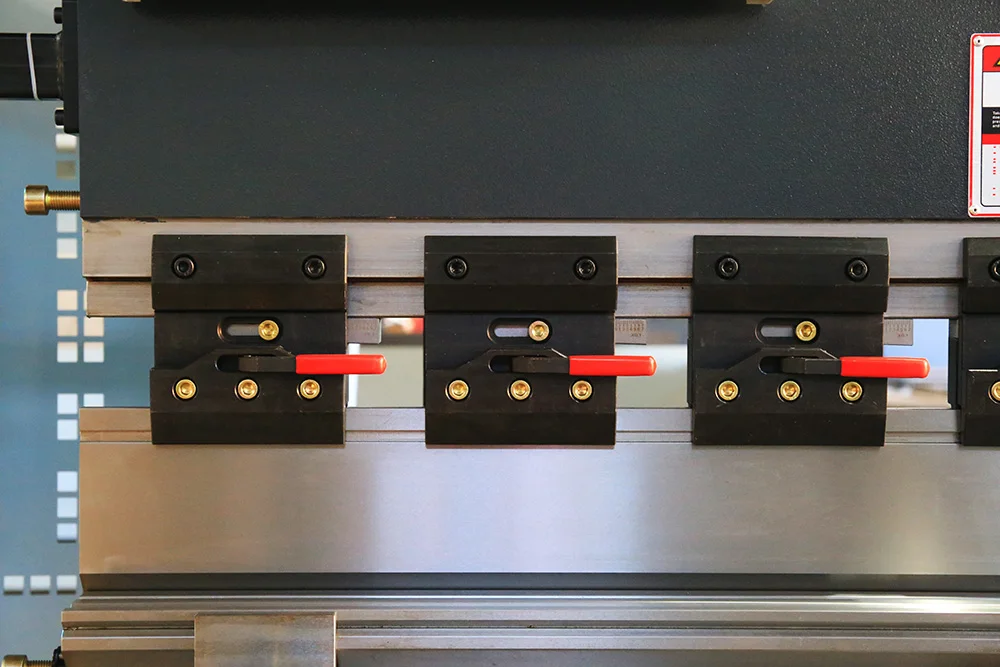

Mechanical hook Clampings
Upper die is a kind of mechanical hook-type
clampings, higher safety when exchanging dies.
clampings, higher safety when exchanging dies.
Optional Configuration
Company Profile
*Founded in 2006,Maanshan Durmapress CNC Machinery Co.,Ltd is located in the Maanshan city ,Dangtu County,close to Nanjing Airport.Our geographical position is superior and the transportation is very convenient. Our company covers an area of 160 acres with the registered capital of 32,000,000 Yuan. We have more than 320 employees, including all types of engineering and technical personnel, serving the company R&D, production, and customers' service. At the same time, we have our own sales companies in each major and medium city.
*Our company has established a perfect marketing service system. Our main products include RAS guillotine shears QC12Y, QC12K series of hydraulic, CNC shearing machine, ZYS series of electro-hydraulic servo CNC shearing machine, WC67Y, WC67K series of hydraulic, CNC bending machine, ZYB series of electro-hydraulic servo CNC bending machine, punching machine, bending machine, single column hydraulic machine, four hydraulic machine. Our products are widely used in decoration, metallurgy, ship, automobile, machinery, steel structure and other specialized areas of production. With exquisite design, reasonable price, excellent quality, efficient after-sales service and technical support by domestic and foreign customers, our products sell well in domestic more than 20 provinces and are exported to Europe, America, South America, Africa, Southeast Asia and the Middle East and other 40 countries and regions.
Certifications
Packing & Shipping
FAQ
Q.What is the payment term?
A:– T/T (30% advance payment, and 70% balance paid one week before shipment)
– L/C (100% L/C at sight), this should be negotiated first.
A:– T/T (30% advance payment, and 70% balance paid one week before shipment)
– L/C (100% L/C at sight), this should be negotiated first.
Q.How about the machine warranty?
A:We can offer 3 years warranty for the following parts :
--Hydraulic System with pump and Valve
--Hydraulic Cylinders
--Electric units
--Hydraulic Cylinders
--Gasket Ring( We will send you extra with the machine also )
--Tube Connector
--Control Button
--Limit Switch
--Controller
During the warranty period we provide any accessories for free.
A:We can offer 3 years warranty for the following parts :
--Hydraulic System with pump and Valve
--Hydraulic Cylinders
--Electric units
--Hydraulic Cylinders
--Gasket Ring( We will send you extra with the machine also )
--Tube Connector
--Control Button
--Limit Switch
--Controller
During the warranty period we provide any accessories for free.
Q.How to confirm the Machine Model?
A:You can tell us the material ,max thickness and width of your plate.We will recommend the suitable model to you .
A:You can tell us the material ,max thickness and width of your plate.We will recommend the suitable model to you .
