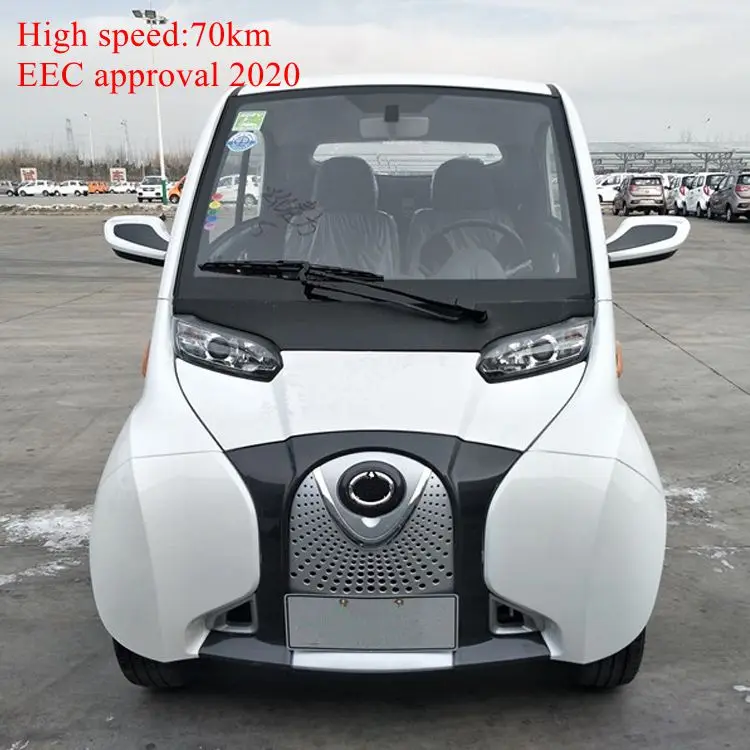

Specification of high speed version(Lithium battery):
EEC approval in 2020
Specifications
A01(EEC)lithium version
Dimensions:
2250*1400*1642mm
Wheelbase:
1560mm
Trackbase:
1126mm/1146mm
Rated passengers:
2 persons
Curbweight:
600kgs
Min.ground clearance:
150mm
Body structure:
Self supporting body
Suspended system:
Front: MacPhersan type Independent suspension
Rear:Semi drag rocker arm Independent suspension
Brake system:
Front disc/ rear drum
Parking brake:
Mechanical cable type
Tire size(mm):
162/55 R12
Battery(V/ah):
9.22kw/h lithium battery group
Charging time :
6hours
Motor control type:
73V 7.5kw AC Motor
Max.speed:
70km(real speed)
Max.cruising range:
120km
Min.turning radius:
≤4.5m
Grand ability:
≥12º (20%)
Qty/40' container:
8 units
Configuration:
Air condition, Power windows, Central lock, Remote key, power brake,ABS, power steering, Aluminum-wheel, 7" display screen with reverse camera, Radio and blue-tooth, Anti-slip slope, EU STANDARD CHARGING PORT AND CHARGING GUN
