Wall internal wire detecting instrument

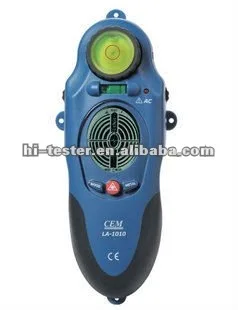

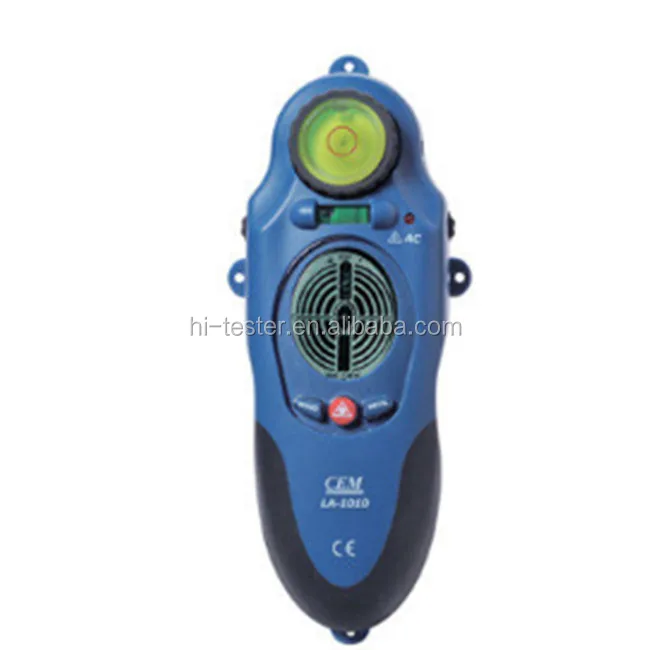

Within reach.if multifunctional detection LA-1010 Is a section use electronic signal through the wall to locate metal, wood and wire position of the instrument.Once detect such objects, LCD screen will display the nail edge and position, and at the same time will be issued voice prompt.

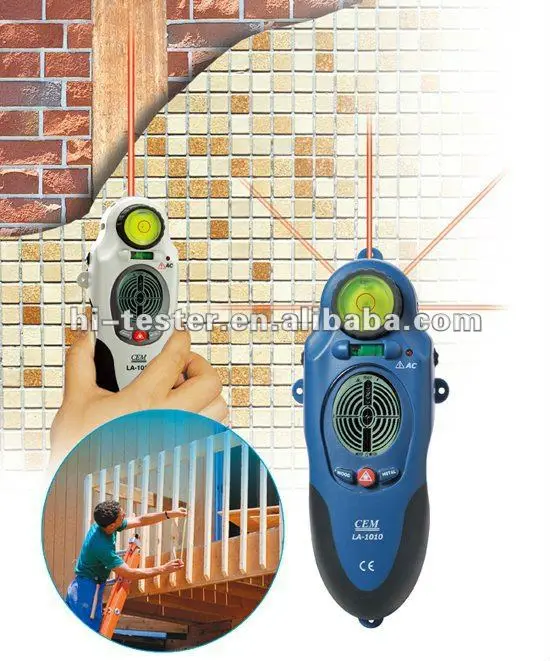

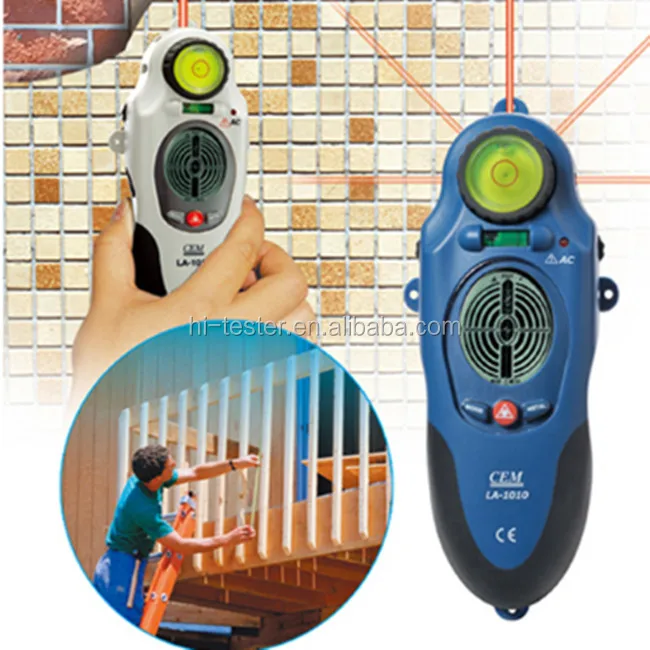

The laser level positioning function can emit vertical, horizontal or 45 ° of the laser beam for decoration construction lofting and calibration provides precise horizontal or vertical datum. Can be widely applicable to home wall pinhole, decorate, building construction, etc |
LA-1010 Feature 1. Laser positioning, horizontal and vertical mounting hole
2. Detection far 0.75 "(1.9 cm); deep 1.5" (3.8 cm)
3. Can detect wood/metal/ac voltage
4. Adjustable laser level positioning
5. Horizontal and vertical mounting hole
6. LCD induction and display detected high density objects
7. LED prompt detect voltage

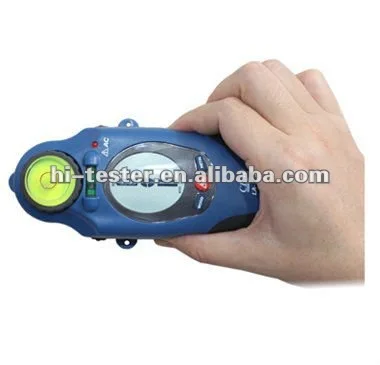

8. Shape design hand comfortable portable |
Measurement preparation:
In the detection before, please point machine by detection area, light according to the test button and the machine a voice talking after the normal work of the said. According to the key selection WOOD WOOD measurement mode or METAL key select METAL measurement model. Pressand hold test button not to put, mobile instrument in the test area was scanned, until it had scanned the work is completed, the last release button.
Measuring wood:
1. According to the key selection WOOD WOOD measurement model. Then level in the measured object surface once-over. Inventory from the object to be tested more close, and measure the more, as shown in figure one shows. When testing the nail edge, indicator and edge things will be on the LCD screen reflected, as shown in figure 2 shows, at the same time inventory will bleep.
2. Mark good nail edge.
3. To continue browsing measured object surface, until the indicator automatically shut off, inventory beep stop, show that already detected the analyte the end.
4. From beginning to end up shifting measurement, again confirmed nail position, and do the marking.
5. With the neutral position is the center of the nail.
Metal detection:
1. Press the METAL detection key METAL, LCD screen will appear ON the corresponding display, and then hold down "ON" key not to put, can detect.
2. Repeat "wood detection of 1 ~ 5 steps |   |
| Wire detection:
Wire detection is opened when the screen will show "burn" icon. Detect the wire, the red wire indicator will automatically open. Dry wall or other surface will give a static existence, to prevent electrostatic interference, please in 0.5 inches (1.3 cm) far place live wire testing, or put your hands on your distance measuring point 12 inches (30.5 cm) place to absorb electrostatic.
Warning: The gauge can't measure shielded wire, iron pipe in the wire, With metal processed wall body, thick wall of the wire.
|
PRODUCT TECHNICAL SPECIFICATION |
Specifications: Can detect wood, metal, ac voltage wire, etc.;
Detection nail/wooden accuracy 1/8 detection accuracy of metal1/4;
Detection distance 0.75 "(1.9 cm);deepness 1.5"(About 3.8cm);
With laser positioning, horizontal and vertical mounting hole function;
Suggestions in relative humidity for 33 to 55% of the environment use;
Laser diode: 650 nm level IIA
Laser accuracy: 1/2 "20 feet
Laser beam injection length: up to 20 feet (about six meters)
Working battery: 9 v
Operating environment: - 7 ~ 49 °C
Storage environment:-29~66°C
Size:180*67*38 mm
Weight:180g |  |
| | Safety remind: To avoid injury, please strictly abide by the following warning:

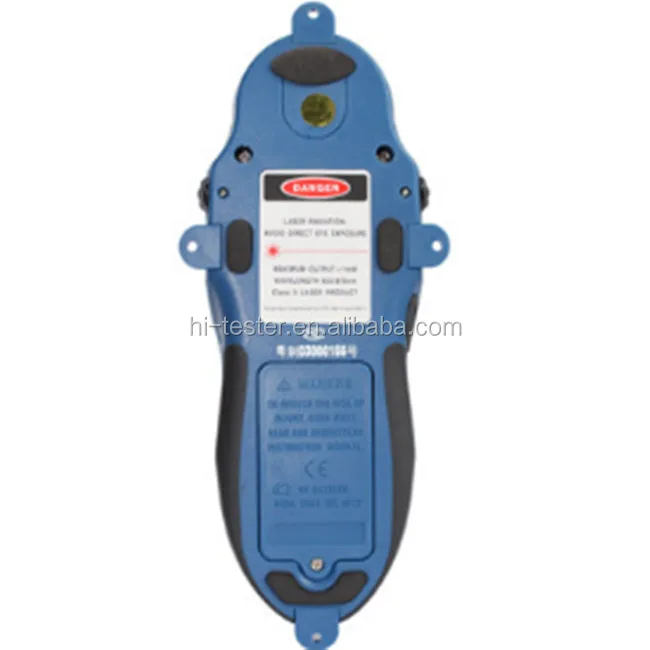

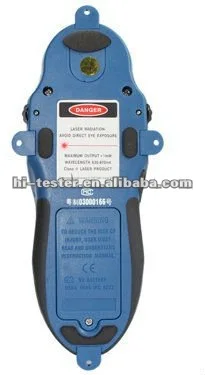

Before use, please read the instructions carefully, do not take down this gauge on any tag. This gauge from the laser beam is straight line, please be careful of the laser beam reflection, don't let your laser beam alignment eyes. |
Operation remind: 1. The working principle: by using different materials of different density and induction issued a warning;
2. WOOD or METAL detection please put the machine set in WOOD or METAL mode;
3.in the wall/ceiling or floor on a nail, chiseling or drilling please be careful, wall/ceiling or floor surface may have wire or pipe, before construction please confirm this instrument detection depth whether meet the requirements.
4. Traditional architecture in order to solid doors and Windows, general will use extra nails and wedges are strengthened. To detect these things, test table also can appear the corresponding signal, and bleep.
5. The table can't testing shielding, no current and power switch no open wire. Normally nails and beam have 16 or 24 inches of interval, the height difference of only 1 ~ 1/2 inches. If you detect things dense or width is different, is most likely a extra nail, beam or fire prevention channel.
6. If the wall surface is wall paper or fiber content, the meter can be normal measurement. But if the wall surface cover sheet metal or fiber, cannot measurement. |  |

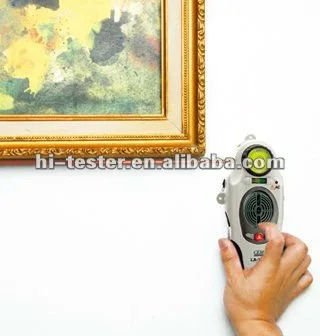

This wall detector can be widely applicable to home wall pinhole, shop decoration, construction and other places of wood/metal/wire and ac voltage test. |
