Адаптер для светодиодной ленты, трансформатор переменного тока на 12 В, 12 В постоянного тока, 3 А, 110 В, 220 В, 220 В в 12 В постоянного тока
- Категория товара: LED Driver >>>
- Поставщик (Оптовый магазин): Shenzhen,Star,Sources,Lighting,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
LED Power Supply Product Description :
DC 12V 1A / 2A / 3A / 5A /6A/ 8.3A / 10A / 12.5A/15A / 16.7A/20A/30A/40A/50A Switch Power Supply Adapter
Power:12W/24W/36W/60W//72W/100W/120W/150W/180W/200W/240W/360W/480W/600W
Input Voltage: AC100V-265V
Output Voltage: DC 12V
Output Current: 1A~50A
Shell Material: Metal case / Aluminum case
Safety Compliance: FCC / CE /Rohs
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
Working Temperature: 0~40C
Storage Temperature: -20~60C
Ambient Humidity: 0~95% Non-Condensation
LED Power Supply Features
| Item Number | S-3A-12V |
| Power | 36W |
| Input | 100-240Vac 50-60Hz Universal |
| Output | DC 12V 3A |
| Dimension | 110*80*36MM |
| DC Adjustable Range | ±10% rated output voltage |
| Weight | 120g |
| Warranty | 2 years |
| Shell Material | Aluminum |
| Certificates | CE FCC RoHS |
| Protection | Short Circuit Overload Overvolt Overtemp |
| Setup, Rise, Hold up time | 200ms, 50ms, 20ms |
| Working Temperture | -10°C~60°C, 20%~90RH |
| Packing Information | 1pc white box , 120pcs in a carton, carton size:54*26*43cm |
Please Noted: This Power Supply Unit haven't included installation instruction, wiring cable, on/off switch, or screws.
(3.2A Weight:220G Size:L110 x W78 x D36 mm)
(5A Weight:368G Size:L159 x W98 x D42 mm)
(10A Weight:368G Size::L159 x W98 x D42 mm)
(15A Weight:590G Size:L198 x W98 x D43 mm)
(20A Weight:808G Size:L198 x W109 x D50 mm)
(30A Weight:900G Size:L214 x W113 x D50 mm)
About Calculate Method:
If Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max LED Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this listing)÷12W/m=2m,
So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m
LED Power Supply Typical Applications
LED Modules, LED Pixel modules, LED strips
Security surveillance industry
Other industrial applications

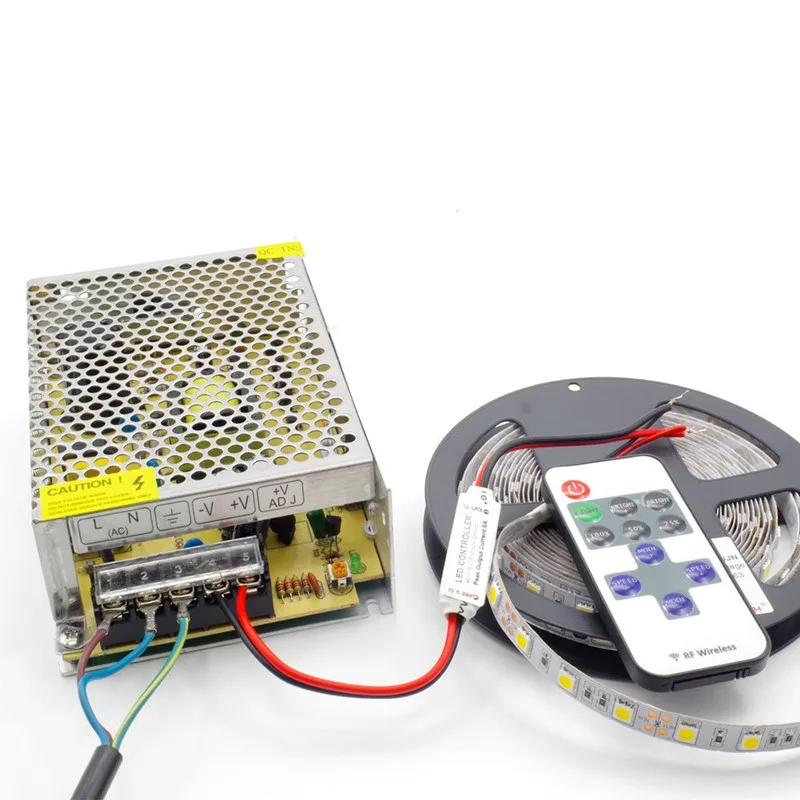

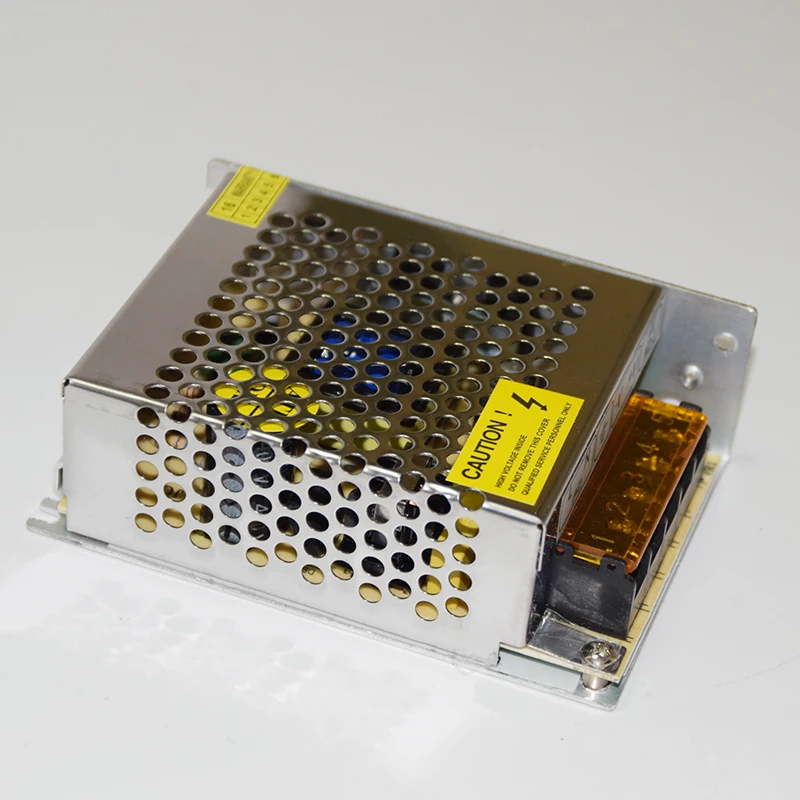

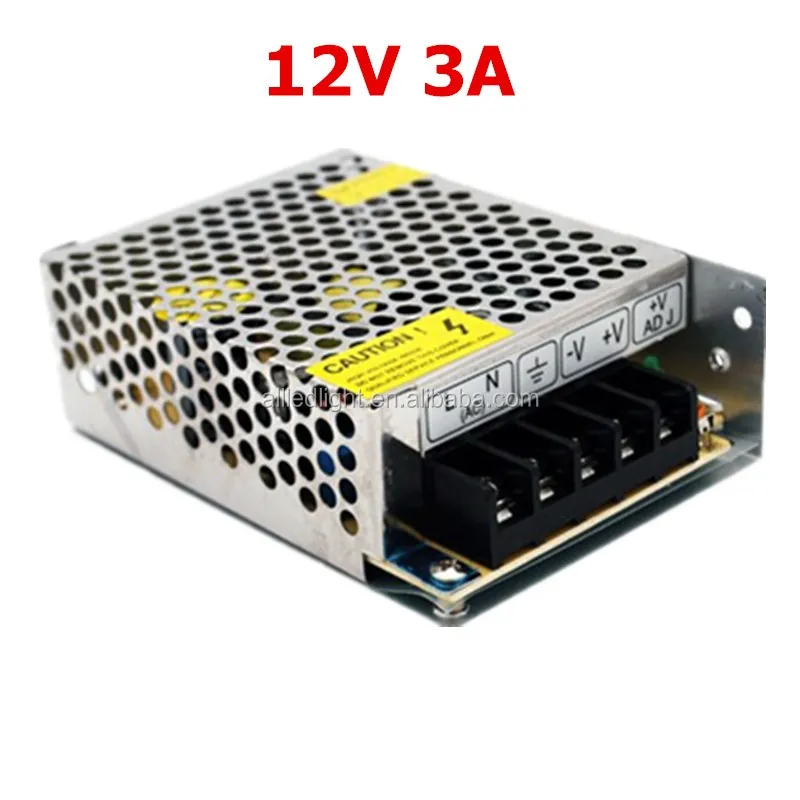

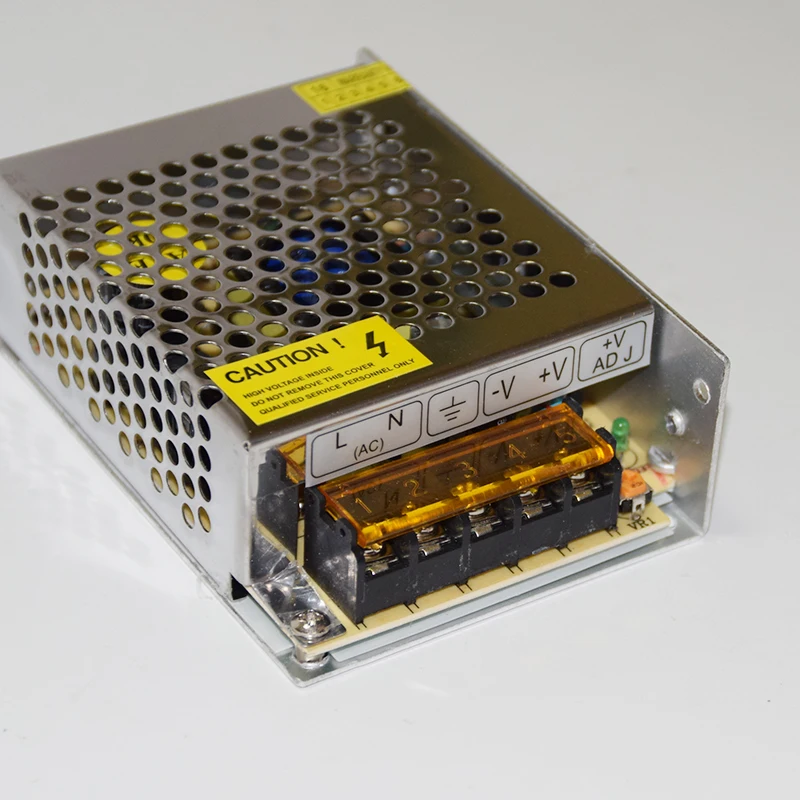

LED Power Supply Photos:
