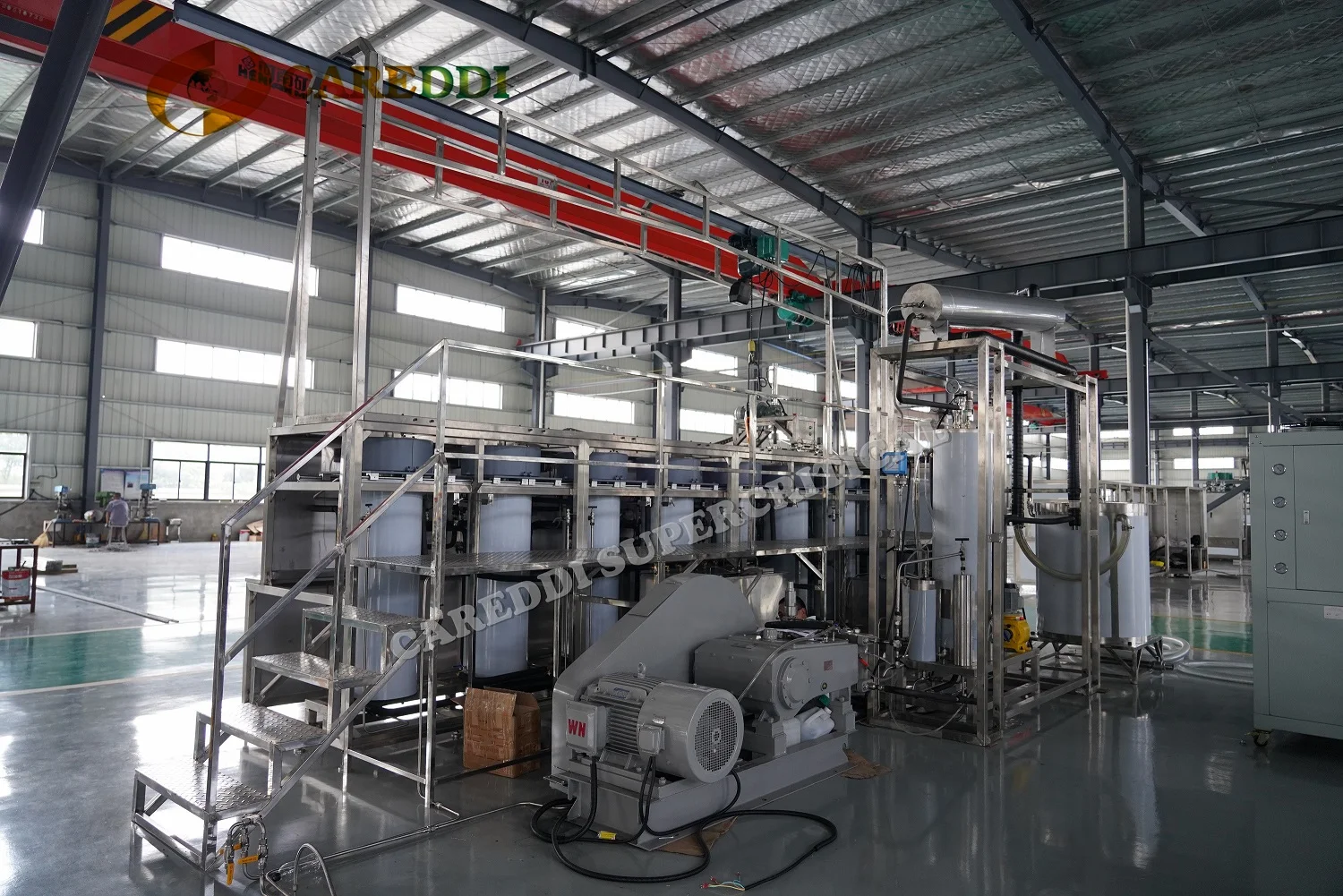

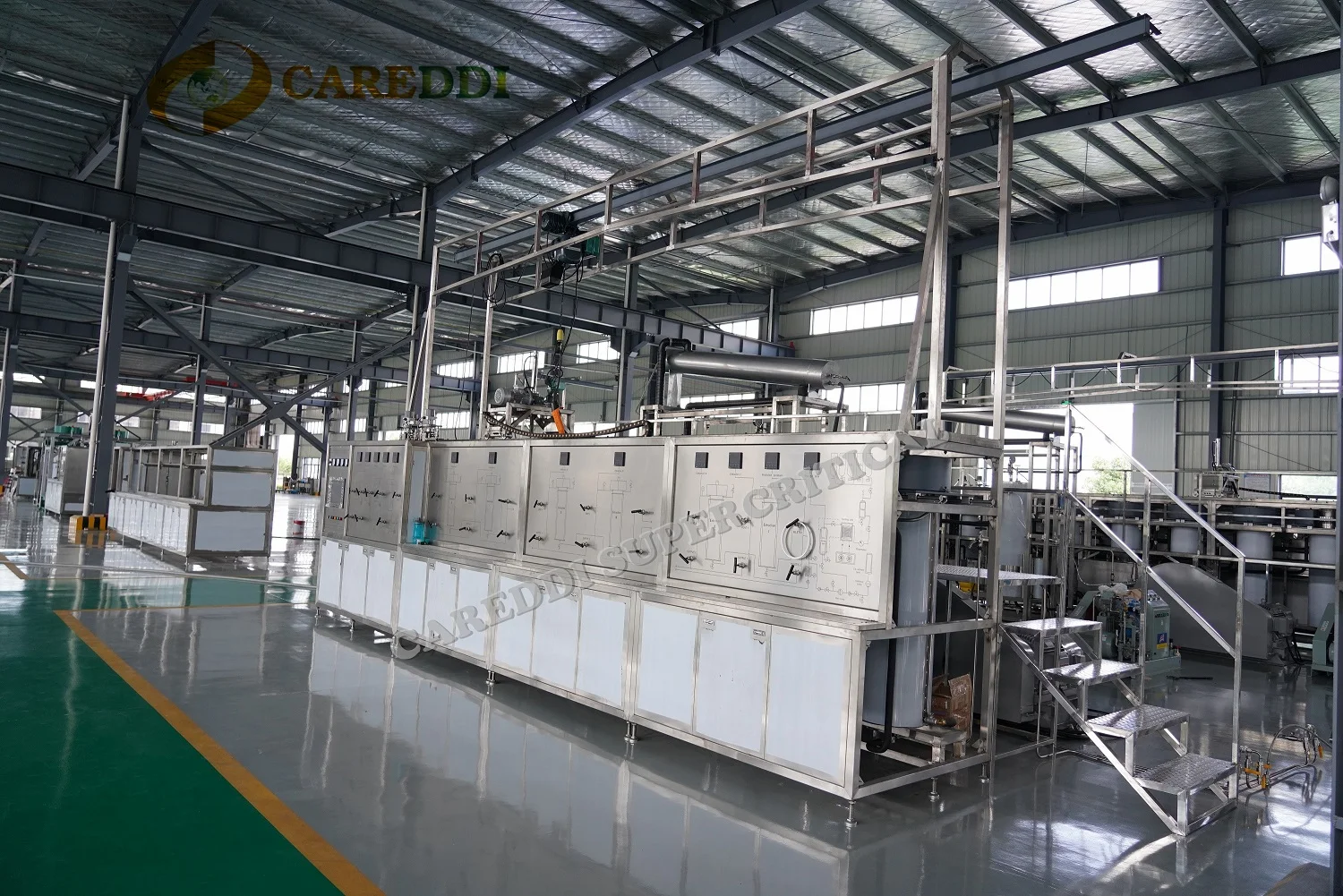

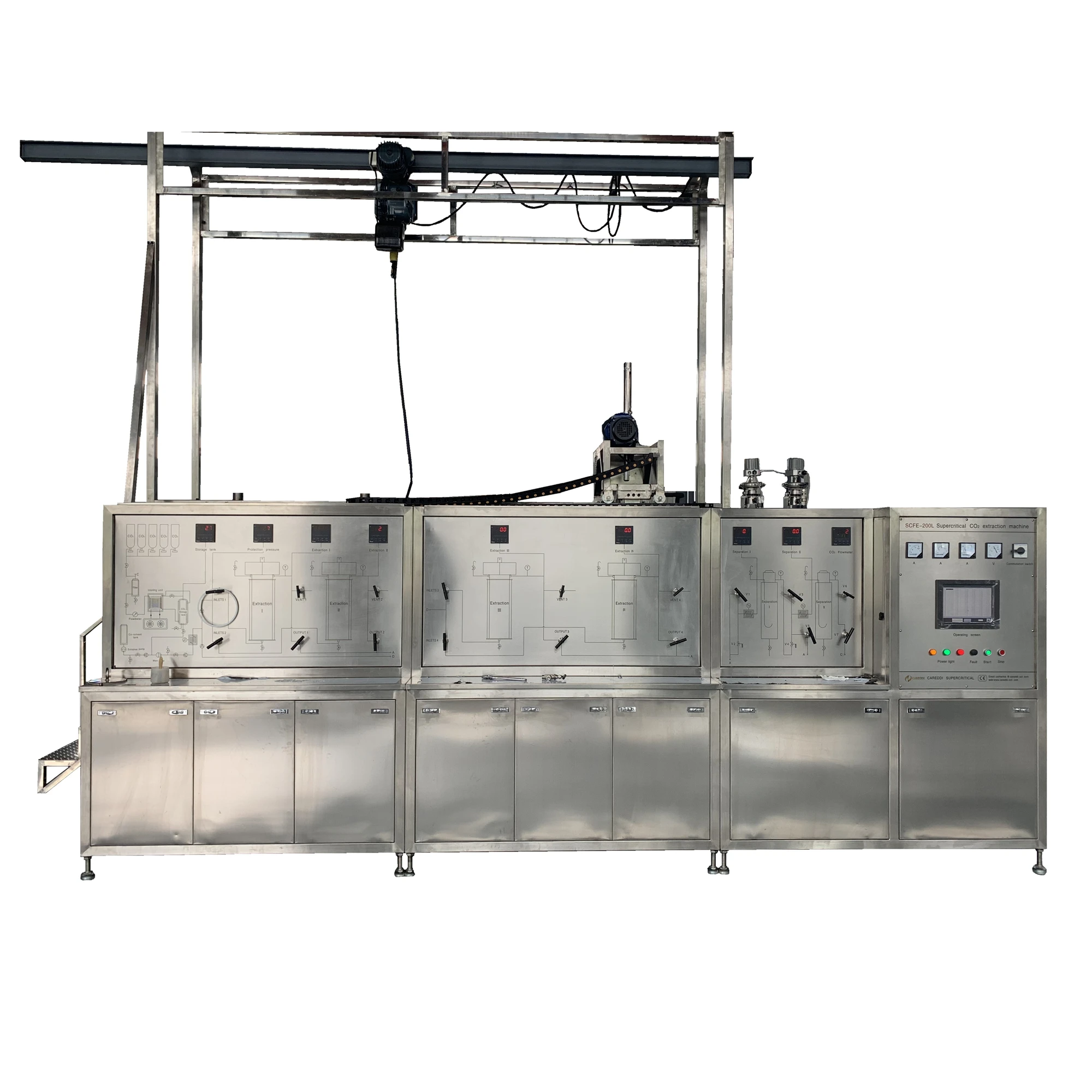

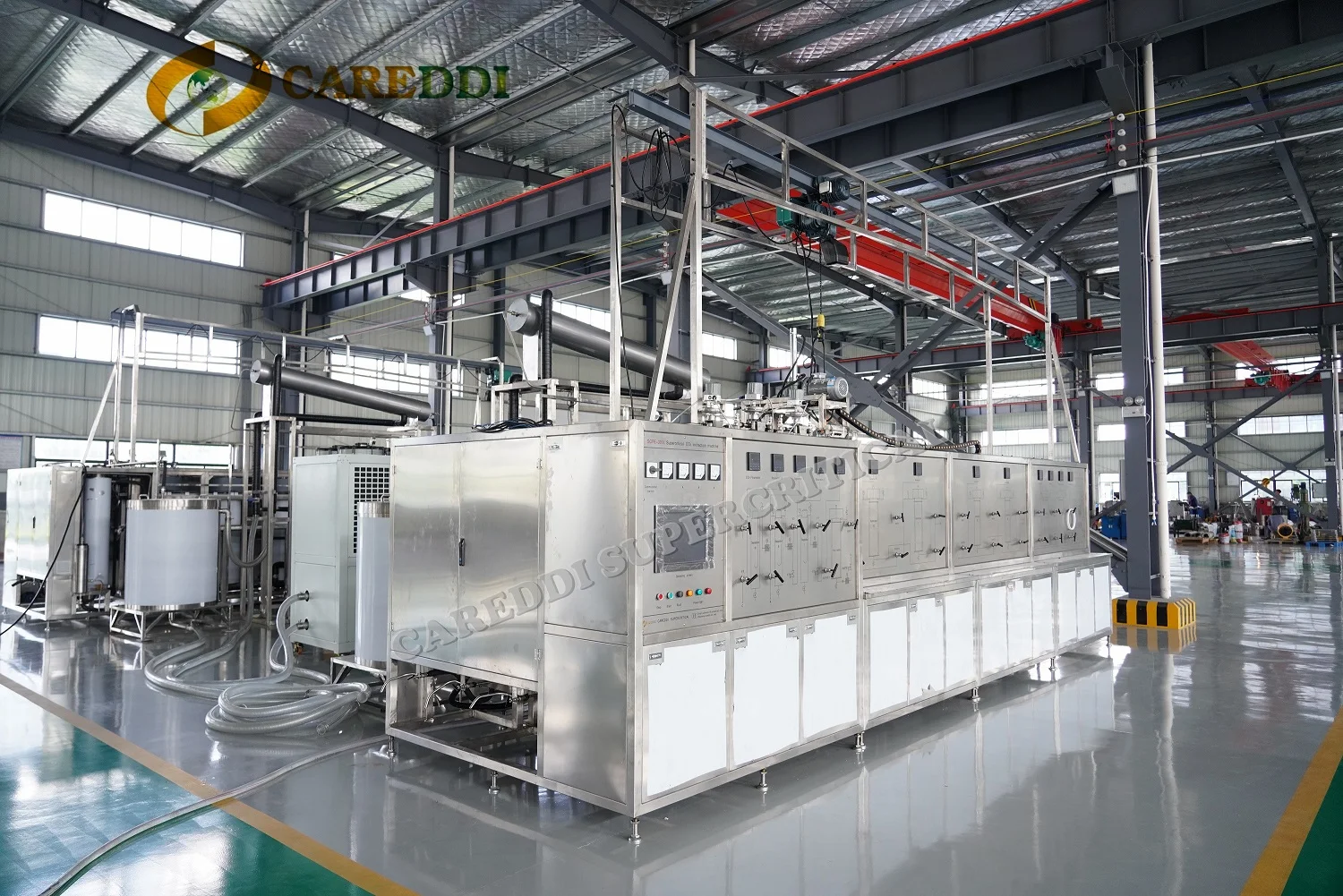

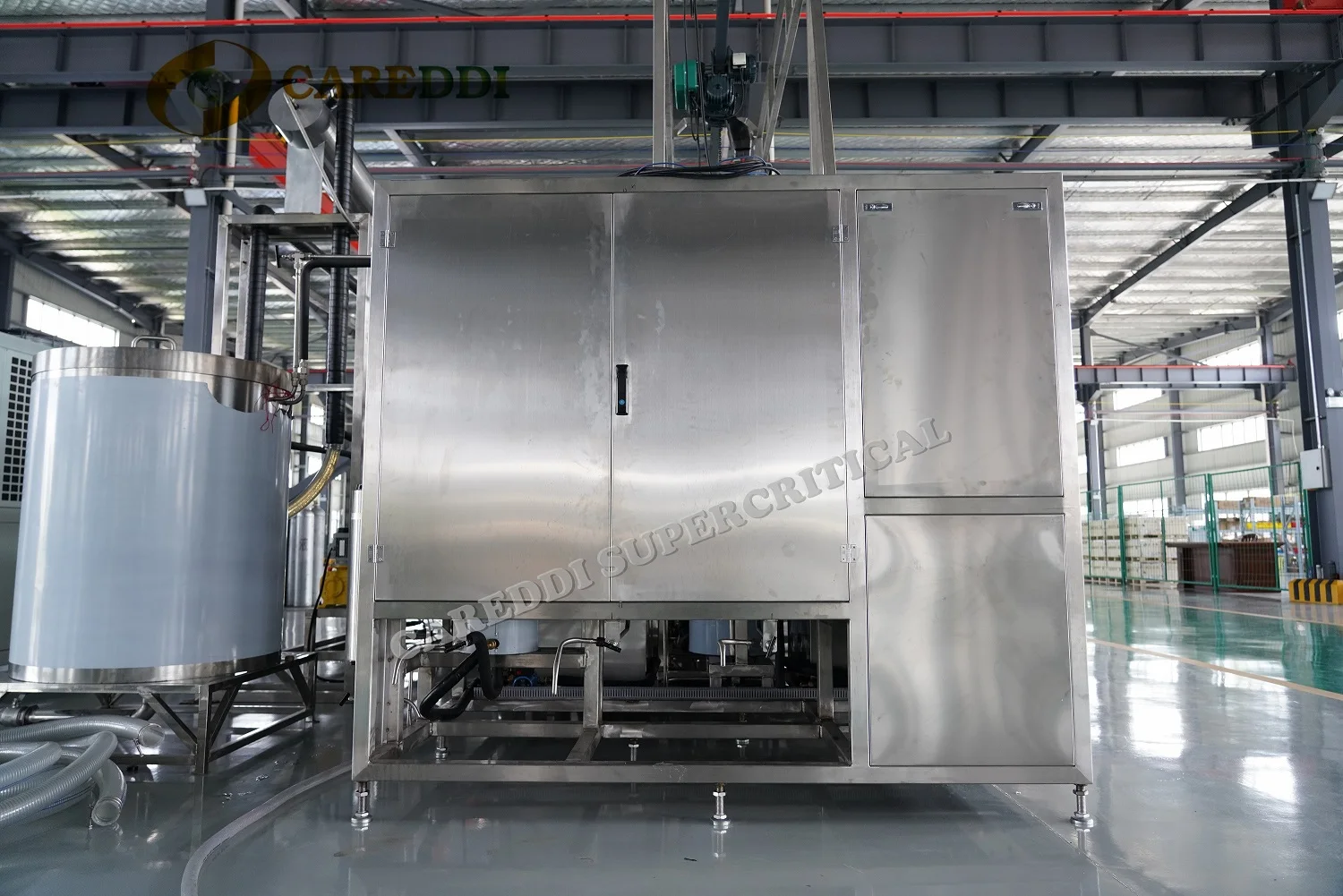

Супер-критическая машина CO2 для экстракции конопляного масла CAREDDI 300L

Why use Supercritical CO2 Extraction?

The properties of CO2 gas transform under pressure and elevated temperatures and provides an incredibly powerful toxin free product able to penetrate deep into material.
Carbon dioxide is much safer and healthier product to work with, especially for the environment. Consumers are interested in how the products they consume affect the environment and companies advertising their products were made by Supercritical CO2 Extraction effectively have a powerful marketing tool.

Characteristics of the Supercritical CO2 fulid equipment:

1. Low critical temperature, suitable for extraction and purification of heat sensitive compound.
2. Being capable to provide insert environment to avoid oxidation of products and affection of effective content of extracts.
3. Fast extraction speed, no toxicity, non-flammable, safe application and no pollution upon environment.
4. No residue of solvent, no nitrate and ions of heavy metal.

Supercritical CO2 applications in food, pharmaceutical, chemical industries:

(1) Decaffeination of coffee and tea
(2) Extraction of essential oils (vegetable and fish oils)
(3) Extraction of flavors from natural resources (nutraceuticals)
(4) Extraction of ingredients from spices and red peppers
(5) Extraction of fat from food products
(6) Fractionation of polymeric materials
(7) Extraction from natural products
(8) Photo–resist cleaning
(9) Precision part cleaning

Super Critical CO2 Extraction Device:

Standard Models

Machine Parts

Name: CO2 HIGH-PRESSURE PUMP

Brand: CAREDDI

Original: China

Flow Rate(Triple plunger):1500L/H

Max working Pressure: 40MPa, pumps head with
cooling system

Main Features

Name: COOLING SYSTEM
Brand: CAREDDI
Original: China
Cooling Capacity: 20000Kcal/h (air cooling)
Temperature range: -5℃~+5℃ (meet process
requirement)

Machine Parts

Name: EXTRACTION TANK
Brand: CAREDDI
Original: China
Material: 1Cr18Ni9Ti (Stainless steel #304)
Volume: 50LX6
Max working Pressure: 40MPa
Equipped with jacket water circling heating system, temperature adjustable, equipped with material barrel for both liquid and solid material.

Main Features

Name: CO2 REVOVERY SYSTEM
Brand: CAREDDI
Original: China
To recover extra co2 after the extraction finishes,
saving the co2.
