Машина для уплотнения ткани с открытой шириной
- Категория товара: Textile Dyeing Machines >>>
- Поставщик (Оптовый магазин): Dezhou,Guanlu,Precision,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

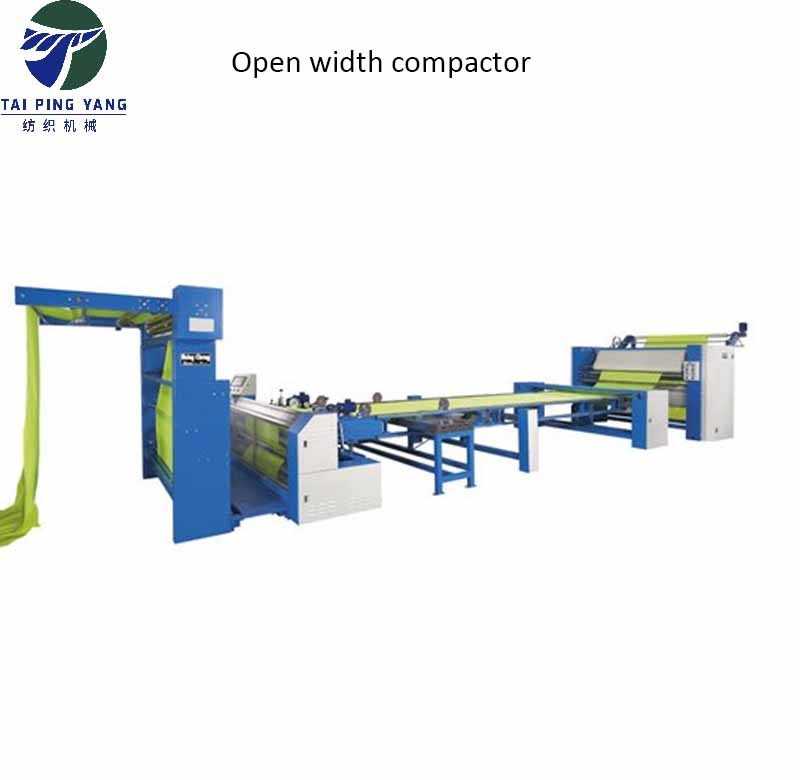

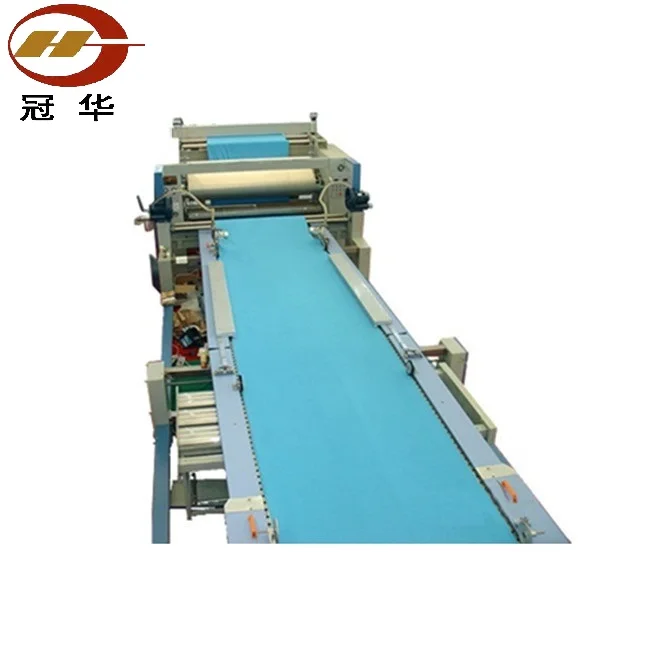

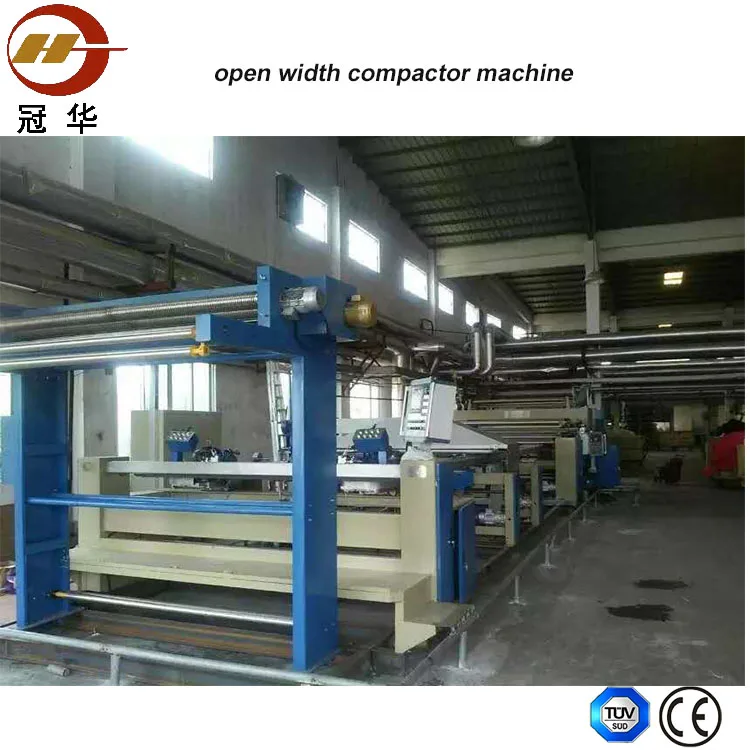

GHLS2800 open width compactor is a combination machine of pin plate stenter and felt compactor, it is used for the processing of 100% cotton, wool, hemp natural fabrics and chemical fabrics in open width form. After treatment by this machine, the latitude and longitude of the fabric will be steady, soft hand feel, water shrinkage can be controlled within 5%.
Main techncial parameters
Machine working pattern | chains circulation horizontal rotary |
Compacting pattern | thickness 20-21mmNomex felt |
Chains pattern | pitch 60mm,stainless steel chains |
Rail pattern | stainless steel rail,graphite strip,non oil lubrication |
Machine standard power | 380V(±5%)50Hz3PH |
Control power | 220V,24V |
Applicable steam specification | 3-6Kg/cm²saturated steam |
Steam comsumption | · 100~150kg/hour |
Applicable compressed air specification | · 0.3-0.6Mpa compressed airwithout moisture |
Maximum temperature of the dryer cylinder | 190℃ |
Applicable heat sourch | A. Circulation thermal oil B. Electric heated thermal oil C. Steam |
Circulation oil consumption | 30000-40000Kcal/ H(0.125-0.2GJ) |
Electric heated thermal oil consumption | 25-54KW |
Steam roller consumption | 100-150Kg/H |
Main chain driven pattern | right and left chains drive seperately |
Felt maximum working width | 2600mm |
Pin plate maximum working width | 2800mm |
Width control pattern | front and back drive seperately |
Machincial speed | 5~35m/min |
Power of some parts | · gluming,cutting,sucking device 6.74 KW(optional) Pneumatic edge spreader 3KW Driven device 25 KW |

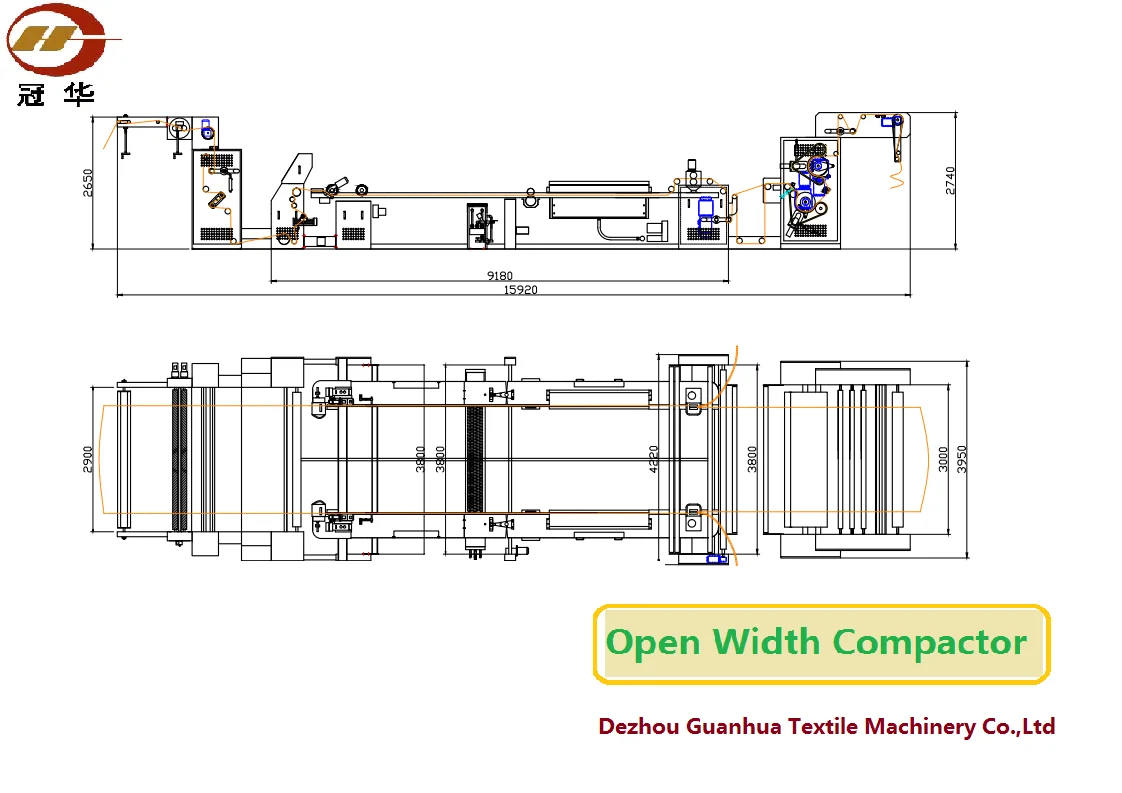

Machine dimension(Max) | L=15000 W=2570+working width H=2800 |
Machine weight | · about 12tons |
Machine colour | jewelry blue + Crystal White |
Machine characters:
Infra-red centering infeed device, correct the fabrics movement path automatically(shanghai brand)
Equip weft correct adjusting roller, cooperate with the stenter frame pin plate, with a different speed to correct the fabrics weft.
Pneumatic edge spreader (teeth spreader is optional) to flat the curled edges.
Far infra-red auto edge detector and tracing system made in Shanghai, which can guarantee the fabrics pin on correctly, the width of the pin can be controlled in minimum
The wool brush wheel overfeed and pin on, right side and left side are driven by the separately motor, controlled by the inverter, overfeeding rate is -20% -- +30%.

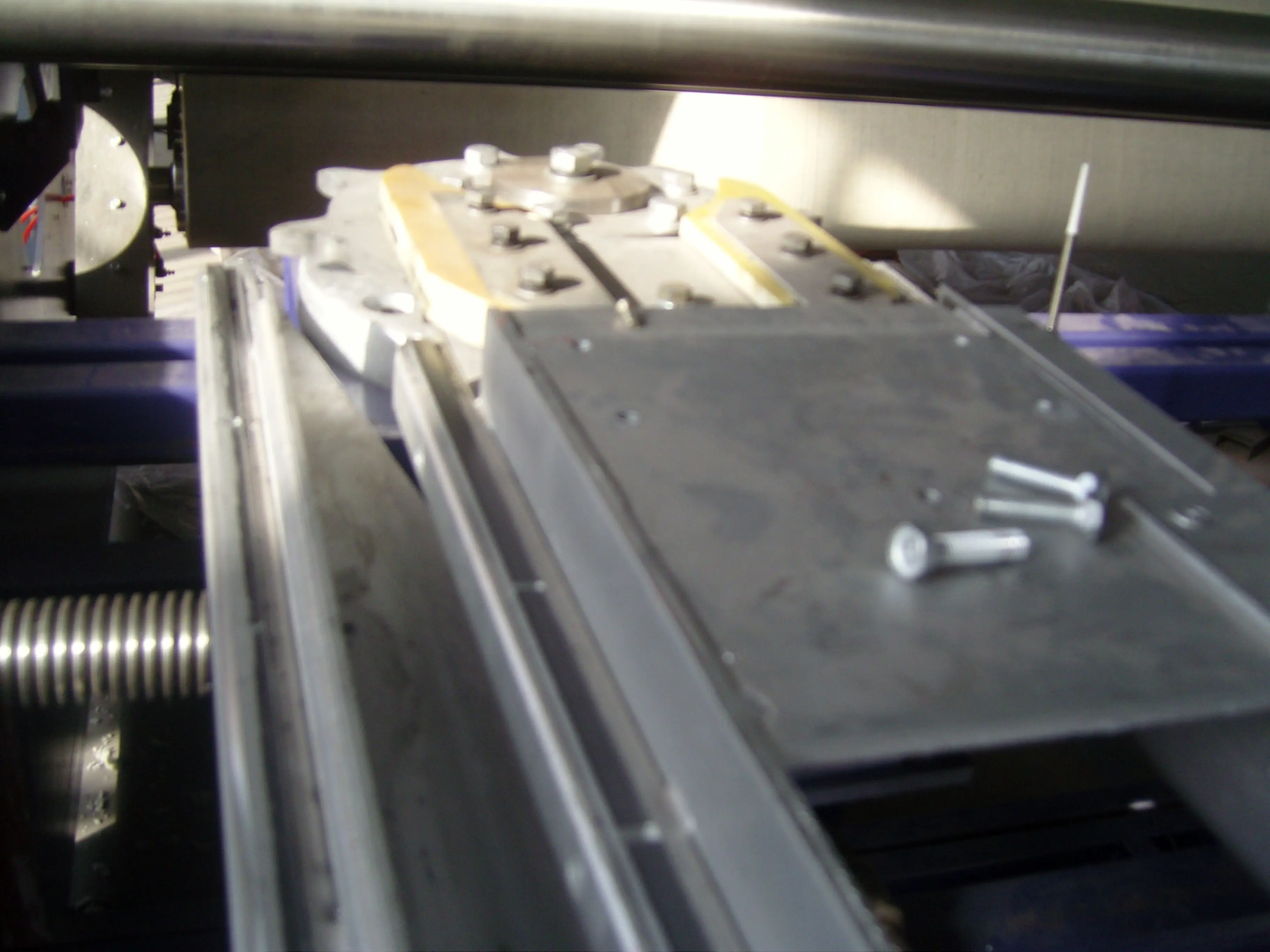

The chain copies Hercules of Germany.
The right and left stenting frames are driven by the separately motor, can movement with the little different speed, cooperate with the weft straighter to correct the weft.
In front of the stenter frame and felt compacting unit, equip two steaming box made of stainless steel, the stenter frame steaming box equips air curtain in front side to block off the steam dissipation, which can guarantee the edge detector works normally (not disturb by the steam).
Two pieces of thicken felt(20mm), the felt is used to compacting and setting, especially for open width fabrics, material is Du pont Nomex.

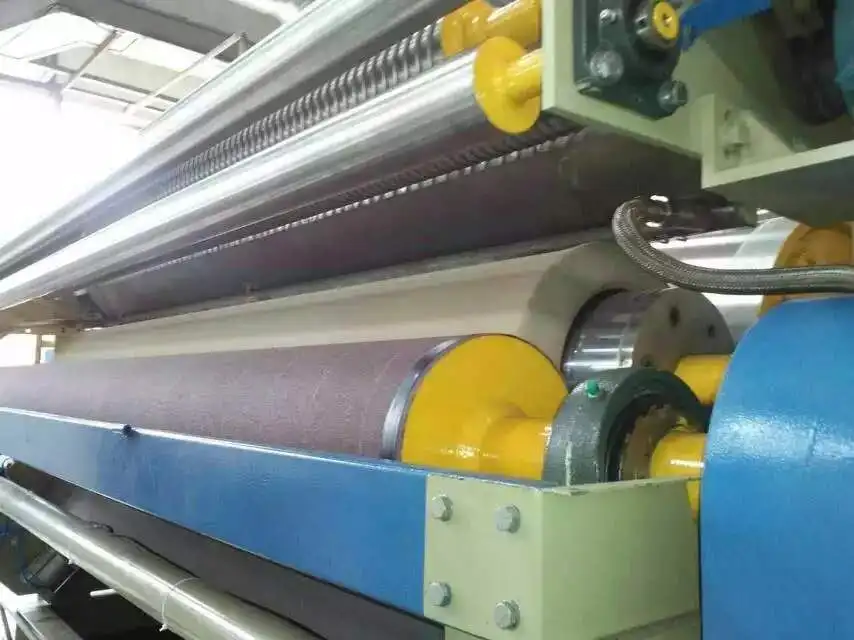

Drying cylinder Heated by electric thermal oil (steam is optional), intelligent control. Temperature tolerance is +_3℃.
The fabrics output by plaiting mode.
Equip synchrocontrol devices, can harmonize the proportional speeds of each units automatically.
Adjust the speed of the machine by inverter, HIM operation system. PLC programme controlled.
Machine structure
Infeed device section
Head of the machine section

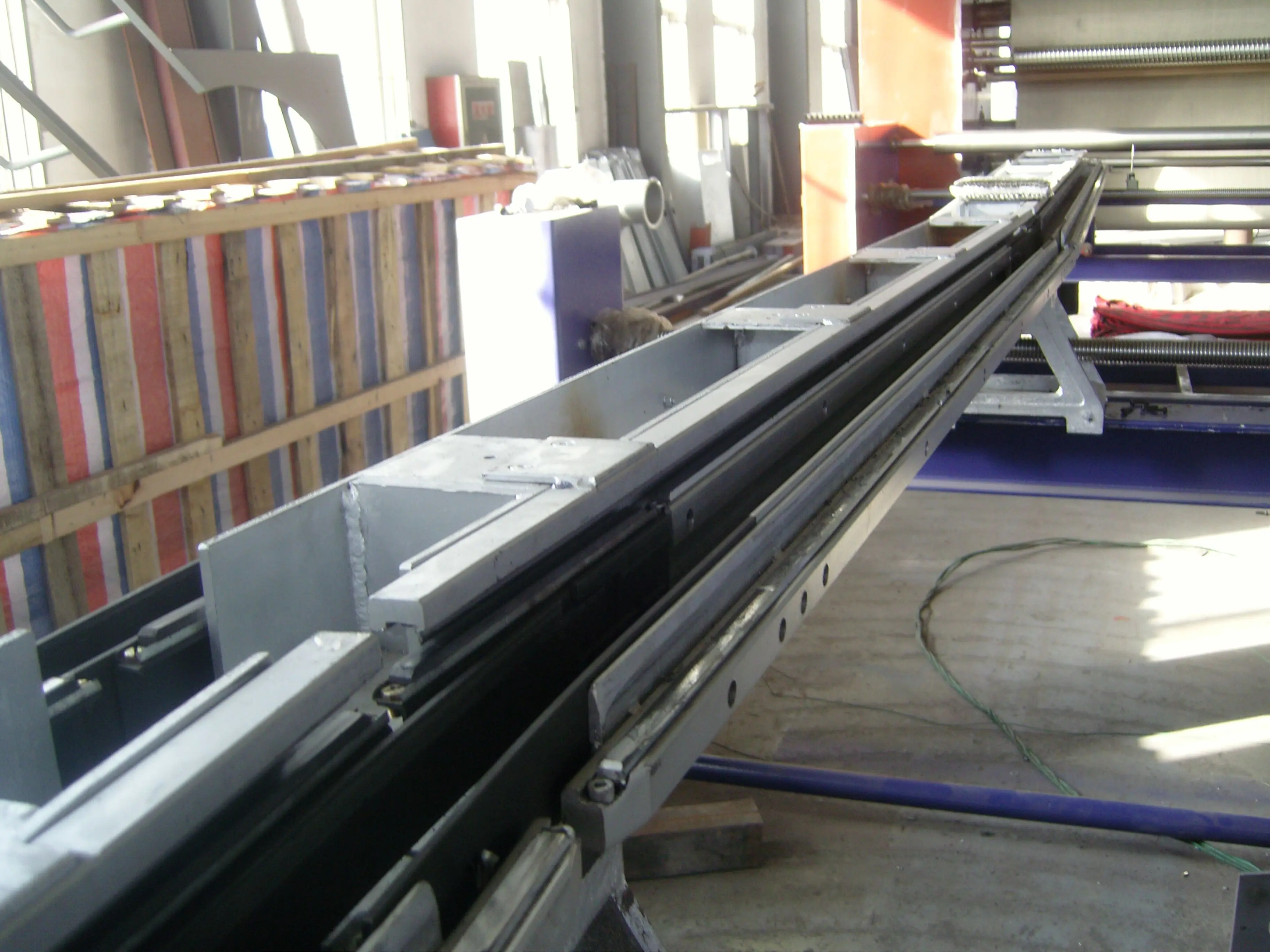

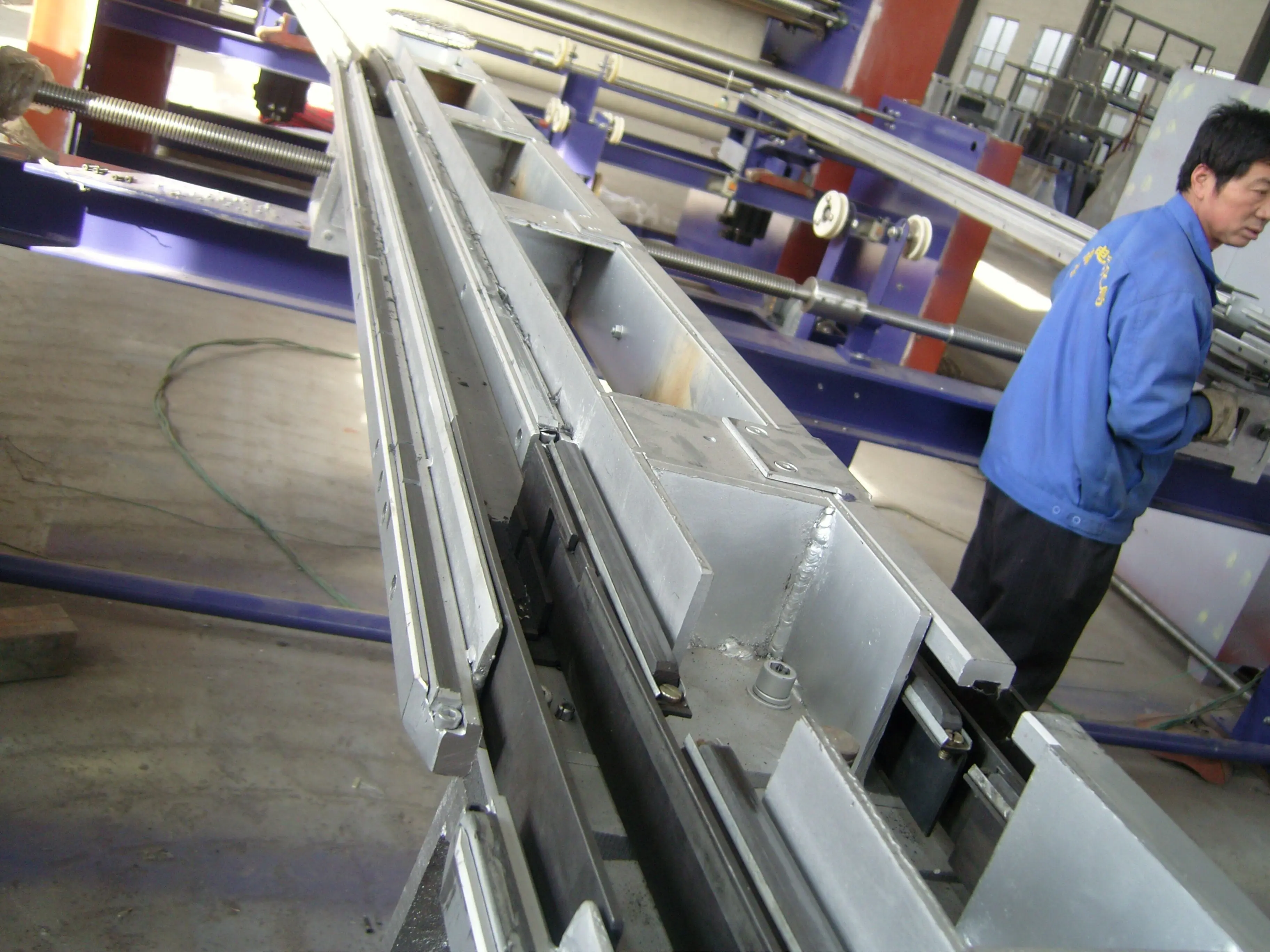

Cone-shaped stenter frame section
Parallel stenter frame section
Steaming box section
Felt compacting units
Cooling system section
Plaiter section
Pneumatic section
Electric section
