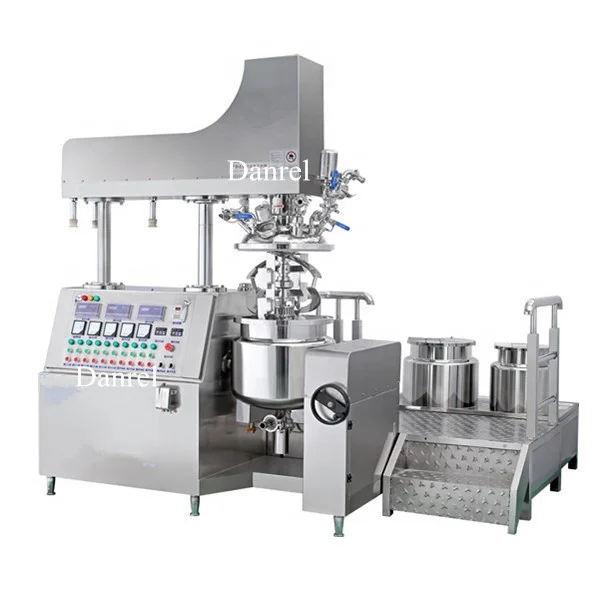

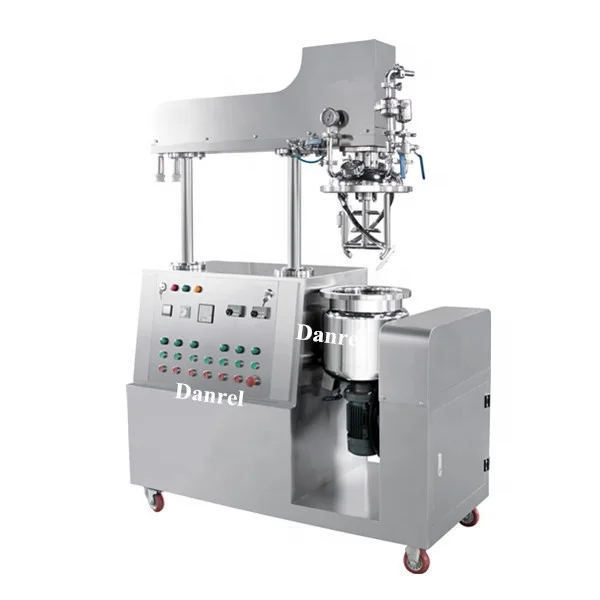

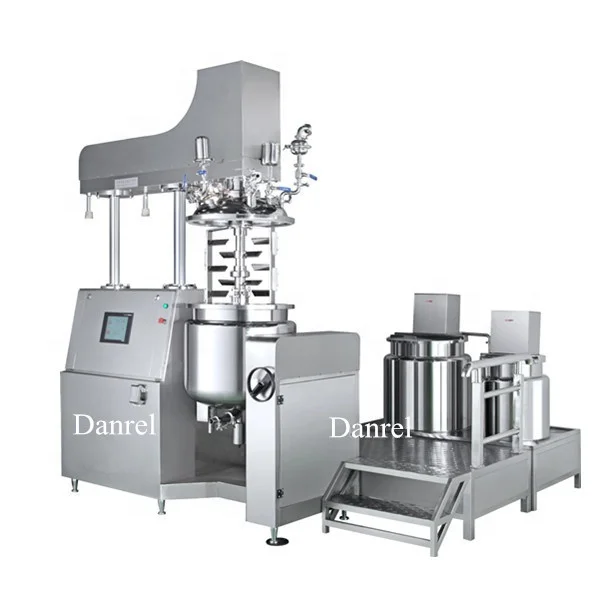

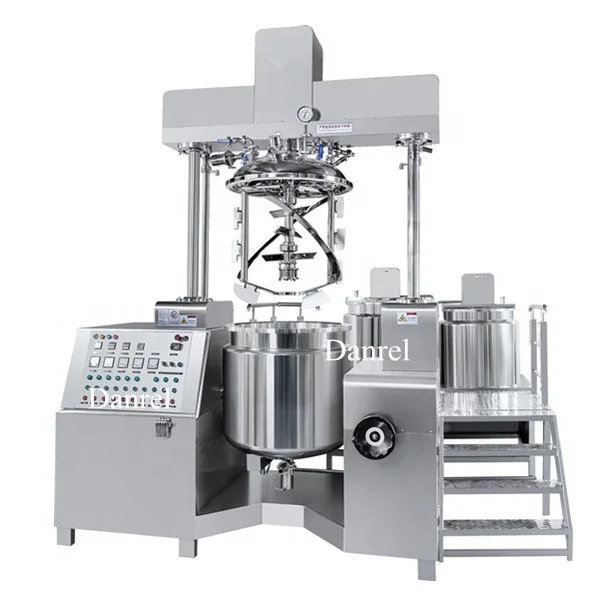

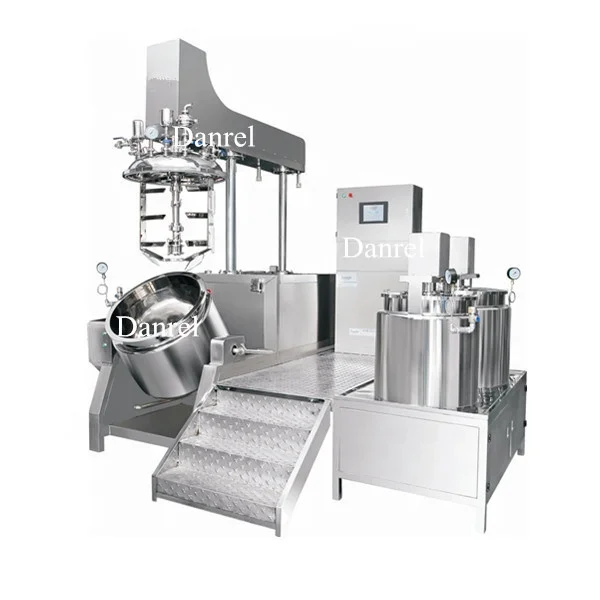

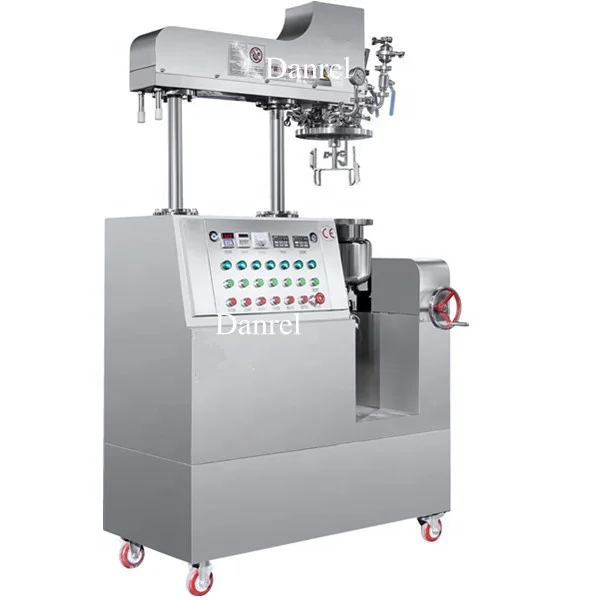

Шэньчжэнь DANREL высококачественный SS316 нержавеющая емкость 25 л гомогенизатор вакуумный эмульгирующий Миксер для изготовления

1.Main Tank:

No.

Item

Configuration and Parameters

Mark

1.1

Working Volume

Total Capacity:30L,Working Capacity: 25L;

Loading Coefficient 0.8

1.2

Heating method

Electric heating;

Circulating water cooling

1.3

Basic Structure

Three layers, Hydraulic system, Bidirectional stirring with spiral ribbon, Bottom homogenizer, Insulation coat, Bottom product discharge.

No Dead space,
Sanitary Valve

1.4

Tank material

Inner layer: SUS 316L 4mm;

We can promise the thickness will be exactly same as our quotation. We refuse to jerry-make the layers thickness.

Middle layer: SUS 304 4mm;

Outer layer: SUS 304 3mm;

1.5

Cover

Material filter,Vacuum Pressure meter,Vacuum Exhaust Valve,Vacuum Port,sight glass light,Vision window,inlet,sight glass with wiper and bulb, rotary CIP heads, hopper,Vacuum water pump unit;

Required GMP Type

1.6

Stirring Way

Bidirectional stirring with spiral ribbon and scraper installed on the outer paddle.

Material:SUS 316L

Technical Parameter

Stirring motor power:0.75kw,

Stirring speed:0-65r/min;

Motor brand:SIMENS

Inverter brand:DELTA

1.7

Homogenizer

Bottom homogenizer;

SUS316L

Technical Parameter

Homogenizing motor power: 1.5 kw,

Homogenizing speed:0-3600r/min;

Motor brand:SIMENS

Inverter brand:DELTA

Processing

Rotor and Stator in Wire cutting,assembled after polishing;

Balance process axle

1.8

Sealing

AdoptingBURGMANN Machinery Seal, Japan NSK Rolling Bearing;

1.9

Polishing

Inside & outside hygiene grades, conforming GMP standard

S320U
