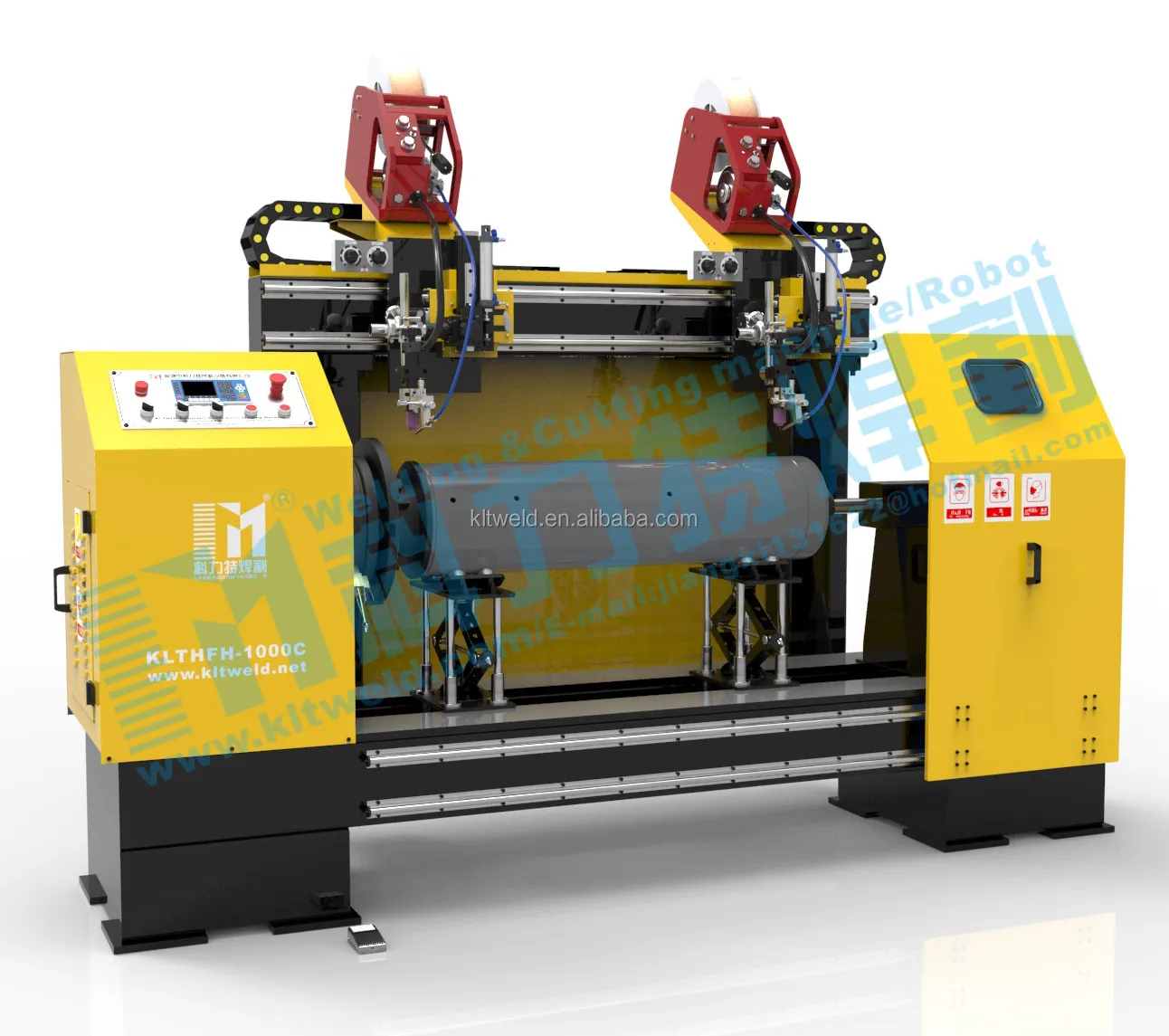

Сварочный аппарат круглого стального барабана со швом подходящего типа для асимметричного цилиндрического резервуара
- Категория товара: Other Welding Equipment >>>
- Поставщик (Оптовый магазин): Yancheng,City,Kelite,Welding,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
1, Standard type+Welding gun swinging device
Item | HFH-1000B | HFH-1500B | HFH-2000B | HFH-2500B | HFH-3000B |
A | 2640mm | 3140mm | 3640mm | 4140mm | 4640mm |
B | 1115mm | ||||
C | 2105mm | ||||
D | standard:Φ400mm; Optional Φ500, Φ600, Φ750 manual chuck | ||||
h | 450mm; Can be customized | ||||
L | 1100mm | 1600mm | 2100mm | 2600mm | 3100mm |
H | 885mm | ||||
M | 1940mm | 2440mm | 2940mm | 3440mm | 3910mm |
N | 920mm | ||||
KLTHFH-____B(M/T) (Dimensions)
2, Technical Parameters
HFH-1000B | HFH-1500B | HFH-2000B | HFH-2500B | HFH-3000B | |
Input Power | AC 220V 50HZ; Can be customized | ||||
Load | 500kg-3000kg Depending on the motor and reducer model | ||||
Rated load rate | 100% | ||||
Product diameter range | Φ20mm -Φ450mm | ||||
Headstock speed | 0.05r/min-3 r/min | ||||
Spindle motor drive | Standard: stepper motor, worm gear reducer; optional servo motor, precision RV reducer | ||||
Beam trolley moving | Standard: Manual, optional with electric walking | ||||
Function | Manual / automatic / programming | ||||
Controller | Standard: CNC multi-axis controller; optional PLC + touch screen | ||||
Weld swing width | 0.1-60mm | ||||
Swing speed range | 0.1~80 mm/s | ||||
Swing delay time | Left delay time: 0-9.9s; right delay time: 0-9.9s | ||||
Welding torch pneumatic downstroke | 100mm | ||||
Tailstock pneumatic telescopic stroke | 150mm | ||||
Suitable for welding power supply | CO2/MAG/MIG/TIG/Plasma | ||||
Air pressure adjustment range | 0.1-0.6Mpa | ||||
Weight | 935 kg | 1015kg | 1115kg | 1235kg | 1355kg |
If you want to know more details, please visit our website: www.kltweld.net

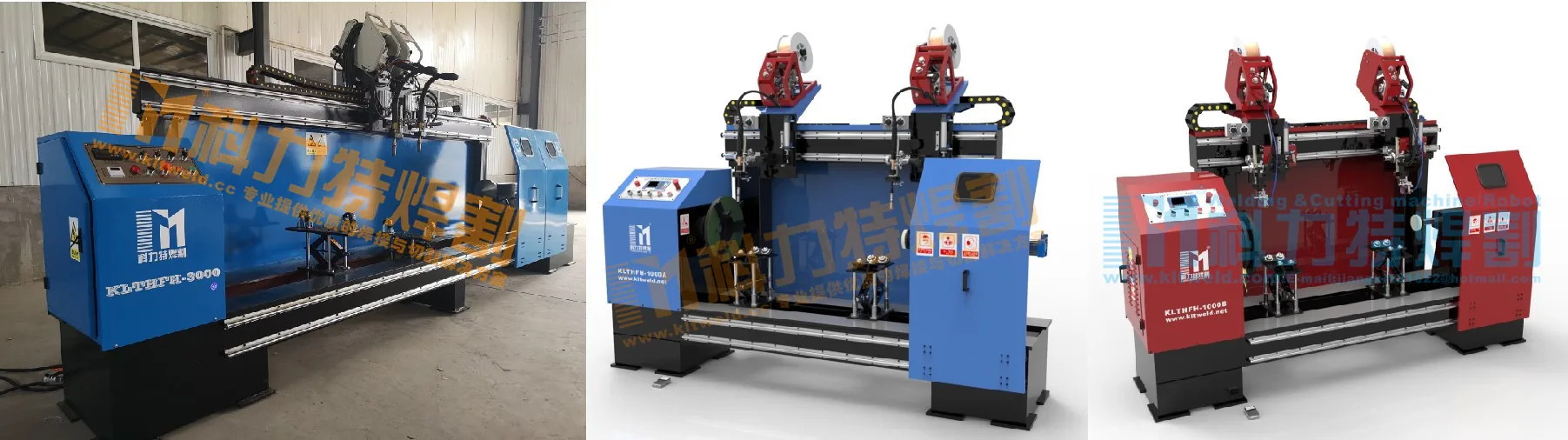

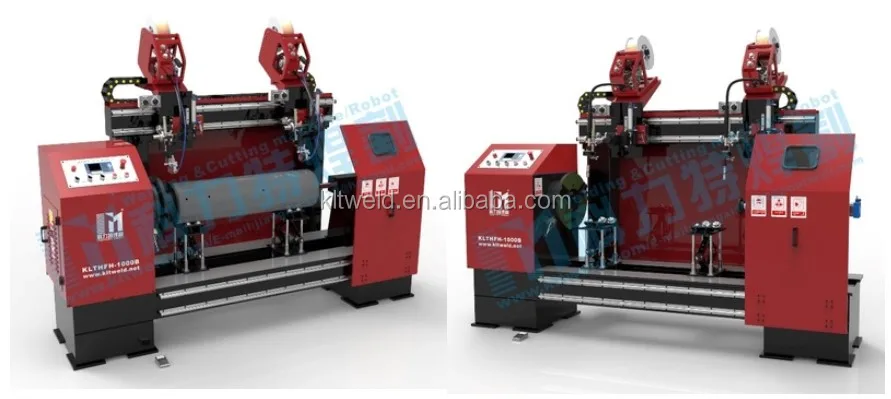

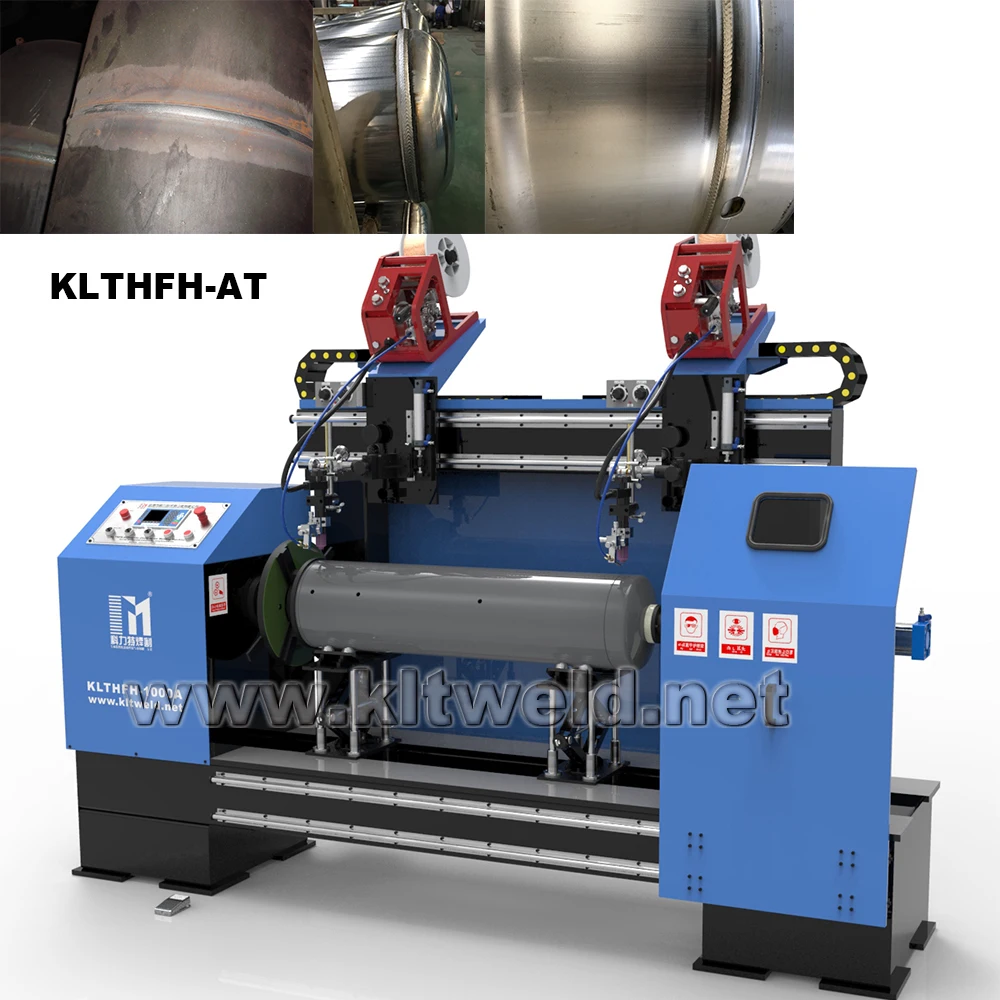

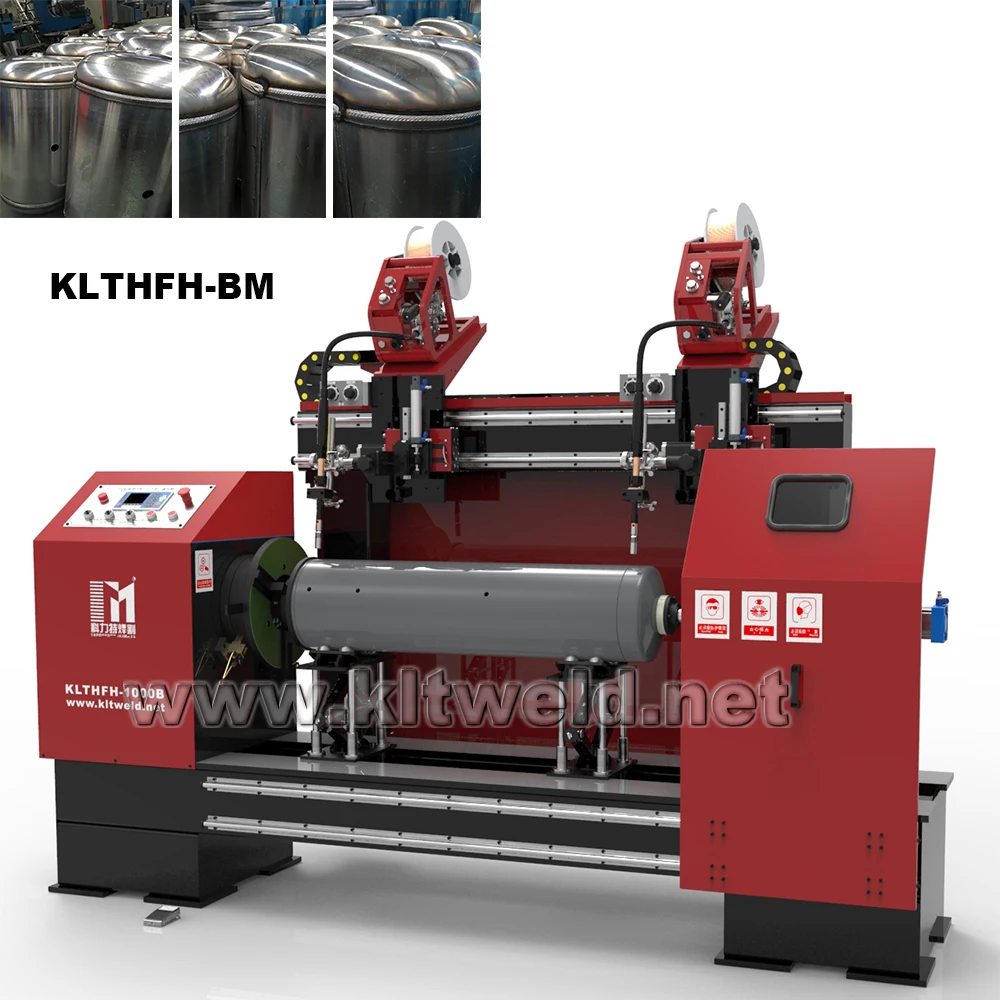

3, Introduction to CNC Ring Seam Welding Machine
KLTHFH CNC ring seam automatic welding machine is a kind of automatic welding equipment for ring seam. It can be equipped with a TIG welding power source (filled or unfilled), CO2/MAG/MIG welding power supply, plasma welding power supply, etc.
The machine is mainly composed of a machine bed, a rotating spindle box, a beam, a pneumatic tailstock, a welding torch pneumatic lifting mechanism, a welding gun adjusting mechanism and a CNC automatic welding controller. Other optional devices include welding gun swinging device, TIG arc voltage heightening device (TIG arc length tracking), multi-layer multi-channel welding device, and contact welding seam tracking device.
The machine adopts a combined structure, which is convenient for assembly and disassembly. Therefore, the machine can be used for automatic welding of all kinds of ring welds with a suitable welding power source.

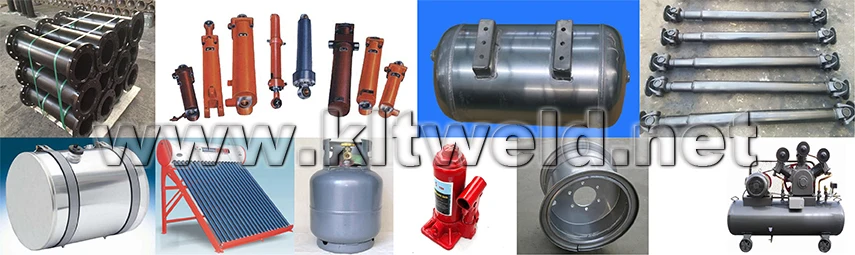

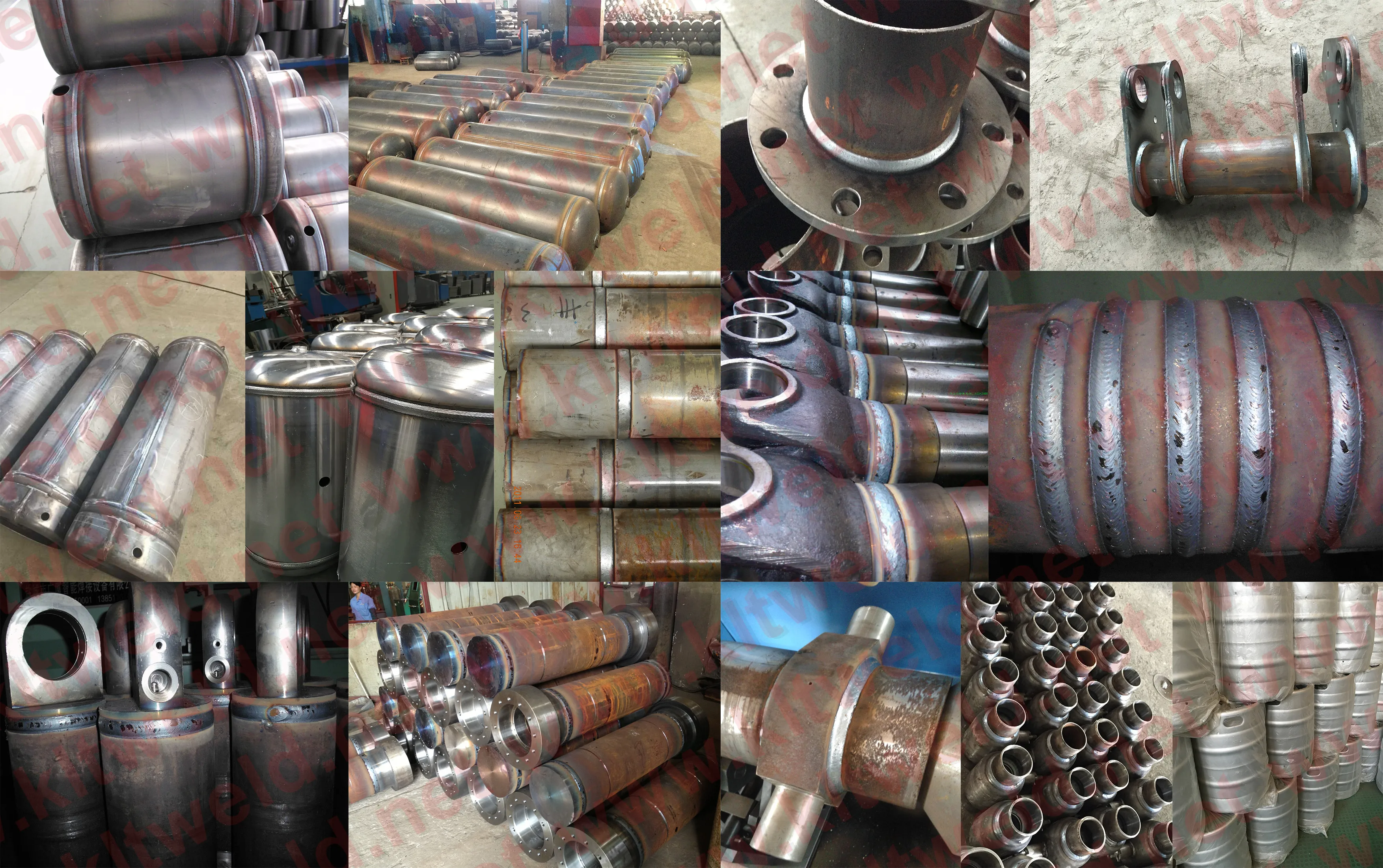

This equipment is mainly used for high quality circumferential seam welding of workpieces of different materials, sizes and shapes. Welded joints have different shapes, including butt welds, lap welds, lock bottom welds, etc., similar to workpieces such as gas cylinders, fire hoses, drive shafts, shock absorbers, mufflers, pipe flanges, engineering cylinders, water tanks, fuel tanks. Such as automatic loop seam welding.
Our CNC ring seam welding machines can be installed with more than two welding torches according to the customer's needs and welded at the same time.

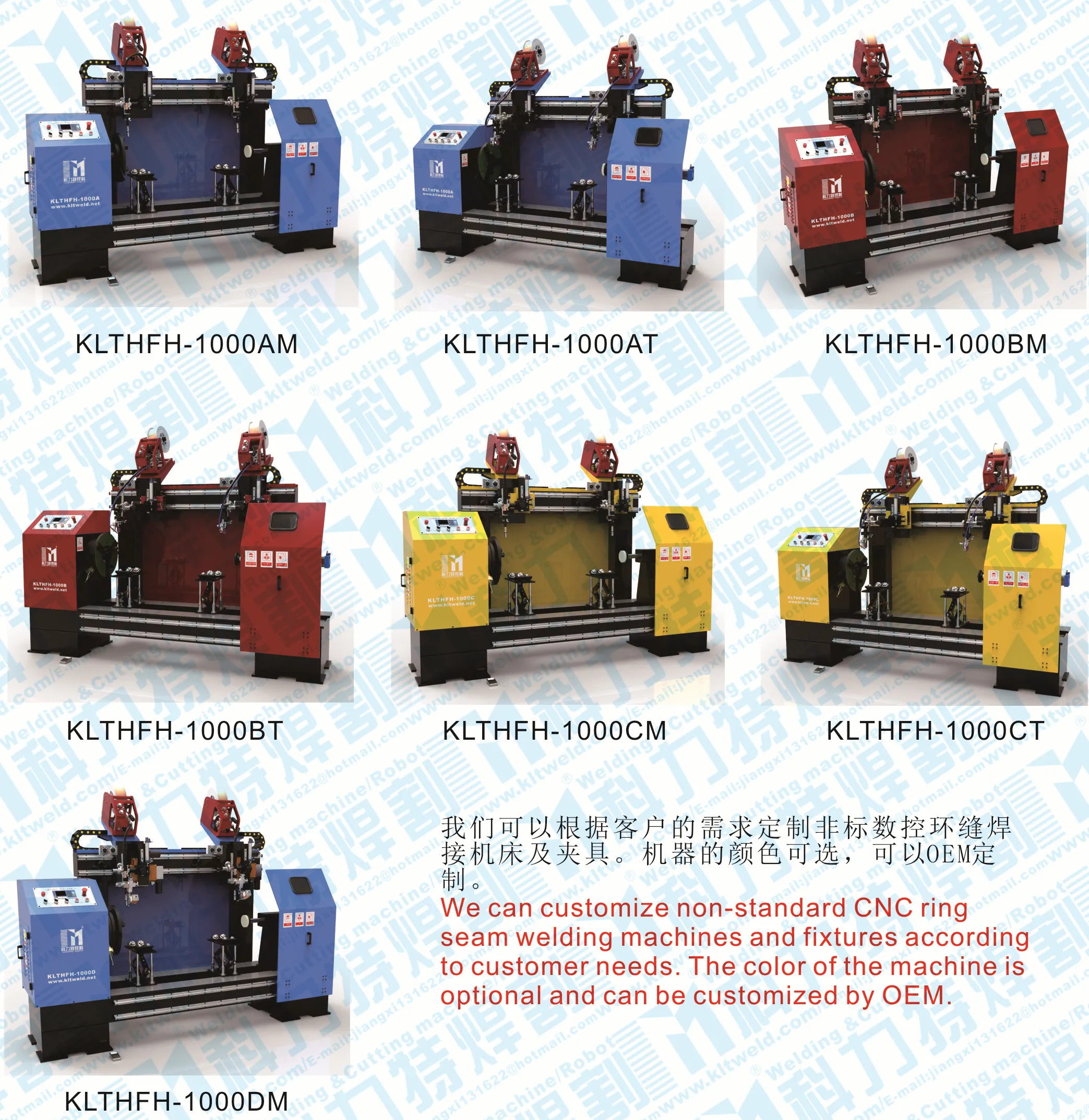

4, How to classify CNC ring seam welding machine
KLTHFH-1000/1500/2000/2500/3000(A/B/C/D)(M/T)
1) KLT:Our Company Name (KELITE WELD)
2)HFH: CNC Ring Seam Welding Machine
3) 1000/2000/3000: Welding Effective Length: 1000mm or 2000mm etc.
4) A: Standard type
B: Standard type+Welding gun swinging device
C: Standard type+Welding gun swinging device+Arc voltage height adjustment
device (arc length tracking system) or Multi-layer multi-channel welding device
D: Standard type+Contact Weld Tracking System
5) M: CO2/MAG/MIG Welding Power
T: TIG Welding Power

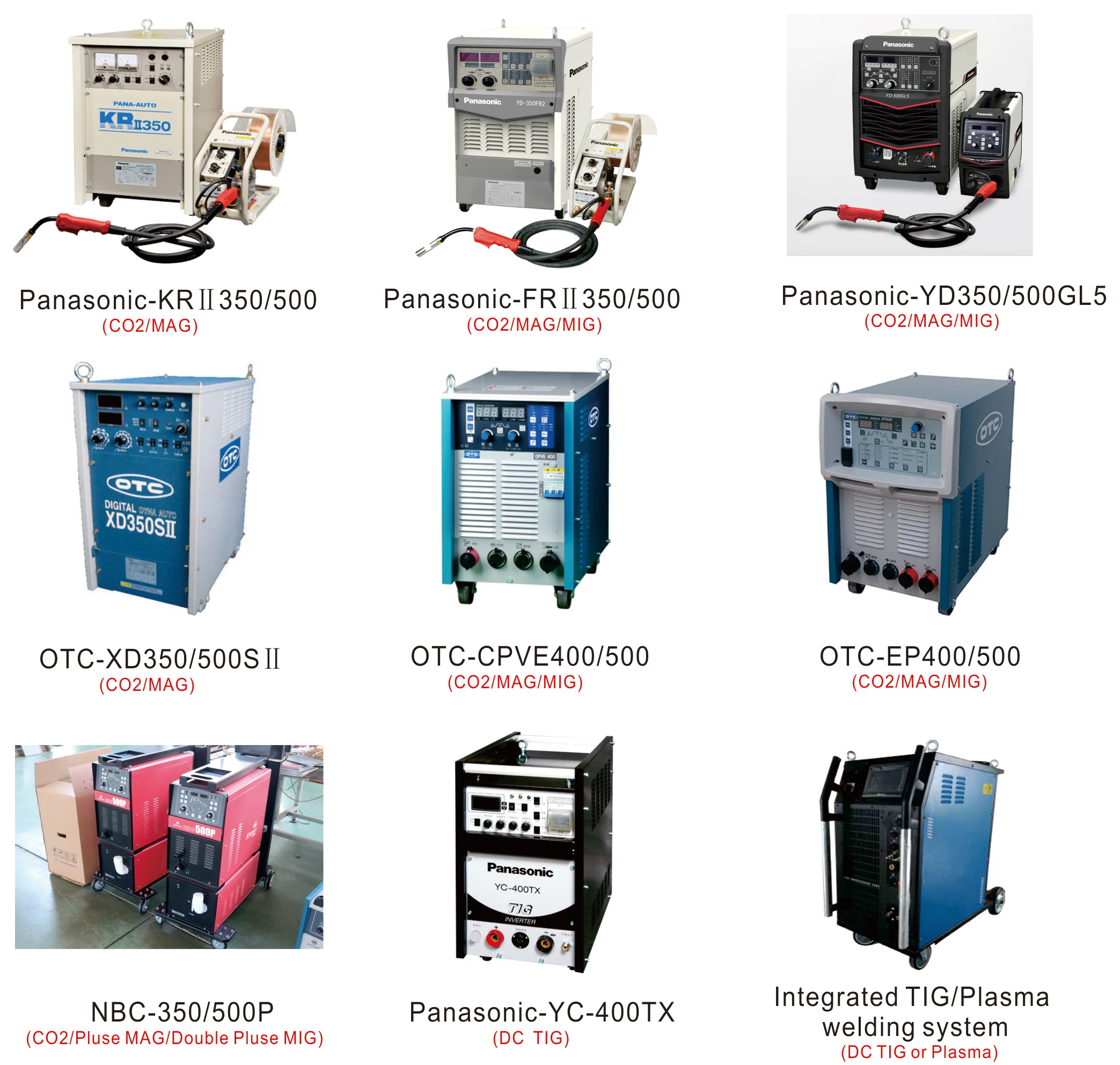

5, We use welding power supply
For the automation solutions of our customers' products, we encourage our customers to use reliable and stable welding power sources. Below we recommend the brands and models.
The above is the normal use of welding power supply models, all of which have valuable practical experience in the customer's factory practice. The quality and stability of the products have been verified for a long time.
If you want to know more details, please visit our website: www.kltweld.net
If the customer uses their own welding power source, the customer can install it according to the requirements.

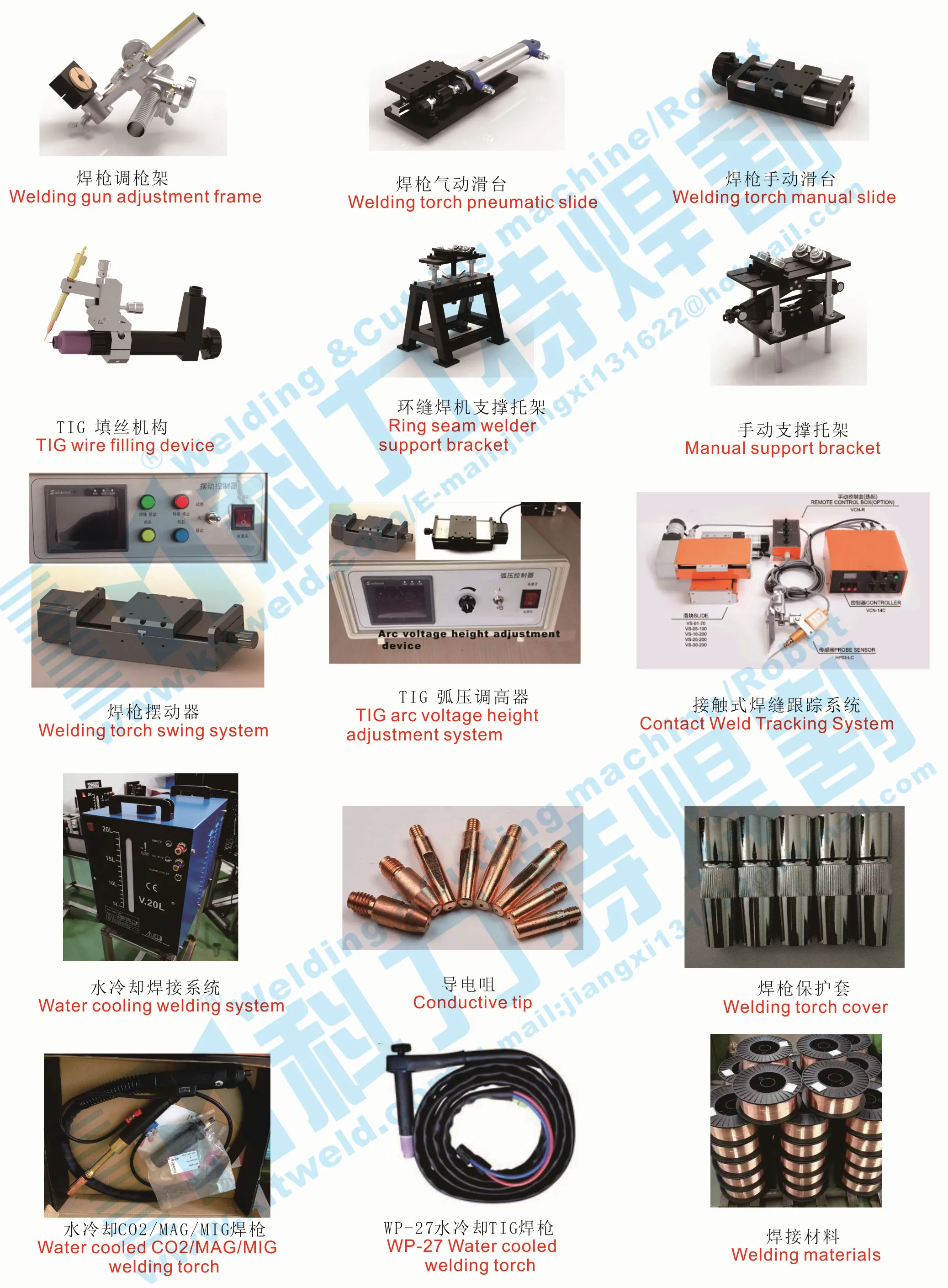

6, CNC Ring Seam Welder Optional parts
If you want to know more details, please visit our website: www.kltweld.net
Packaging & Shipping
Our Services

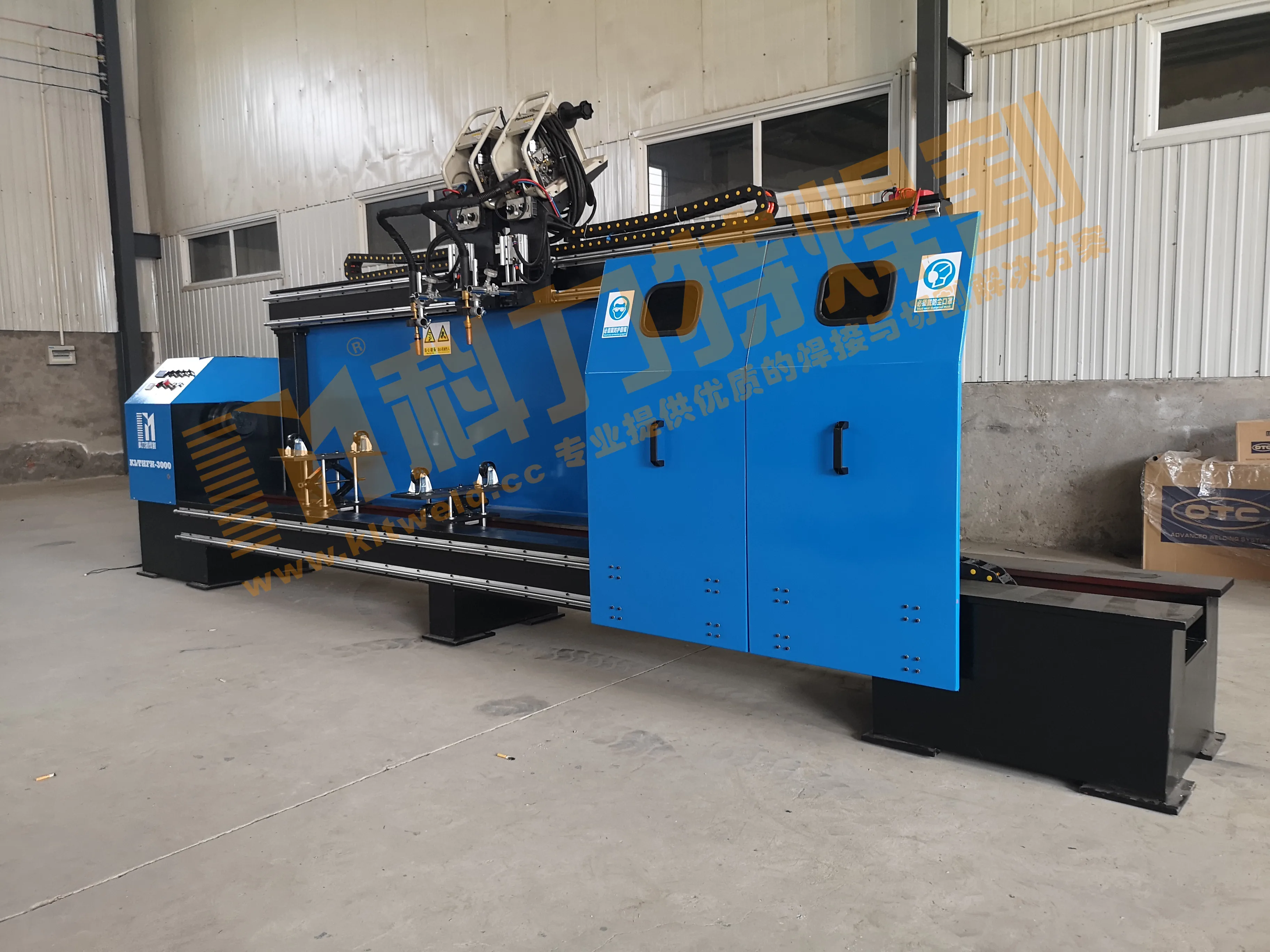

Corner of the workshop
* Long-term stock
* Focus on welding and cutting equipment
* View our Factory.
* Long-term stock
* Focus on welding and cutting equipment
* View our Factory.
FAQ
Y.Are you manufacture or trade company ?
M:We are professional manufacturer of many kinds welding and cutting machine.
Y:How to package?
M:Frist layer, covered by plastic film for waterproof,second layer:covered by foam to protect the machine from shaking ,third layer:steel craft case or wooden cases.
Y:Will the package strong enough?
M:Our package is strong enough,nearly all our machine is packed in this way,and the customers receive in good state,So please don't worry,you will receive the welding machine in good condition.,but also can package as your requirement.
Y:How can you guarantee the quality of welding machine?
M: we have passed the ISO test,and if you have time,you can come to our factory to check the machine before order .and we have one year guaranteed,free parts can be send free within one year.
Y:How to install and operate the machine?
M:1.the machine is installed by us before send out,you need to install some parts according to the vedio and manual we send to you.
2.engineer can come to your side to install for you if need
3.install and operate training can be offer in our factory or in your side.
Y:What can I to do if the machine have problem?
M:please contact us at the frist time,and don't repair in your side,we will tell you how to solve it after discuss,we can guaranteed to solve within 24h if not the part break.
Y:how is your after-sale customer service?
M:you can contact our sales manager if have any question,we are online everyday.
Y.How to place an order?
M:1). Tell us the welding material ,welding size ,welding thickness...etc ,the more detailed the better .
2). After view your requirement ,we offer best plan and quotation .
3). Price confirmed ,we can proceed order and arrange shipment to your country.
