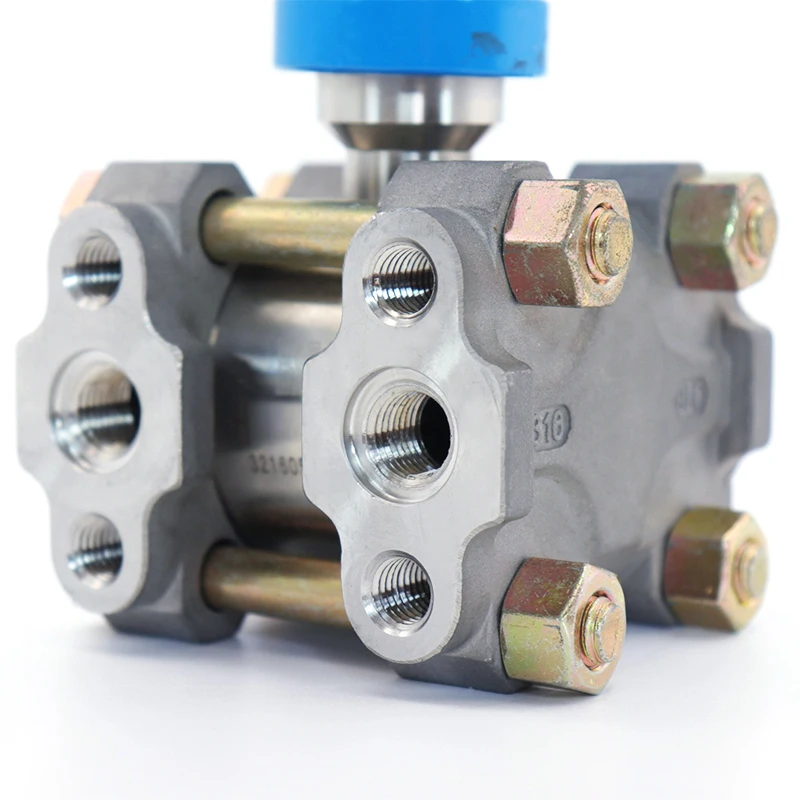

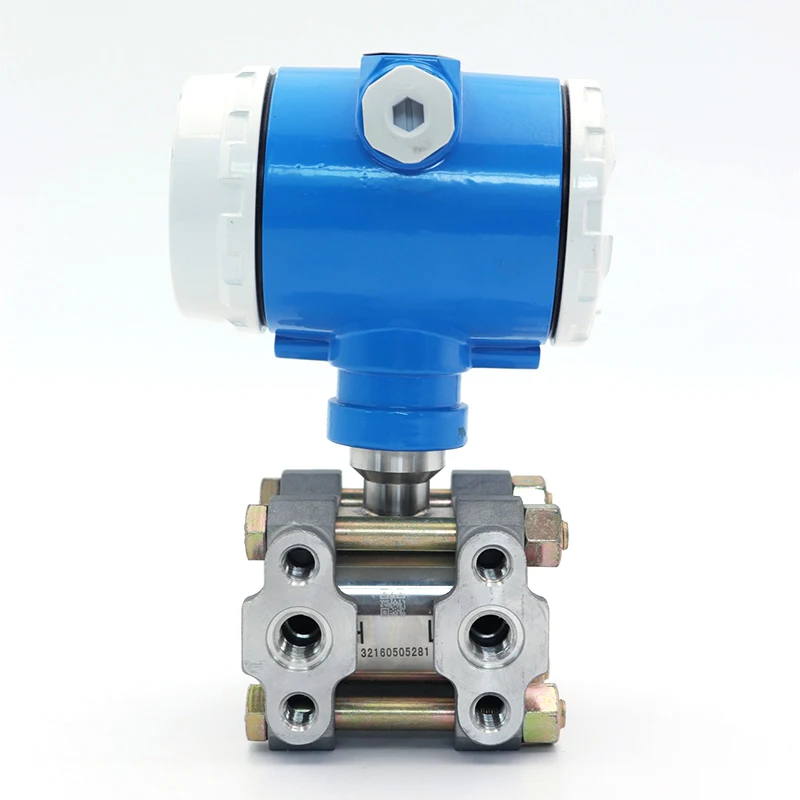

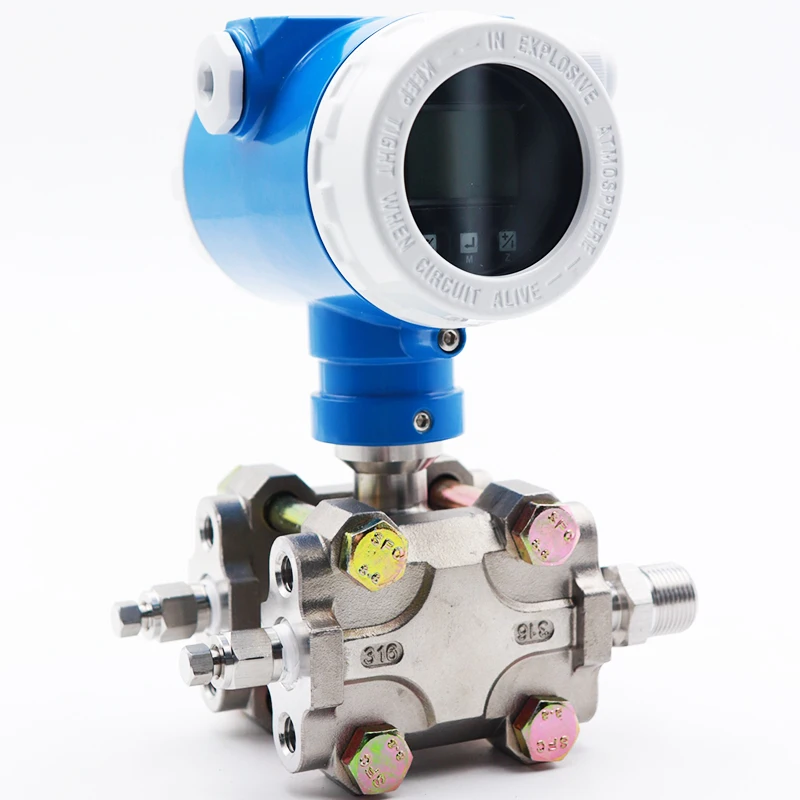

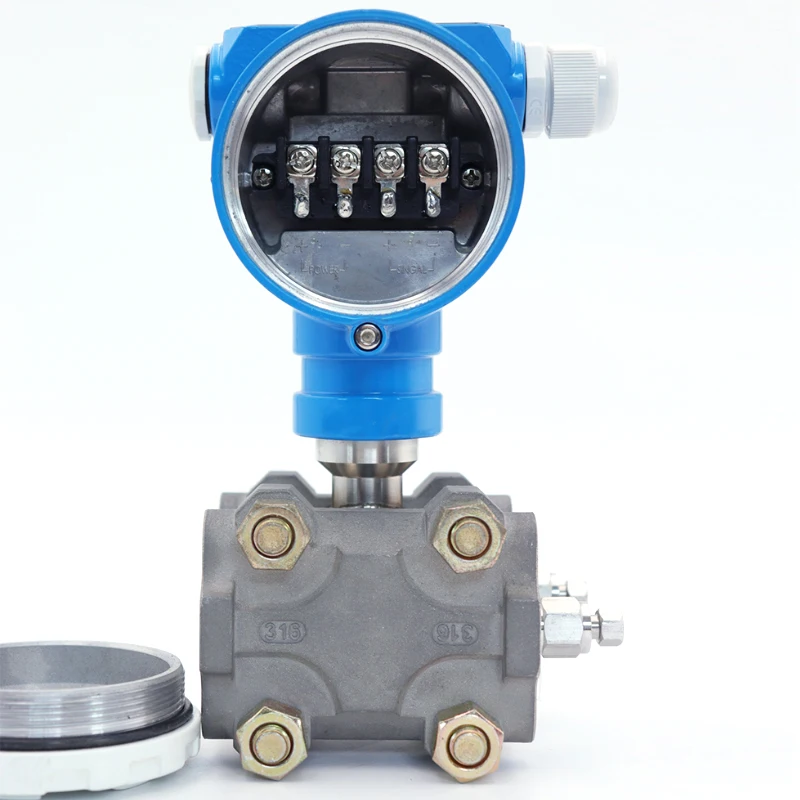

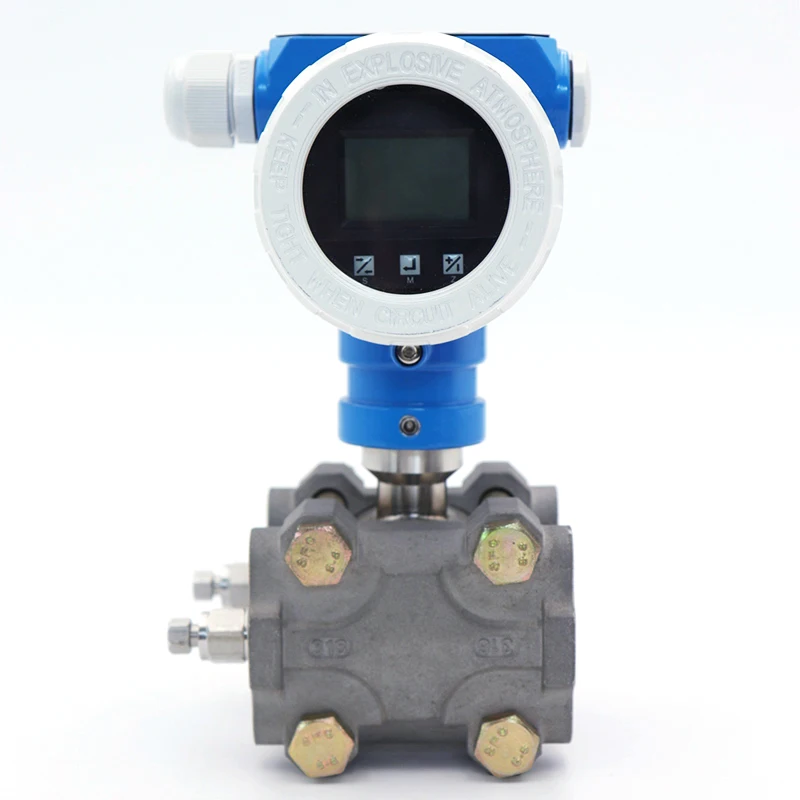

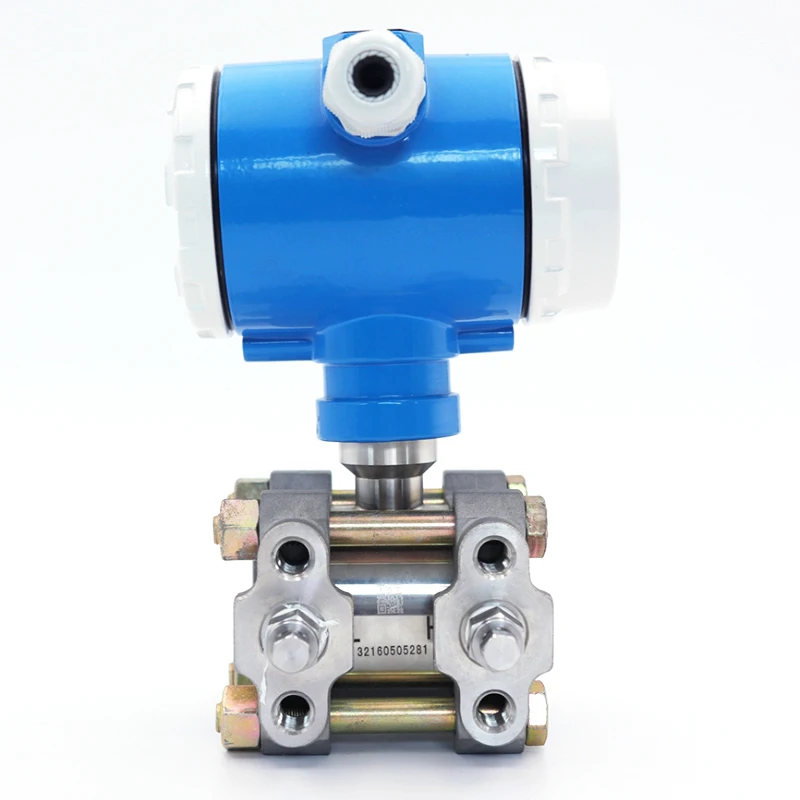

Высокоточный датчик дифференциального давления 4-20 мА для газового пара или жидкостей

Высокоточный датчик дифференциального давления 4-20 мА для газового пара или жидкостей

Категория товара: Pressure Transmitters >>>
Поставщик (Оптовый магазин): Hefei,Wnk,Smart,Technology,Co.,Ltd.

Цена:

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

High Accuracy 4-20mA Differential Pressure Transmitter For Gas Steam or Liquids

Specifications

Applicable media	liquid, gas and steam
Pressure range	1-300Kpa~300bar
Accuracy	0.075%, higher on request
Stability	±0.15% of URL for 5 years
Temperature drift	±0.03% of URL/10ºC
Output signals	4~20mA, Hart, Profibus-PA for option, FF per request
Display	LCD, or pointer optional
Housing material	Aluminum14
Mechanical connection	M20×1.5;G1/2;1/2NPT
Protection class	IP66/67
Ex-proof	Exia II CT4, other option per request
Power Supply	10.5-55V DC 10.5-30V DC
Ambient temperature	-40 to 85ºC,-40 to 80ºCfor LCD header
Storage temperature	-45 to 85ºC,-40 to 80ºC for LCD header ;
Measurement	*with display: 9512652 (mm)*
Measurement	*without display: 9511552 (mm)*
Net Weight	4kg (without bracket or process connection)

1. High accuracy: up to 0.075%FS;
2. Output: 4~20mA, Hart, Profibus-Pa
3. Excellent long-term stability: long-term drift ≤±0.15%URL for 5 years
4. Range ratio: 100: 1;
5. High Temperature Resistance: Highest temperature up to 280℃ with diaphragm sealing;
6. High Pressure Ability: Max Pressure up to 700bar.

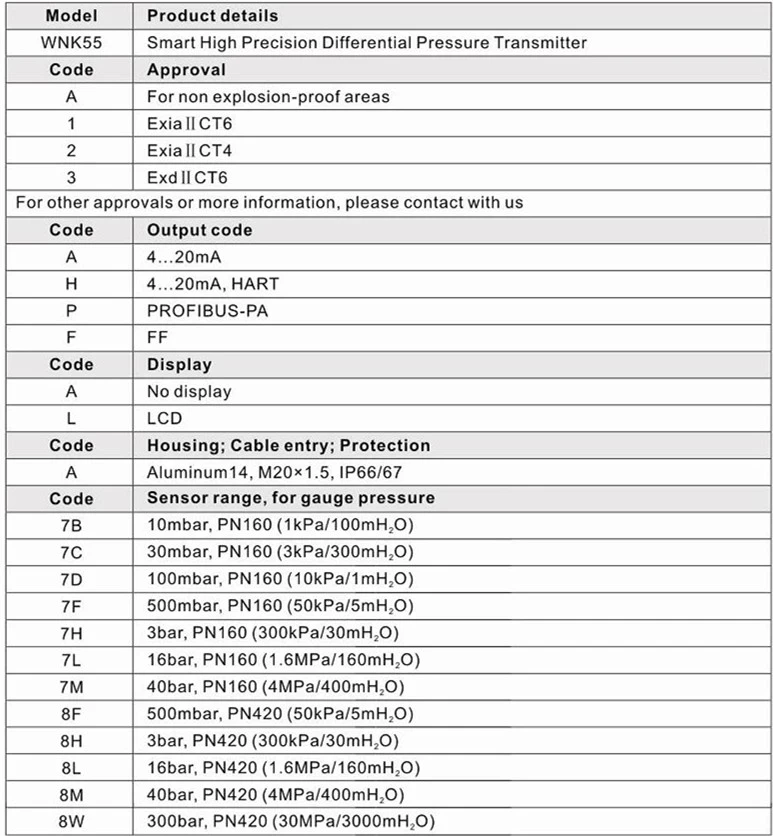

Ordering Sheet

55-ordering sheet-1.webp.jpg


Draws and Dimensions


About Us

about us

Packaging & Shipping

packaing

shipping

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
